Home / Elemento de cerâmica piezo

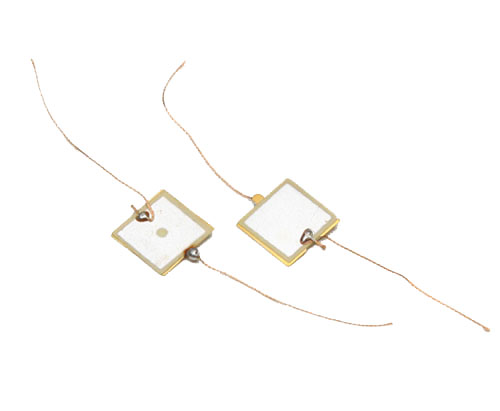

Elemento piezo de latão quadrado de 13milímetros com fio trançado

Elemento de cerâmica piezo FT-13T-10.0D3
  • Part No.: FT-13T-10.0D3

    Resonance Frequency (kHz) : 10.0±0.5

    Resonance Impedance(Ω)≤500

    Capacitance(pF) 30000±30%

    Dielectric Loss ≤5%

    Input Voltage (Vp-p) ≤30

    Operating Temperature(℃) -20~+70

    Storage Temperature(℃) -30~+80

    Metal Material Brass

    Metal Plate Diameter(mm) D=φ13±0.2

    Ceramic Disc Diameter(mm d=φ11±0.5

    Metal Plate Thickness(mm) t=0.2±0.02

    Total Thickness(mm) T=0.36±0.05

Descrição:

Elemento piezo de latão quadrado de 13milímetros com fio trançado

Fre(KHz):

10±0.5

Cp(±30%nf):

25

D:

Ø12.5

T:

0.1

FT-13T-10.0D3
  • FT-13T-10.0D3
  • FBelec piezoelectric ceramics solutions: Fbelec's piezoelectric ceramics have 20 years of production experience. They are directly supplied by the manufacturer, low current, high sound pressure, 13mm square double-sided welded passive piezo ceramic element, fully automatic production and quality assurance. They can use braided wire or PVC wire. The wire length can be customized, with low price and good quality. Good stability, mainly used in piezoelectric tweeter, sound, alarm, etc., to provide you with electronic component solutions. Welcome to the factory! Hope to cooperate with you for a long time and help you solve your problems!
