Home / Elemento de cerâmica piezo

diâmetro 31milímetros 2.0KHz dobradou piezo de latão

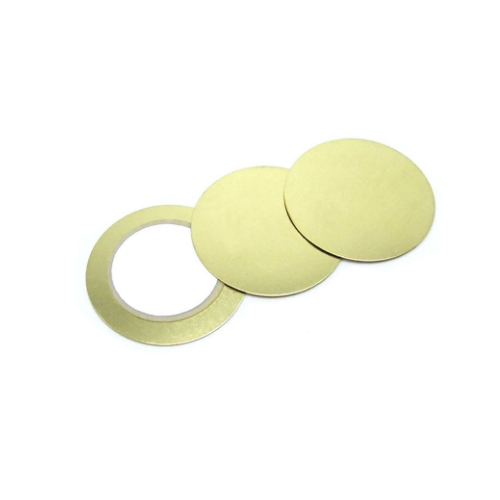

Elemento de cerâmica piezo FT-31T-2.0A1
  • Part No.: FT-31T-2.0A1

    Resonance Frequency (kHz) : 2.0±0.5

    Resonance Impedance(Ω)≤500

    Capacitance(pF) 30000±30%

    Dielectric Loss ≤5%

    Input Voltage (Vp-p) ≤30

    Operating Temperature(℃) -20~+70

    Storage Temperature(℃) -30~+80

    Metal Material Brass

    Metal Plate Diameter(mm) D=φ31±0.2

    Ceramic Disc Diameter(mm d=φ20±0.5

    Metal Plate Thickness(mm) t=0.23±0.02

    Total Thickness(mm) T=0.1±0.05

Descrição:

diâmetro 31milímetros 2.0KHz dobradou piezo de latão

Fre(KHz):

2.0±0.6

Cp(±30%nf):

40

D:

Ø20.0

T:

0.10

FT-31T-2.0A1
  • FT-31T-2.0A1
  • The size of FBelec's Piezo Round Bimorph Actuator are generally 8-50MM, and the specifications are 8, 9, 10, 11, 12, 13*13, 15, 18, 20, 21, 21.5, 23.5, 27, 30, 31, 32, 35 , 40, 41, 45, 50mm, Piezo Ceramic Bimorph

    The thickness of the Piezo Ceramic Generator is generally 0.08-0.6MM. The Piezoelectric Bimorph Sound Pickup is generally used for sound prompts, loud for tweeter alarms, as well as for driving insects and attracting animals, and ultra-thin for cutting-edge electronic products. There are also voice prompts, music, vibration sensors, noise sensors, piezoelectric transformers, drivers, piezoelectric pumps, and liquid pumps. FBelec is a leader in the domestic voice industry, welcome to contact us, Tel: 18868647636
