Home / Elemento de cerâmica piezo

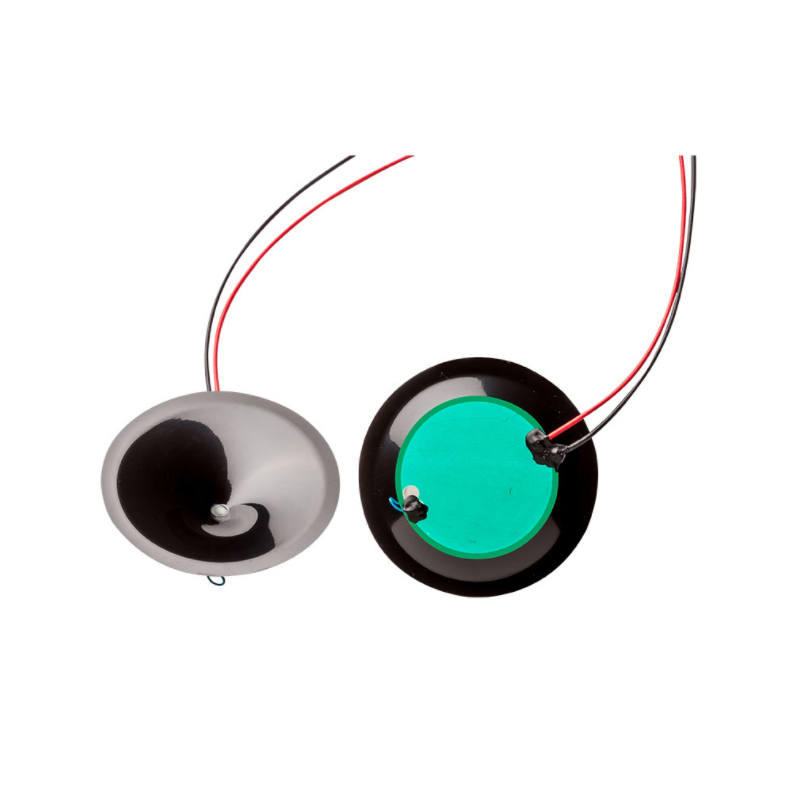

diâmetro 31.8milímetros elemento piezo de lado duplo verde com PVC preto

Elemento de cerâmica piezo FT-32T-PVC
  • Part No.: FT-32T-PVC

    Resonance Frequency (kHz) : 3.2±0.5

    Resonance Impedance(Ω)≤500

    Capacitance(pF) 30000±30%

    Dielectric Loss ≤5%

    Input Voltage (Vp-p) ≤30

    Operating Temperature(℃) -20~+70

    Storage Temperature(℃) -30~+80

    Metal Material Brass

    Metal Plate Diameter(mm) D=φ20±0.2

    Ceramic Disc Diameter(mm d=φ15±0.5

    Metal Plate Thickness(mm) t=0.1±0.02

    Total Thickness(mm) T=0.6±0.05

Descrição:

diâmetro 31.8milímetros elemento piezo de lado duplo verde com PVC preto

Fre(KHz):

3.2±0.5

Cp(±30%nf):

140

D:

Ø30.0

T:

0.1

FT-32T-PVC
  • FT-32T-PVC
  • FBelec supply below Piezo-Electric Diaphragm: Fbelec's conical PVC Piezo Ceramic Generator welding line products mainly include Φ 35mm、 Φ 39mm、 Φ 42mm、 Φ 48mm these four specifications of products, PVC paste concentric center, strong adhesion, the diaphragm is not easy to fall, spot welding and glue dispensing protection at the welding spot, which can be customized according to the needs of customers, buzzer for alarm, glue dispensing for welding line and PVC film The length of welding wire is 80mm, and the wire length can also be customized according to customer requirements. Concave membrane buzzer customization manufacturer
