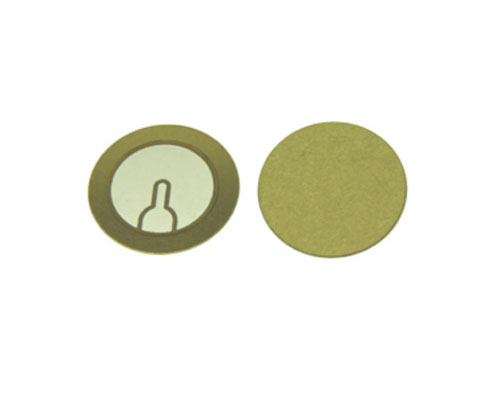

Elemento de cerâmica piezo FT-35T-2.8B1

    • Part No.: FT-35T-2.8B1

      Resonance Frequency (kHz) : 2.8±0.5

      Resonance Impedance（Ω）≤500

      Capacitance(pF) 30000±30%

      Dielectric Loss ≤5%

      Input Voltage (Vp-p) ≤30

      Operating Temperature(℃) -20~+70

      Storage Temperature(℃) -30~+80

      Metal Material Brass

      Metal Plate Diameter(mm) D=φ35±0.2

      Ceramic Disc Diameter(mm d=φ25±0.5

      Metal Plate Thickness(mm) t=0.3±0.02

      Total Thickness(mm) T=0.5±0.05

Fre(KHz):

2.8±0.5

Cp(±30%nf):

24

D:

Ø25.0

T:

0.30

FT-35T-2.8B1
  • FT-35T-2.8B1

  • The sound source of the piezoelectric buzzer sound element mainly comes from the piezoelectric vibrating plate.

    The piezoelectric vibrating plate is composed of a piezoelectric ceramic plate with electrodes printed on both sides and a metal plate (brass or stainless steel, etc.).

    Use an adhesive to bond the piezoelectric vibrating plate and the metal sheet together, which is what we commonly call the buzzer sheet.
