Home / Elemento de cerâmica piezo

diâmetro 41mm 1.0KHZ dobradores piezoelétricos de latão de frequência

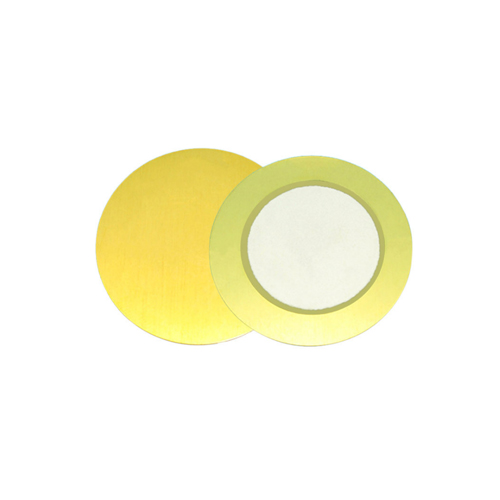

Elemento de cerâmica piezo FT-41T-1.0A1
  • Part No.: FT-41T-1.0A1

    Resonance Frequency (kHz) : 1.0±0.5

    Resonance Impedance(Ω)≤500

    Capacitance(pF) 30000±30%

    Dielectric Loss ≤5%

    Input Voltage (Vp-p) ≤30

    Operating Temperature(℃) -20~+70

    Storage Temperature(℃) -30~+80

    Metal Material Brass

    Metal Plate Diameter(mm) D=φ41±0.2

    Ceramic Disc Diameter(mm d=φ25±0.5

    Metal Plate Thickness(mm) t=0.1±0.02

    Total Thickness(mm) T=0.23±0.05

Description:

diâmetro 41mm 1.0KHZ dobradores piezoelétricos de latão de frequência

Fr(KHz):

1.0±0.3

Cp(±30%nf):

70

D:

Ø25.0

T:

0.10

FT-41T-1.0A1
  • FT-41T-1.0A1
  • Common problems of piezoelectric diaphragms:

    Today, let's talk about the common quality problems of buzzer films, so as to facilitate your purchase and distinguish the quality.

    1. Part of ceramic disc of buzzer film falls off:

    First: there is a problem with the glue of buzzer tablet. The glue quality is poor or the amount of epoxy resin adhesive is not enough

    Second: copper or steel sheet, nickel alloy sheet bending deformation.

    Third: when the ceramic sheet and substrate are bonded, the curing temperature and time are not enough or too much.

    2. piezoelectric ceramic disks has no sound:

    First: piezoelectric ceramic vibrating plate (silver plate) is not polarized

    Second: the piezoelectric ceramic vibrating plate (silver plate) is dark cracked, and the positive / negative pole of the silver plate is short circuited.

    Third: the piezoelectric ceramic vibrating plate (silver plate) is not bonded and cured well with the metal plates.

    FBelec avoid above problem in order to guarantee the quality for customers.
