Type and application of RJ45 connector
2022-12-10
  • RJ45 connectors often appear in our lives. The network cables, routers and switches used by our computers for network connection are all connected through RJ45 connectors for communication. How many types of RJ45 interfaces do you know? So how much do you know about the types of RJ45 interfaces? Today, FBelec will introduce you to the types of RJ45 interfaces, so that you can have a deeper understanding of RJ45 connectors.

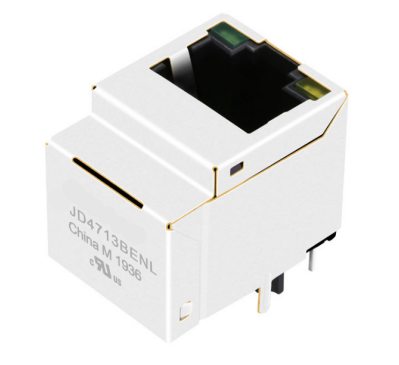

    Most RJ connectors are RJ45 connectors for Ethernet connection. 8P8C can connect 4 pairs of twisted pairs, 12mm wide, which is wider than RJ11 series. RJ45 connector is sometimes used for telephone or RS232 connection, and also used to transmit VGA video signal.




  • The universal telephone connector belongs to RJ11. At the beginning, it was the common name of a connector developed by an American company. It was originally named WExW, with a 6-pin shape. WE6W uses all 6 contacts, while WE2W only uses the middle two pins. Later, it became one of RJ series connectors.

    RJ11, RJ14 and RJ25 are of the same series, with the same size and width of 9.5mm, but the number of contacts is different. RJ11 has only one pair of contacts in the middle, which can be connected to a pair of lines, which is represented as 6P2C (six position, two conductor); RJ14 uses 4 middle contacts, which can connect 2 pairs of wires, which is represented as 6P4C; RJ5 uses all 6 contacts and can connect 3 pairs of wires, which is represented as 6P6C.



  • Sometimes this connector can also be used to provide low-voltage low-power power supply (AC or DC), usually PIN2 and PIN5 (black wire and yellow wire). RJ11 is generally used as the general name of the 9.5mm series, and RJ11-6P2C, RJ11-6P4C and RJ11-6P6C are used to distinguish the number of contacts. A connector is also used in the telephone to connect the telephone and the handle, which is called 4P4C (also called RJ22, and forms a series with RJ9 and RJ10). It has four contacts, 7.5mm wide and smaller than RJ11 feet.

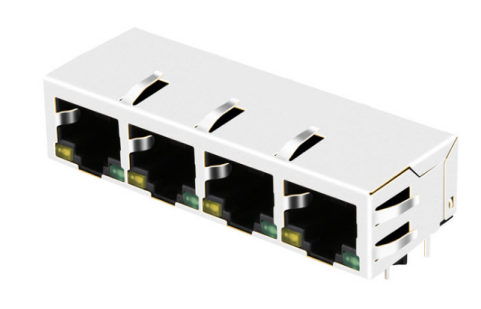

    There is also an 8P8C connector called RJ61, which is used to connect twisted pairs. Because the two wires of the third and fourth twisted pairs in this line sequence are far apart, they will cause large crosstalk, which is not suitable for the transmission of high frequency signals such as Ethernet. There is also an RJ48 connector, also called 8P8C, which can be used to connect four pairs of T1 data links. Each pair of lines can transmit 23 TDM sessions.



  • FBelec is a high-tech enterprise specializing in the design and sales of communication network connectors. The company adheres to the quality policy of "excellent quality, continuous innovation, honest operation, and sustainable development", and adheres to the business philosophy of "market-oriented, talent based, technology centered, and quality based". It is committed to building a well-known brand in the precision connector industry, and providing high-quality services to customers, It is one of the famous professional manufacturers of computer and communication connectors at home and abroad.

    The products are widely used in xDSL broadband communication equipment, network switches, hubs, network cards and other network communication equipment, IP telephone systems, power line networking equipment, etc.
