Water Proof Connector

Picture	Manufacturer No.	Voltage	Rated Current	Insulator Material	Description	Datasheet	Order
	FBWPC-01	250V,60V,30V	2A,4A	zinc alloy	M12 Waterproof Aviation Plug and Socket Sensor-4 Cores / 5 Pins / 8 Holes / Flange Male and Female 16mm Connector		Send Order

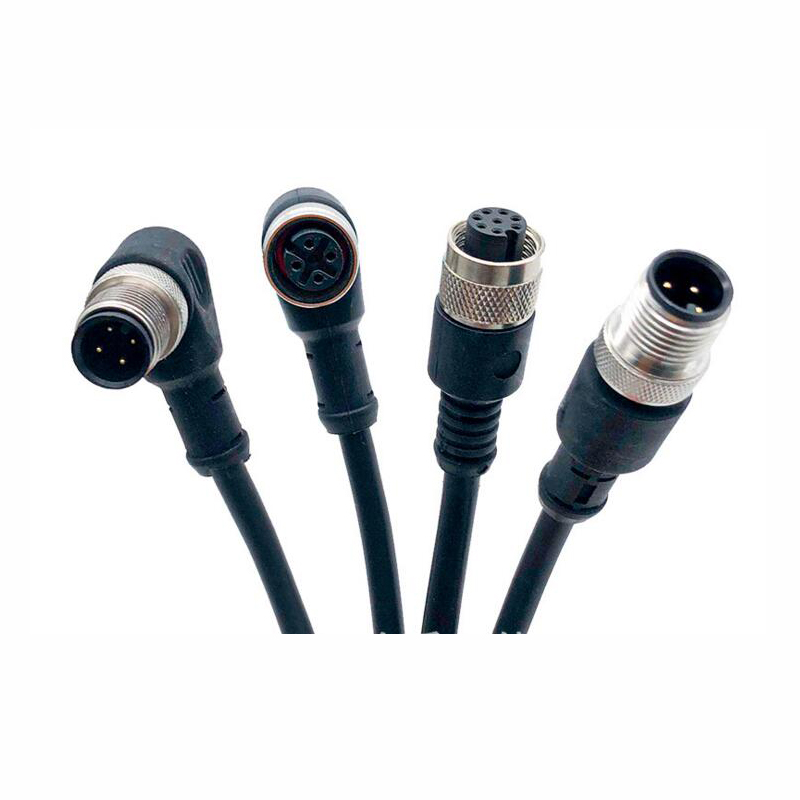

	FBWPC-02	250V,60V	2A,4A	PVC/PUR	M12 aviation plug with wire waterproof industrial plug connector sensor 4-pin/5-hole 8-core 12-core with 2 meter wire		Send Order
	FBWPC-03	200V	4A	bakelite	12G waterproof aviation plug welding plate through the wall type 2/3/4/5/6/7 core hole 12MM waterproof IP67 connector		Send Order
	FBWPC-04	250V,60V,30V	2A,4A	Brass nickel plated	M12 aviation plug socket-4 core 5 core 8 core 12 core all metal fully shielded male PG9 sensor connector		Send Order

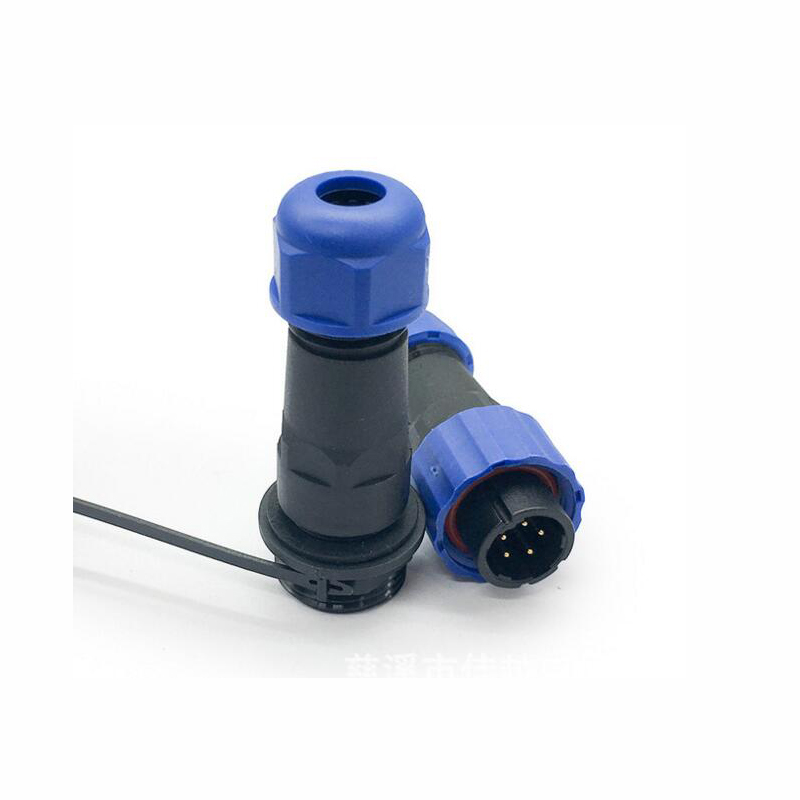

	FBWPC-05	250V,60V,30V	2A,4A	PA	M12 waterproof welding-free aviation plug socket sensor-4 core 5 core 8 core 12 core straight PG7/9 connector		Send Order
	FBWPC-06	200V	8A	bakelite	12G waterproof aviation plug -2 core 3 pin 4 hole 5 core/6/7 core hole 12MM waterproof grade IP67 connector		Send Order

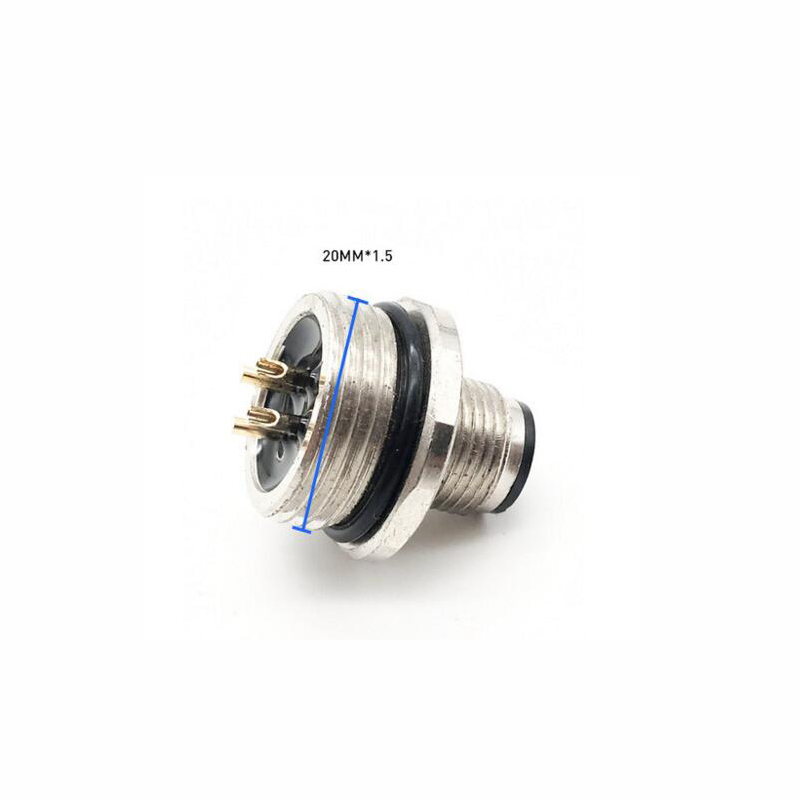

	FBWPC-07	250V,60V,30V	2A,4A	zinc alloy	M12 aviation plug socket waterproof IP67 flange seat opening 20MM1.5 large size plastic injection injection male and female seat		Send Order
	FBWPC-08	250V,60V,30V	2A,4A	zinc alloy	M12 aviation plug sensor 4 pin/5 hole/8/12 core flange male and female seat 12M rear nut fixed connector		Send Order
	FBWPC-09	250V,60V,30V	2A,4A	PA	M12 waterproof aviation plug socket gravity sensor 4-pin/5-hole/8-pin 12T elbow PG7/PG9 connector		Send Order

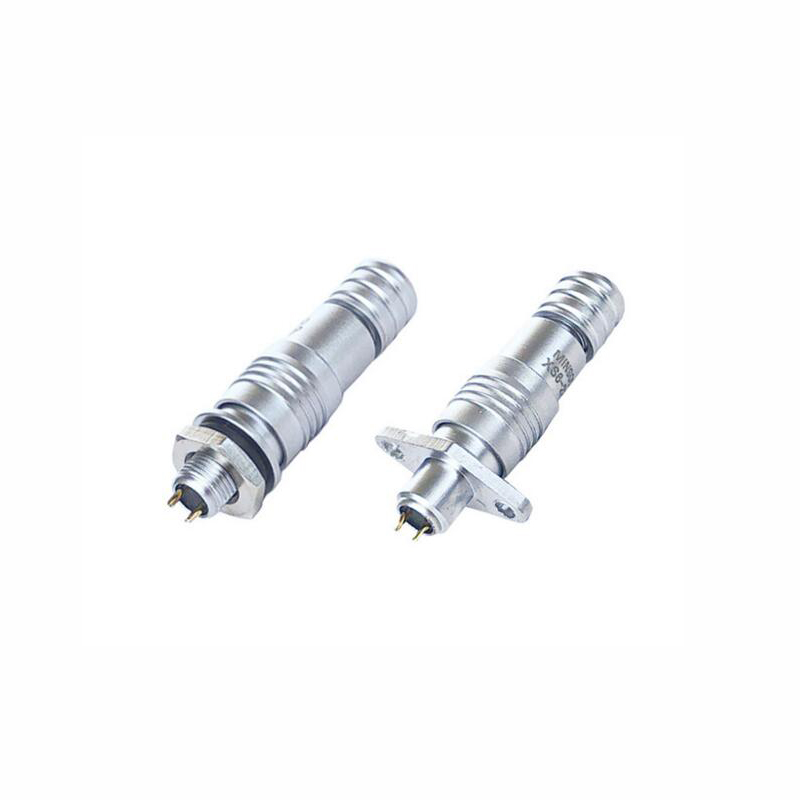

	FBWPC-10	60V	3A	zinc alloy	M8 waterproof aviation plug socket metal 3-core 4-core sensor male plug-in female plug-in IP67 connector shielding		Send Order
	FBWPC-11	60V	3A	PA	M8 waterproof IP67 aviation plug socket 3-pin 4-hole 3-pin small male and female connector sensor with cable 2 meters		Send Order
	FBWPC-12	60V	3A	PA	M8 waterproof aviation plug socket small elbow sensor-3 core 4 pin 3 hole plug-in IP67 right angle connector		Send Order
	FBWPC-13	60V	3A	zinc alloy	M8 flange socket with line 10CM waterproof aviation plug socket sensor plug 3-pin/4-pin connector 8mm		Send Order
	FBWPC-14	60V	3A	PA	M8 waterproof IP67 aviation plug socket small sensor connector -3P4-pin 3-pin 4-hole sensor connector		Send Order

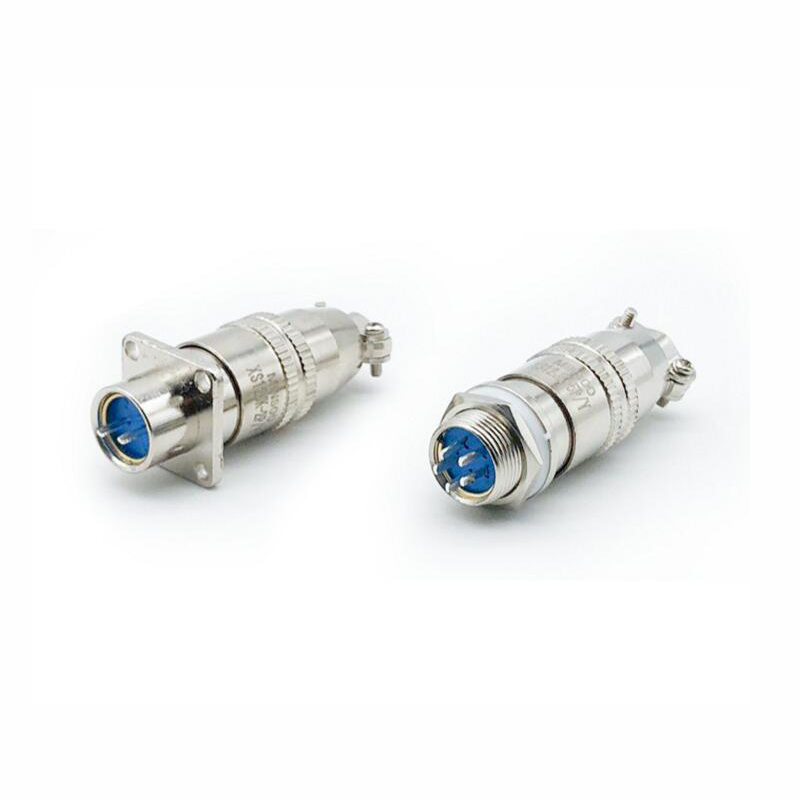

	FBWPC-15	250V	3A	Copper plated with silver	XS16 aviation plug socket-2 cores 3 cores 4 cores 5 cores 6 cores 7 cores/9 fast push-pull square/round zinc alloy		Send Order
	FBWPC-16	250V	3A	Engineering Plastic	XS8 aviation plug socket -2 core 3 core 4 core push-pull small connector connector opening 8MM quick plug		Send Order
	FBWPC-17	30V	3.5A	Copper gold plated	XS6 small miniature aviation plug socket XS6-2345 core YC6 ultra-small precision medical device connector		Send Order
	FBWPC-18	250V	3A	Copper plated with silver	XS12 aviation plug socket-2 core 3-core 4P5/67-hole needle square/round connector 12mm quick push-pull type		Send Order
	FBWPC-19	30V	3.5A	Copper gold plated	YC8 aviation plug socket-2 pin 3456/7 pin push-pull opening 8MM quick plug precision medical connector		Send Order

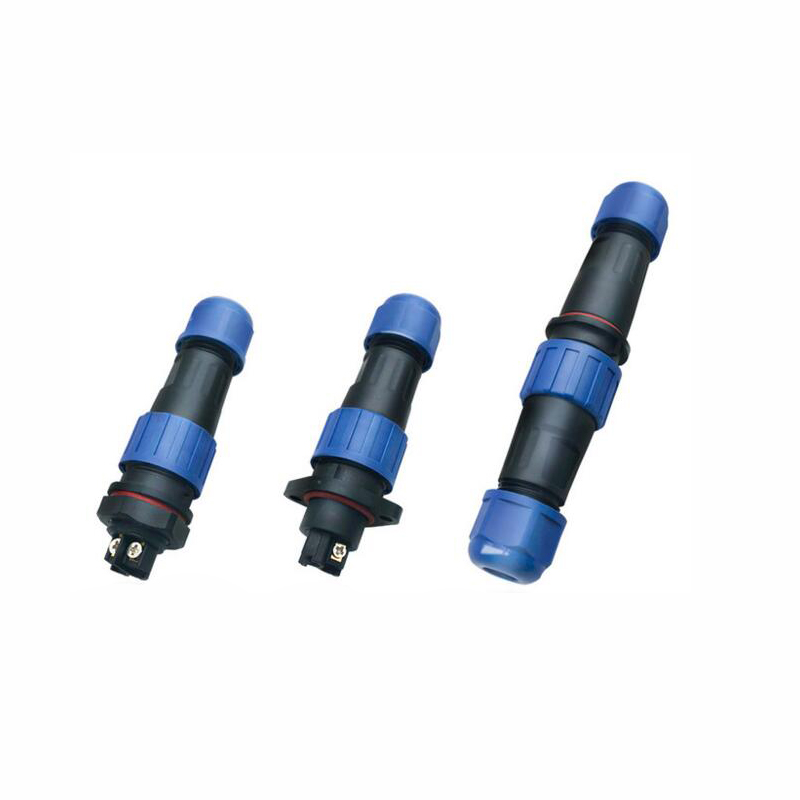

	FBWPC-20	250V	5A,10A	Plastic	SD16 waterproof aviation plug socket docking-2 core 3 core 4 core 5 core 6 core 7 core 9 core diameter 16MM connector		Send Order
	FBWPC-21	250V	5A,10A,25A	Plastic	SD20 waterproof IP68 aviation plug socket rear nut free welding-2 core 3 pin 4 hole 57912 connector M20		Send Order
	FBWPC-22	250V	5A,10A,25A	Plastic	SD20 waterproof IP68 aviation plug socket docking-2 pin 3 hole 4579 core 12 core connector M20 free welding		Send Order
	FBWPC-23	380V	5A,10A,25A	Copper gold plated	LD16 aviation plug socket waterproof IP68 dustproof welding-free screw crimping butt diamond 2/34 core 16MM		Send Order
	FBWPC-24	125V	4A,5A,7A	Copper plated with silver	GX16 aviation plug socket-2 pin 3 hole 4 core 5T6 core 7 core 8 core 9 core 10 power connector opening 16MM		Send Order
	FBWPC-25	200-800V	2-20A	Brass chrome plating	B series FGG/EGG docking connector, round metal connector, push-pull connection type aerial plug		Send Order
	FBWPC-26	500V	10A,25A	Rubber	Supply CSPJL5 docking connector, aviation plug-in, aviation plug, cable connector		Send Order
	FBWPC-27	500V,250V,175V,150V	10A,25A,50A,100A	PBT	CSP aerial plug PB20 waterproof connector, threaded aerial plug, aerial plug. Elbow		Send Order
	FBWPC-28	/	/	PBT	Supply CSP P16/P20 connector aviation plug, screw connection type aviation plug		Send Order

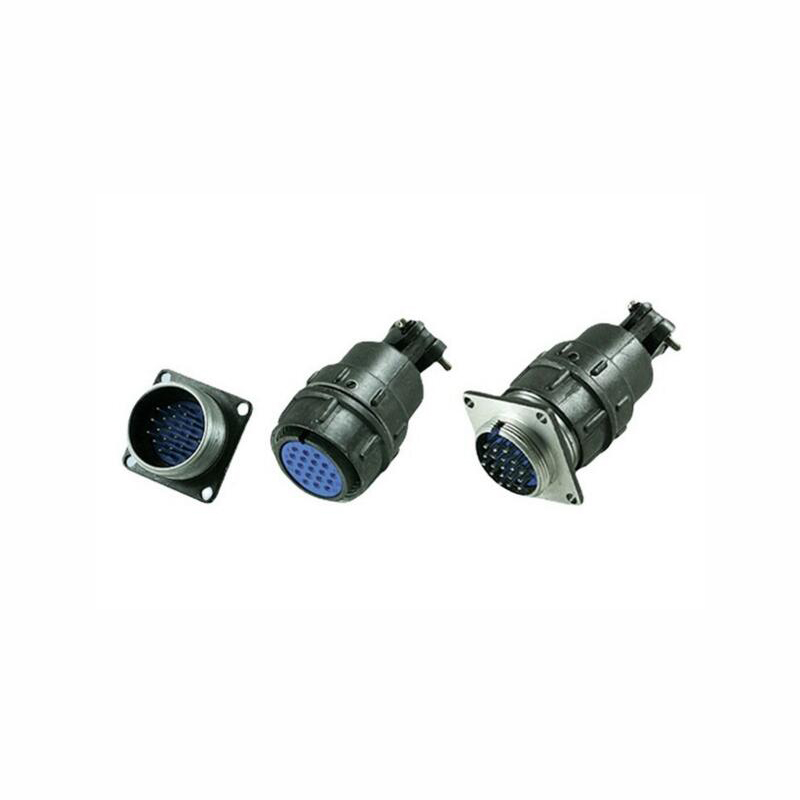

	FBWPC-29	500V,700V	13A,23A,46A,80A,150A	PPS	MS 5015 U.S. military standard aviation connector/electrical connector/connector, CSP/factory direct sales		Send Order
	FBWPC-30	/	5A	PBT	CSP CX16, CX2 4 connector aviation plug, screw connection type aviation plug. Factory direct sales		Send Order
	FBWPC-31	125V	5A	Rubber	Supply XM16 waterproof connector/waterproof aviation plug/round plug, CSP		Send Order

• Waterproof Connector


  waterproof connector is a connector that can be applied to environments with water and can ensure the normal use of its internal mechanical and electrical properties under certain water pressure conditions.




  Water proof connectors can be applied to the environment with water. Under certain water pressure, the internal mechanical and electrical properties of the connector can be guaranteed to be used normally. In industrial environments, such as LED lighting, urban outdoor lighting projects, lighthouses, cruise ships, aviation, industrial equipment, cables, sprinklers, etc. Due to stricter application requirements in the military field, a large number of waterproof connectors are used, such as connectors for submarines and connectors for submarine-launched missiles.

•

•


  The waterproof connector consists of detachable plugs and sockets. The plug and socket are both located within a cylindrical metal or plastic casing. When connecting, the shell can be connected together with a threaded, mouth, or push-pull external karaoke type connecting ring. The socket is embedded in a plastic or glass insulation material (sealed type) mounting board, and the conductor inside the plug is a cylindrical pin embedded in the insulation material mounting board. The contact termination methods include welding or crimping; The installation board has multiple contact hole arrangements, and the number of pins depends on the connector specifications (current transmission capacity), working voltage, and multiple positioning methods to prevent accidental insertion.





• Components of waterproof connectors

  The conductors inside the connector are usually made of copper or gold, with gold or tin plating on the surface. The installation panel materials are determined based on performance requirements, often including nylon, sulfone, carbonate, S, poly (ABDAP), formaldehyde plastics, phenolic melamine formaldehyde resin, acid resin, and epoxy resin methanol. High quality aluminum alloy is commonly used for the shell, and high stainless steel is used for application. In industrial applications, plastic shells are also used.




  The cylindrical structure of waterproof sockets has natural durability and a higher strength to weight ratio than any other shape. It is easy to machine with standard machine tools, easy to seal, easy to insert and remove, and has a simple and sturdy locking and plugging structure. Therefore, in situations where multiple contact connectors are required to achieve interconnection between components and cables, and between cables, waterproof connectors are the first choice.




  Waterproof connectors are mainly used in military and aviation electronic equipment, and the demand for equipment is the main driving force for the development of waterproof connector technology and market. The 1960s and 1970s were its heyday of development. In the United States, circular military connectors account for over 80% of the total waterproof connector market, behind rectangular connectors

•

•


  Types of Waterproof connector

  Waterproof connector is a type of connector with waterproof function, commonly used in outdoor equipment, automobiles, aerospace and other fields to ensure the waterproof performance and service life of the connector. According to different classification methods, waterproof connectors can be divided into the following categories:




  Classification based on usage environment: Waterproof connectors can be divided into indoor waterproof connectors and outdoor waterproof connectors according to different usage environments. Indoor waterproof connectors are commonly used for household appliances such as washing machines, water heaters, and refrigerators; Outdoor waterproof connectors are commonly used in automobiles, ships, airplanes, motorcycles, and outdoor equipment.




  According to the connection method: waterproof connectors can be classified into plug type waterproof connectors and socket type waterproof connectors. Plug in waterproof connectors are used to connect two cables, while socket waterproof connectors are used to connect cables to electrical equipment.




  According to waterproof level classification: Waterproof connectors can be classified into different levels based on their waterproof level, such as IPX1, IPX2, IPX3, IPX4, and IPX5.




  According to material classification: Waterproof connectors can be divided into metal waterproof connectors and plastic waterproof connectors based on different materials. Metal waterproof connectors typically have better mechanical performance and higher temperature tolerance, making them suitable for harsh environments; Plastic waterproof connectors are more suitable for milder environments.




  In short, there are various ways to classify waterproof connectors, and choosing the appropriate waterproof connector according to different needs can better meet the usage requirements.




• FBelec as one of the leading
  waterproof connector manufacturers in China

  Please feel free to buy customized waterproof connector at competitive price from our factory. Good service and quality products are available.

  GET QUOTE NOW
