Door Switch for Refrigerator

Picture	Manufacturer No.	Rating	Description	Datasheet	Order
	RDS-07	0.5A 250VAC	Factory supply 4A 250V no nc door contact door lamp switch for refrigerator		Send Order
	RDS-09	0.5A 250VAC	Long Life Time Refrigerator Door Switch LTK, Refrigerator Spare Parts		Send Order
	RDS-14	0.5A 250VAC	Refrigerator Switch / Door lamp switch / Switch for door lamp		Send Order
	RDS-15	0.5A 250VAC	SAMSUNG WHIRLPOOL DOOR SWITCH DA34-10122C Refrigerator Door Switch		Send Order
	RDS-19	0.5A 250VAC	0.25A 250VAC 0.5A 24VDC Home Appliances Microwave Oven Disinfection Cabinet Refrigerator Door Switch		Send Order

• Door Switch for Refrigerator

  Refrigerator door switches are essential electric contact devices designed to open and close circuits, typically mounted on a door frame and activated by the door’s movement. These switches play a crucial role in various applications, ensuring circuits are only completed when necessary. They are especially prevalent in refrigerators, where they sense the opening of both freezing and fresh food compartments. Our door switches are known for their reliable operation, energy efficiency, and enhanced safety, making them ideal for a range of uses.




  Built to withstand frequent use and environmental factors, our Fridge door switch offer high sensitivity, quickly and accurately detecting door movements. They are easy to install, requiring no complex tools or procedures, and are constructed from high-quality materials to ensure long-lasting performance. Beyond refrigerators, these switches are used in home appliances to enhance functionality and efficiency, in automotive doors to control interior lights and systems, and in industrial equipment for safety and operational control.




  Choosing our Appliance parts means opting for consistent performance and reliability. Whether you are a manufacturer, technician, or procurement professional, our products provide a dependable solution for ensuring circuits are effectively managed by door movements. For more information or to place an order, please contact our sales team or visit our website. We are dedicated to providing top-quality components and exceptional customer support.




  There are three switches in the refrigerator, namely the refrigerator door switch, the temperature control switch, and the compensation switch.





  Elfevidently, the temperature control switch is used to adjust and set the environment temperature. When the indoor temperature is too low, the refrigerator can not start to melt the food, compensation switch will work so that the thermostat can start and stop normally.




  Another is the refrigerated lighting switch, also called the refrigerator door switch which automatically turns “ON” and “OFF” as the door is opened.

•

•


• There are generally three switches in the refrigerator, namely the temperature control switch, the compensation switch, and the refrigerator lighting switch. The temperature control switch is used to adjust and set the cooling temperature. Compensation switch, when the indoor temperature is too low, the refrigerator does not start to melt the food, turn on this switch so that the thermostat can start and stop normally. Another is the refrigerated lighting switch, which automatically turns on and off as the door is opened. Some refrigerators do not have a compensation switch.

  FBelec is your first choice, welcome to consult now.

• Where to buy refrigerator door switch

  FBelec as a switch manufacturer can supply all kinds of switches
  such as the door switch, microswitch, push button switch, power switch, and so on.
  And our RDS door switch all can use in the refrigerator
  welcome to contact us to see the switch you need to buy. Thank you very much.

  ORDER NOW

•


  Q&A questions you need to know




  What is door switch in refrigerator?

  The door switch in the refrigerator is used to activate the light when the door is opened and turn off the light when the door is closed.

  So, the SPDT and SPST Normally Closed(NC) types are suitable for it but the SPDT type needs to make sure one of connecting points is connected with the NC terminal.

  Meanwhile, some designs will connect with the NO for other functional requirements.




  Where is refrigerator light switch

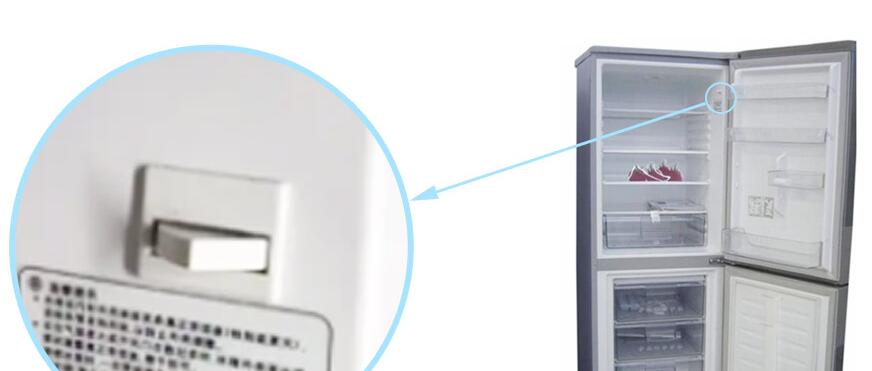

  We can see obviously the switch when opening the door, like the attached picture, if you are not sure you can pressure it to see if the light becomes OFF. If yes, which is the light switch you are looking for.




  How to test refrigerator door switch

  Generally, we can test a switch with a multimeter but it is not convenient for the housewife or a man without a multimeter. So, you can use a battery and an indicator light to know if the switch can work or not.




  How to replace refrigerator door switch

  Firstly, remove the Freezer door switch

  Secondly, remove the connector from the switch terminal

  Thirdly, link the connector with the new switch

  Fourthly, press it in the original position

  Finally, use the hand to press the actuator to test if the light can work or not.

  But different brands have different construction, the way replaces also a little bit different.
