Emergency Stop Switch

Picture	Manufacturer No.	Button Color	mounting dimension	Insulation Voltage	Description	Datasheet	Order
	FBESS-01	Red+Green	22mm	600V	Push Button Switch Self-locking Knob Switch With Two Or Three Gears Two Position Selector Rotary Switch		Send Order

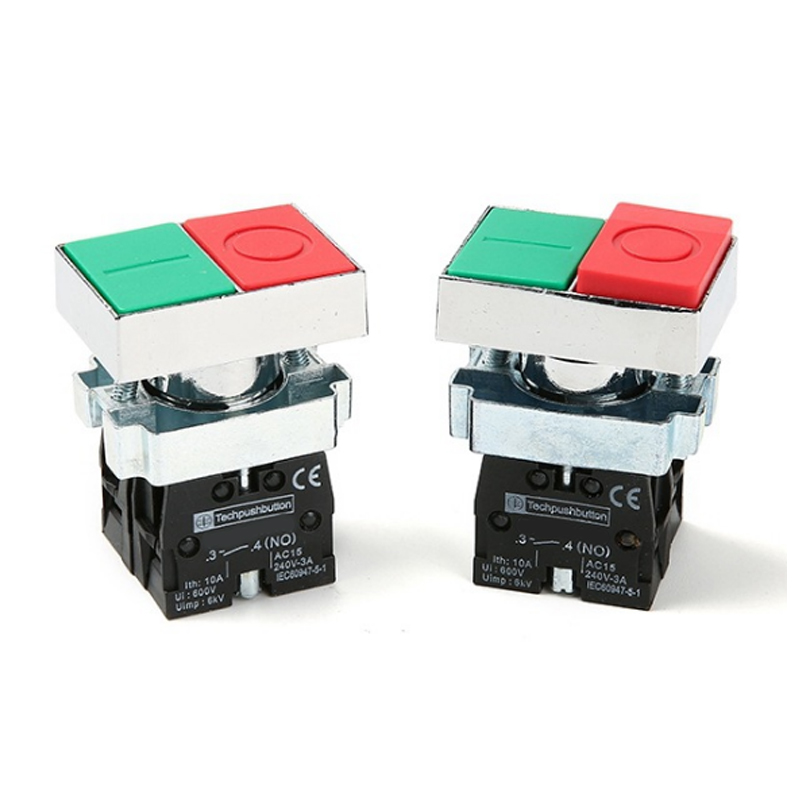

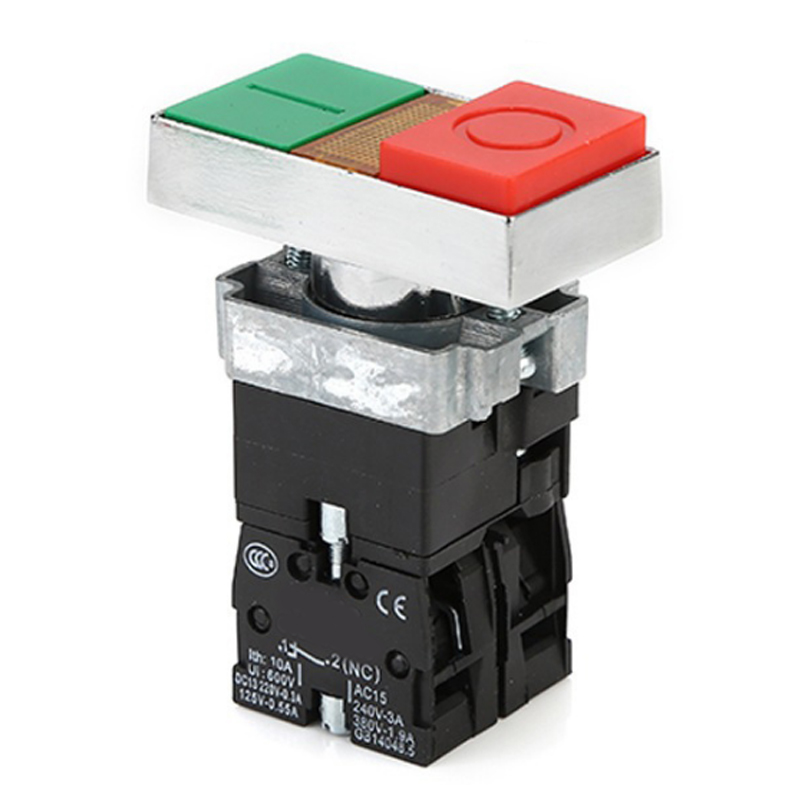

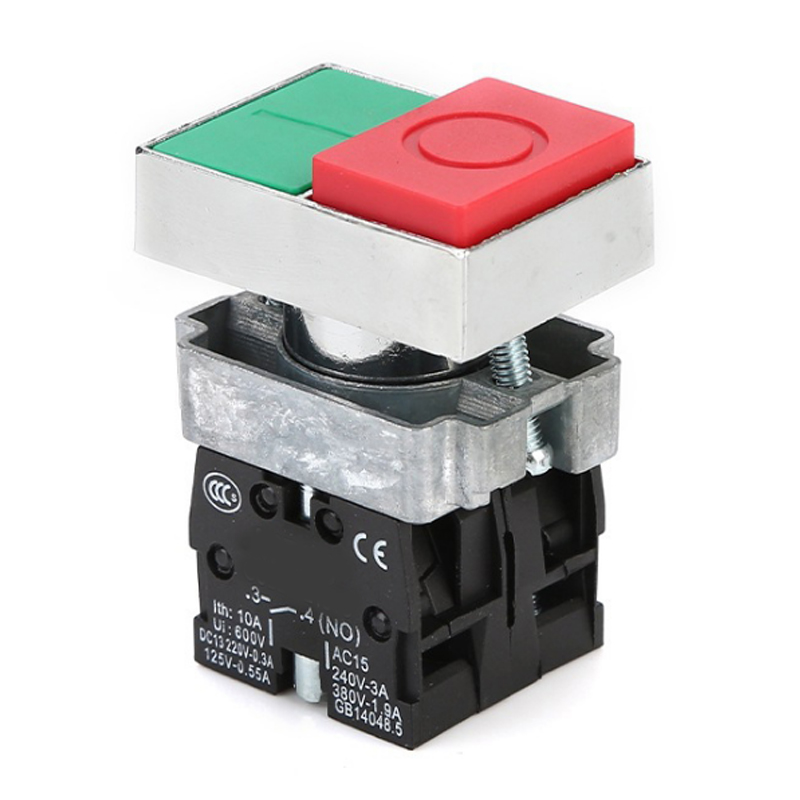

	FBESS-02	Red+Green	22mm	600V	Double button aluminum zinc thickened copper silver point start stop double button switch wholesale customization		Send Order

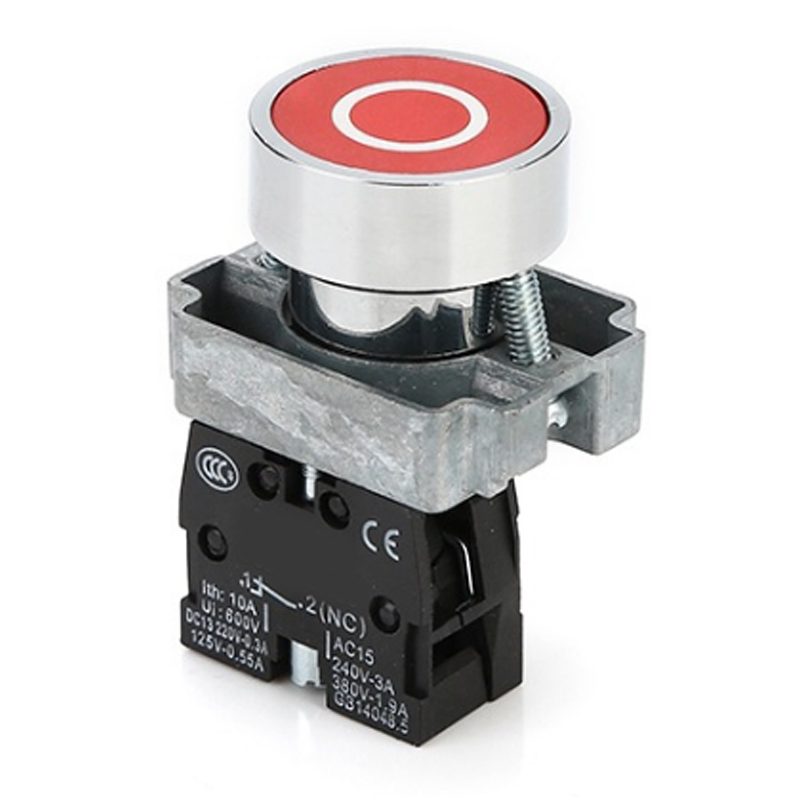

	FBESS-03	Red	22mm	600V	Push Button Switch Hot Selling Metal Waterproof Double Position Push Button With Light		Send Order

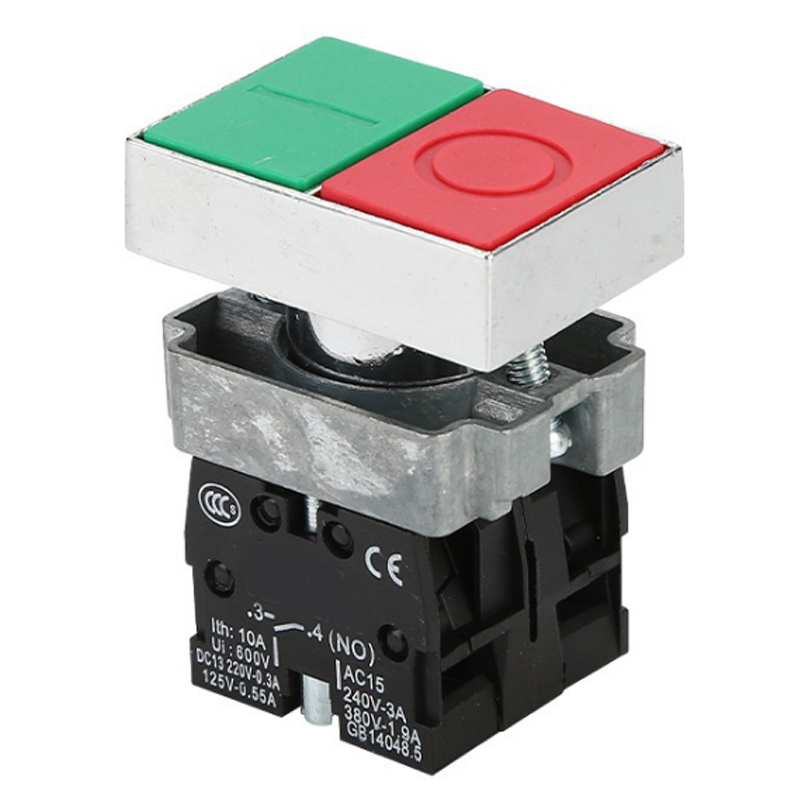

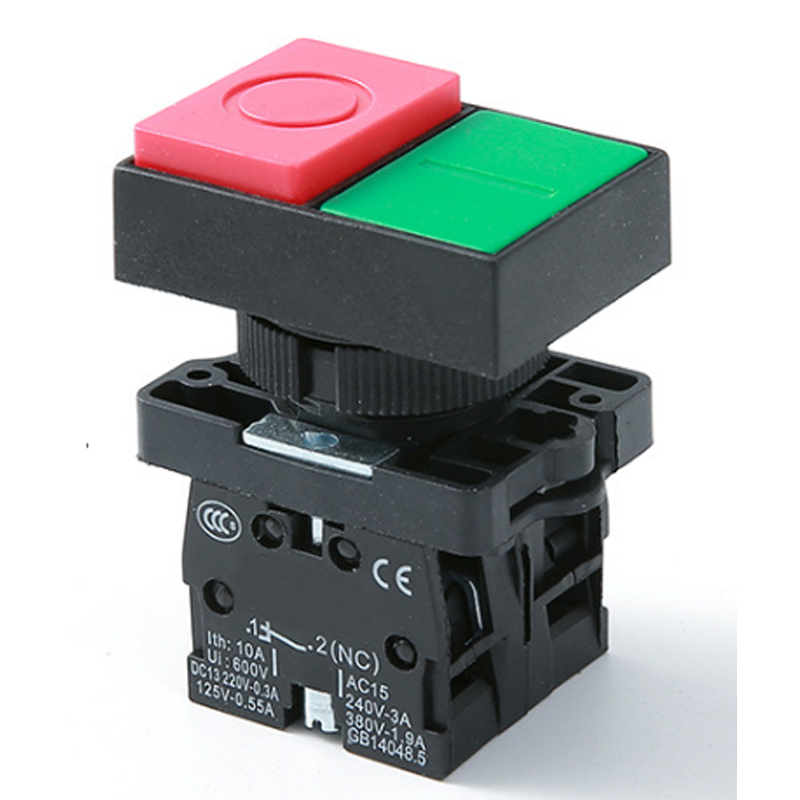

	FBESS-04	Red+Green	22mm	600V	Red and green double button start stop aluminum zinc thickened copper silver point double button		Send Order

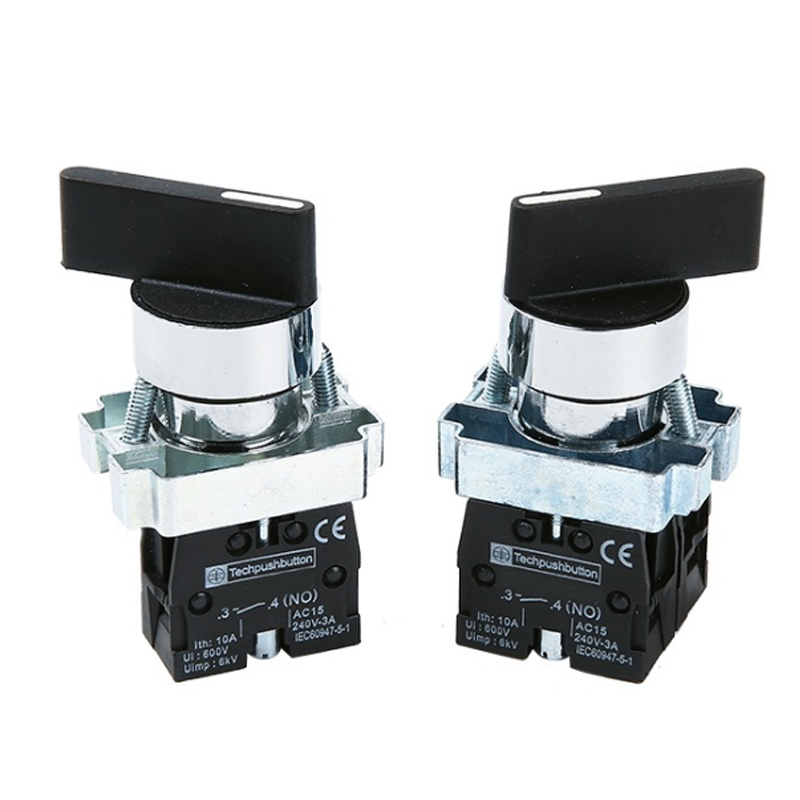

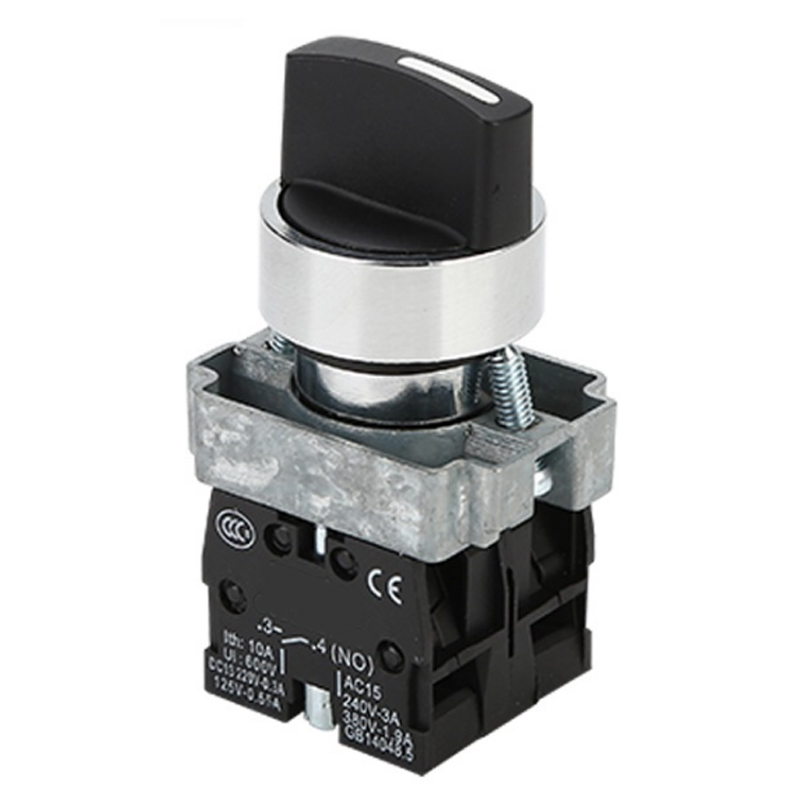

	FBESS-05	Black	22mm	600V	Two gear switch with key knob selection aluminum zinc thickened copper silver point power transfer switch		Send Order

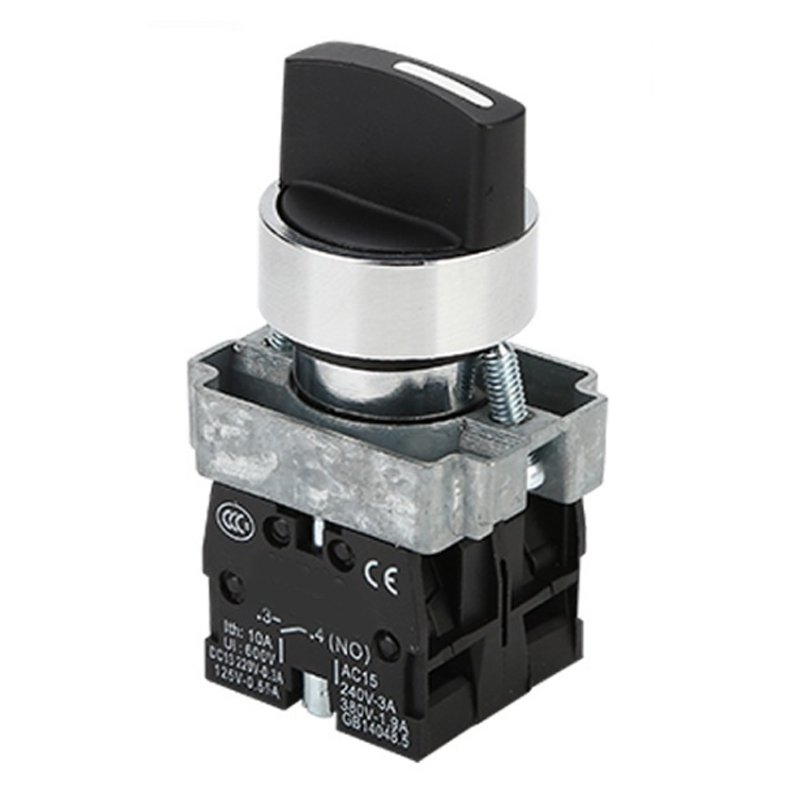

	FBESS-06	Black	22mm	600V	Knob switch manufacturer aluminum zinc thickened copper parts silver point industrial machinery knob switch processing customization		Send Order
	FBESS-07	Red+Green	22mm	600V	Double key button switch with lamp aluminum zinc thickened copper silver point equipment double key button switch		Send Order
	FBESS-08	Red/Green/Blue/White/Yellow	22mm	600V	600V 10A Control Switch Smart 22mm illuminated Push Button		Send Order
	FBESS-09	Red/Green/Blue/White/Yellow	22mm	600V	22mm momentary push button switch power start stop self-resetting the circular flat head symbol switch		Send Order
	FBESS-10	Red/Green/Blue/White/Yellow	22mm	600V	220 volt waterproof control industrial push button switch on off press button		Send Order

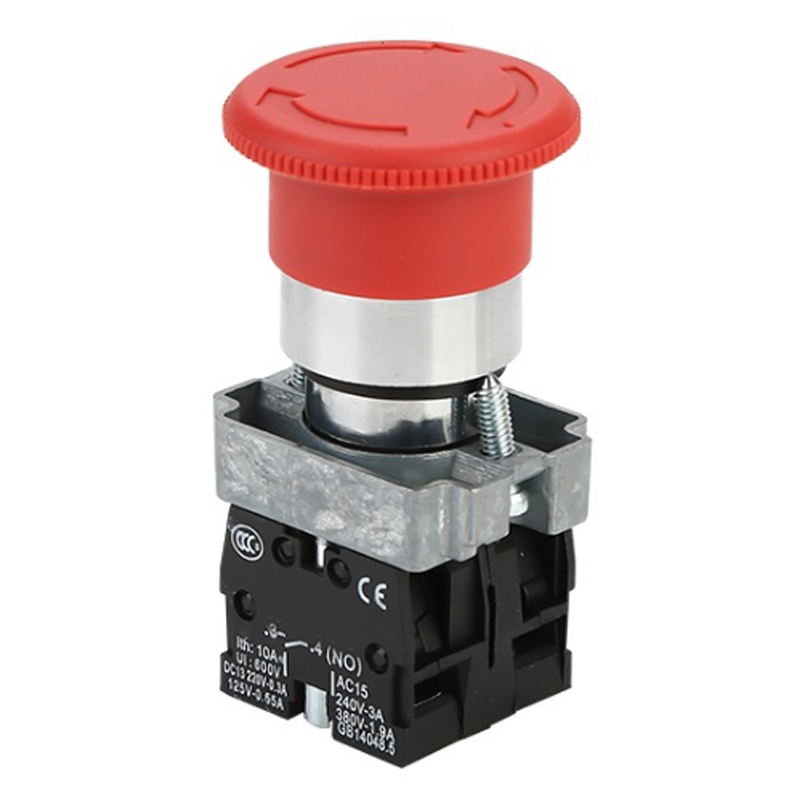

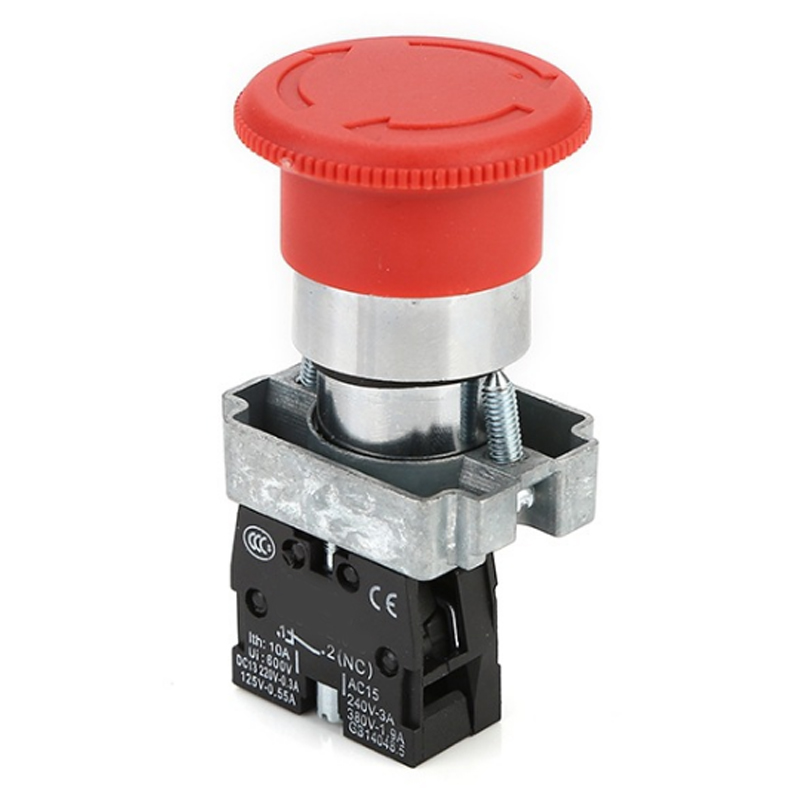

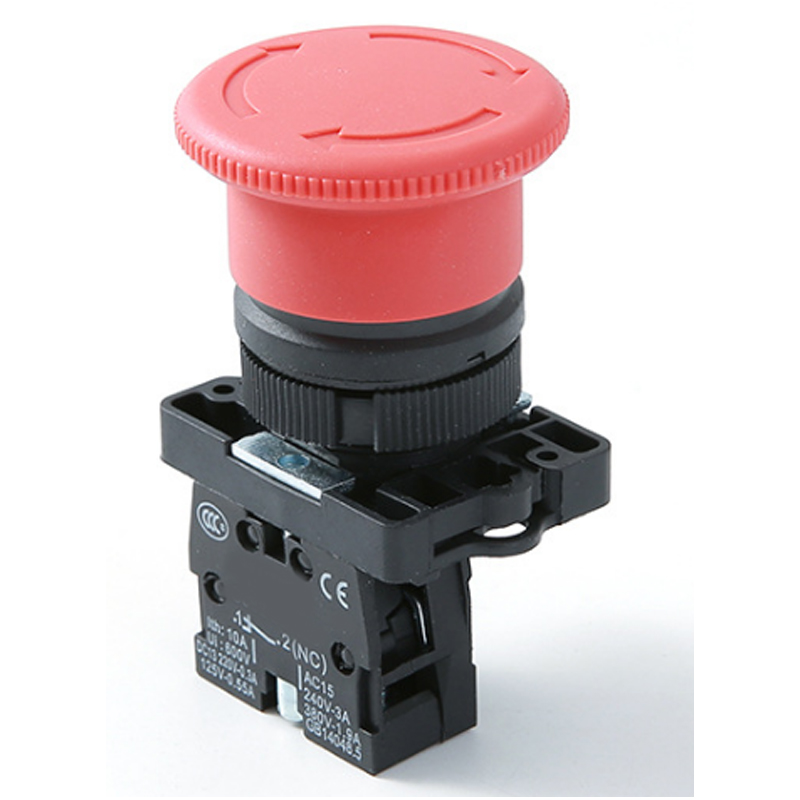

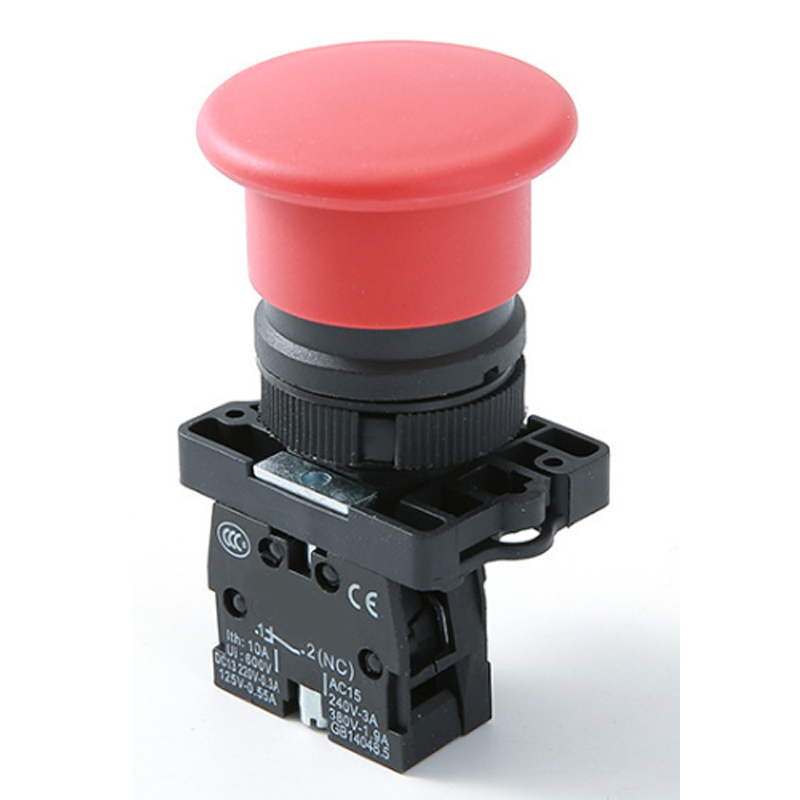

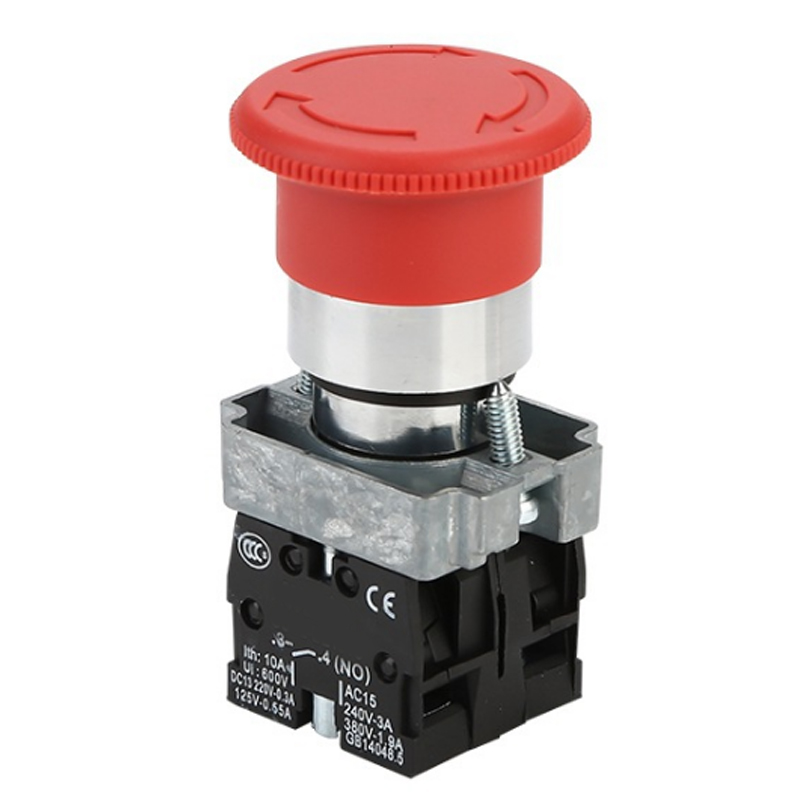

	FBESS-11	Red	22mm	600V	Emergency stop button switch aluminum zinc thickened copper silver point mushroom head emergency stop button		Send Order

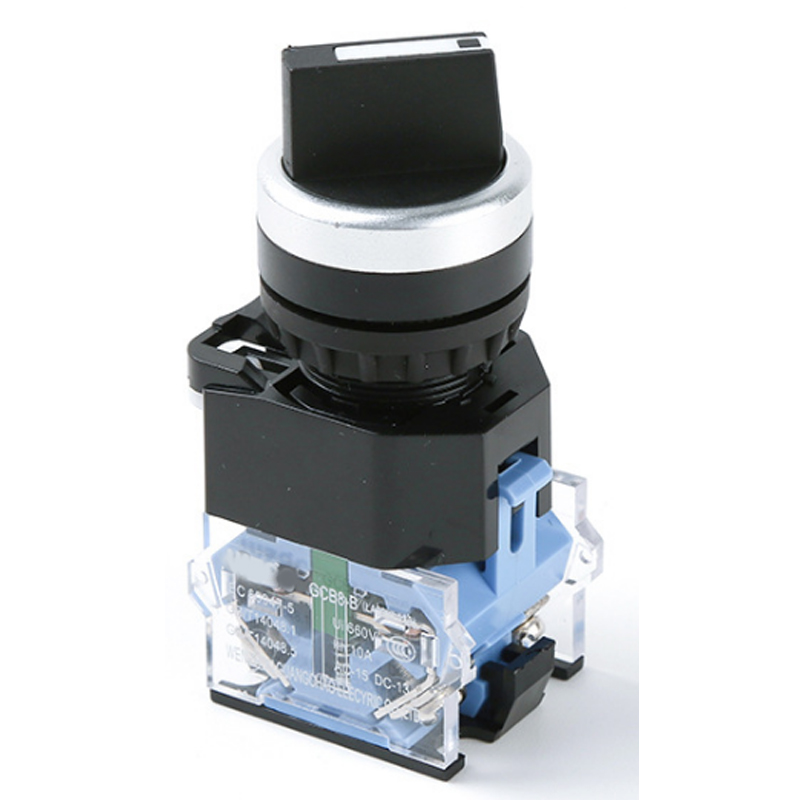

	FBESS-12	Black	22mm	600V	110v/220v 3 position selector push button switch with selector switch 3 position 22mm		Send Order

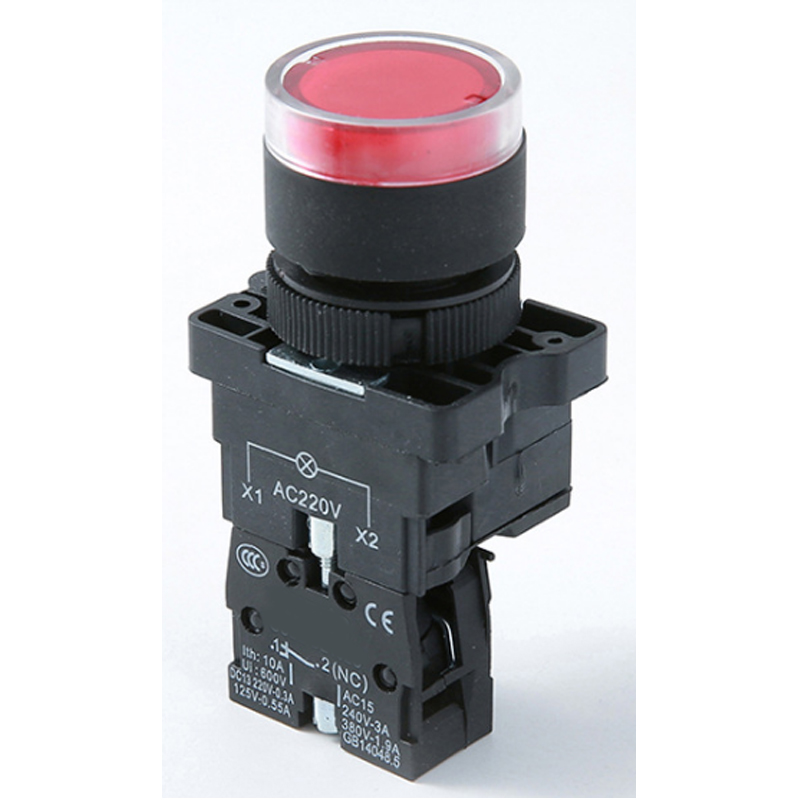

	FBESS-13	Red/Green/Blue/White/Yellow	22mm	600V	Ip65 High Quality 22Mm Red Led Push Button Switch Industrial Momentary Waterproof Push Button Switch		Send Order
	FBESS-14	Red/Green/Blue/White/Yellow	22mm	600V	Schneider XB4B Pushing Buttons Zamak IP67 IP66 22mm Push Button Switch		Send Order

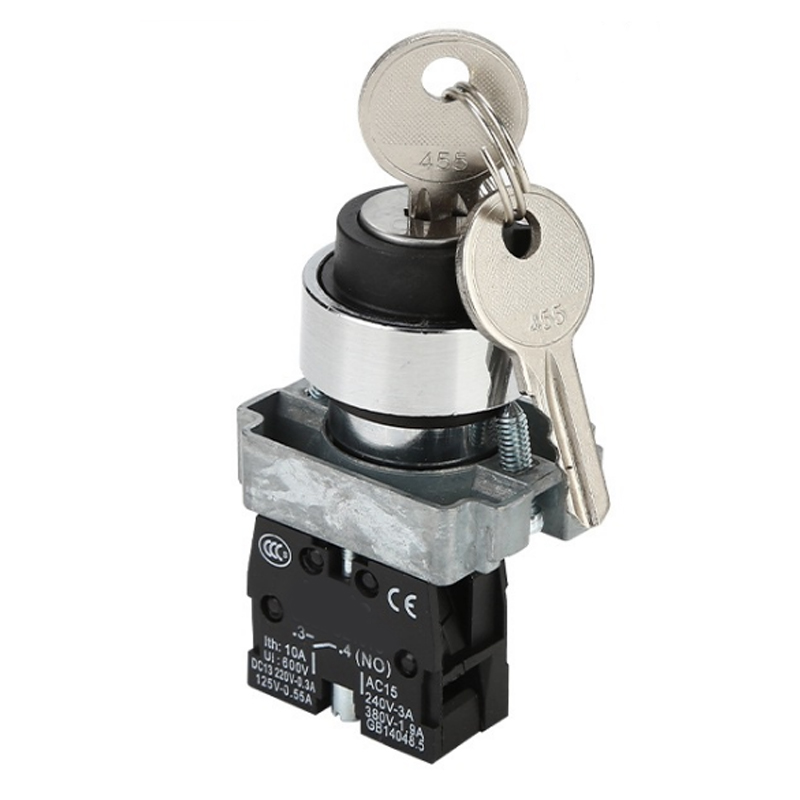

	FBESS-15	Black	22mm	600V	Cheap Price Metal Material 10A Black Key Lock Push Button Switch		Send Order
	FBESS-16	Red+Green	22mm	600V	LAY5s series 22mm 10A metal push button switch on off multicolors electrical pushbutton		Send Order
	FBESS-17	Red+Green	22mm	600V	red sign emergency stop waterproof push button switch		Send Order
	FBESS-18	Red/Green/Blue/White/Yellow	22mm	600V	Multicolor button switch with lamp aluminum zinc thickened copper silver point self recovery power button with lamp		Send Order
	FBESS-19	Red	22mm	600V	10a module emergency stop push button switch 1NC 30mm 40mm 60mm		Send Order
	FBESS-20	Red	22mm	600V	key stay put 2 position self-lock selector push button switch stay put button with key		Send Order
	FBESS-21	Red/Green/Blue/White/Yellow	22mm	600V	22mm Xb2 Series Emergency Stop Push Button Switch No/nc 10a/415v Red Mushroom Head Emergency Stop Button Switch		Send Order
	FBESS-22	Black	22mm	600V	1NO 1NC Power Start Stop Emergency Self-Resetting Latching Momentary Illuminated waterproof Push Button Switch		Send Order
	FBESS-23	Black	22mm	600V	Lower base contact aluminum zinc thickened copper silver point button auxiliary accessories lower base contact		Send Order
	FBESS-24	White/Red/Green/Black	22mm	600V	3A Mushroom head push button switches 1NO1NC 3 pins IP65 Red Green Color 19mm Waterproof Emergency Stop Switch		Send Order
	FBESS-25	White/Red/Green/Black	22mm	600V	Factory Direct Wholesale Water Proof 250A Electric Emergency Push Button Stop Switches		Send Order

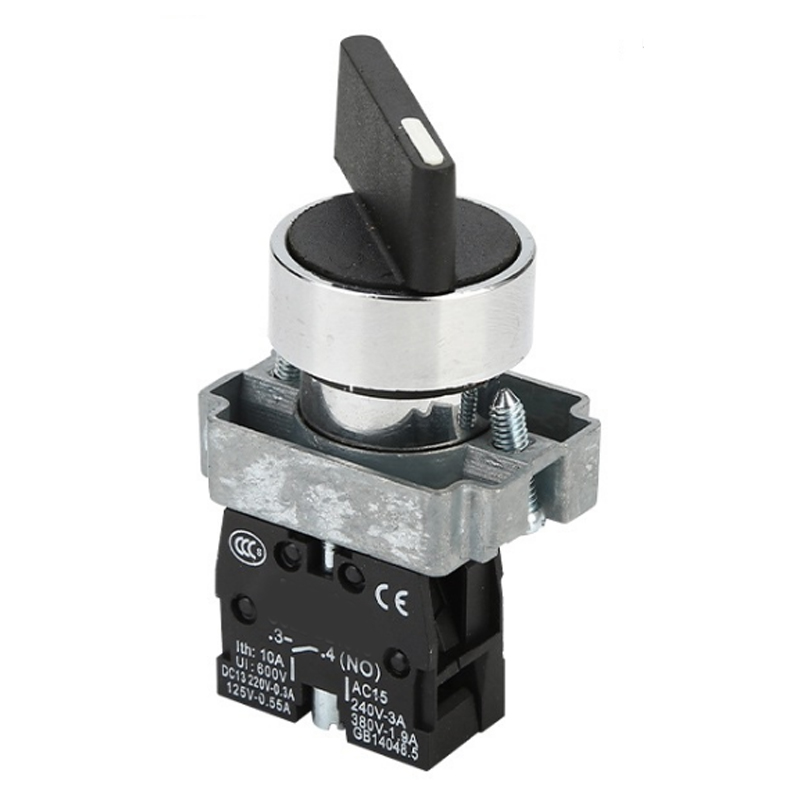

	FBESS-26	Black	22mm	600V	Long handle knob switch aluminum zinc thickened copper silver point second gear third gear selector switch knob wholesale		Send Order
	FBESS-27	White/Red/Green/Black	22mm	600V	screw terminal momentary emergency stop rotary return mushroom push button switch		Send Order
	FBESS-28	Black	22mm	600V	Rotary Push Button Switch XB2-ED33 Three-digit Knob ON-OFF-ON Knob Switch Zb2-be 101 LAY5 Plastic 22MM		Send Order
	FBESS-29	Yellow/Red/Green/Black	22mm	600V	FBELEC switch for LA133 22mm Emergency Stop mushroom Push Button Rotary Switch		Send Order
	FBESS-30	White/Red/Green/Black	22mm	600V	19mm 22mm Pattern 2NO 2NC Waterproof Stainless Steel Waterproof Metal Latching Emergency STOP Push Button Switch Button Switch		Send Order
	FBESS-31	Black	22mm	600V	Long handle knob aluminum zinc thickened copper silver point selection switch knob wholesale		Send Order
	FBESS-32	Red/Green/Blue/White/Yellow/Blue	22mm	600V	Factory Supply Attractive Price Emergency Rotary Small Button Switch		Send Order

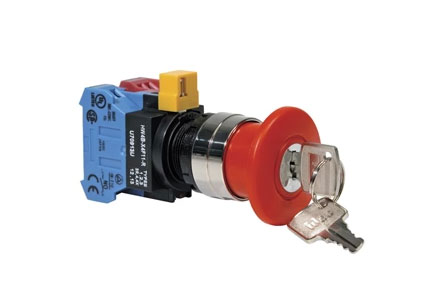

	FBESS-33	Black	22mm	600V	mushroom head key rotary reset emergency stop push button switch		Send Order
	FBESS-34	Red/Green/Blue/White/Yellow/Blue	22mm	600V	19MM 22MM 3Pin 6Pin 2/3 Position Metal Push Button Switch With Key of Waterproof IP65 for Elevator Door		Send Order
	FBESS-35	Black	22mm	600V	Key Emergency Stop Mushroom push button micro switch India		Send Order
	FBESS-36	Black	22mm	600V	China FBELEC brand switchlock emergency stop push button switch		Send Order
	FBESS-37	Black	22mm	600V	Key emergency stop push button switch momentary key operated electric		Send Order
	FBESS-38	Black	22mm	600V	quick ship Schneider XB5AD25 22mm 1NO+1NC 2-position black Selector Switch		Send Order
	FBESS-39	Black	22mm	600V	Wholesale products FBELEC IP40 IP67 high quality emergency stop switch		Send Order
	FBESS-40	Black	22mm	600V	Maintained Board Back Type Rotation-Releasing Rotary Emergency Stop Explosion-Proof Button Switch 19/22mm		Send Order
	FBESS-41	Black	22mm	600V	Switch long handle knob iron copper point gear 1 gear 2 power supply one on and one off long handle knob		Send Order
	FBESS-42	Red/Green	22mm	600V	16mm 19mm 22mm 1NO1NC Waterproof Metal Latching Emergency STOP Mushroom Push Button Switch Button Switch Knob Rotary Switches		Send Order
	FBESS-43	Black	22mm	600V	Electronic Dome 2 3 Way ON-Off Rotary Selector Plastic Explosion Proof Rotary Emergency Push Button Switch		Send Order
	FBESS-44	Red/Green	22mm	600V	IP20 full plastic explosion proof rotary emergency stop push button		Send Order
	FBESS-45	Red	22mm	600V	Power start stop reset switch iron copper point mushroom head reset switch		Send Order
	FBESS-46	Red/Green/White	22mm	600V	Stop sign Portable Premium Durable Material Emergency Rotary Small Button Switch		Send Order
	FBESS-47	Red/Green	22mm	600V	LA42 series emergency stop rotary return momentary mushroom push button switch		Send Order
	FBESS-48	Red	22mm	600V	emergency stop rotary return mometary mushroom push button switch		Send Order
	FBESS-49	Red/Green	22mm	600V	Plastic button switch with lamp self reset and self-locking button with lamp power start normally open and normally closed		Send Order
	FBESS-50	Red+Green	22mm	600V	Two position double key button manufacturer wholesale start stop red green double key button		Send Order
	FBESS-51	Red/Green	22mm	600V	IP66 plastic rotary emergency stop explosion-proof push button switch		Send Order
	FBESS-52	Red/Green	22mm	600V	high performance mini green even button spring return momentary self restoration push button		Send Order
	FBESS-53	Red/Green/Blue/White/Yellow/Blue	22mm	600V	Button switch iron copper point machine tool NC power start flat button customization		Send Order
	FBESS-54	Red/Green/White	22mm	600V	Swiss EAO metal button emergency stop lamp shade indicator rotary switch spot		Send Order
	FBESS-55	Red/Green/White	22mm	600V	arrow NC mushroom push button switch with key emergency stop button		Send Order
	FBESS-56	Red/Green/Blue/White/Yellow/Blue	22mm	600V	6 Pin Double Pole 250v 16mm Emergency Push Button Rotary Switch		Send Order
	FBESS-57	Red/Green/Blue/White/Yellow/Blue	22mm	600V	AC 660V 10A 40mm 1.6" Red Sign Rotary Mushroom Emergency Stop Push Button Switch		Send Order
	FBESS-58	Yellow/White/Green/Blue	22mm	600V	Emergency stop button rotary switch 22mm LA138-11		Send Order
	FBESS-59	Red/Green	22mm	600V	Normal 16mm double single pole alternate plastic nut emergency stop rotary switch		Send Order
	FBESS-60	Red/Green	22mm	600V	M22 series rotary reset emergency stop button head New Original Box		Send Order
	FBESS-61	Red	22mm	600V	Red 40mm Push Button Emergency Stop Release 1N/C Push Button Switch		Send Order

• Emergency stop switch

  The emergency stop button can also be referred to as the "emergency stop switch", commonly known as the "emergency stop switch" in the industry. As the name suggests, the emergency stop switch is a protective measure that people can take in case of an emergency by quickly pressing this button.




•





  Emergency stop switches

  Our TUV-certified emergency stop switch allow you to switches your machines or system over to a safe state immediately in the event of an emergency. Our control devices with emergency stop or emergency switching off function are suitable for applications in accordance with EN ISO 13850 and EN 60204-1.
  You can choose stop switches from the ready to use solutions we provide for your standard application. Or we can configure your own emergency stop switch solution according to your requirements.



  Your advantages

  Increased occupational safety with illuminated active or inactive status indicator
  Rapid on-site diagnostics with color-coded switching position indicator
  Protection against installation errors with self-monitoring emergency stop contact module


  Increased occupational safety

  Machines and systems are becoming increasingly modular in design. Not all machines and system parts are in operation permanently. To be able to reliably differentiate between active and inactive emergency stop devices in the event of danger, illuminated buttons on the stop switches can be used in accordance with the EN ISO 13850 standard.
  If the machine part is currently in operation, the active emergency stop button is illuminated. If the machine part is not currently connected, the emergency stop button is not illuminated. Accordingly, the button is inactive and not visually recognizable as an active emergency stop or emergency switch-off.


  Rapid on-site diagnostics

  Finding an active emergency stop switch is sometimes very time-consuming, especially in large systems. For time-saving on-site diagnostics, all of our emergency stop control devices are equipped with a colored switching position indicator. Upon actuation, the pushbutton switches can be distinguished from unactuated switches at a glance.

  Protection against installation errors

  Equip our modular emergency stop devices with self-monitoring emergency stop contact modules. These modules automatically set the machine to the safe state if errors or damage occur between the contact module and actuator when the emergency stop switches are being installed. Once the installation is correct, you can commission the machine as usual. Self-monitoring contact modules thus ensure that your system is reliably shut down or switched off whenever necessary.

•





  Ready-to-use solutions for

  your standard application

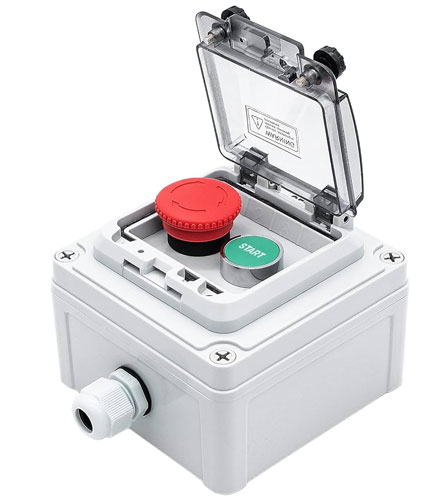

  Set up your emergency stop unit quickly and easily by using our pre-assembled Emergency Switches.
  Our portfolios enable quick and easy installation, whatever the demand: Install the solution directly in the field, in the operator panel, or in the machine control cabinet. As an option, our emergency stop buttons are available with 5-position M12 connection and installation via Plug and Play.

  Modular system for individual applications

  Our modular emergency stop control devices provide cost-efficient safety solutions tailored to your requirements.
  Combine actuators, module holders, and contact modules to meet your needs. Upon request, integrate additional functions such as illuminated anti-lock collars, for a particularly high level of safety.



  Further information

  What is the difference between an emergency stop and emergency switching off?
  The emergency stop function is used to shut a machine down as quickly as possible in the event of imminent hazards for the operator. The emergency stop command stops the machine from performing a dangerous movement, such as mechanical rotation.
  The emergency switching off function is also important in terms of electrical energy. Emergency switching off equipment immediately de-energizes a system to protect the operator from hazards such as an electric shock.



  Emergency Stop Switches | USA

  Machinery and equipment used in factories and other facilities are equipped with an emergency stop function to stop the machinery and equipment in an emergency for ensuring operator safety as an complementary protective measures.
  The emergency stop switch is installed as the input device for this function. This switch is manually operated by the operator when the operator senses danger, an abnormality in the machinery, equipment, or workpiece, or the possibility of damage .

• Constructional requirements of Emergency Stop Switch

  Button Color and Shape

  The operation panel of a piece of machinery and equipment has many operation pushbuttons and indicators.

  Among them, emergency stop switches must be easily recognizable and operable in case of emergency. For this reason, the button is red and shaped to be easily pressable with the palm of the hand. Also, the background color of the switch is yellow. This conspicuous color combination of a red button on a yellow background helps the operator recognize the emergency stop switch in case of emergency.




• Required Installation Location

  The standards require that emergency stop switches be installed in the following locations in machinery and equipment.

  ●  Locations required as a result of risk assessment

  ●  On each operation panel (except when not required as a result of risk assessment)

  ●  At the entrance and exit of machinery and equipment

  ●  Locations where operator intervention is needed to operate the machine, such as hold-to-run control functions and enable control functions

  ●  All locations where intervention between the operator and the machine is expected, such as workpiece loading/unloading ports

•


  For more than 30 years, FBelec has produced reliable and high-quality emergency stops, making the point of contact between humans and machines easy, safe and secure. By developing products that enhance the safety and well-being of workers and machinery, FBelec innovations have helped shape the global industrial automation marketplace. This includes collaboration with various agencies to increase international standardization within the manufacturing industry.

• FBelec Can Make Emergency Stop Switch Accroding to Customer's Request

  Contact us and get your price or order online.
  We offer competitive quotes with no hidden costs.

  ORDER NOW

•


  What is emergency stop switch

  The emergency stop switch (electrical stop switch) is a kind of master control electric appliance. When the machine is in a dangerous state, cut off the power supply through the emergency stop switch to stop the operation of the equipment, so as to protect the safety of personnel and equipment·




  "Emergency stop switch" is usually a manually controlled push switch (the key is red), which is connected in series to the control circuit of the equipment. It is used to directly disconnect the power supply of the control circuit in case of emergency, so as to quickly stop the equipment and avoid abnormal operation.

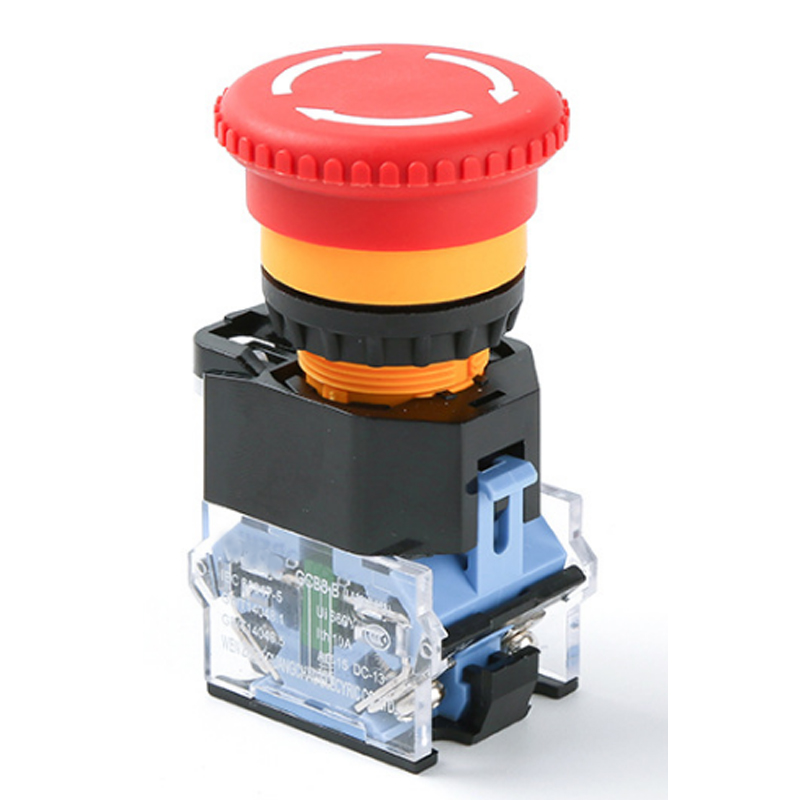

  The general form of emergency stop switch is to press and lock the rotary release red mushroom head button switch or circular button switch. Some emergency stop switches are equipped with LED lights for convenient operation, such as FBelec of China Φ 30 emergency stop switch with LED light, etc




  The emergency stop button is referred to as the emergency stop button in the industry. As the name suggests, the emergency stop button is a protective measure that people can quickly press this button in case of emergency.

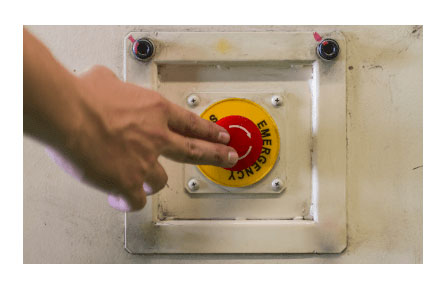

  In various factories, eye-catching red buttons can be seen on some large and medium-sized machinery and equipment or electrical appliances. The standard should have a red font with the same meaning as "emergency stop". Such buttons can be collectively referred to as emergency stop buttons. This button only needs to be pressed down directly. It can quickly stop or release some transmission parts of the whole equipment immediately. To start the device again, you must release this button, that is, just rotate it clockwise by about 45 ° and release it, and the pressed part will pop up. That's "release".




  In industrial safety, it is required that all machines whose transmission parts will directly or indirectly harm human body under abnormal conditions must be protected, and the emergency stop button is one of them. Therefore, the function of emergency stop button must be added when designing some machines with transmission parts. Moreover, it shall be set on the machine surface where personnel can press conveniently, and there shall be no shelter.

  Installation and removal method of emergency button switch,E-Stop Switches

  Insert the operating head into the mounting hole from the front of the panel, screw it into the middle seat at the back of the panel, and then evenly tighten the set screws at both ends (do not use excessive force, the maximum torque is 25n-cm). If the panel is plastic and other non-metal, it can be installed after a mounting plate is placed on the back of the panel. If the diameter of the mounting hole is 25mm, it can be placed on the back of the panel φ Install the rear mounting plate of 25.




  Type a button, the switching element can be installed together with the middle seat For type B button, the switching element shall be removed first, and then the middle seat shall be installed.

  Note: if the button is found stuck after installation, adjust the two set screws of the middle seat to keep the same tightness, and then it can be removed.

  The switching element can be directly fastened, and the symbol piece of the head can be directly installed at the front (generally installed at the factory)

  Note: after installation, check whether the buckle of the switching element is fully buckled.

  Remove the switching element or voltage reducer: lift the buckle of the latch installation system with a screwdriver to easily remove the tightly installed components at will. FBelec emergency stop push button switch.
