Dip switch is widely used in overclocking of computer motherboard, FM code matching of wireless communication, radio and television equipment, computer software programming of automation equipment, numerical control equipment, instruments (wireless remote control, time relay, temperature controller, counter) and automatic control, and control elements in preset circuit.
Next, I will tell you in detail what the dip switch means, how to use the dip switch and precautions for the dip switch.
How to use DIP switch
By default, all dip switches are in the "off" state.
printing thermal sensitive materials, please turn dip switch "1" to on.
Dip switch 2 - Tear Mode. To print one label, tear one label. Please turn dip switch "2" to on.
Dip switch 3 - cutter setting. When installing cutter printing, please turn dip switch "3" to on.
Dip switch 4 - stripper setting. When installing the stripper for printing, please turn the dip switch "4" to on.
Dip switch 5 - paper sensor setting. By default (off), the paper sensing mode of the printer is reflective. When it is necessary to adjust the sensing mode to the penetrating mode, please turn the dip switch "5" to the on state.
Precautions for DIP switches
1. Ensure that the switch is in the "off" position during all operations.
2. Wave soldering: the recommended soldering temperature is 500 ° f (260 ° C) for up to 5 seconds.
3. Manual welding: use 30 watts to control the temperature at 608 ° f (320 ℃), and the welding time is about 2 seconds.
4. Cleaning process: ultrasonic cleaning can give better results. When steam is used, the temperature shall not exceed 125 ° f (51 ℃)
What are the types of DIP switches?
There are many types of DIP switches, including sliding switches, dial switches, rotary coding switches, etc.
Each switch of the slide switch has two states of on or off (1 / 0), so it operates as an SPST switch (single pole single throw switch). There is also a three position sliding dip switch with a neutral position in the middle and a contact at each end, which is usually configured as on / off / on.

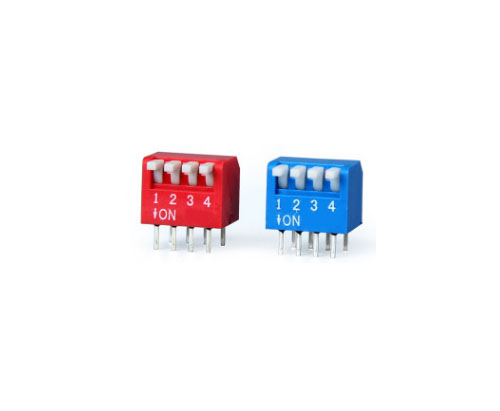

The dial switch is similar to a slide switch. However, the dial switch is not placed horizontally, but is controlled by the forward and backward switches, which need to be moved up and down.
The rotary coding switch needs to be rotated to switch the switch, and the amount of rotation determines the output state of the switch. The rotary dip switch with four output pins can produce up to 16 different binary code output configurations.
Which DIP switch Manufacturer Has Better Quality?
1. Ensure that the switch is in the "off" position during all operations.
2. Wave soldering: the recommended soldering temperature is 500 ° f (260 ° C) for up to 5 seconds.
3. Manual welding: use 30 watts to control the temperature at 608 ° f (320 ℃), and the welding time is about 2 seconds.
4. Cleaning process: ultrasonic cleaning can give better results. When steam is used, the temperature shall not exceed 125 ° f (51 ℃)
-
-
-

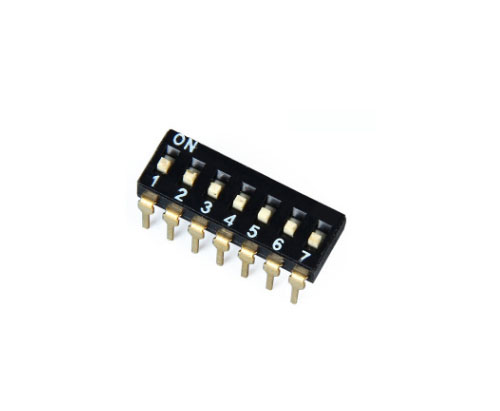

1.27/2.54 mm Pitch Spst Spdt Dip Switch Smd Double Single Rows 2-12pins 1-10 position Pcb piano dip switches
DIL-07
What is the dip switch on the motherboard? Dip switch is what we usually call a dial switch. It is a switch with several dialers installed on the base of the switch. It uses the position and wiring of the dialer to output different codes to control the corresponding devices. It is widely used in overclocking and wireless communication of computer motherboard, FM code matching of broadcasting, television and other equipment and computer software programming of automation equipment. Dip switch can be regarded as a substitute for jumper group. Its main advantage is that the switch is easier to switch state than jumper, and there is no short connector that may be lost or fall off.FBelec's dual in-line package switch,manual electric switch.with high quality level,best price!!
-
-
-
-
-
