USB & Type C & HDMI Connector

Picture	Manufacturer No.	Voltage	Rated Current	Operating Frequency	Interface Type	Description	Datasheet	Order

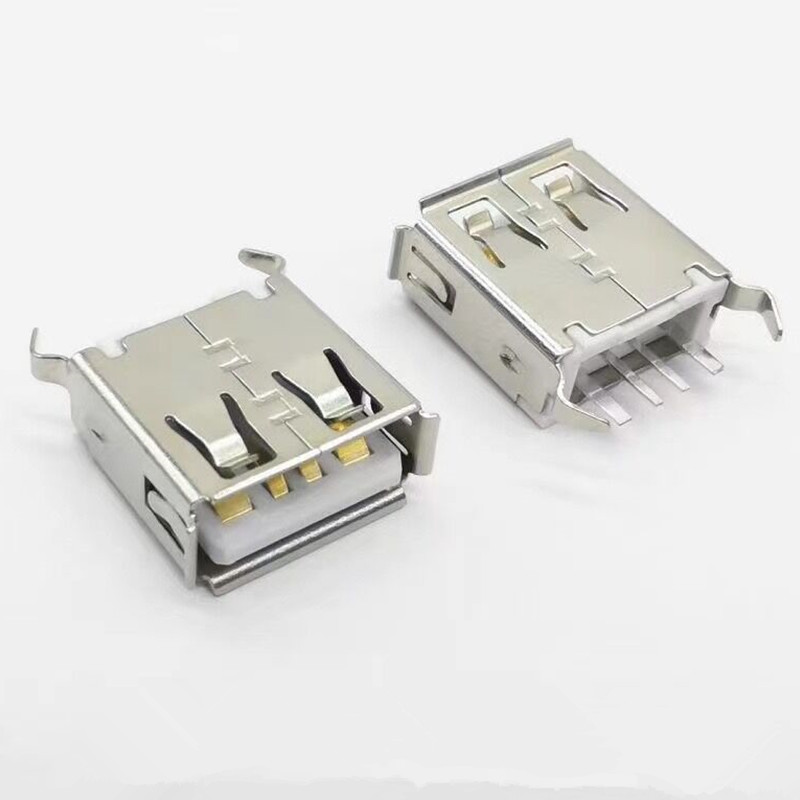

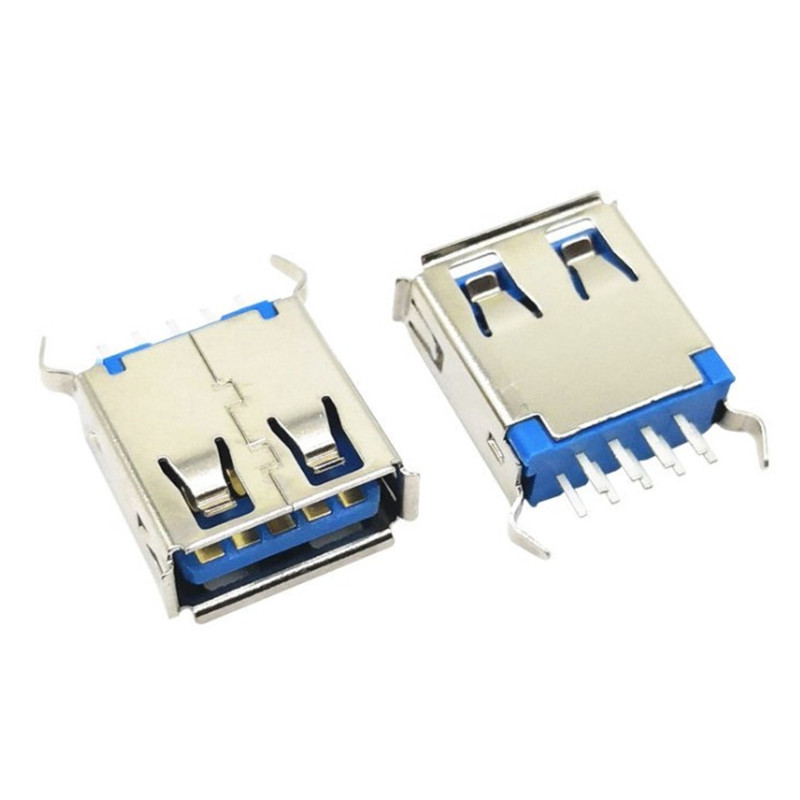

	FBUSB-01	100V	5A	High Frequency	USB	female USB AF Type 15.0mm Vertical Mount Type 180 Degree A-Type USB 3.0 Connector Ports Socket		Send Order
	FBUSB-02	100V	5A	High Frequency	USB	Type C Connector Female 2Pin Vertical Through Hole USB C Type Connector Top Mount H=6.5mm		Send Order
	FBUSB-03	100V	5A	High Frequency	USB	micro USB charging port De Carge B type medium USB connector USB2.03.0 multiple styles		Send Order
	FBUSB-04	100V	5A	High Frequency	USB	MICRO DIP SMD connector female usb seat micro 5 pin series micro usb c connecto		Send Order
	FBUSB-05	Customized	Customized	High Frequency	USB	Type-C tensile male-bb14659l C1M tensile pearl nickel terminal c7025 gold plated 3U		Send Order
	FBUSB-06	Customized	Customized	High Frequency	USB	USB 3.0 AF sinking plate 90 ° external expansion square foot plate 3.5 male and female connector plug		Send Order

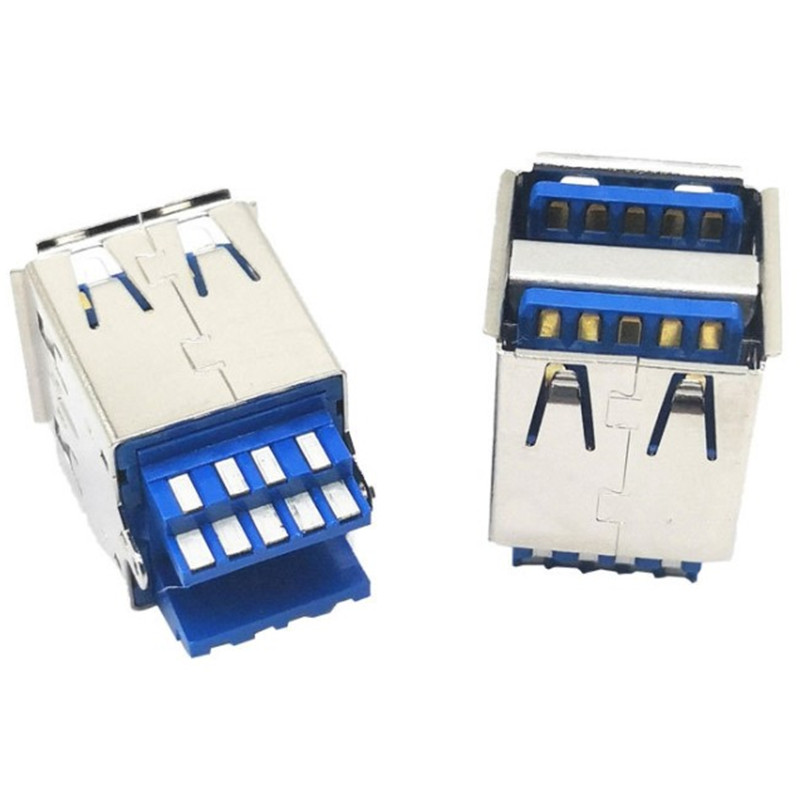

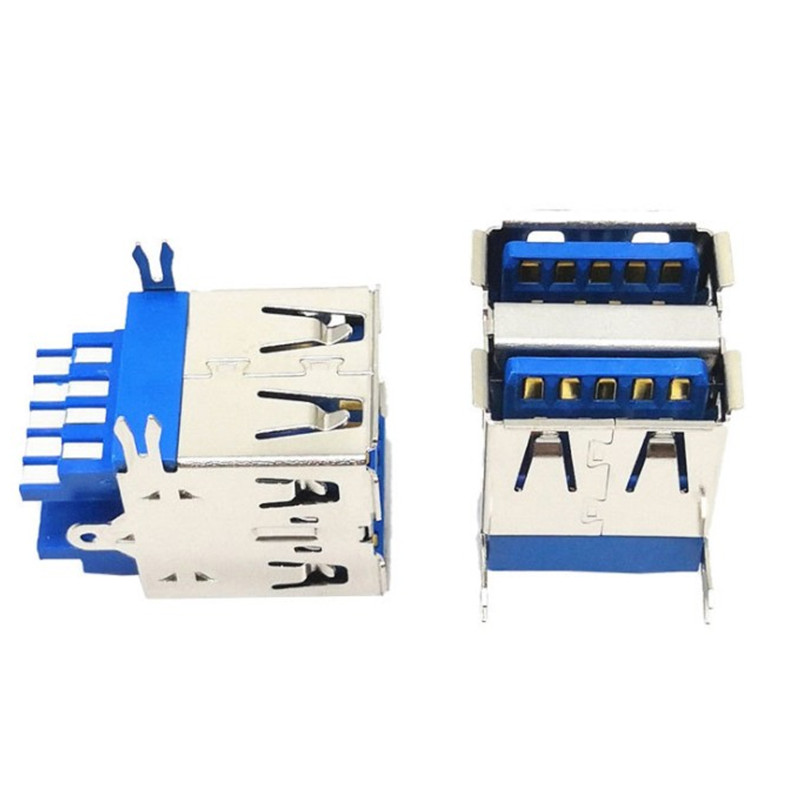

	FBUSB-07	Customized	Customized	High Frequency	USB	FBELE Factory supply DUAL USB 3.0 AF DIP plug connector		Send Order

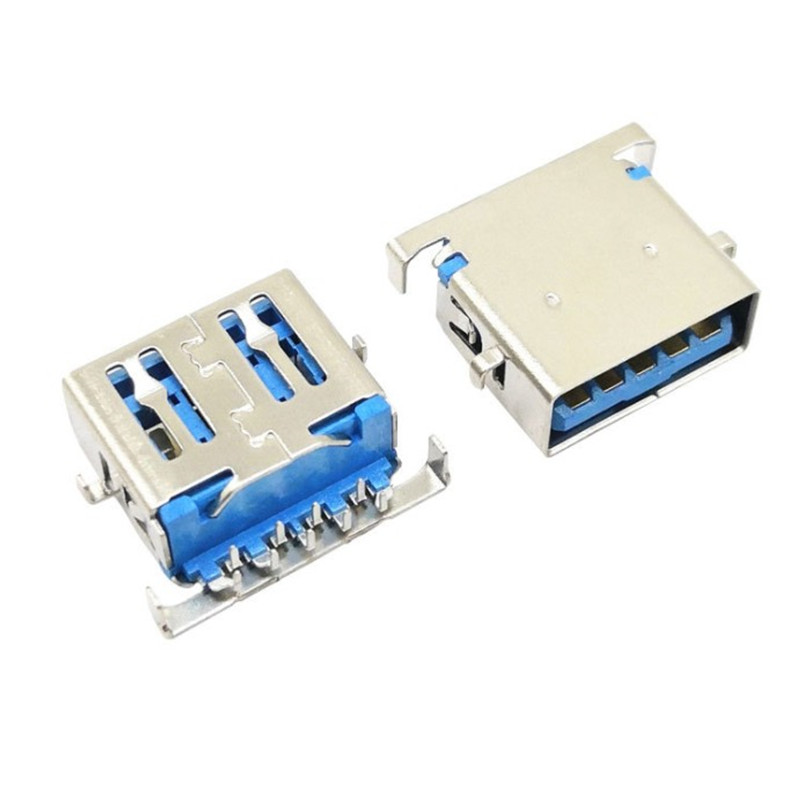

	FBUSB-08	Customized	Customized	High Frequency	USB	USB 3.0 AF sink SMT square foot board 2.45 3.0 sink connector board		Send Order

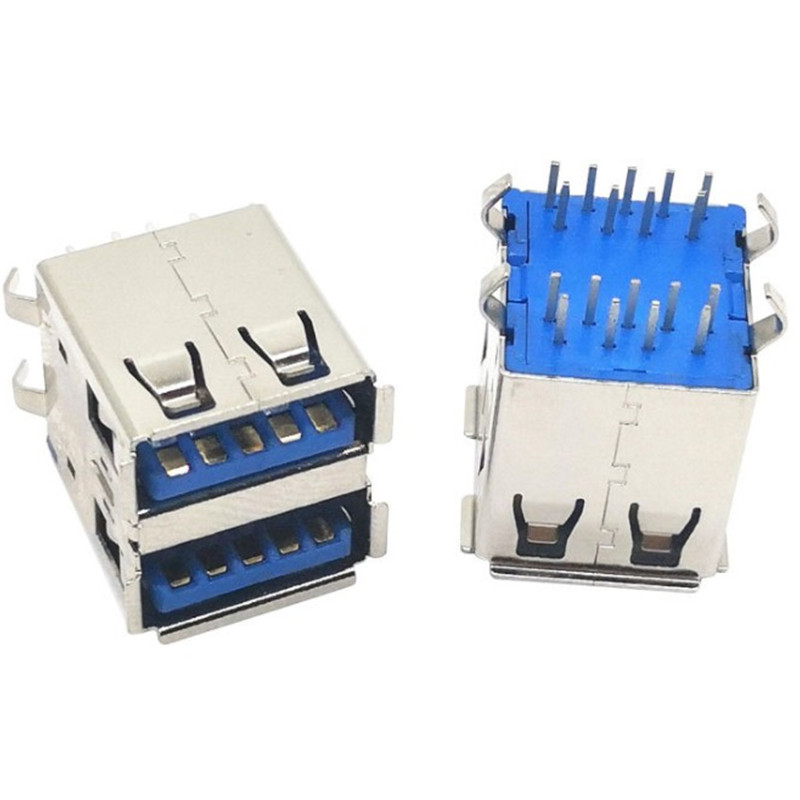

	FBUSB-09	Customized	Customized	High Frequency	USB	USB 3.0 AF double-layer welding wire with pin connector USB 3.0 double-layer welding wire plug		Send Order
	FBUSB-10	Customized	Customized	High Frequency	USB	USB 3.0 AF double-layer welding wire USB 3.0af male and female socket connector manufacturer direct plug		Send Order
	FBUSB-11	Customized	Customized	High Frequency	USB	welding line L=15.1 USB 3 connector AFwith step and tin male female connector		Send Order
	FBUSB-12	Customized	Customized	High Frequency	USB	USB 3.0 AF sink plate double row terminal 90 ° external expansion harpoon foot plate 1.86		Send Order
	FBUSB-13	Customized	Customized	High Frequency	USB	USB 3.0 AF patch plate square pin manufacturer direct male and female connector 3.0 sink plate plug		Send Order
	FBUSB-14	Customized	Customized	High Frequency	USB	China manufacturer FBELE supply USB connectors		Send Order

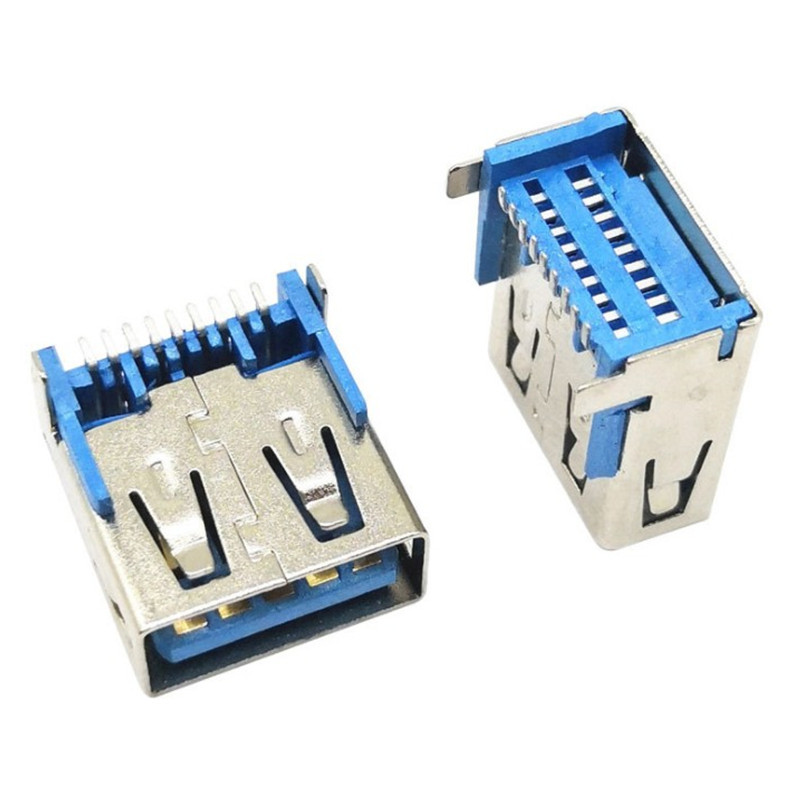

	FBUSB-15	Customized	Customized	High Frequency	USB	USB 3.0 AF side plug connector USB 3.0 side plug socket		Send Order
	FBUSB-16	Customized	Customized	High Frequency	USB	Usb3.1 type-C 6pin vertical patch board L = 10.0 USB plug vertical patch board socket		Send Order
	FBUSB-17	Customized	Customized	High Frequency	USB	USB 3.0 AF direct plug L = 13.7 male and female connector USB 3.0 AF direct plug socket		Send Order

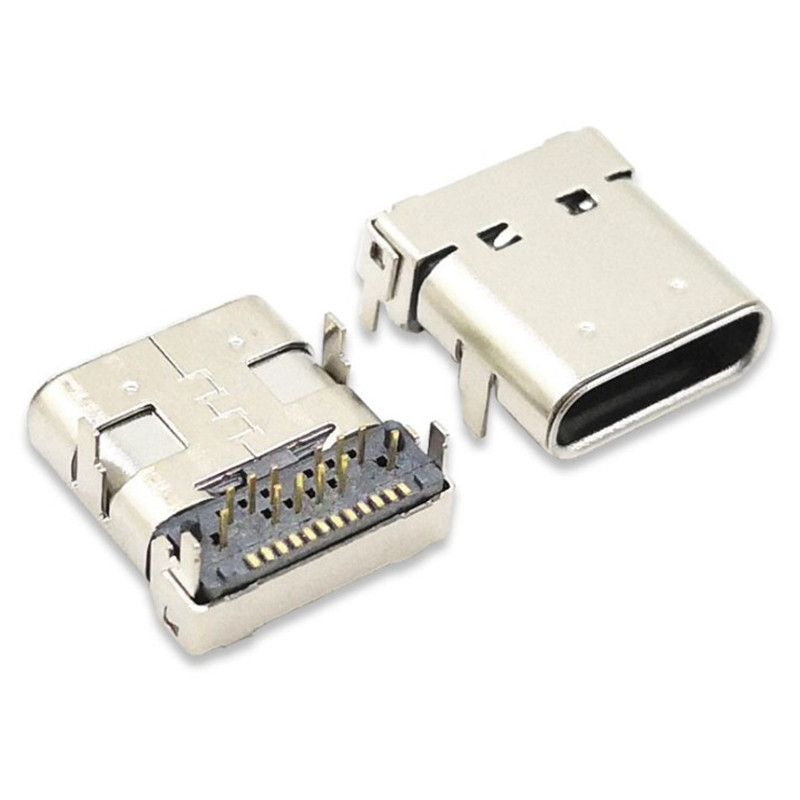

	FBUSB-18	Customized	Customized	High Frequency	USB	Usb3.1 type-C 24pin splint USB 3.1 connector type-C plug socket		Send Order

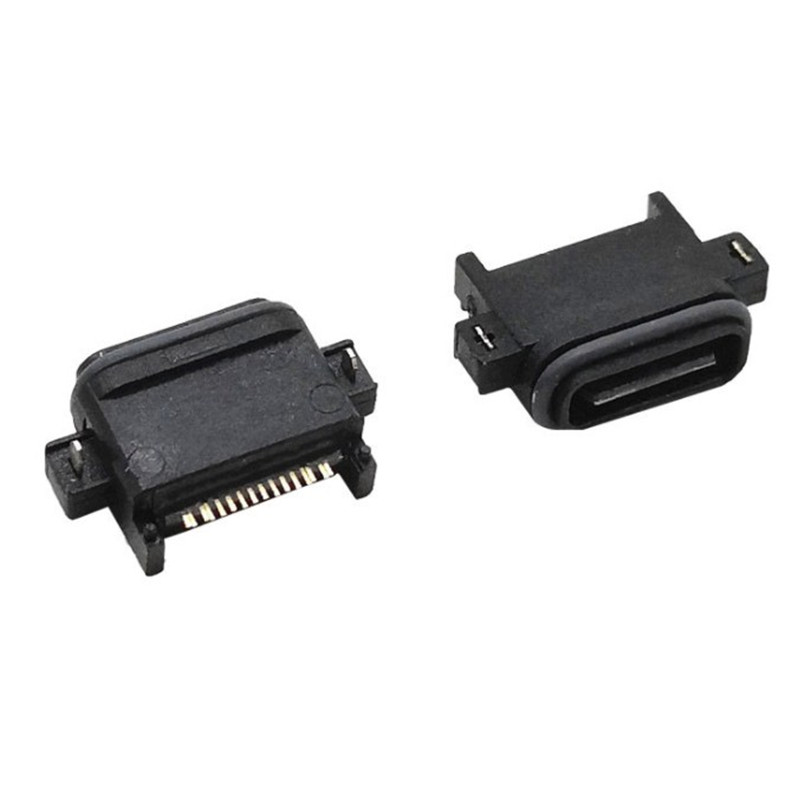

	FBUSB-19	Customized	Customized	High Frequency	USB	Type-C female base 16pin sink waterproof plug connector type-C female base 16pin female base		Send Order
	FBUSB-20	Customized	Customized	High Frequency	USB	Usb3.1 type-C 6pin side insert pad manufacturer direct selling usb3.1 side insert plate		Send Order
	FBUSB-21	Customized	Customized	High Frequency	USB	USB3.1 Type-c 16Pin single line SMT		Send Order
	FBUSB-22	Customized	Customized	High Frequency	USB	Usb3.1 connector type-C 6pin female base sink connector SMT connector customized manufacturer		Send Order
	FBUSB-23	Customized	Customized	High Frequency	USB	Usb3.1 connector type-C 24pin vertical patch board plug socket USB 3.1 vertical plug board		Send Order
	FBUSB-24	Customized	Customized	High Frequency	USB	Usb3.1 connector type-C 16pin side tongue type usb3.1 side plug male and female socket		Send Order
	FBUSB-25	Customized	Customized	High Frequency	USB	Usb3.1 connector type-C 16pin four pin full paste terminal SMT plug 3.1 four pin full paste socket		Send Order
	FBUSB-26	Customized	Customized	High Frequency	USB	mobile use Usb3.1 type-C 14pin vertical plug-in board harpoon pin L = 10.0 USB plug connector		Send Order
	FBUSB-27	Customized	Customized	High Frequency	USB	Usb3.1 type-C 14pin vertical patch panel L = 10.0 USB 3.1 plug connector for Digital camera		Send Order
	FBUSB-28	Customized	Customized	High Frequency	USB	USB socket connector female base sink broken 3.9 laptop USB socket		Send Order
	FBUSB-29	Customized	Customized	High Frequency	USB	USB2.0 double-sided plug-in am welding wire type PBT white tape double-sided plug-in USB plug socket		Send Order
	FBUSB-30	Customized	Customized	High Frequency	USB	USB a male harpoon male welding wire USB connector board to line USB backwater plug connector		Send Order
	FBUSB-31	Customized	Customized	High Frequency	USB	Usb3.1 connector type-C 24pin type B double shell USB plug and socket connector		Send Order
	FBUSB-32	Customized	Customized	High Frequency	USB	wholesale Usb3.1 type-C 16pin patch heightening 4.3 socket USB plug 3.1 connector		Send Order
	FBUSB-33	Customized	Customized	High Frequency	USB	Usb3.1 type-C + single side plug USB two in one socket USB board to line production connector		Send Order
	FBUSB-34	Customized	Customized	High Frequency	USB	Usb3.1 CF 16pin raised tongue iphone female socket, iphone charging plug 18W		Send Order
	FBUSB-35	Customized	Customized	High Frequency	USB	Type-c6p waterproof female seat cushion high female seat double-sided plug-in connector vertical female seat quality assurance		Send Order
	FBUSB-36	5V	5A	High Frequency	USB	Type-C waterproof female base 16ptype-c connector female head steel four plug board Android tail plug interface		Send Order
	FBUSB-37	30V	5A	High Frequency	USB	usb connector female 6 16 24 pin dip usb-c type A B C socket 2.0 3.0 smt female male sunk plated usb c connector for PCB		Send Order
	FBUSB-38	30V	5A	High Frequency	USB	Type-C socket patch usb-3.1 socket type-C waterproof socket has large quantity and excellent price		Send Order
	FBUSB-39	5V	5A	High Frequency	USB	Type C female 14P vertical socket 5A high current height 10.0 type C charging socket		Send Order
	FBUSB-40	5V	5A	High Frequency	USB	Type-C female base 24P board double row patch double shell high current height 10.0 type C charging socket		Send Order

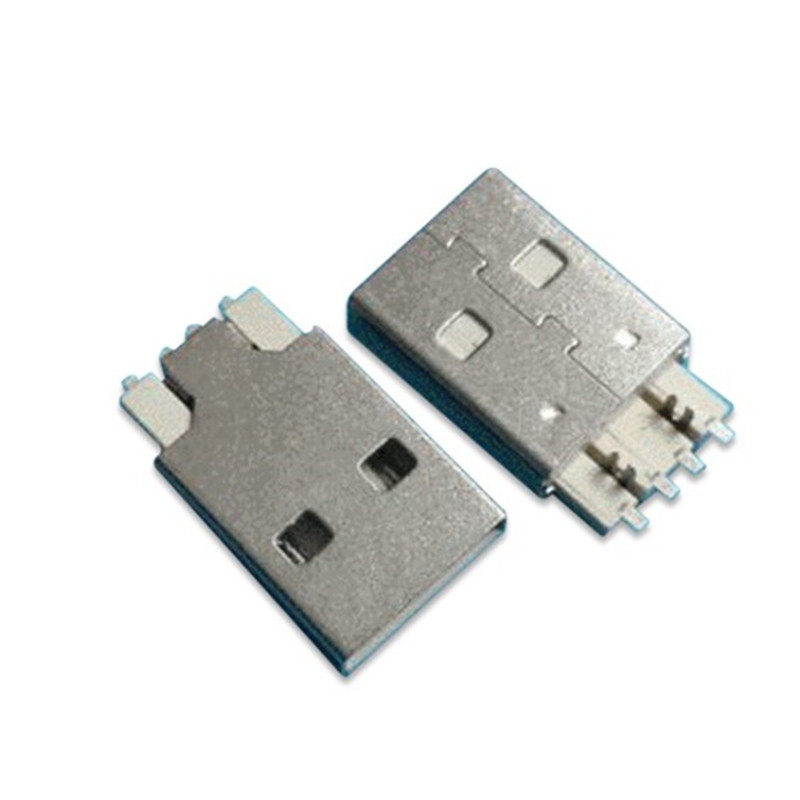

	FBUSB-41	5V	5A	High Frequency	USB	DIY USB Shell 2.0 A Male connector kit with covers USB2.0 Assembly DIY Connector		Send Order
	FBUSB-42	5V	5A	Low Frequency	USB	Custom type C 2p in-line female socket 3.1 with board connector plug splint socket charging data		Send Order
	FBUSB-43	Customized	Customized	/	USB	Type-C female base 6p high temperature resistant four pin plug board 3.1 with board connector plug splint socket		Send Order
	FBUSB-44	Customized	Customized	/	USB	Supply type C female base 5pin pad type C female base adapter type-C double female base aluminum alloy		Send Order
	FBUSB-45	Customized	Customized	/	USB	Type C 3.1 splint mother base 16p Board four pin plug-in board charging USB column type-C base		Send Order
	FBUSB-46	Customized	Customized	/	USB	USB type-C socket 24pin vertical vertical Paste direct plug high current PD fast charging type-C interface wholesale		Send Order
	FBUSB-47	Customized	Customized	/	USB	Type-C double paste 24pin mother seat 16p vertical paste plate type-C mother seat is short		Send Order
	FBUSB-48	Customized	Customized	/	USB	Type-C vertical plug-in board socket vertical patch two feet stick usb-c waterproof socket		Send Order
	FBUSB-49	12V	5A	/	USB	Type-C splint type female USB fast charging 6p mobile phone interface type C female waterproof charging connector		Send Order
	FBUSB-50	5V	5A	/	USB	Type-C vertical plug-in board mother seat side plug-in mother seat data transmission female socket		Send Order

•


  USB Connector Type Guide

  A USB data connector is a connector used to connect computers and external devices, which uses USB (Universal Serial Bus) technology to transfer data. It can connect various external devices, such as printers, external hard drives, cameras, digital cameras, mobile phones, etc. As more and more people come into contact with smart devices, they will encounter various USB interfaces. For many people, there are only three types of interfaces: USB interface, Android interface, and Apple interface. As for type-c, it will be called another Android interface. Similar encyclopedias, take you to clarify these USB interfaces




•

•

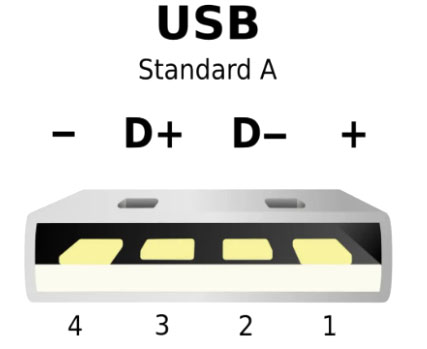

  USB Type A

  USB type A is the most common connector. It is usually used to connect devices such as computers, keyboards, mice, etc. The USB-A connector looks like a flat rectangle with four small pins. Generally speaking, the USB-A end is larger than the device it is inserted into and is a common connector rather than an internal connector. USB Type-A, also known as USB-A. Until now, many PCs, PC peripherals, mobile phone chargers, and so on still use this interface, which is currently the most popular USB interface.




  USB-A is also divided into male and female seats. The common A-end of a USB-A data cable is the male socket, while the one on the charger is the female socket.




  USB Type B

  USB type is commonly used in Android phones (common in mid to low end, with more and more phones adopting type C), as well as various charging devices. USB-B connectors are gradually being phased out and replaced by USB-C. However, you may still find it on some older devices. This type of connector is similar to the USB Type A connector, but a missing corner has been cut off and replaced with an angled one.




  USB Type C

  The USB-C connector has recently become one of the mainstream connectors, serving as a charging and data port. Its appearance is similar to a trapezoid and can be inserted in two directions. The advantages of USB-C are fast speed, high reliability, and practicality, making it a standard feature for more and more new devices. Its small size makes it easy to fit into the smallest peripheral devices, such as smartphones, Bluetooth speakers, etc. The C-type connector supports forward and reverse plugging (both sides can be inserted), supports higher power transmission and bidirectional power transmission, and integrates functions such as charging, display, and data transmission.




  USB Mini B

  Due to its relatively large size, USB-A is not user-friendly for some portable or smaller devices. MicroUSB was born due to demand. The pin definition of MicroUSB is similar to that of various types of USB, but there is an additional pin designed as an ID blank. As mentioned earlier, MicroUSB is more commonly used in some mobile phones (currently fully transitioning to USB-C interfaces) and various types of USB small devices (such as USB fans). The current reason for the low cost of MicroUSB is that a large number of USB devices with lower unit prices still choose this type of USB interface. Mini USB connectors are used to connect small devices such as digital cameras, MP3 players, etc. Its size is much smaller than USB-A and USB-B connectors.




  USB2.0 and USB 3.1 Internal Connector

  USB 3.0 not only has speed advantages over 2.0, but also has advantages in charging current. At the beginning of 2.0 release, a current of 500mA could meet the power supply of all USB devices, but with the development of technology, today's peripherals usually require larger currents . The transmission speed of USB 3.0 can reach 5 Gbps, while earlier USB 2.0 speeds were only 480 Mbps.




•

•


  USB Connectors Features

  1. Plug and play: Users can easily install and remove external devices.




  2. Hot swappable: System resources can be automatically configured on the host based on the addition or removal of peripherals.




  3. Connecting multiple devices: USB has strong connectivity and can connect up to 127 peripherals to the same system in a linked form.




  4. Standardized design: All USB devices use the same plug and socket, which greatly simplifies the installation process.




  5. Low cost: The design and manufacturing process of USB is relatively simple, and all intelligent mechanisms of the system reside in the host, thereby reducing the cost of device manufacturing.




  6. Protection performance: The USB plug has a casing that first contacts the socket before connecting the pins to the host. At the same time, in order to shield the wires inside the connector, the casing is grounded, which also helps to eliminate static electricity.




  7. Low voltage and low current consumption: USB devices typically only require a small amount of electricity, making them particularly useful for battery powered devices.




  8. Flexibility: USB connectors can be easily inserted and removed, and their design also allows for minimal movement, minimizing damage to connectors and sockets.




  9. Fast transmission speed: USB 3.0 can reach a transmission speed of 5 Gbps, while earlier USB 2.0 speeds were only 480 Mbps.




  Overall, USB connectors have diverse and practical features, ranging from low cost and flexibility to high-speed data transmission, making them an indispensable part of modern electronic devices.




•

•

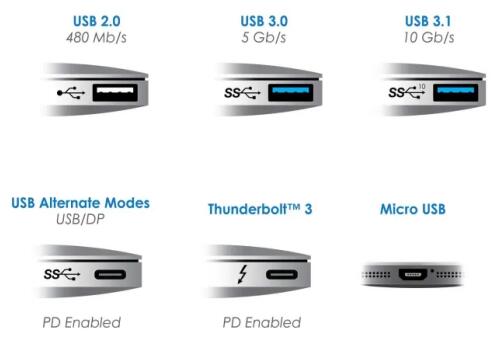

  Simple classification and identification of USB interface types

  1. As more and more people come into contact with smart devices, they will encounter various USB interfaces. For many people, there are only three types of interfaces: USB interface, Android interface, and Apple interface. As for type-c, it will be called another Android interface. Similar encyclopedia, take you to clarify these USB interfaces.




  2. Common interfaces include type A, micro B, and type C;

  a. Type A: Mainly used on computers

  b. Micro B: Commonly used in Android phones (common in mid to low end, with more and more phones adopting type C), as well as various charging devices

  c. Type C: Currently common in various mid to high end mobile phones, such as Android flagship phones. More and more other devices also have this interface, such as laptops, portable hard drives, motherboards.




  3. Many external USB devices such as printers, monitors, USB HUBs, etc. use Type B interfaces. Generally speaking, USB interfaces on PCs are standard Type A, while external devices often use Type B.




•

• 4. USB 3.0 not only has speed advantages over 2.0, but also has advantages in charging current. At the beginning of 2.0 release, a current of 500mA could meet the power supply of all USB devices, but with the development of technology, today's peripherals usually require larger currents.




  5. Type C is just an interface type, whether it is USB 2.0, 3.0, or 3.1 depends entirely on the manufacturer. Although type C combines various advantages, it will not completely replace other USB interfaces, especially since it cannot replace type A. The high cost is something that everyone is unwilling to bear.




  6. Except for type A, which can be backward compatible with 2.0, other types B, micro B, and micro A cannot be backward compatible
