Picture Model No. Size Power Voltage Ampere Air Volume Blade Diameter Description Datasheet Order
Industrial fan ec9733 with round head double ball 9.7cm 20v-230v available frequency converter turbine blower

FBAC-6025

60*60*25MM 0.8-9.2W 20-230V 0.04A 26.35CFM 57MM

Industrial fan ec9733 with round head double ball 9.7cm 20v-230v available frequency converter turbine blower

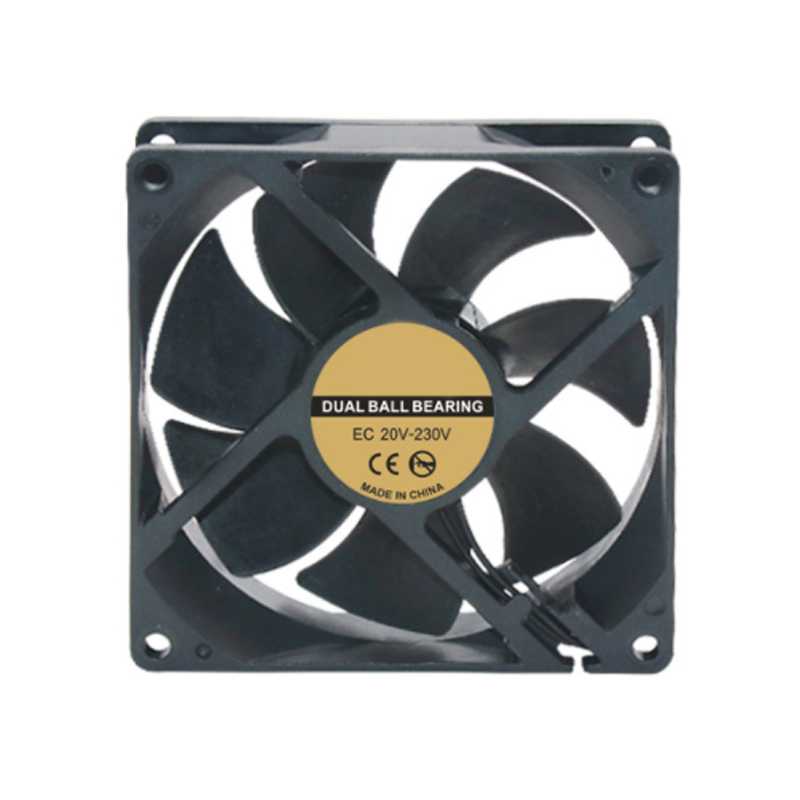

12032 turbine blower with round head ec20v-230v available 24v36v48v110v2v industrial fan

FBAC-7025

70*70*25MM 1-11.5W 20-230V 0.05A 38.61CFM 67MM

12032 turbine blower with round head ec20v-230v available 24v36v48v110v2v industrial fan

Fan ec12038 ec20v-230v available 24v36v48v2v frequency converter cooling fan

FBAC-7530

75*75*30MM 2.2-25.3W 20-230V 0.11A 10.42CFM 72MM

Fan ec12038 ec20v-230v available 24v36v48v2v frequency converter cooling fan

7530 turbine blower double ball ec20v-230v available 24v36v48v110v2v cooling fan

FBAC-8025

80*80*25MM 1.2-13.8W 20-230V 0.06A 46.15CFM 77MM

7530 turbine blower double ball ec20v-230v available 24v36v48v110v2v cooling fan

Industrial fan 12025 double ball ec20v-230v available 24v36v48v110v2v cooling fan

FBAC-9025

92*92*25MM 1.4-16.1W 20-230V 0.07A 63.5CFM 89MM

Industrial fan 12025 double ball ec20v-230v available 24v36v48v110v2v cooling fan

8025 cooling fan double ball ec20v-230v available 24v36v48v110v2v industrial fan

FBAC-9733

97*97*33MM 1.68-25.3W 20-230V 0.07-0.11A 17.2-20CFM 94MM

8025 cooling fan double ball ec20v-230v available 24v36v48v110v2v industrial fan

7025 cooling fan double ball ec20v-230v available 24v36v48v110v2v industrial fan

FBAC-12025

120*120*25MM 1.4-27.6W 20-230V 0.07-0.12A 99.2CFM 117MM

7025 cooling fan double ball ec20v-230v available 24v36v48v110v2v industrial fan

FBELE Fan 9025 9225 cooling fan ball ec20v-230v24v48v2v industrial fan

FBAC-12032

120*120*32MM 0.06-13.8W 20-230V 0.03A 15.01CFM 117MM

FBELE Fan 9025 9225 cooling fan ball ec20v-230v24v48v2v industrial fan

6025 cooling fan double ball ec20v-230v available 24v36v48v110v2v industrial fan

FBAC-12038

120*120*38MM 14W 20-230V 0.06A 122CFM 117MM

6025 cooling fan double ball ec20v-230v available 24v36v48v110v2v industrial fan


AC & DC Fan

  • What is a AC & DC FAN?


    Cooling fan or Electric Cooling Fan: is a fan that converts electric energy into machinery through DC voltage and electromagnetic induction, so as to drive the wind blades to rotate. In short, the induction magnetic ring drives the wind blade to rotate by continuously switching the coil and IC.


    AC/DC cooling fans classification:

    Axial fan

    The blades of the axial fan push the air to flow in the same direction as the shaft. The impeller of axial flow fan is somewhat similar to the propeller. When it works, most of the flow direction of air flow is parallel to the shaft, in other words, along the axis. When the inlet air flow of axial fan is free air with 0 static pressure, its power consumption is the lowest. When running, the power consumption will increase with the rise of air flow back pressure. Axial fans are usually installed on the cabinet of electrical equipment, and sometimes integrated on the motor. Because of their compact structure, axial fans can save a lot of space and easy installation, they are widely used.

    Its characteristics: high flow rate, medium wind pressure

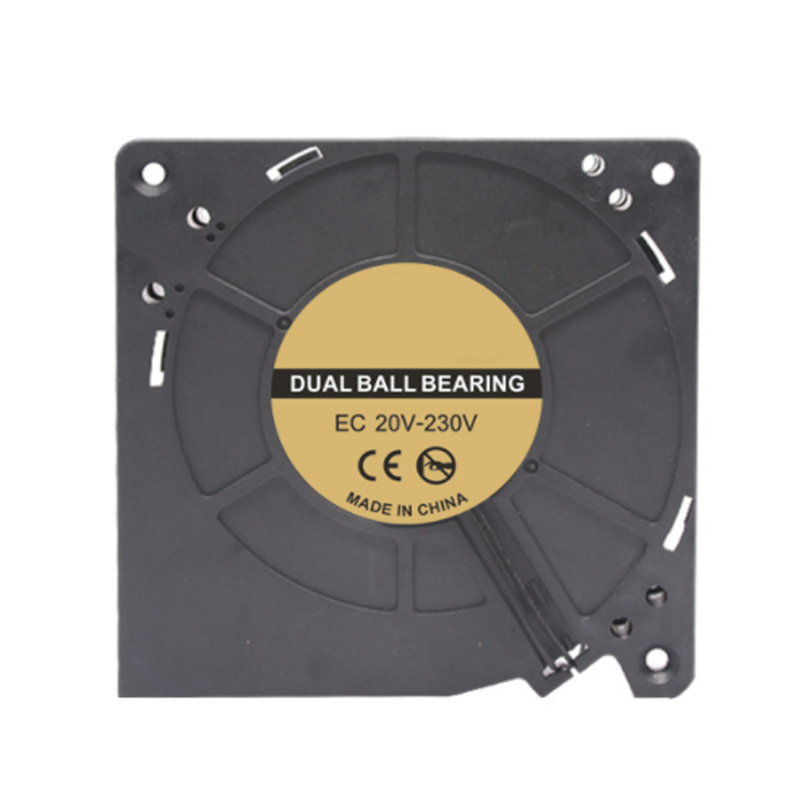

    Centrifugal fan

    When the centrifugal fan works, the blade pushes the air to flow in a direction perpendicular to the axis (i.e. radial). The inlet is along the axis, while the outlet is perpendicular to the axis. In most cases, the cooling effect can be achieved by using an axial fan. However, sometimes, if the air flow needs to be rotated 90 degrees or a large wind pressure is required, a centrifugal fan must be selected. Strictly speaking, fans also belong to centrifugal fans.

    Its features: limited flow rate, high wind pressure


    Mixed flow fan

    The mixed flow fan is also called diagonal flow fan. At first glance, the mixed flow fan is no different from the axial flow fan. In fact, the air inlet of the mixed flow fan is along the axis, but the air outlet is along the diagonal direction of the axis and vertical axis. Due to the conical blade and housing, the wind pressure of this fan is high. Under the same size and other comparable performance, the noise of centrifugal fan is lower than that of axial fan.

    Its characteristics: high flow rate and relatively high wind pressure


    Application of cooling fan

    It is widely used in traditional or modern instruments and equipment such as computers, communication products, photoelectric products, consumer electronic products, automotive electronic equipment, exchangers, medical equipment, heaters, air conditioners, frequency converters, teller machines, automotive freezers, welding machines, induction furnaces, sound equipment, environmental protection equipment, refrigeration equipment, etc.


    FBelec specializes in providing special fan for power supply in communication industry, which is the first choice for communication power supply High wind volume, high wind pressure, low noise, low vibration, long service life, stability and reliability. It has been widely used in the field of communication and communication power supply.
