What is a glass tube fuse?
Glass tube fuse is a type of fuse tube, mainly used to protect the safety of the entire circuit board and circuit by melting its own fuse when there is an abnormality in the circuit (abnormal increase in current, temperature, withstand voltage, etc.).
The key points for selecting insurance pipes are as follows
1. Confirm circuit related parameters
2. Confirm the external dimensions of the fuse
3. Confirm safety certification (to which country)
4. Select the rated voltage of the fuse (rated voltage>maximum operating voltage)
5. Select the rated current of the fuse (rated current>maximum operating current)
6. Consider current pulses
7. Choose the time and current characteristics of the fuse
8. Actual installation testing
Shop Reliable And Durable 30 Amp Glass Tube Fuses - Your Ultimate Solution For Electrical Protection
Introducing the 30 Amp Glass Tube Fuse, a high-quality electrical component manufactured by FBelec, a leading supplier, factory, and manufacturer of electrical products in China. This glass tube fuse is designed to protect your electrical equipment from damage caused by overcurrents and short circuits. It has a rated voltage of 250V and a breaking capacity of 1000A, ensuring high-performance and safety. Made from high-quality materials, this glass tube fuse guarantees maximum durability and reliability. It is designed for use in a variety of electrical equipment, such as electronic devices, household appliances, and more. FBelec has extensive experience in producing top-of-the-line electrical products that meet the highest quality standards. With state-of-the-art technology and expert manufacturing processes, this 30 Amp Glass Tube Fuse is a testament to their commitment to excellence.
Choose this glass tube fuse to protect your electrical equipment, and trust in the expertise of FBelec.
Fast-Acting Glass-Tube Fuses
These fuses open circuits quickly when surges are detected. The clear glass tube makes it easy to see when fuses open. Use them with electronics, control panels, and other sensitive components. Select them by their diameter. Designed for use with Fuse Blocks for Glass-Tube Fuses.
Breakthrough current, labeled on the fuse as IR, is the maximum current that a fuse can safely stop in the event of a short circuit.
including glass tube fuses
They offer a wide range of fuses suitable for diverse power tools and appliances
acting as a one-stop shop for your fuse replacement needs
FBelec glass tube fuses manufacture various types to meet different needs, including
On/Off Glass Tube Fuses: These simple fuses stop the flow of current when it exceeds a specific limit, protecting your appliances and circuits.
Fast-Blow Glass Tube Fuses: Designed to interrupt circuits quickly in case of sudden surges in current.
Slow-Blow Glass Tube Fuses: Meant to tolerate temporary current surges before interrupting the circuit. These are ideal for appliances with motors that create momentary spikes in current draw during startup.
High-Voltage Glass Tube Fuses: Suitable for applications involving higher voltage requirements.
Here are some general things to consider when choosing a replacement glass tube fuse
Amperage Rating: The fuse's amperage rating must be equal to or higher than the maximum current draw of the device it's protecting.
Voltage Rating: Ensure the voltage rating of the fuse matches the voltage of the circuit.
Physical Size: The fuse needs to fit the fuse holder within your appliance.
If you're unsure about the specific fuse requirements for your appliance, consult the user manual or contact the manufacturer for recommendations. Remember, it's crucial to use the correct fuse type and rating to ensure safety and prevent damage to your appliances.
Glass/Ceramic Tube Fuses such as 5x20mm and 1/4 x 1-1/4 inch standard size fuses and axial fuses conveniently solder direct to PCB, eliminating need for clips or holders. Approvals to World-Wide safety standards including UL/CSA, IEC and PSE. Used for primary circuit protection of almost any power supply, charger or industrial product. Applications include emerging LED lighting products and many power supply, battery charger and industrial product designs.
FBelec provide free samples for real customers.
Full range of UL TUV CUL VDE PSE CCC certification
FBelec adopts high-quality components, some of which are imported from abroad, so its service life is longer
FBelec provides mold opening and customizes products according to customer drawings and samples.
Classification of glass tube and safety tube

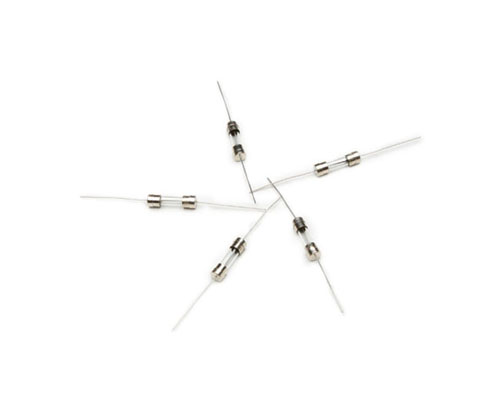

First, according to the installation form, it can be divided into two types: with lead and without lead.

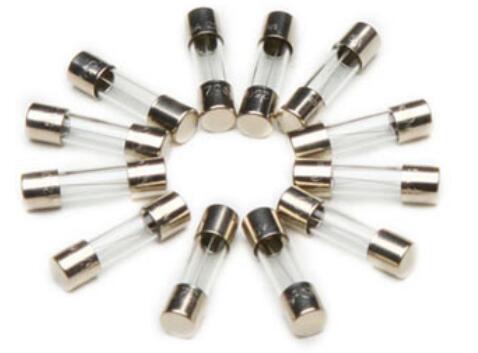

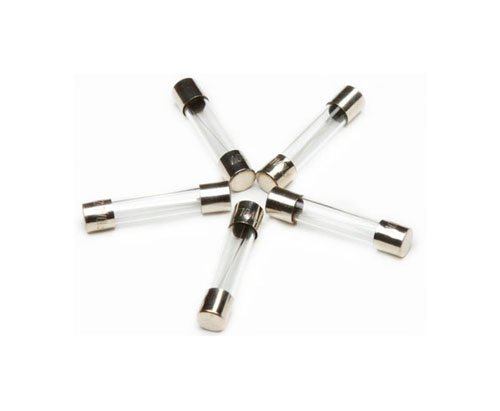

Glass Cartridge Fuse without lead wire needs to be used together with the supporting fuse holder. The advantage of this kind of product is that when the fuse tube is damaged and the fault is eliminated, the fuse tube only needs to be reinstalled into the fuse holder, which is very convenient to replace. The disadvantage is that it needs one more process during production, and the fuse tube needs to be installed after welding the fuse holder, Therefore, in the case of the same specification, the cost of fuse without lead is slightly higher than that with lead for the first production.

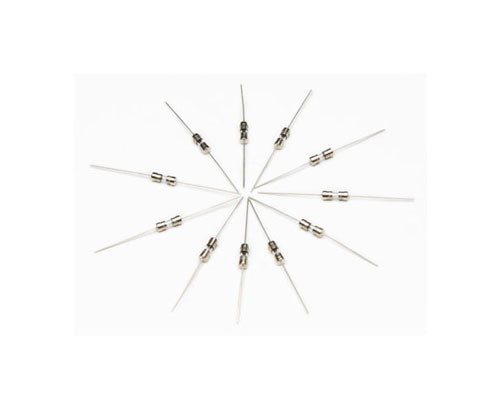

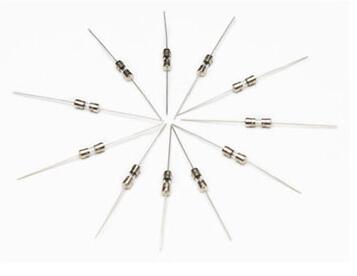

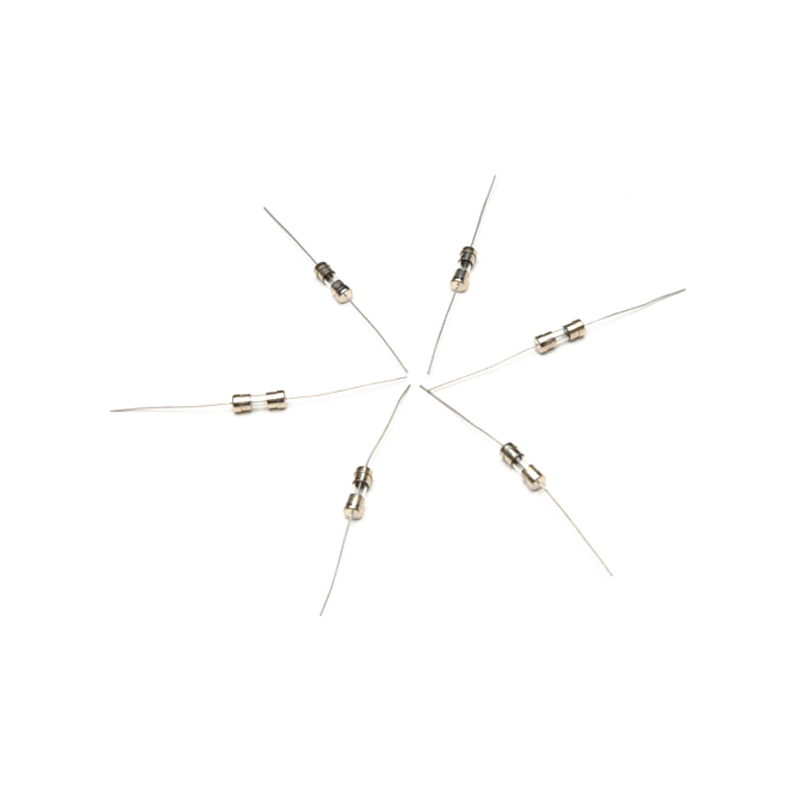

The early production cost of lead wire is low, only one process is required and the cost of one fuse holder is reduced. However, when the Glass Body Fuse is damaged, it needs to be replaced by professionals after disassembly, and the replacement cost is very high.
Second, the fusing speed can be divided into several types according to the fusing speed: extra slow break (TT), slow break (T), medium speed (m), fast break (f) and extra fast break (FF). See I in the specification here ² t。
Third, breaking capacity, high breaking (H) and low breaking (L).

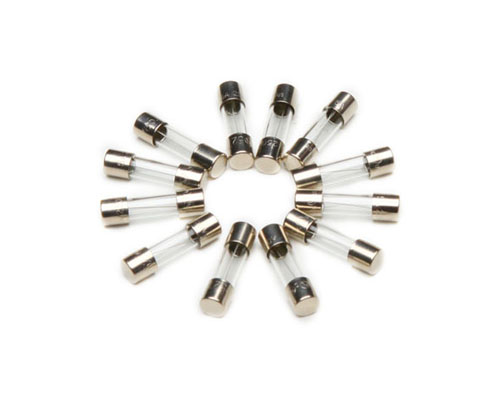

Fourth, according to the size, it can be divided into 3.6 * 10, 4.6 * 16, 5 * 20, 6.3 * 30, etc. the specific size depends on each factory. These types of sizes are those with more consumption.
Fifth: according to the classification of safety specification certification, European regulations, Japanese regulations and American regulations.
Safety tube identification:
Trademark: + product name + Certification number
Specification: - A-V / - ma-v
Trademark: FBelec
Specification: 3.15a 250V
3.6*10mm fast-below glass tube fuse |
3.6*10mm slow-below glass tube fuse |
4.5*10mm fast-below glass tube fuse |
4.5*10mm slow-below glass tube fuse |

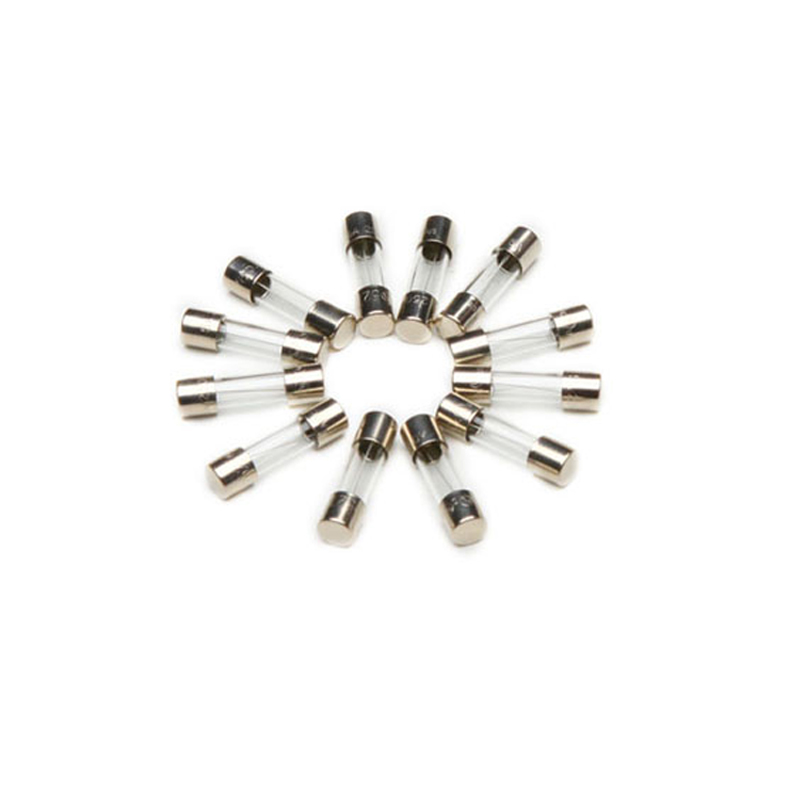

5.2*20mm fast-below glass tube fuse |
5.2*20mm slow-below glass tube fuse |

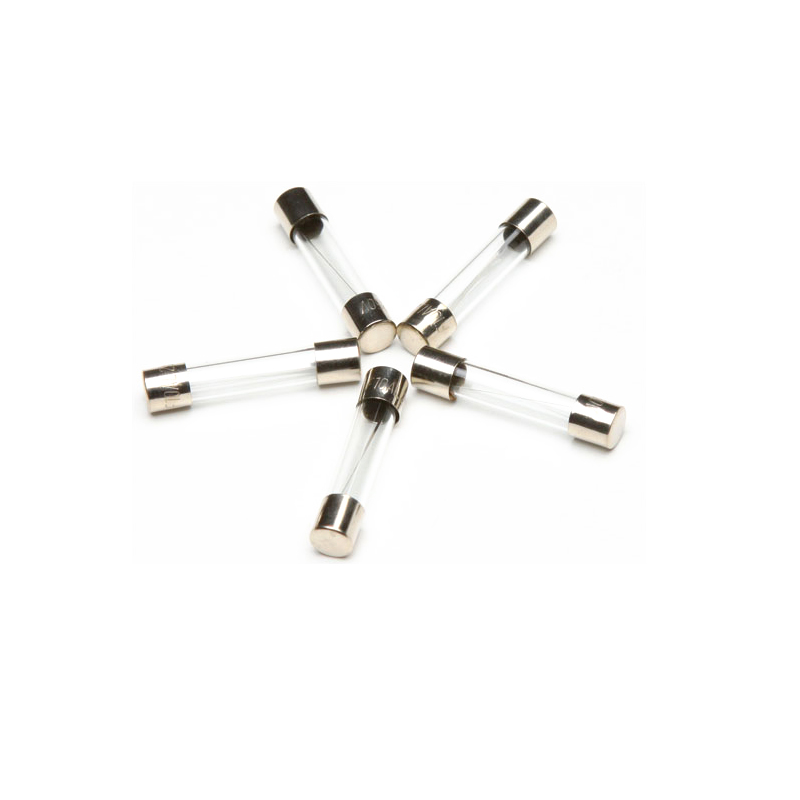

6.35*32mm fast-below glass tube fuse |
6.35*32mm slow-below glass tube fuse |
39.3*22mm glass fuse tube fuse used in boat |

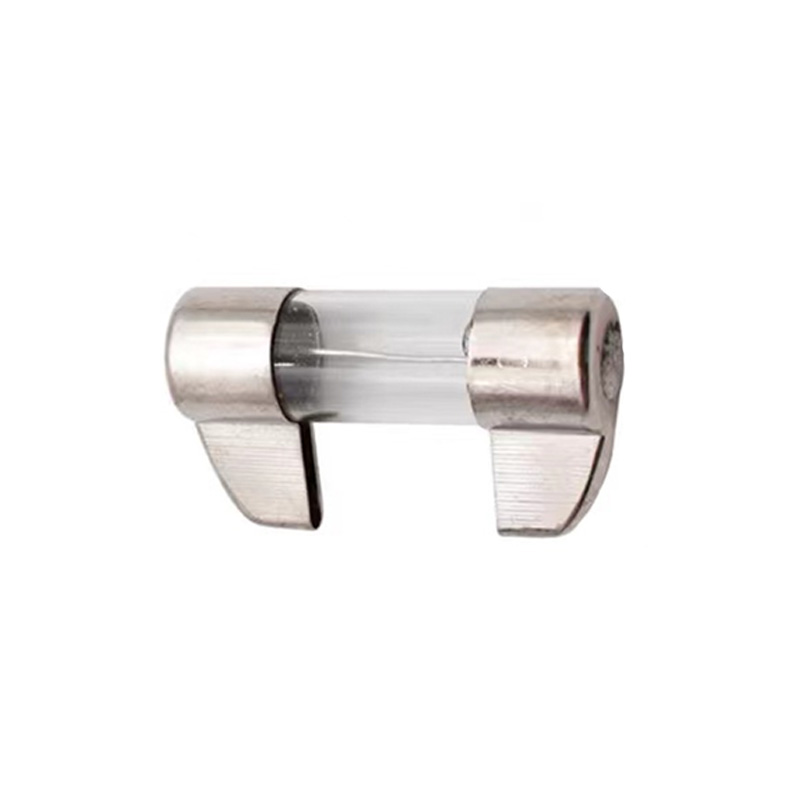

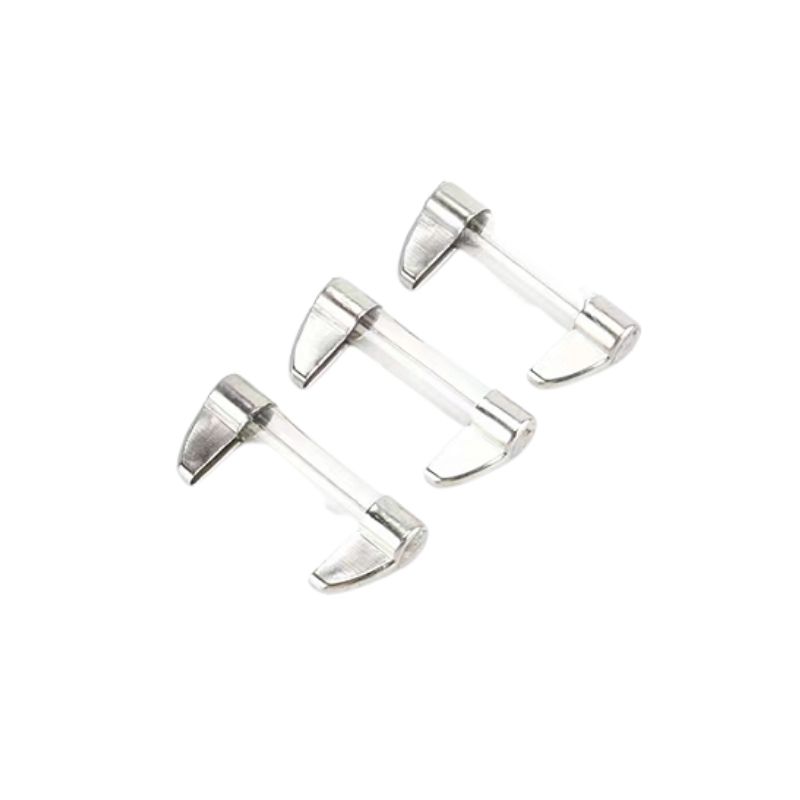

37.6*17.5mm Insert knife type glass fuse tube fuse |
