PCB Power Relay

Picture	Manufacturer No.	Size	Rated Voltage	Coil Power	Ambient Temperature	Electrical Life	Mechanical Life	Description	Datasheet	Order

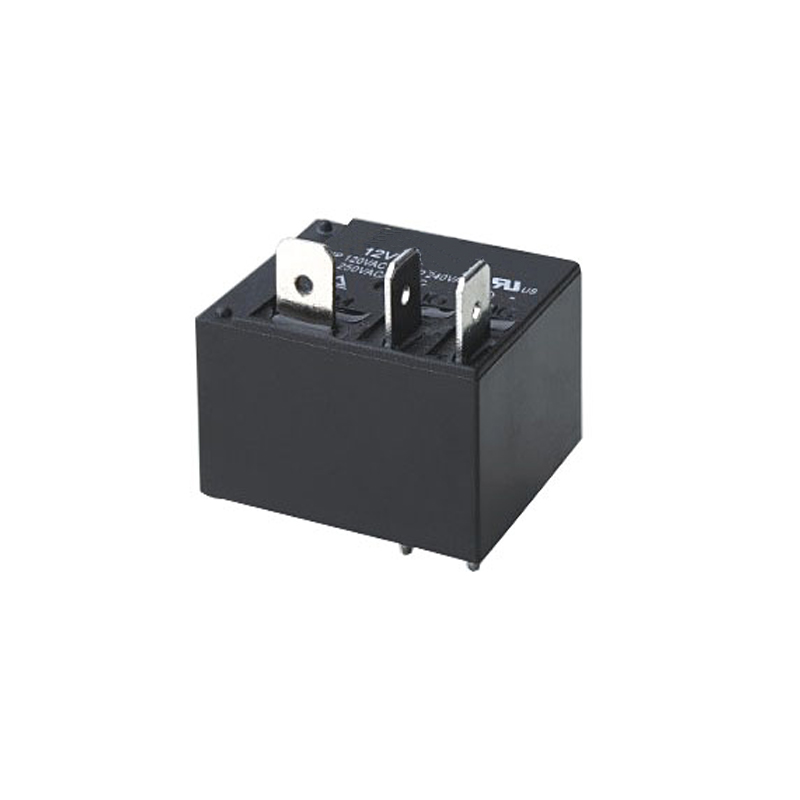

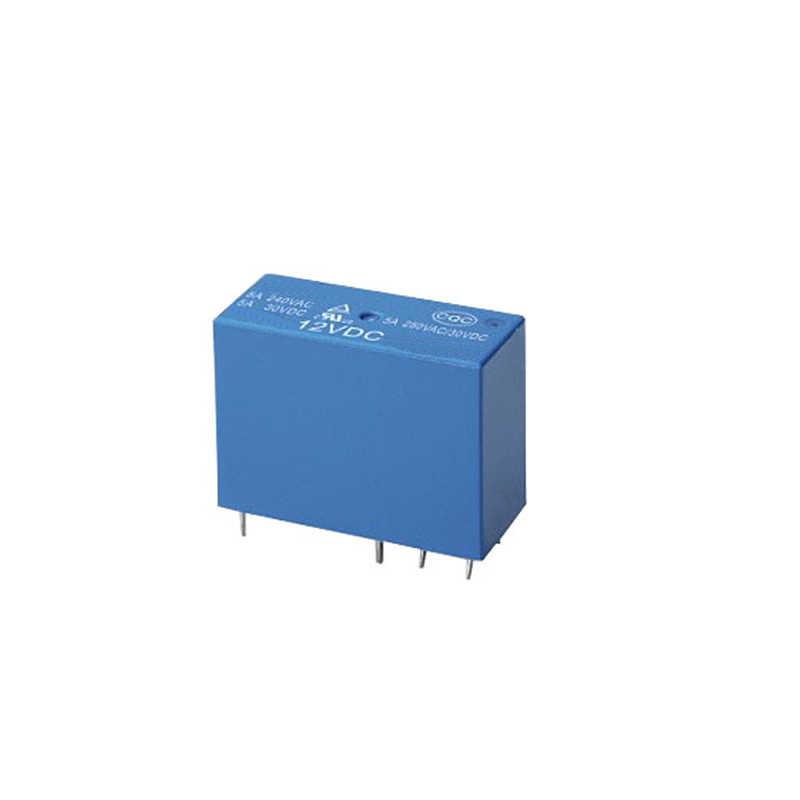

	FBPCBR-01	15.7*10.6*12.4	3-24VDC	0.36W,0.45W	-40℃~+85℃	10^5	10^7	12V 20A DC Power Relay 12VDC-CL 5Pin PCB Type In stock Black Automobile relay		Send Order

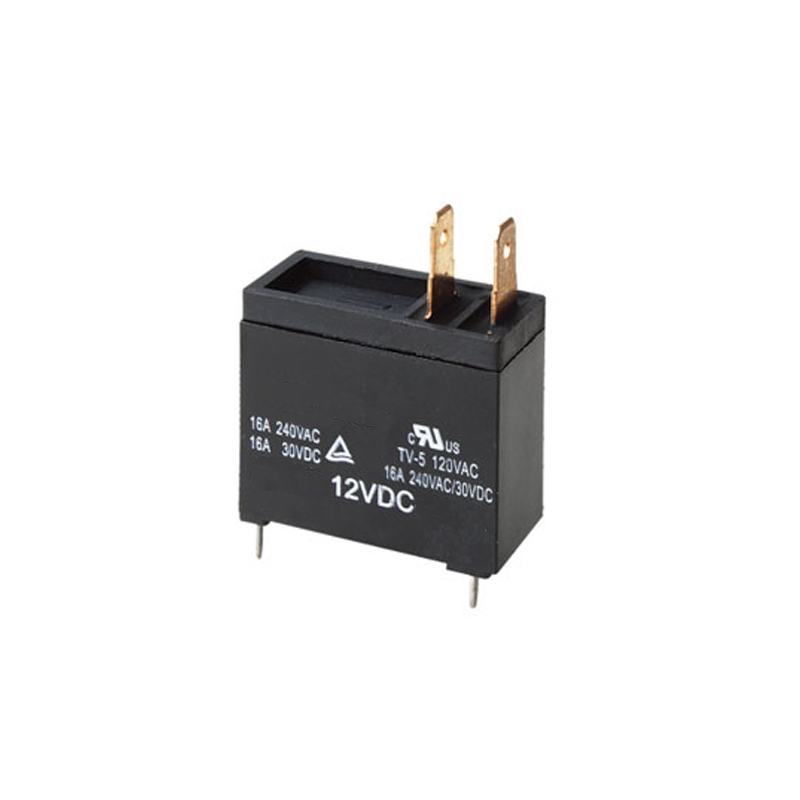

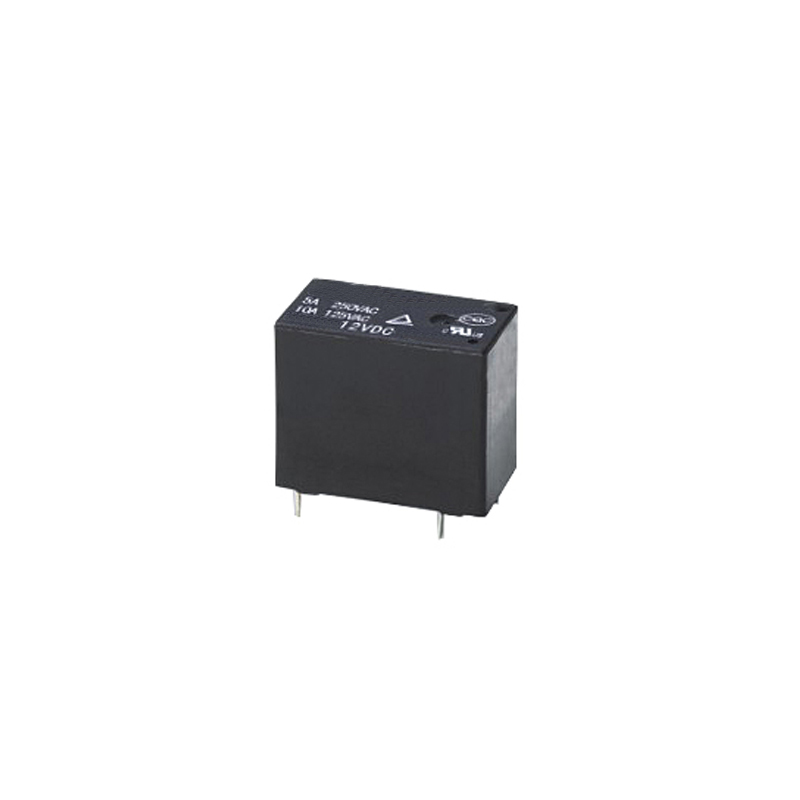

	FBPCBR-02	15.7*10.6*12.4	3-24VDC	0.36W,0.45W	-40℃~+85℃	10^5	10^7	T73 Relay JQC-3F HF3FF LS-T73 3V 5V 6V 9V 12V 24V DC 10A 15A 4 Pin 5 Pin PCB Micro Electromagnetic Sugar cube Mini Power relay		Send Order

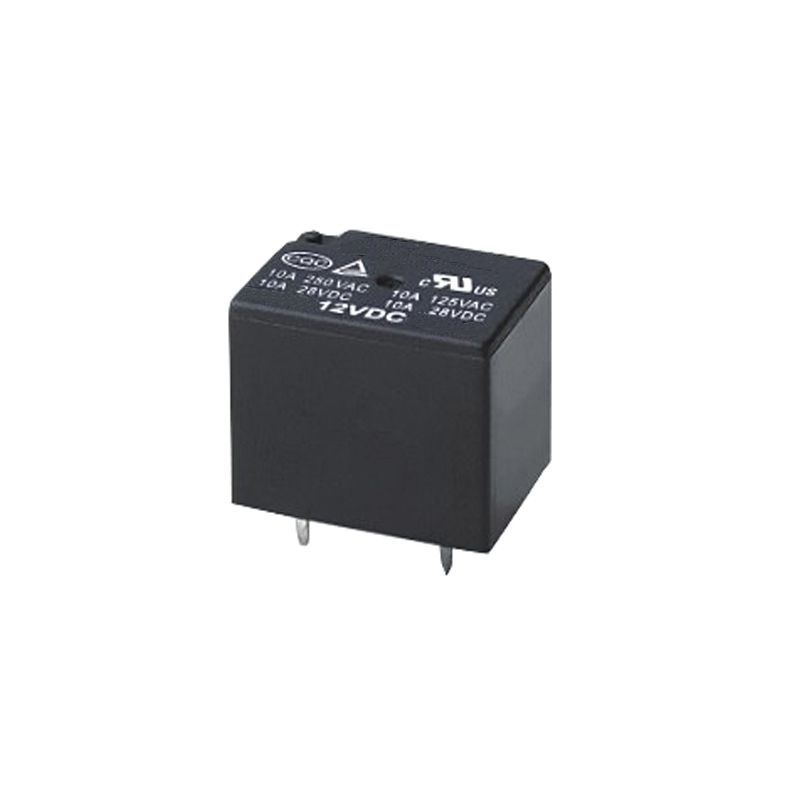

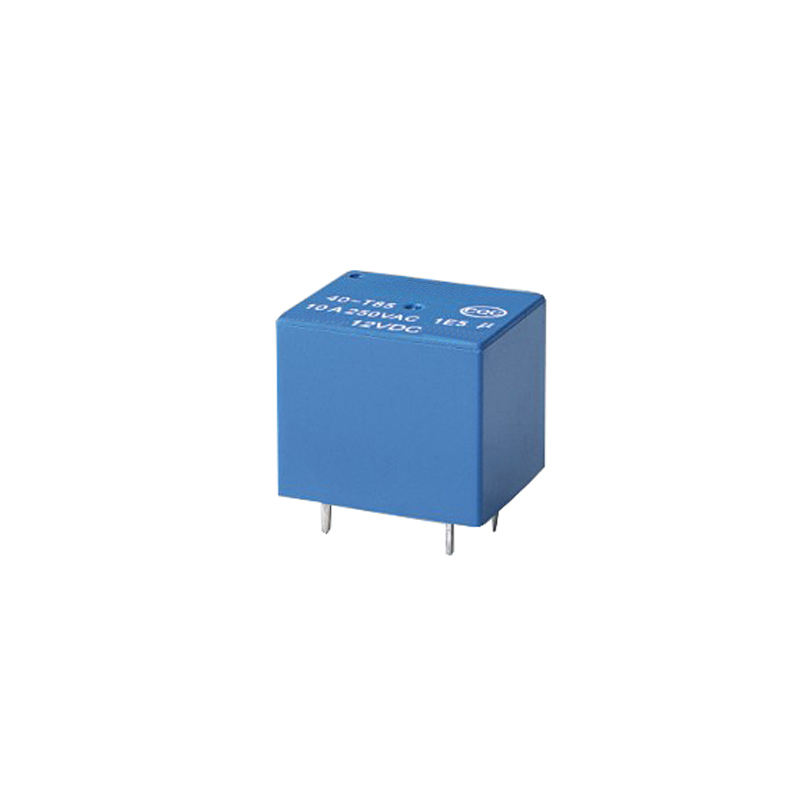

	FBPCBR-03	20.2*10.0*12.2	3-24VDC	0.36W,0.45W	-40℃~+85℃	10^5	10^7	SPST SPDT 5A 10A DC VC 5V 12V 24V High Sensitivity Relay		Send Order

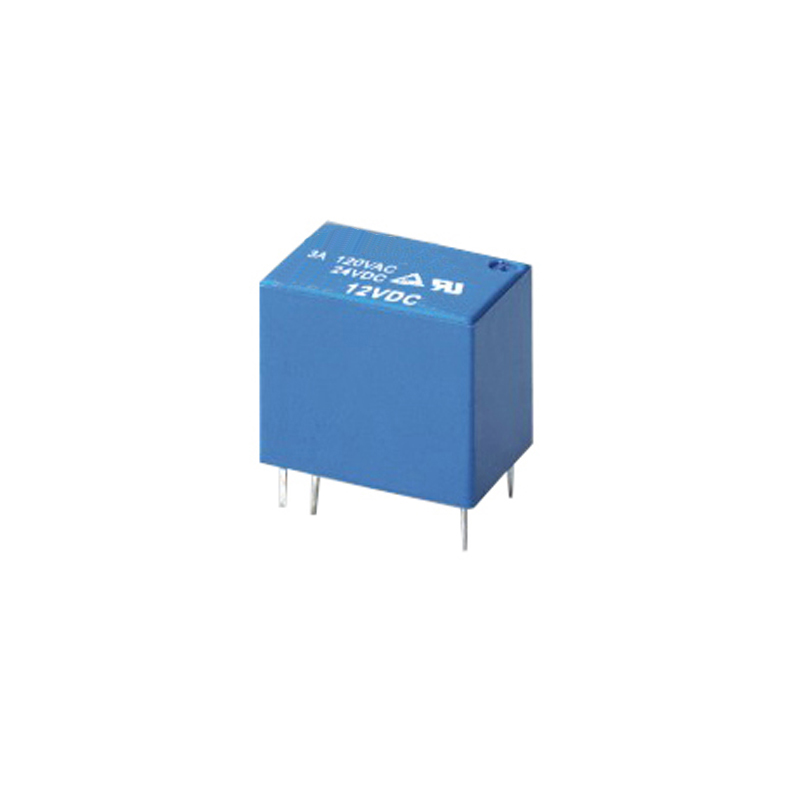

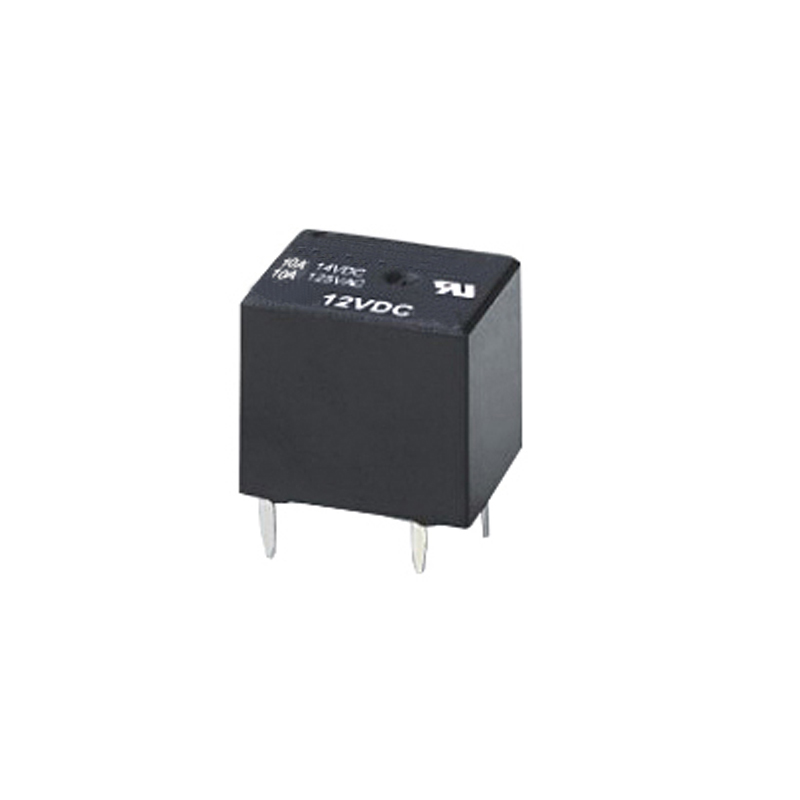

	FBPCBR-04	16.0*12.5*13.8	5-48VDC	0.54W,0.6W,0.8W,1.0W	-40℃~+40℃,-40℃~+85℃	10^5	10^7	12 volt 5VDC JQC-3F PCB T73 5A 7A 10A 250VAC mini electromagnetic power 24V 4pin relay		Send Order

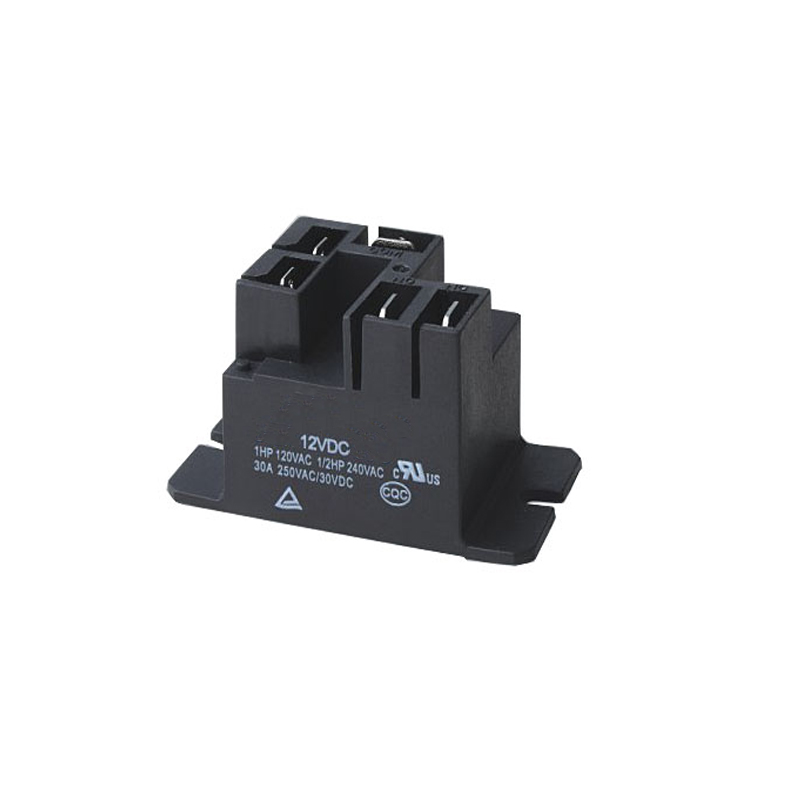

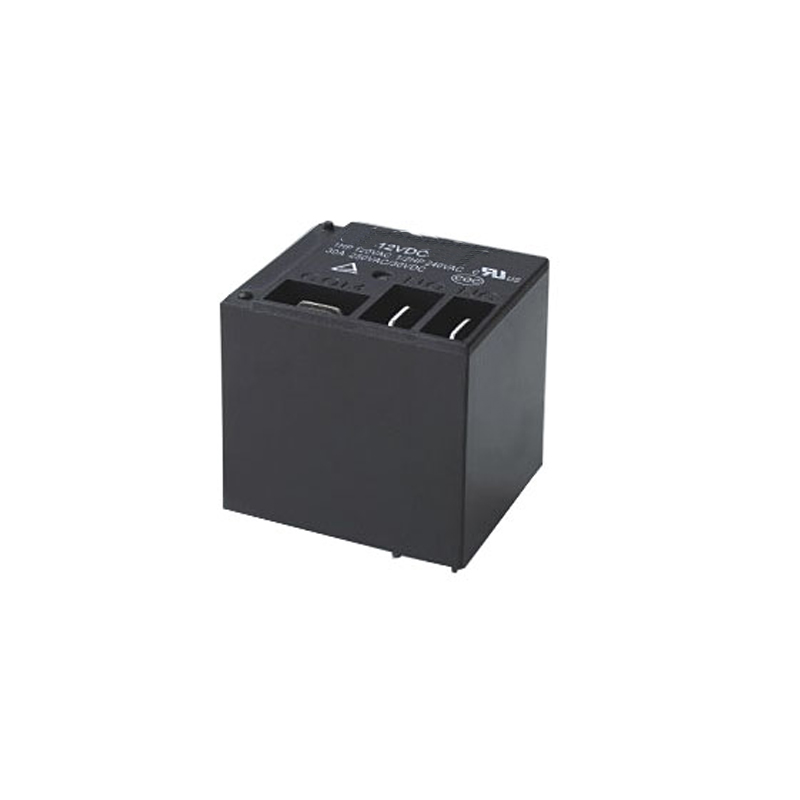

	FBPCBR-05	22.3*17.3*15.3	5-48VDC	0.36W,0.45W	-40℃~+85℃	10^5	10^7	High Quality Low Price JQX-15F T90 Oem Electric PCB Relay 10A 30A Relay		Send Order

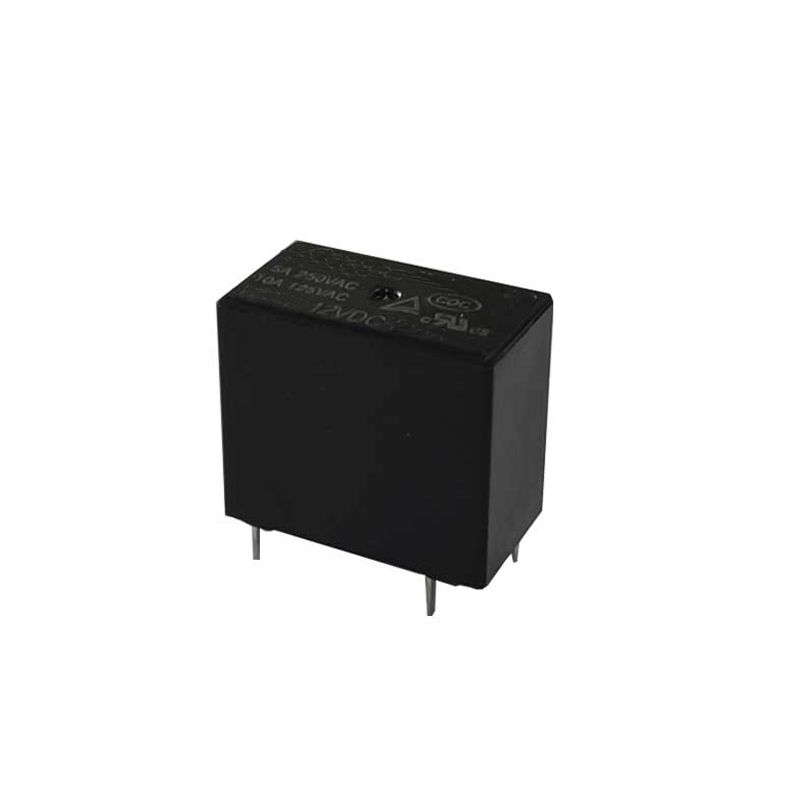

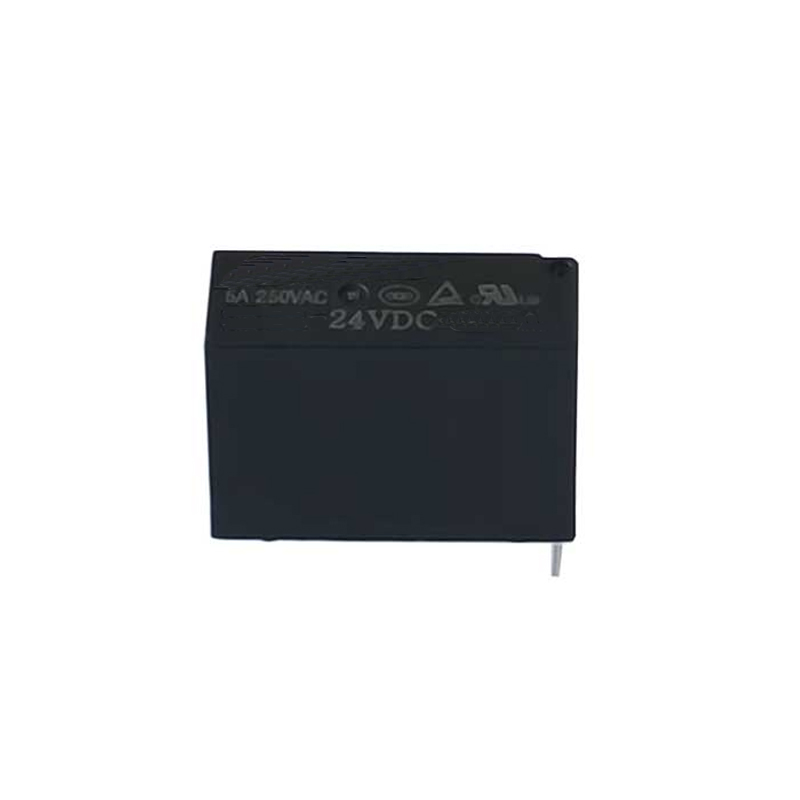

	FBPCBR-06	23*18*19	5-48VDC	0.36W,0.45W,0.8W	-40℃~+85℃	10^5	10^7	5 Pin 5VDC Electrical PCB Power Relay SRD-05VDC-SL-C		Send Order

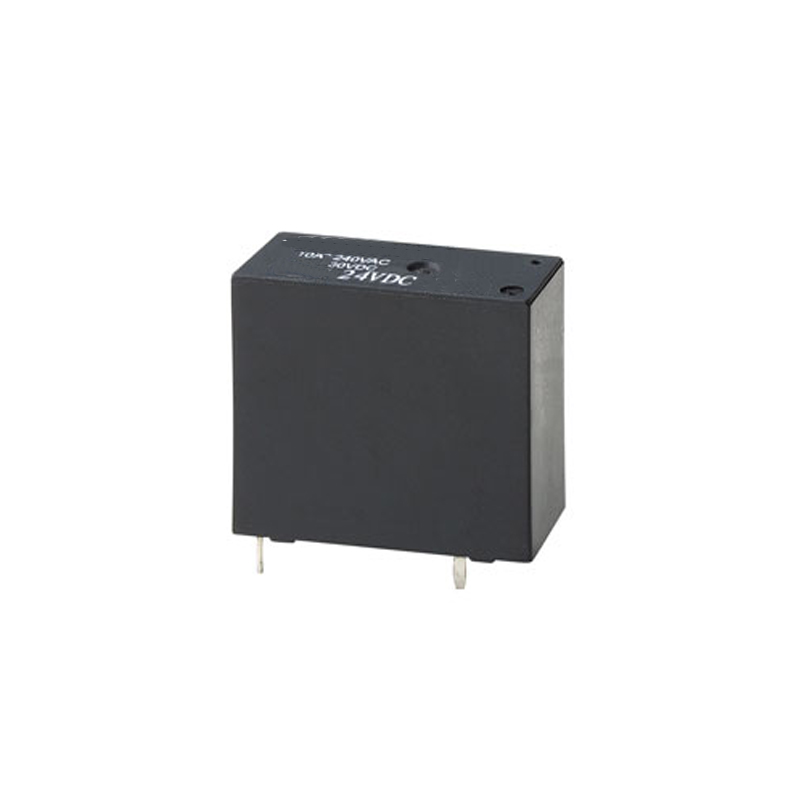

	FBPCBR-07	22.5*16*16.5	5-48VDC	0.36W,0.45W	-40℃~+85℃	10^5	10^7	JQC-3F 5v 12v 48vdc 10A 5 pin small sugar cube T73 relay pcb		Send Order

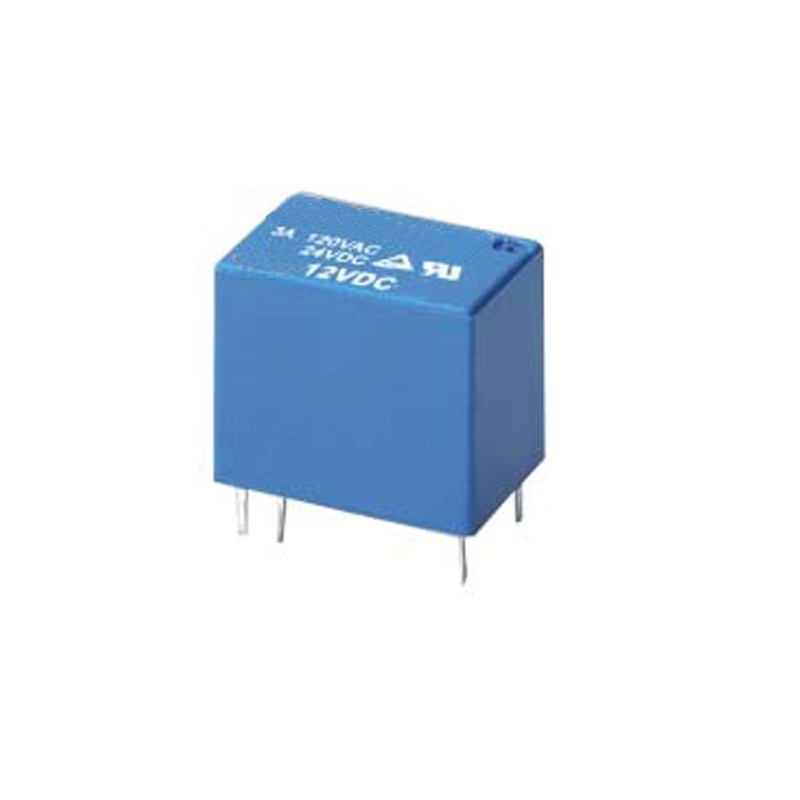

	FBPCBR-08	18.4*7.6*2.9	12VDC	0.2W,0.45W	-40℃~+85℃	10^5/10^4	10^7	Ultraminiature 3V 5V 6V 9V 12V 24V DC 220V ac HKE Electronic omron PCB Relay		Send Order
	FBPCBR-09	18.2*10.0*15.7	5-24VDC	0.36W,0.45W	-40℃~+85℃	10^5	10^7	China wenzhou Factory high power 12v 24V sugar cube jqc-3ff relay T73		Send Order
	FBPCBR-10	22.7*17.0*19.0	3-48VDC	0.45W	-40℃~+85℃	10^5	10^7	subminiature high power 5A 10A 5 pin mini relay 5v spdt relay 12v 24v 0.36w 0.45w PCB relay		Send Order
	FBPCBR-11	20.5*7.2*4.7	5-24VDC	0.2W	-40℃~+85℃	10^5/10^4	10^7	18V / 24V / 36V / 48V 10A miniature electromagnetic T73 PCB relay 5 pin JQC-3FFHot sale products		Send Order
	FBPCBR-12	28.4*126*24	5-48VDC	0.54W,0.72W	-40℃~+85℃	10^5	10^7	FBELE Brand smart home relay, Orginal black 20A 6pin 250VAC 30VDC		Send Order
	FBPCBR-13	22.6*17*11.6	5-48VDC	0.45W,0.6W,0.72W	-40℃~+85℃	10^5	10^7	high quality low price 1a 5v 12v 24v micro mini PCB relay spno t76 12v relay 4pin 3ff		Send Order
	FBPCBR-14	28.9*12.6*20.6	5-48VDC	0.54W,0.72W	-40℃~+85℃	10^5	10^7	Terminal Type PCB Remote Control Relay 5 Pin 24v 50a Relais 50amp Electromagnetic relay High Power PROTECTIVE Miniature		Send Order
	FBPCBR-15	29*24.5*15/32*27.4*20	5-48VDC	0.93W	-40℃~+85℃/-40℃~+125℃	10^5	10^7	12V 5A 12VDC DIP-6 PCB Coil Power Relay AGP2013F DSP1-DC12V-F		Send Order
	FBPCBR-16	32.2*276.6*20	5-48VDC	0.93W	-40℃~+85℃/-40℃~+125℃	10^5	10^7	Mini Power Relay DC5V-SHG DC12V-SHG DC24V-SHG Coil DPDT 8 Pin Relays PCB Type 2NO 2NC		Send Order
	FBPCBR-17	32.2*27.6*27.6	5-48VDC	0.93W	-40℃~+85℃/-40℃~+125℃	10^5	10^7	Top Quality 12VDC/24VDC 30A/40A General Relay T91		Send Order
	FBPCBR-18	50*27.4*27.4	5-48VDC	0.93W	-40℃~+85℃/-40℃~+125℃	10^5	10^7	16A 250VAC 24VDC NO High-inrush Power Relay G5RL-1A-E-HR with 6 PCB pins 5VDC 12VDC 24VDC		Send Order
	FBPCBR-19	17.5*15*20	5-48VDC	1.1W	-40℃~+85℃/-40℃~+125℃	10^5	10^7	Surat Online Shop 12v GSM relay 4 pin 12VDC Serial Port Module		Send Order

• PCB Power Relay

  An extensive range of PCB Power Relays for high switching capacity.
  Our range of PCB relays encompasses a full range of different requirements,
  with a variety of mounting options available, catering for inductive or resistive loads,
  AC or DC current, including SSR’s with or without heatsinks, for high or low current,
  as well as a range of different physical sizes and form factors including miniature relays.
  Our Engineers are available to offer free advice and support to assist you
  in finding a suitable solution for your application and can also assist with custom design-in projects.




• What is PCB Relay

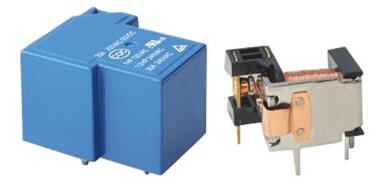

  PCB relay is a device used to provide electrical circuits on and off. It consists of a coil of wire that is wrapped around a ferromagnetic core. When a current is applied to the coil, it generates a magnetic field that activates the relay. It is typically used to isolate signal or control circuits from power circuits or to isolate one circuit from another. PCB relays are available in a variety of sizes and configurations and are used in a variety of industries, including automotive, aerospace, and communications.



•


  PCB relays are generally induction coil mechanisms (input part) that can reflect certain input variables (such as total electrical flow rate, working standard voltage, output power, characteristic impedance, frequency, temperature, pressure, speed, light, etc.); An electric actuator capable of controlling the "on" and "off" of the tested power circuit (outputting a portion); In the middle of the input part and output part of the PCB relay, there is also an intermediate mechanism (controller part) that couples the input quantity for safety protection, functions in processing, and controls the output part. It is evident that the PCB relay offers a multitude of benefits over other types of relays. Some of the most notable advantages include its compact size, its lightweight, and its ability to operate at high speeds. In addition, PCB relays are less likely to experience radio frequency interference.




•

  What are the different types of PCB Power Relay?

  A PCB power relay is an electromechanical device used to control the flow of current in a circuit. There are many different types of PCB power relays, each with unique characteristics and applications. The most common types of PCB power relays are solid state relays, reed relays, and mercury relays.

  Solid state relays are the most common type of PCB power relay and are typically used in low power applications. Reed Relays are used in high power applications, typically in automotive and industrial applications. Mercury relays are the most expensive type of PCB power relay, but they provide the highest level of surge protection.



  Finding and Sourcing PCB Relays

  When purchasing a PCB relay, it is important to consider the specifications and requirements of the application, such as rated voltage and current, contact configuration, switching speed and reliability.

  When selecting a supplier, you should also consider factors such as lead times, pricing, and minimum order quantities. It may be helpful to request samples or test the relays in your application before placing a large order to ensure they meet your requirements. FBelec provides you with the supply chain visibility you need to find the relays you need for your high power circuit boards.

•

  PCB Power Relay Features

  PCB Power Relays’ compact size and multi-contact configuration make them ideal for many electronic systems and devices.
  Some key features of PCB power relays include:
  High Current and High Voltage Handling: PCB power relays are designed to handle high currents and high voltages, typically up to several amps and hundreds of volts. This makes them suitable for applications requiring high power levels.
  Low Power Consumption: PCB power relays typically consume little power when not in use, making them ideal for battery-operated equipment or other applications where power consumption is a concern.
  Compact size: PCB power relays are typically small and lightweight, making them easy to integrate into electronic circuits and systems. This makes them a popular choice for space-constrained applications.
  Long Life: PCB Power Relays are durable and reliable and will last for many years. They are designed to withstand repeated use and are often designed to withstand harsh environmental conditions.
  Low Coil Power Consumption: PCB power relays typically require low coil power consumption to activate the relay, resulting in low power consumption and high energy efficiency.
  High Contact Reliability: PCB power relays feature high contact reliability, low contact resistance and low contact bounce, which prolongs the life of the relay.
  Multiple Contact Configurations: PCB power relays are available in a variety of contact configurations including Single Pole Single Throw (SPST), Single Pole Double Throw (SPDT), Double Pole Double Throw (DPDT), and more. This makes them suitable for a wide range of applications.

• PCB Power Relay Application Examples

  PCB power relays are versatile devices that can be used in many different applications requiring high current and voltage handling capabilities.

  Some examples of PCB power relay application areas include:




• Power Supply

  PCB power relays are commonly used in power supply circuits to switch high currents and voltages. They can be used to control AC or DC power inputs, switch between different voltage levels, or protect circuits from overload or short circuits.




  Motor Control

  PCB power relays are also used in motor control circuits to switch the current to the motor. They can be used to start and stop a motor, change its direction of rotation, or control its speed.




  Automotive Applications

  PCB power relays are used in many automotive applications such as headlights, windshield wipers, and cooling fans. They can also be used to control power flow in battery charging systems, switch between charging modes, or protect batteries from overcharging or discharging.







  Industrial Control Systems

  PCB power relays are used in various industrial control systems such as conveyor belts, pumps, and lighting systems. They can be used to switch the flow of power to different parts of the system, control the timing of operations, or protect the system from overloads or short circuits.




  Home appliances

  PCB power relays are used in many home appliances such as refrigerators, air conditioners, and washing machines. They can be used to control power flow to different parts of equipment, switch between different modes of operation, or protect equipment from overload or short circuits.

•
