| Picture | Model No. | Size | Voice Coil Imp | Sound Pressure Level | Resonat Frequency | Frequeney Range | Noise Power | Magnet Size and Assembly | Description | Datasheet | Add Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
  |
FBMR0804 |
8mm x 4mm | 16ohm | 87dB | 400Hz | fo-20000 Hz | 1w | 8mm Alnico | 8mm 0.5w mini dynamic speakers |  |
|
  |
FBMR1206 |
12mm x 6mm | 32ohm | 113dB | 1000Hz | fo-5000 Hz | 1w | / | 12x6mm small dynamic speaker | |
|
  |
FBMR1511 |
15mm x 11mm | 8ohm | 89dB | 600Hz | fo-20001 Hz | 0.5w | 12.6*8.6mm Alnico | 15x11mm 8ohm micro speaker | |
|
  |
FBMR1609 |
16mm x 9mm | 8ohm | 90dB | 650Hz | fo-20001 Hz | 0.5w | / | 9 * 16mm micro dynamic speaker component for mobile phone | |
|
  |
FBMR2004 |
20mm x 4mm | 8ohm | 126dB | 850Hz | fo-18000 Hz | 0.5w | 14mm Ferrite | 20mm speaker driver for earphone | |
|
  |
FBMR2415 |
24mm x 15mm | 8ohm | 94dB | 850Hz | fo-20000 Hz | 0.5w | 11mm Ferrite | 24mm 0.5w micro audio speaker | |
|
  |
FBMR3020 |
30mm x 20mm | 8ohm | 91dB | 700Hz | fo-20000 Hz | 0.8w | 15mm Ferrite | 30x20mm 8ohm 1w dynamic speaker | |
|
  |
FBMR3040 |
30mm x 6mm | 8ohm | 102dB | 400Hz | fo-20000 Hz | 1w | 20mm Ferrite | 30x40mm micro speaker | |
|
  |
FBMR151104 |
15mm x 11mm | 8ohm | 88dB | 850Hz | fo-20000 Hz | 0.5w | 15mm Ferrite | 8ohm 0.5w internal audio speaker | |
|
  |
FBPSB1504 |
15mm*4mm | 8ohm | 883dB | 800Hz | fo～6000 Hz | 0.5w | / | 15*4mm 0.8W 8ohm 92dB SMD mini speaker | |
|
  |

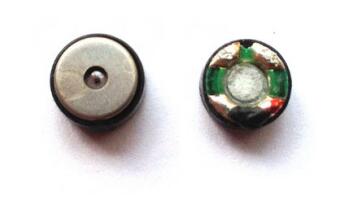

FBSH1008-2D |
10mm x 3.8mm | 8ohm | 87dB | 400Hz | fo-20000 Hz | 1w | 5*1.2mm Alnico | 10mm 8ohm 0.5w earphone speaker | |

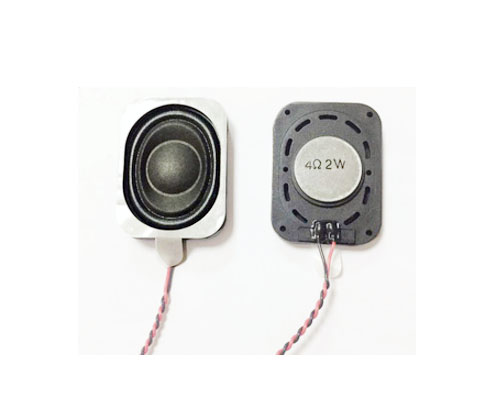

Micro speaker:
Fbelec has developed a series of miniature loudspeakers with small size, which are specially used for space limited design products. The speaker adopts thin design and is equipped with polyester film cone to improve durability, making it very suitable for smart phones, tablets, laptops, automotive electronics and Bluetooth headsets. Several TV laptop speaker or micro speaker for mobile phone models also have an inlet protection (IP) rating of IP67 for applications dealing with moisture and environmental pollutants.

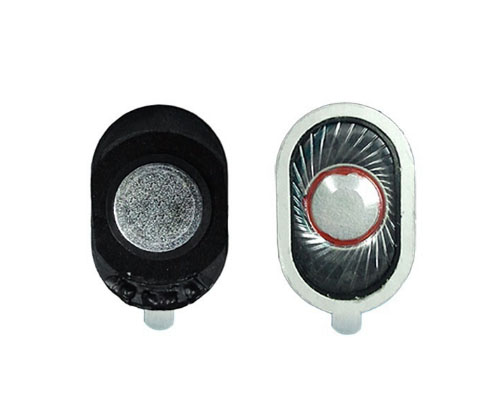

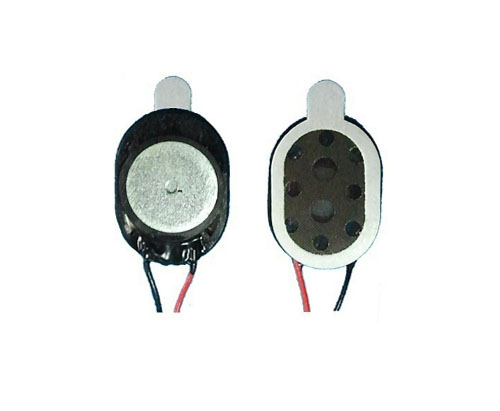

Durable Micro Speakers are mainly composed of basin frame, magnetic steel, pole piece, sound film, voice coil, front cover, wiring board, damping cloth, etc. they are divided into single magnetic and double magnetic according to the number of magnetic steel. According to the position of magnetic steel, it can be divided into internal magnetic and external magnetic. Fbelec can also support customized processing!
