Soldering Equipment

Picture	Manufacturer No.	Material	Input voltage	Description	Datasheet	Order
	FBSE-01	Electric soldering iron with plastic handle	110-220V	Digital display electric soldering iron temperature adjustable electric soldering iron 80w digital electric soldering iron lcd EU 2220v US standred 110v		Send Order

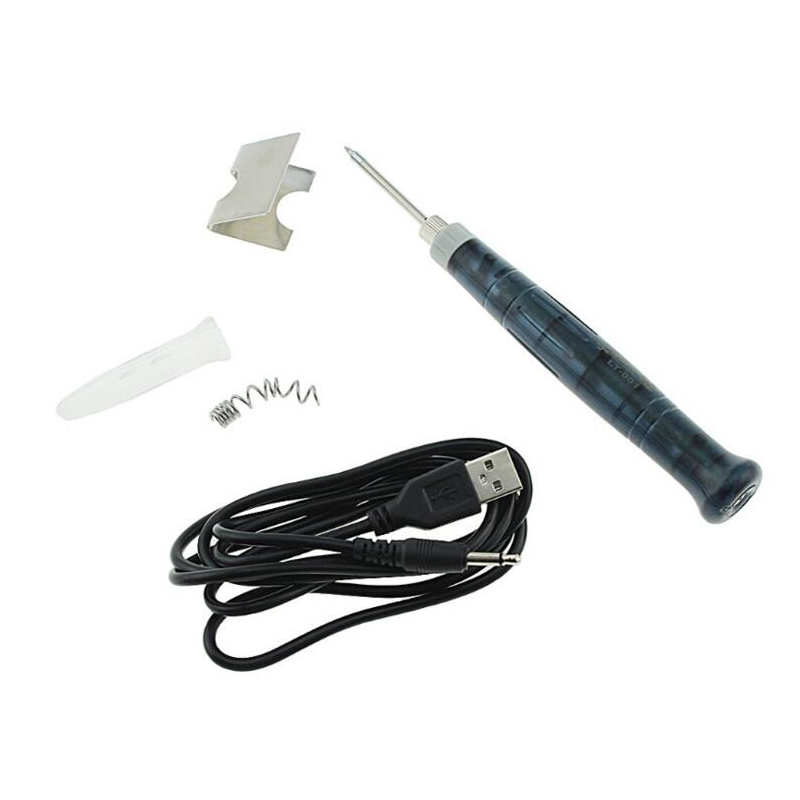

	FBSE-02	Electric soldering iron with plastic handle	5V	Small low voltage 5V USB portable mini soldering iron soldering iron soldering pen mobile phone repair		Send Order

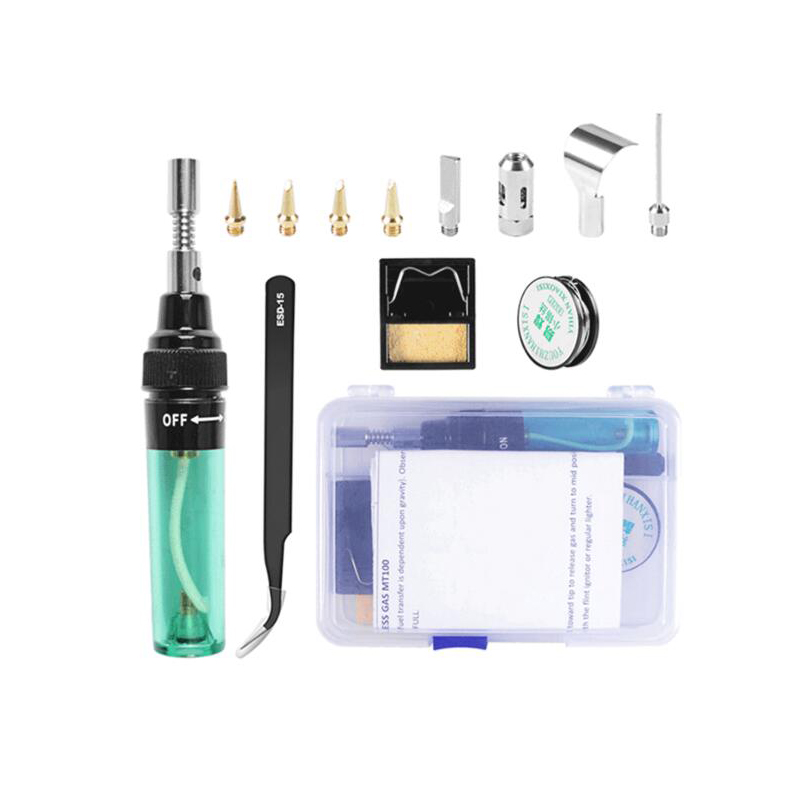

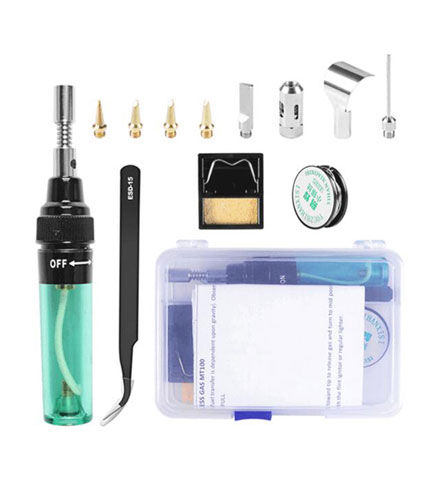

	FBSE-03	Electric soldering iron with plastic handle	/	Gas Soldering Iron Set MT-100 Portable Pneumatic Luo Tie Three-in-One Kit Gas Soldering Iron Component Box Set		Send Order
	FBSE-04	Electric soldering iron with plastic handle	12V	Internal heating type electric soldering iron 35w constant temperature in-line electric Luo iron 12v low voltage electric soldering iron set car welding tools		Send Order

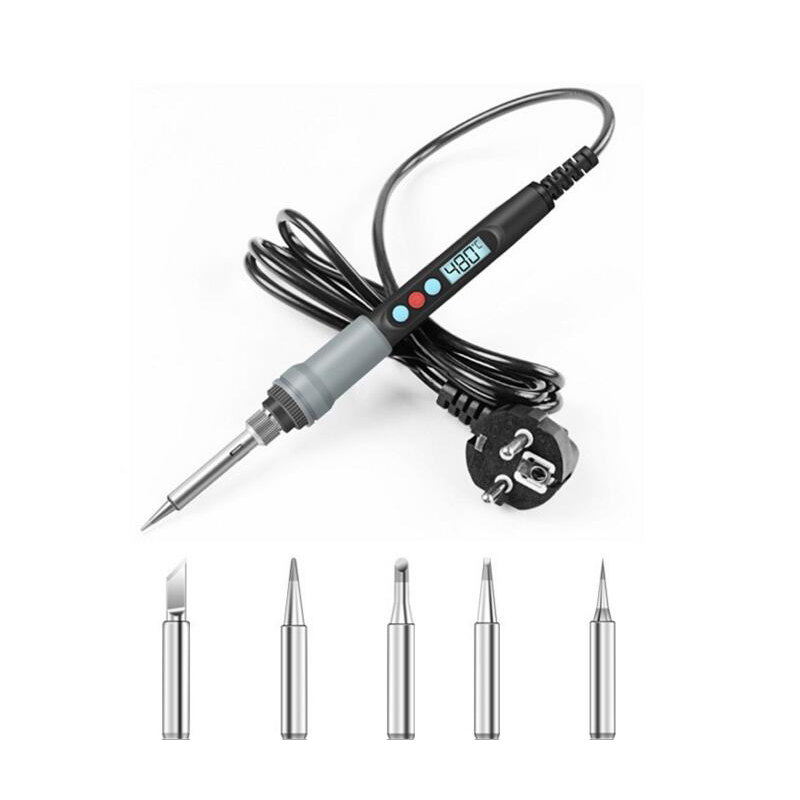

	FBSE-05	Electric soldering iron with plastic handle	110-220V	Adjustable temperature LCD electric soldering iron set Digital display electric Luo iron soldering iron welding gun 60W combination tool		Send Order

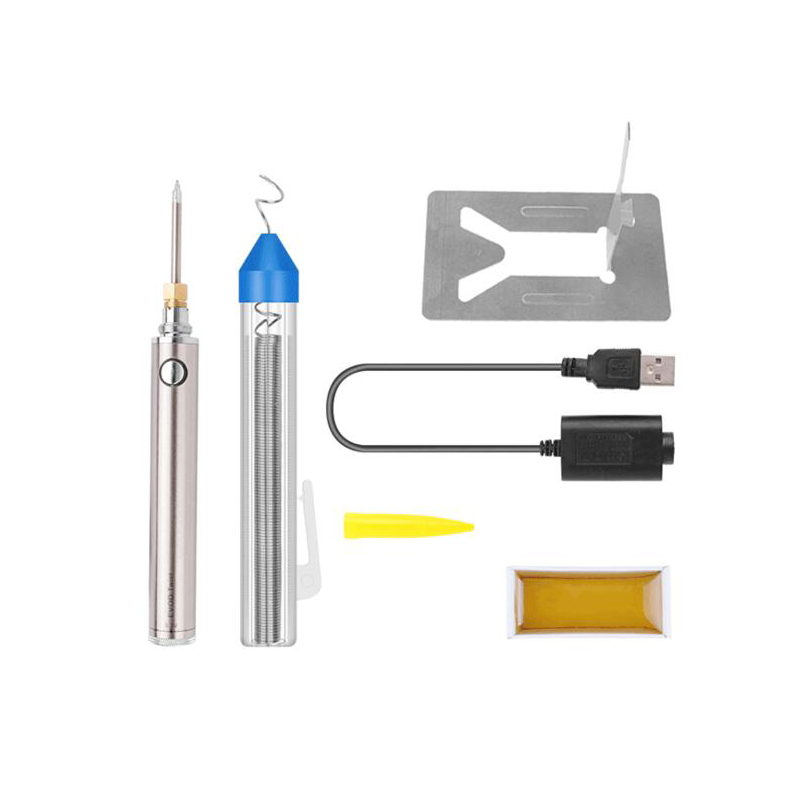

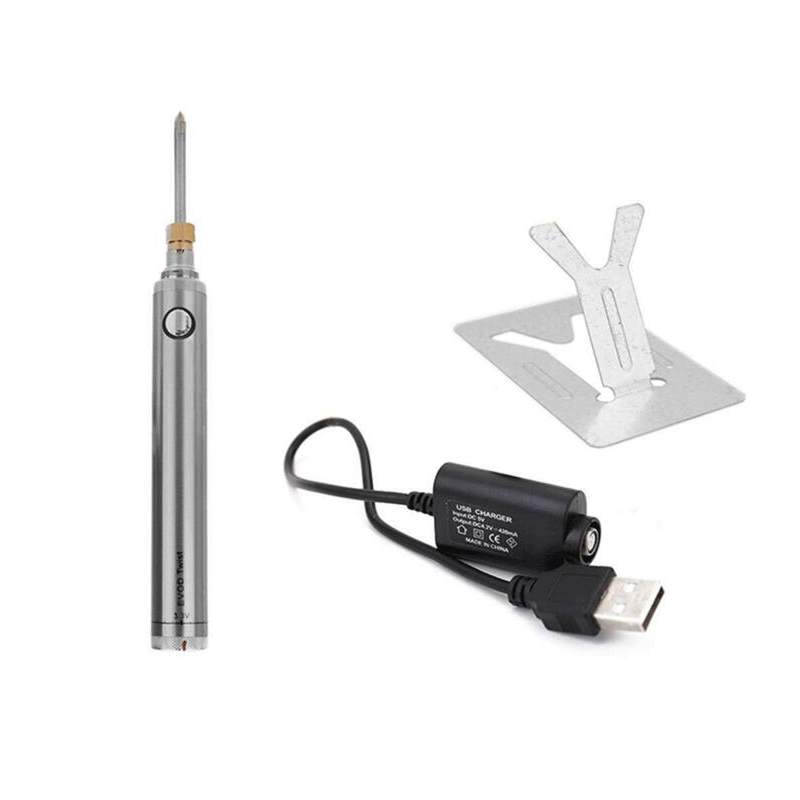

	FBSE-06	Stainless steel soldering iron	5V	8W portable mini soldering iron USB interface soldering pen 5V low voltage electric Luotie high altitude maintenance handskit		Send Order

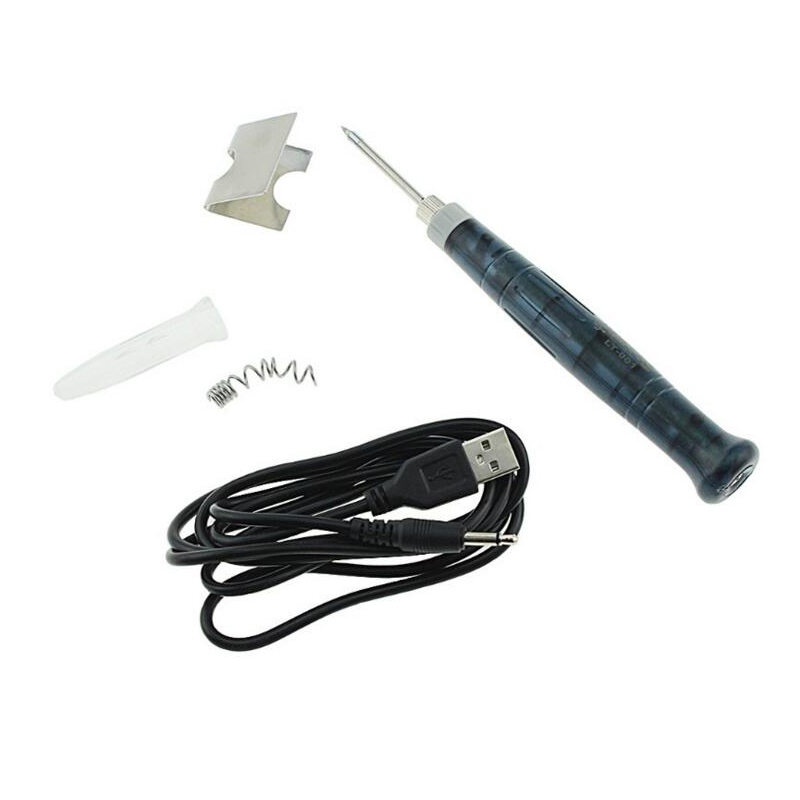

	FBSE-07	Stainless steel soldering iron	5V	DC5V8W portable mini USB soldering iron USB interface soldering pen welding repair tool handskit		Send Order
	FBSE-08	Electric soldering iron with plastic handle	5V	Small low voltage 5V USB portable mini soldering iron soldering iron soldering pen mobile phone repair		Send Order

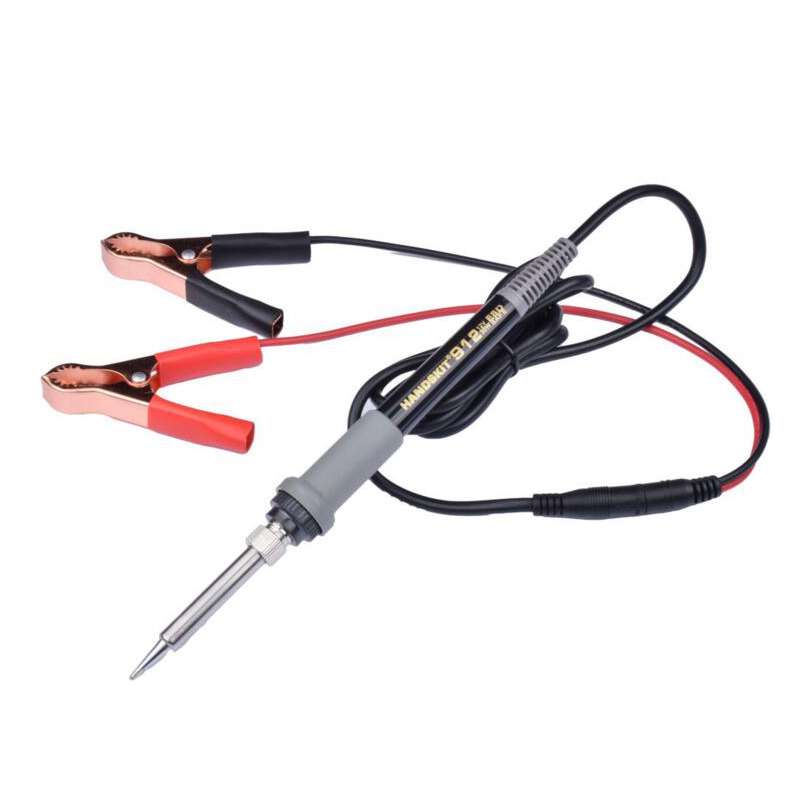

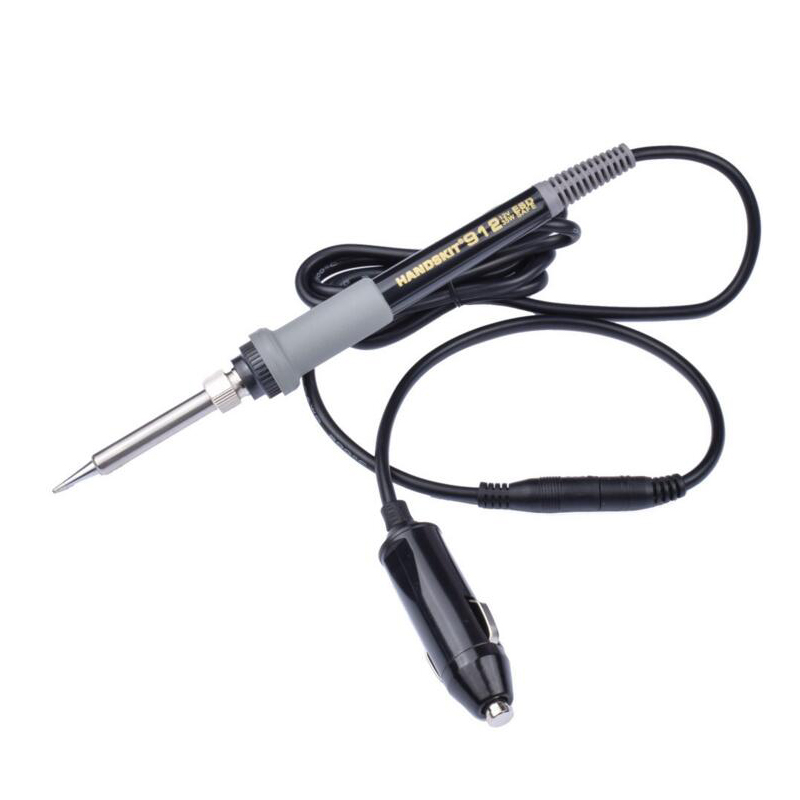

	FBSE-09	Electric soldering iron with plastic handle	12V	912 electric soldering iron internal heating 35W electric Luo iron car constant temperature low voltage Luo iron pen car welding tool 12V		Send Order
	FBSE-10	Electric soldering iron with plastic handle	220V	220V 90W LCD soldering iron 908S adjustable temperature soldering iron soldering iron digital display soldering iron digital soldering iron		Send Order

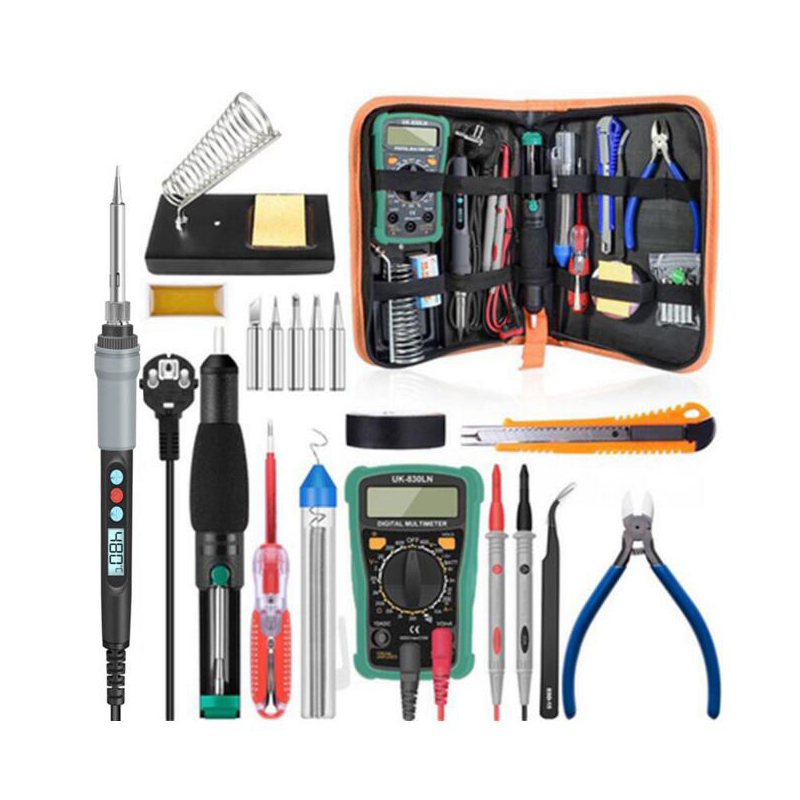

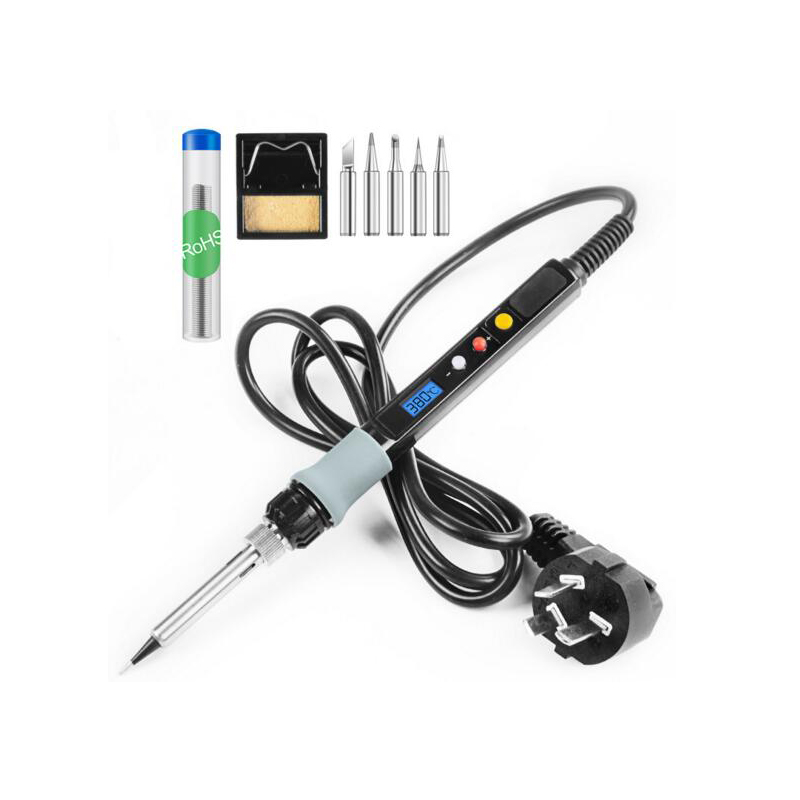

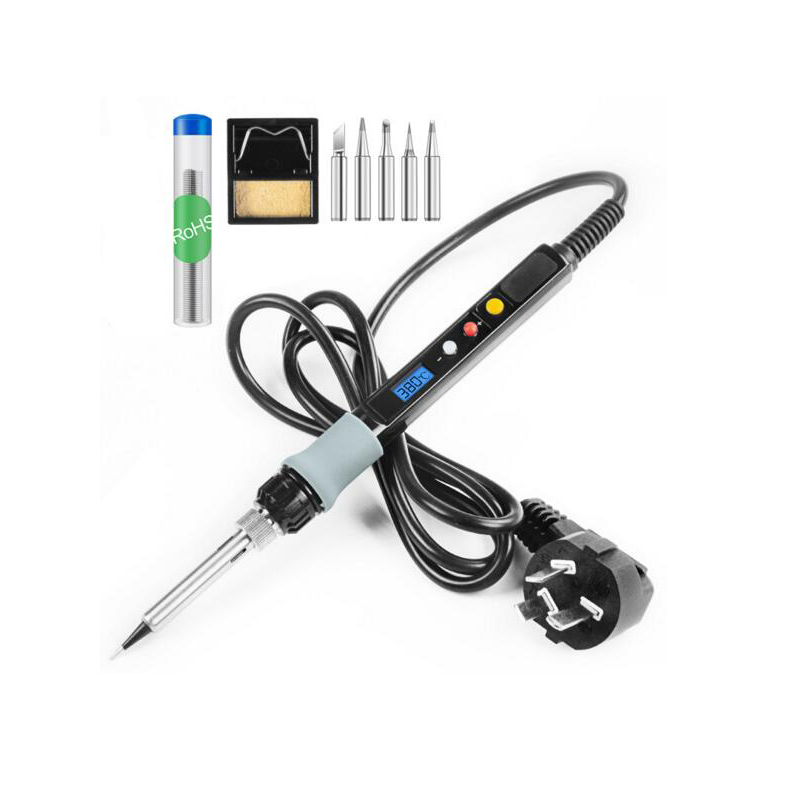

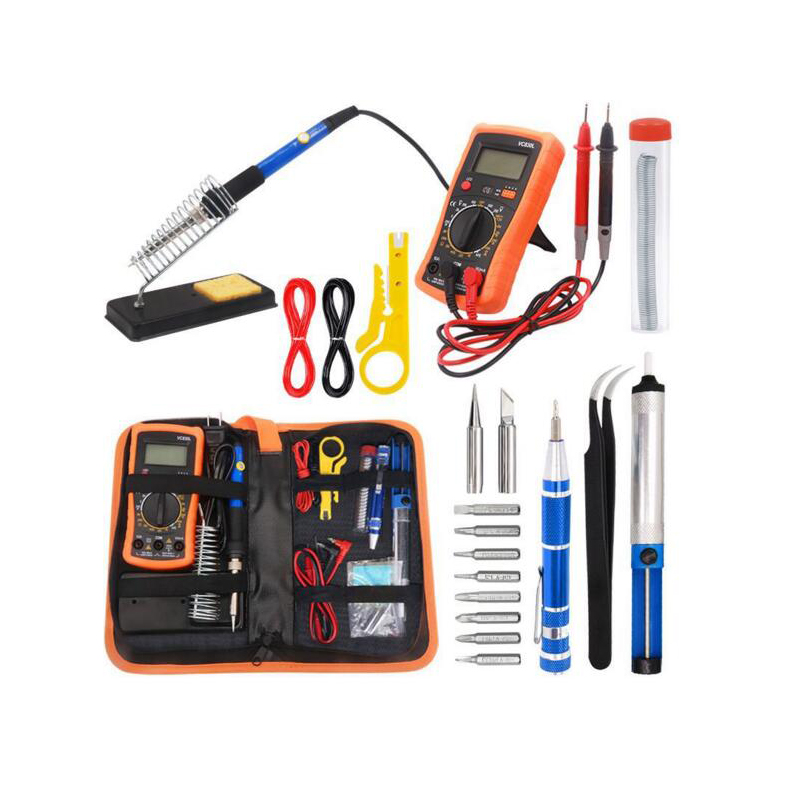

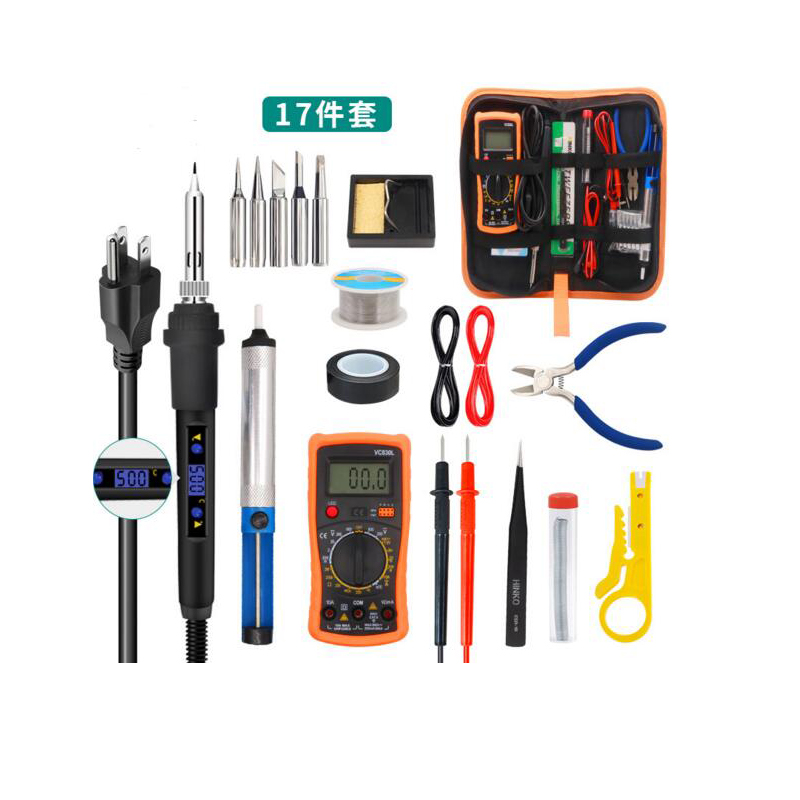

	FBSE-11	Electric soldering iron with plastic handle	110-220V	The new 90W high-power LCD digital display soldering iron toolkit multimeter pliers solder suction screwdriver US EU		Send Order

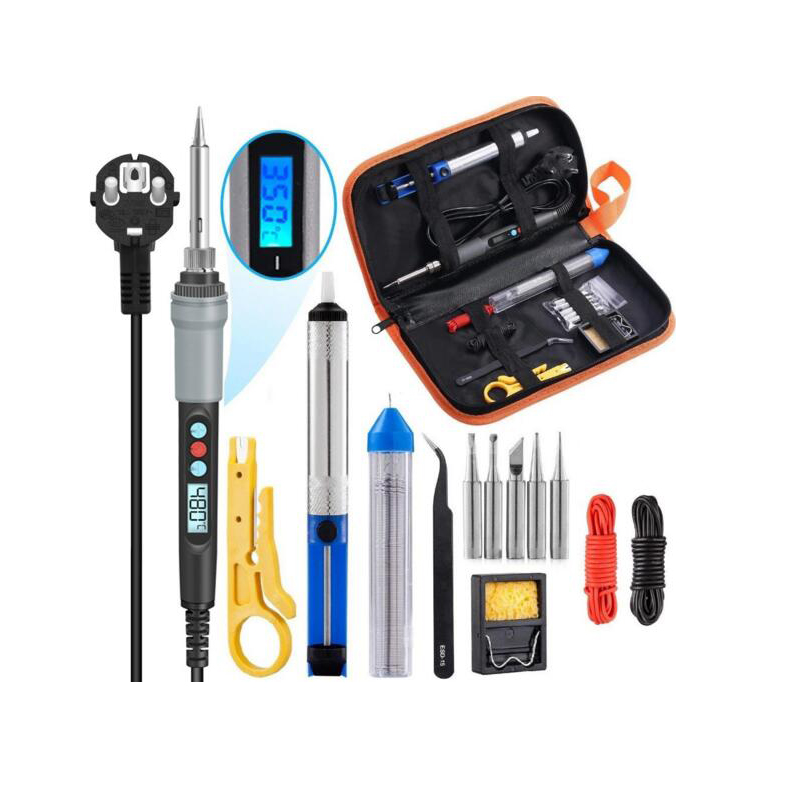

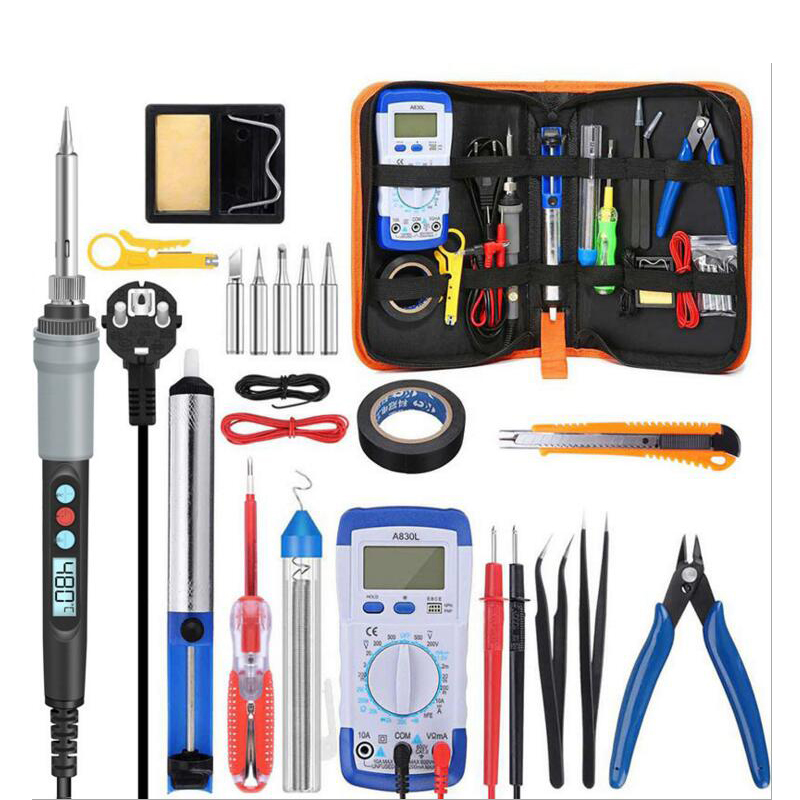

	FBSE-12	Electric soldering iron with plastic handle	110-220V	90W digital display soldering iron set LCD soldering iron tool kit with multimeter double ring solder suction pliers utility knife		Send Order
	FBSE-13	Electric soldering iron with plastic handle	110-220V	80W digital display LCD internal heat type soldering iron set with switch soldering iron solder wire 5PCS soldering iron tip European standard and American standard		Send Order
	FBSE-14	Stainless steel soldering iron	5V	5V 8W portable soldering iron USB interface high altitude maintenance electric soldering iron cordless soldering iron handskit		Send Order

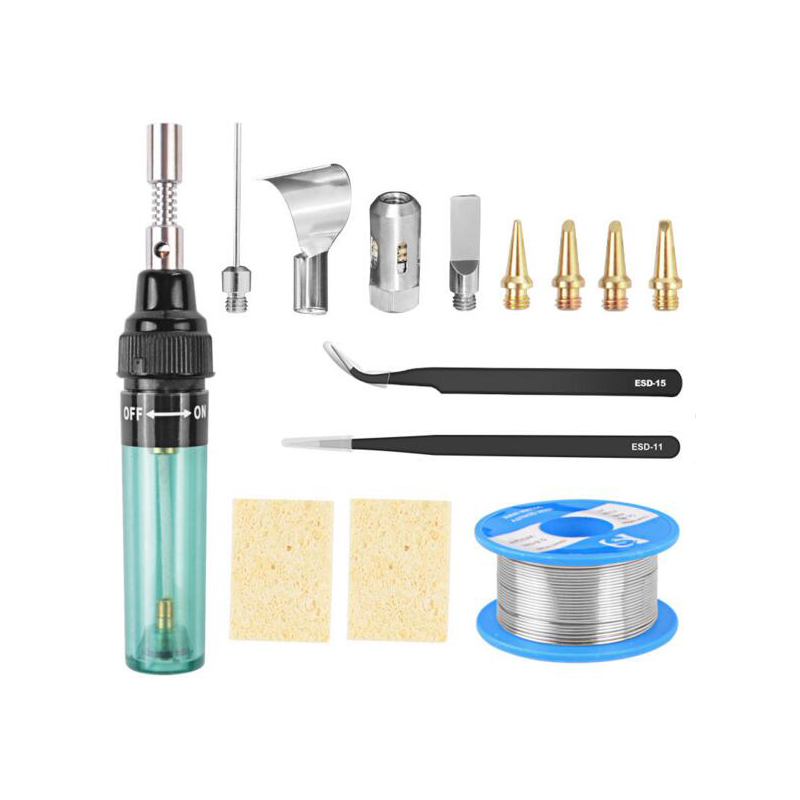

	FBSE-15	Electric soldering iron with plastic handle	/	T-100 pen type gas soldering iron gas inflatable soldering iron gas soldering iron tin wire tweezers multiple soldering iron tips		Send Order
	FBSE-16	Electric soldering iron with plastic handle	110-220V	90W digital display LCD soldering iron welding kit with solder suction solder wire welding tool 110V 220V		Send Order

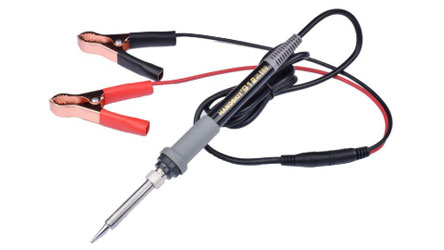

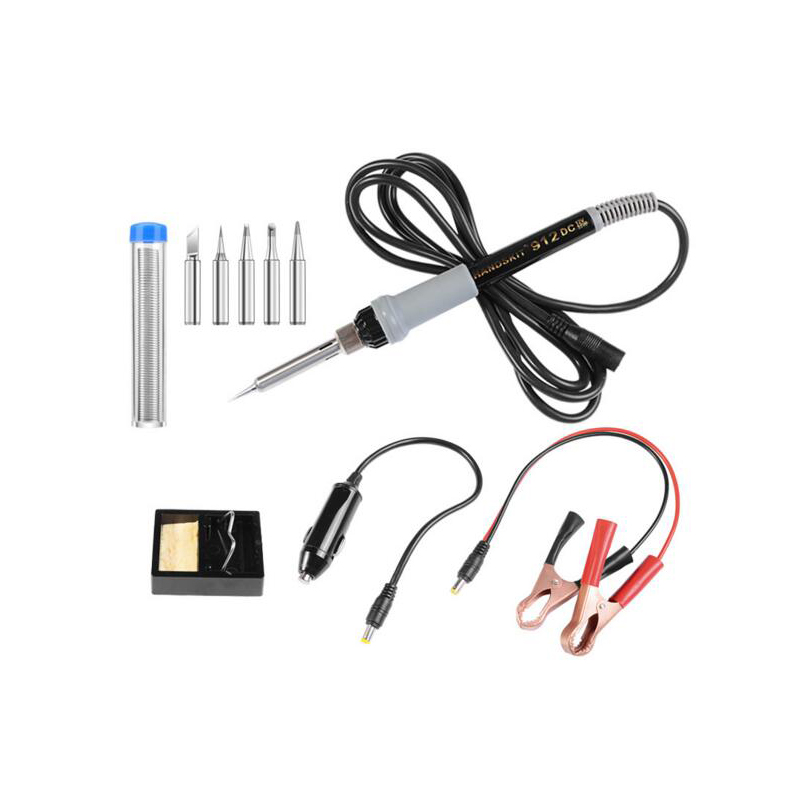

	FBSE-17	Electric soldering iron with plastic handle	12V	912 internal heating DC low voltage 12V electric soldering iron 35W car plug electric soldering iron set car soldering iron		Send Order
	FBSE-18	Electric soldering iron with plastic handle	110-220V	80W digital display LCD internal heat type soldering iron set with switch soldering iron solder wire 5PCS soldering iron tip European standard and American standard		Send Order
	FBSE-19	Electric soldering iron with plastic handle	24-36V	Constant temperature digital soldering iron high-power adjustable temperature soldering station soldering repair tool 150W solder gun set		Send Order

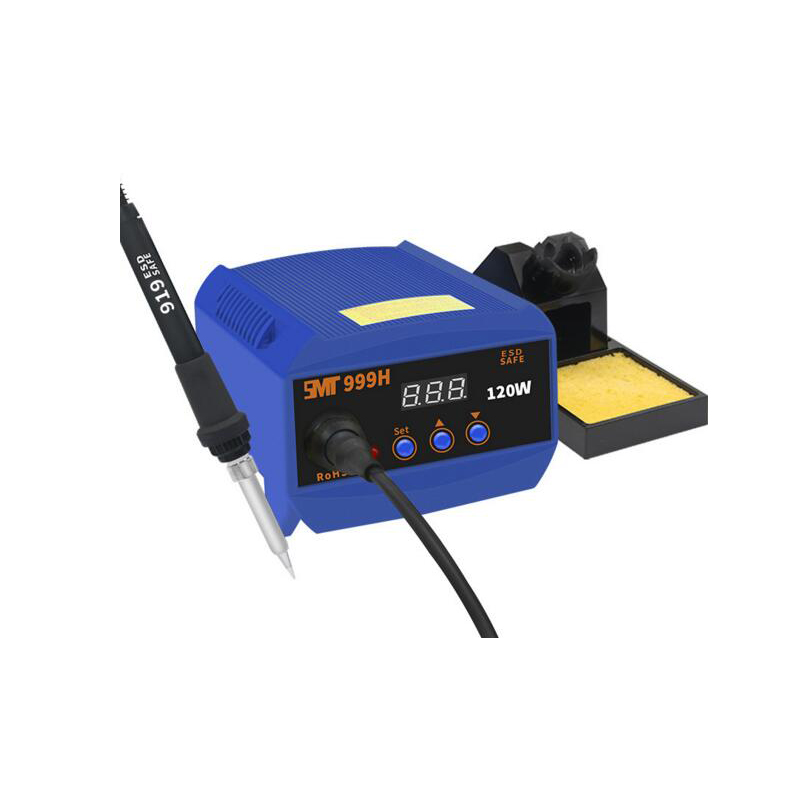

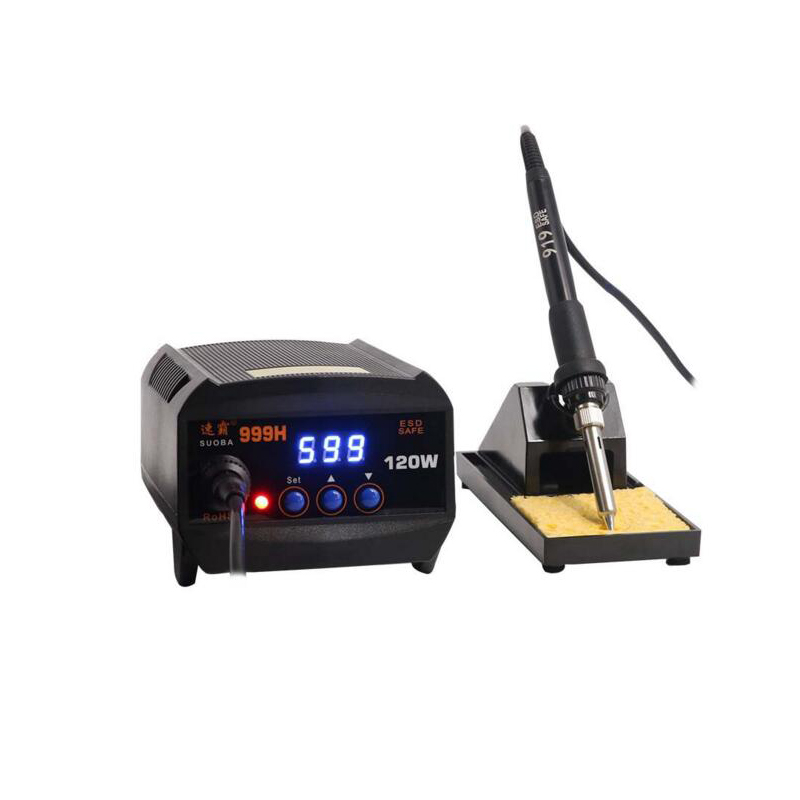

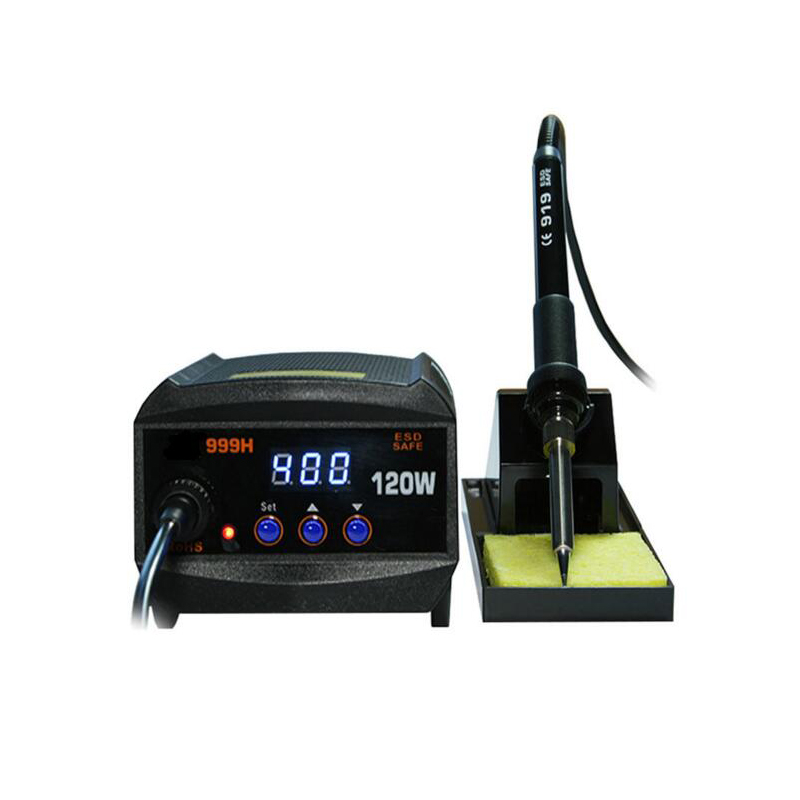

	FBSE-20	Constant temperature soldering station	220V	Speedmaster 999H constant temperature soldering iron temperature adjustment welding station 120w digital display welding handle mobile phone repair welding tools		Send Order

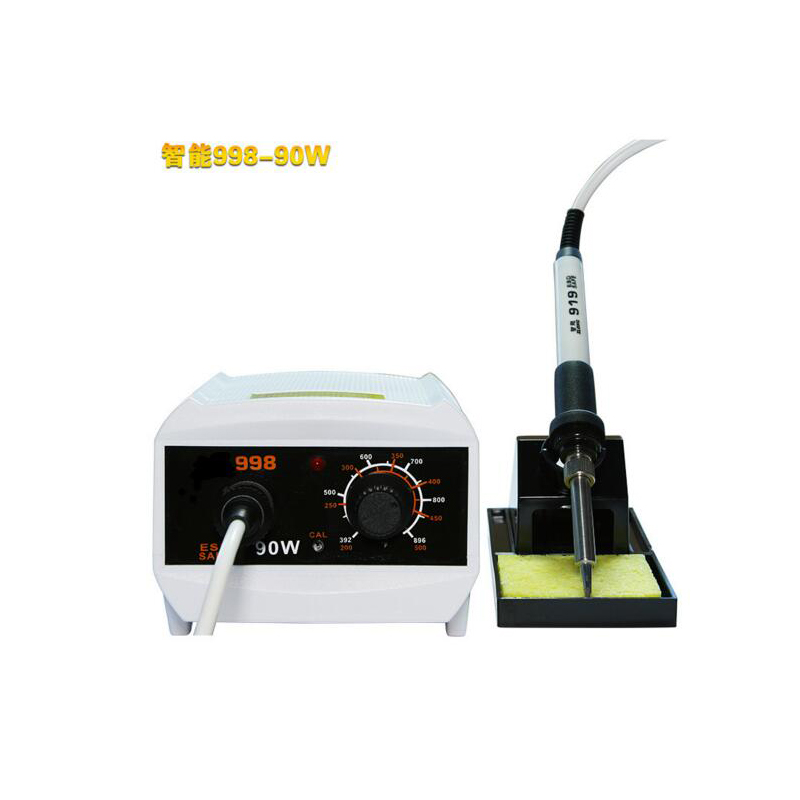

	FBSE-21	Electric soldering iron with plastic handle	220V	Intelligent 998 constant temperature soldering station internal heating electric soldering iron temperature adjustable welding repair electric Luo iron 90w soldering gun		Send Order
	FBSE-22	Electric soldering iron with plastic handle	110-220V	Source manufacturers supply constant temperature household suits with adjustable temperature welding pen welding repair tools electric soldering iron kit		Send Order
	FBSE-23	Electric soldering iron with plastic handle	220V	Soldering station four-in-one constant temperature digital display soldering station adjustable temperature household repair welding electric iron industrial soldering gun 80W		Send Order
	FBSE-24	Electric soldering iron with plastic handle	220V	Constant temperature electric soldering iron repair kit 70W high-power internal heating type soldering iron soldering iron soldering pen constant temperature soldering station		Send Order

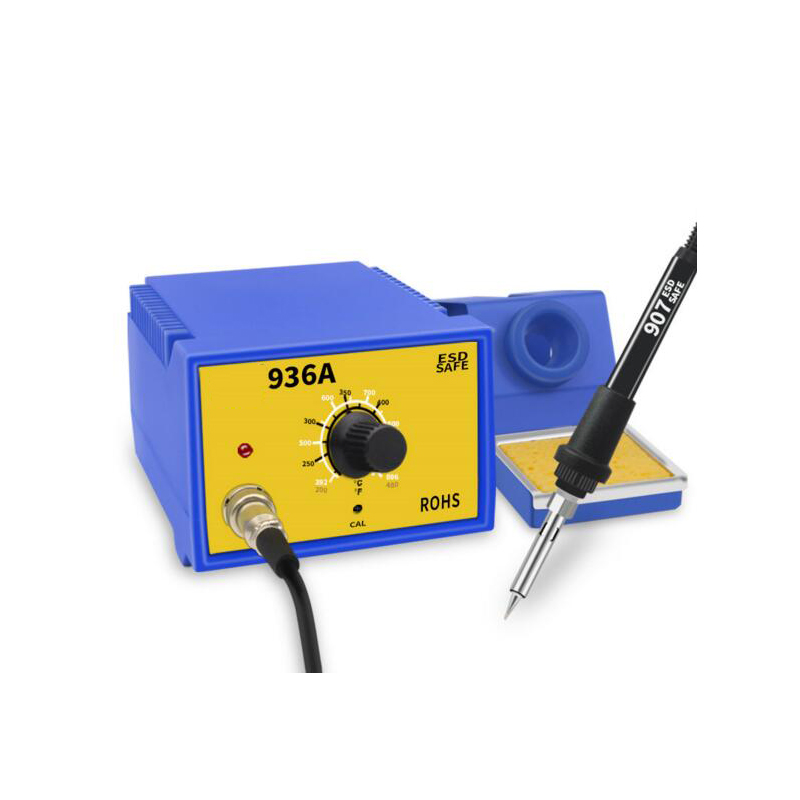

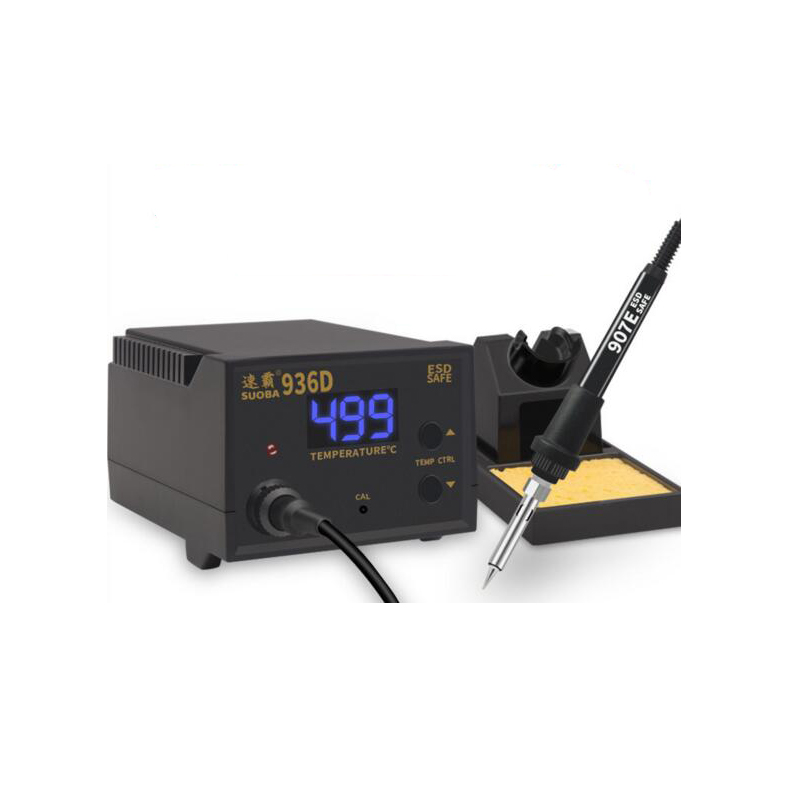

	FBSE-25	Constant temperature soldering station	110/220V	Manufacturers supply 936 soldering station thermostatic adjustable electric soldering iron internal heating type soldering iron 60W repair soldering tool electric Luo iron		Send Order
	FBSE-26	Electric soldering iron with plastic handle	220V	Electric iron thermostat adjustable electric soldering iron household repair welding kit tool 60w solder gun handle		Send Order
	FBSE-27	Constant temperature soldering station	220V	60W desktop temperature adjustable plug-in ceramic core electric soldering iron constant temperature soldering station		Send Order

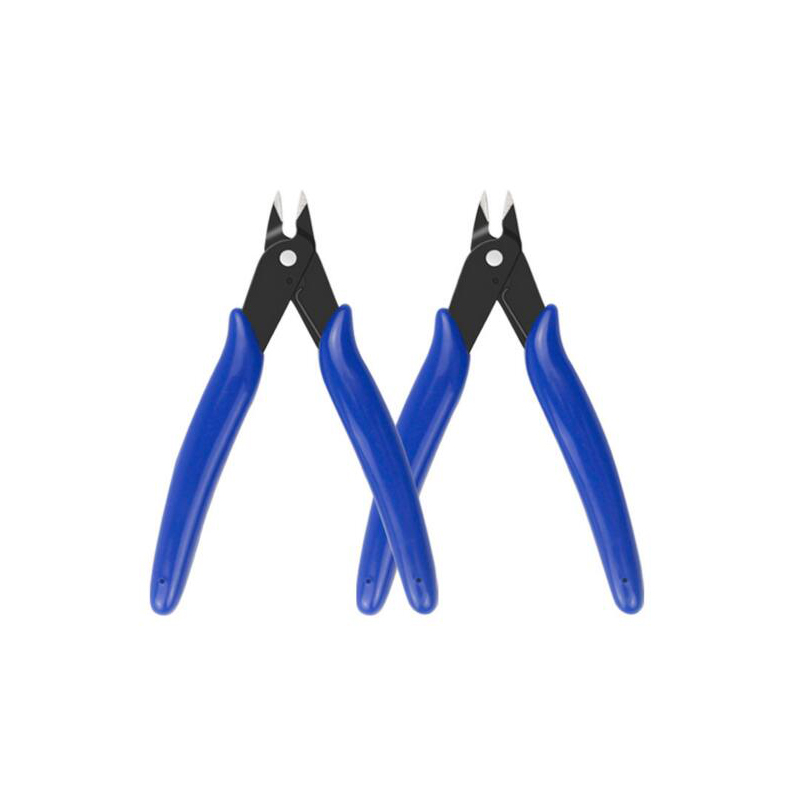

	FBSE-28	High-carbon steel	/	170 cutting pliers high carbon steel industrial grade diagonal nozzle pliers tool mini diy up to model electronic diagonal pliers		Send Order
	FBSE-29	Constant temperature soldering station	220V	Digital soldering iron temperature adjustable electric soldering iron constant temperature soldering station internal thermal electronic soldering iron welding set repair tool		Send Order
	FBSE-30	Electric soldering iron with plastic handle	220V	Source factory thermal electric soldering iron 60W soldering gun soldering tool constant temperature soldering iron diy pyrography adjustable soldering iron set		Send Order
	FBSE-31	Constant temperature soldering station	220V	Electric soldering iron high-power digital display constant temperature soldering station adjustable temperature household repair welding tool set 120W solder gun		Send Order

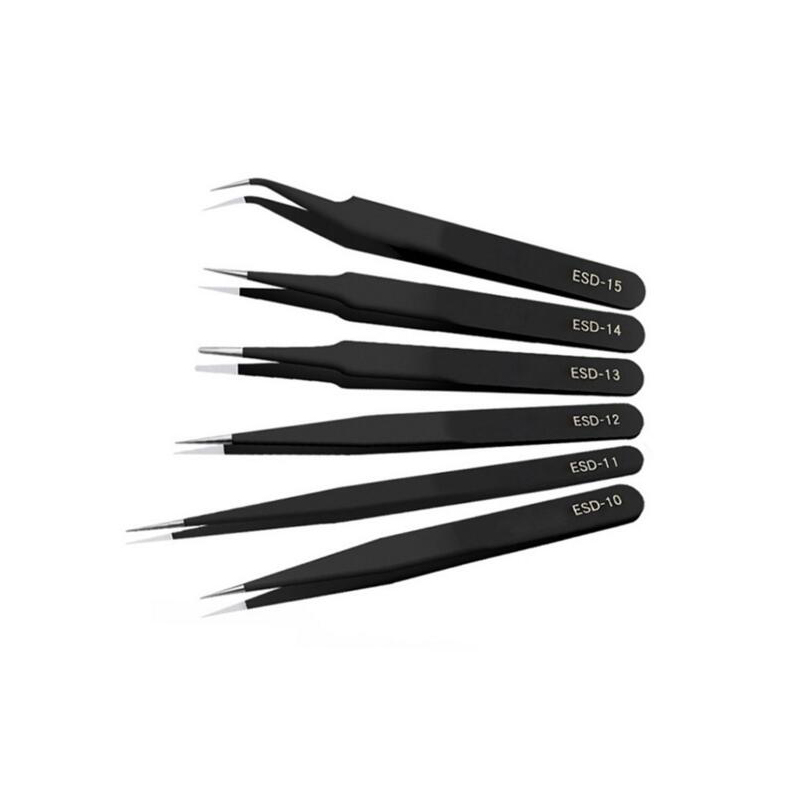

	FBSE-32	Stainless steel	/	round Tweezers Stainless Steel ESD Black Straight Elbow Disassembly Machine Bird Nest Picking Hair Grafting Eyelash Set Nail Tools		Send Order

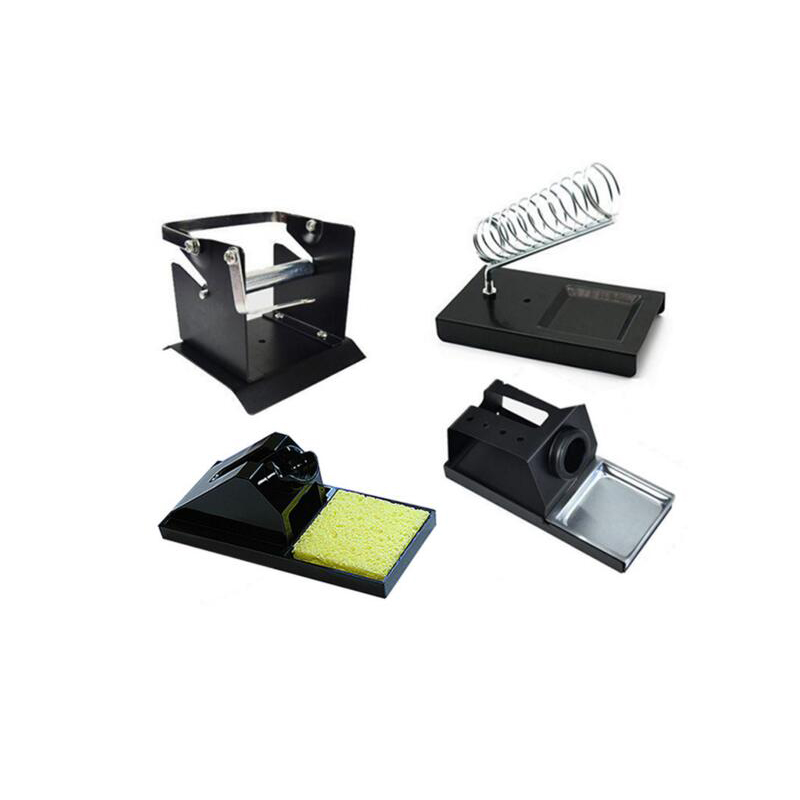

	FBSE-33	Aluminum alloy	/	Metal aluminum alloy soldering iron stand t12 bakelite high temperature soldering iron stand square soldering iron stand multifunctional tin wire stand		Send Order

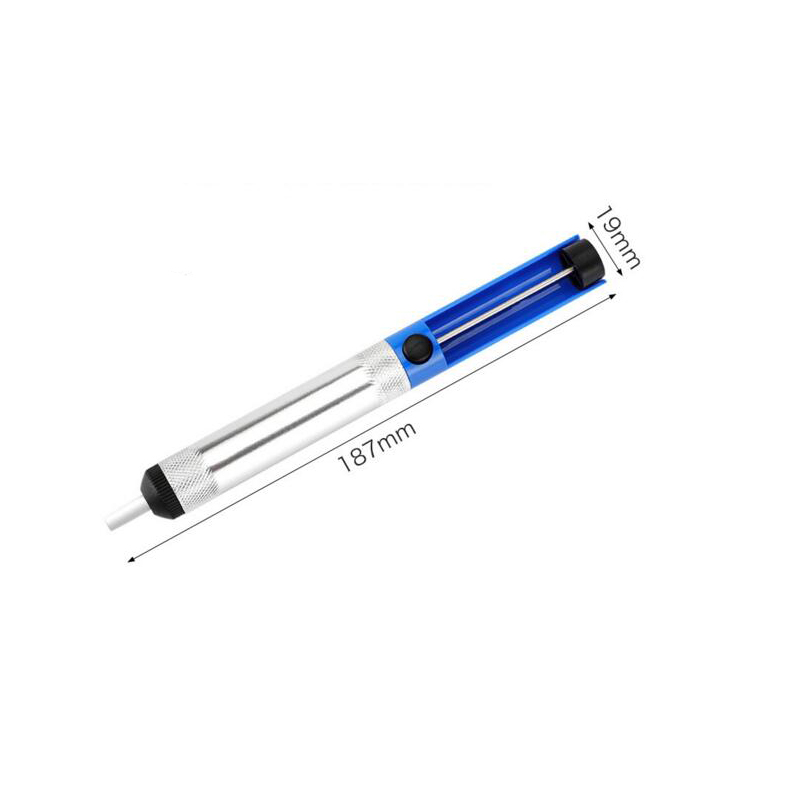

	FBSE-34	Aluminum + ABS	/	Semi-aluminum alloy manual tin suction device strong suction suction gun electric iron repair welding auxiliary tool		Send Order

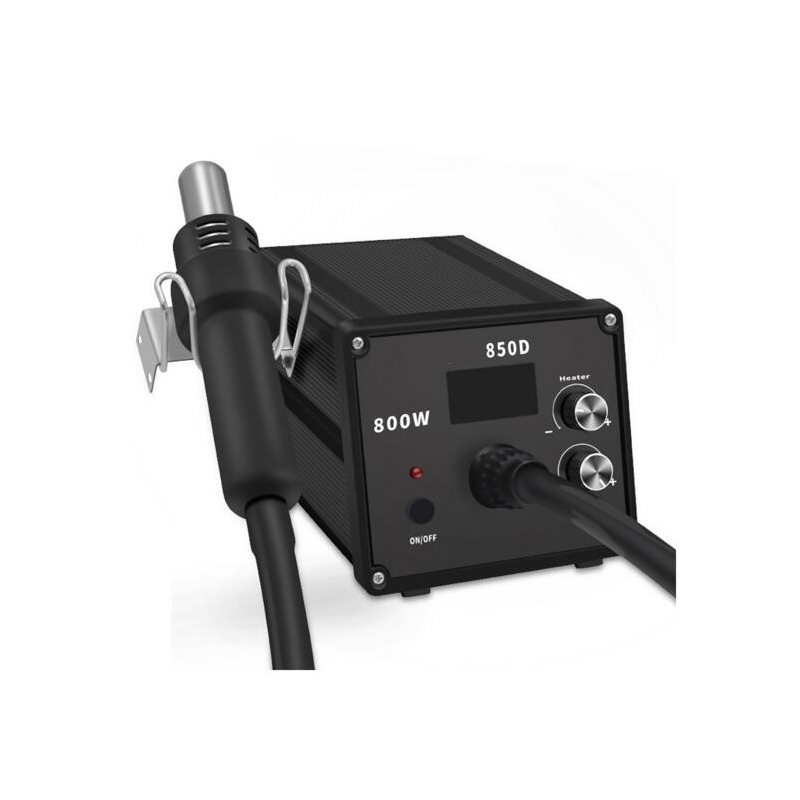

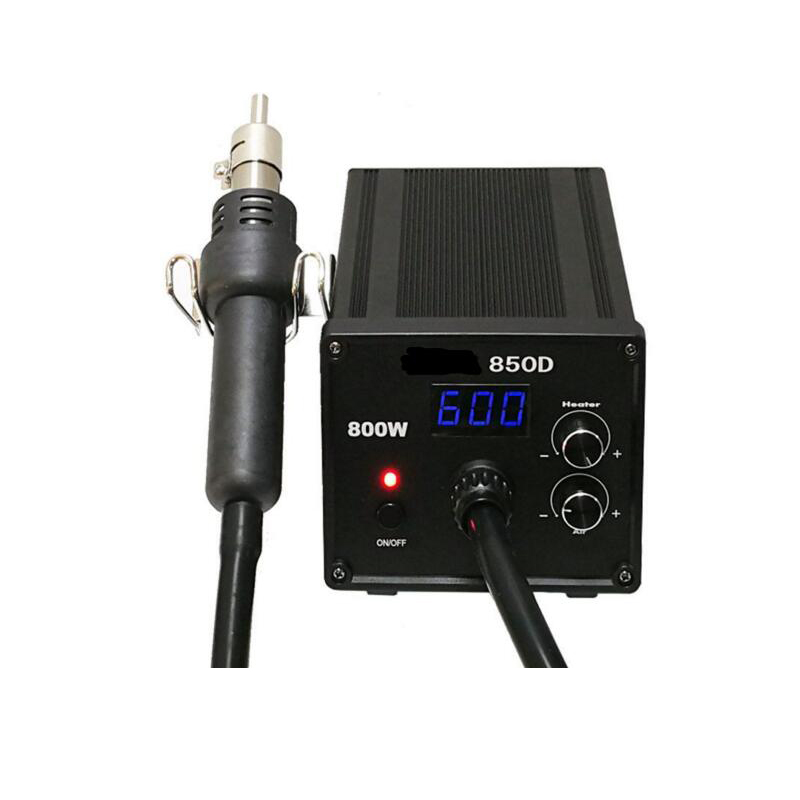

	FBSE-35	Desoldering table	220V	High-power 850D air pump digital display constant temperature soldering station with adjustable temperature hot air desoldering gun mobile phone repair tool		Send Order

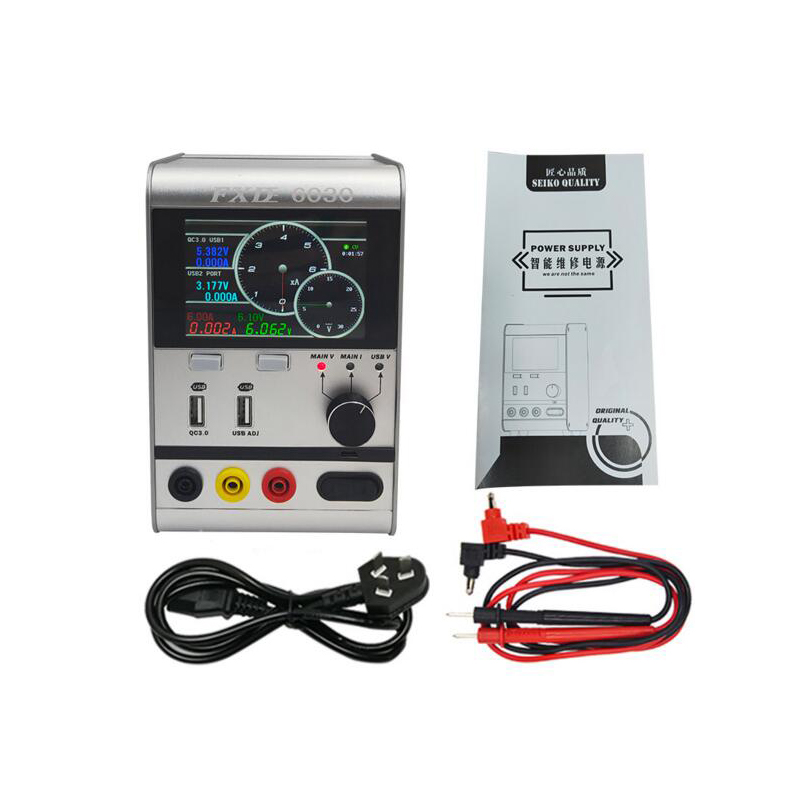

	FBSE-36	/	220V	Adjustable DC stabilized intelligent power supply with digital display 30V6A ammeter high-power notebook mobile phone repair power supply		Send Order

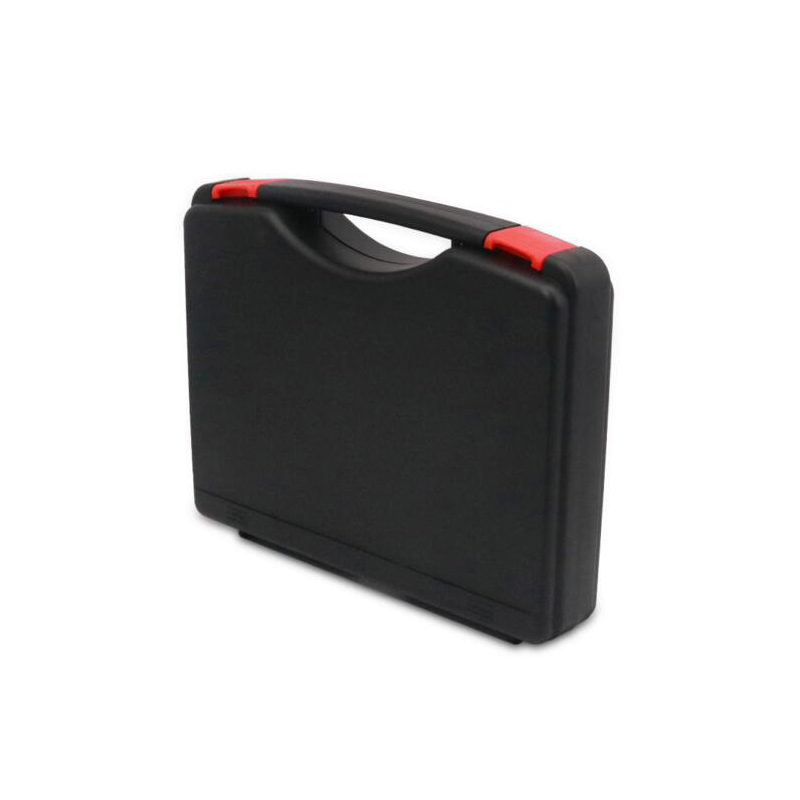

	FBSE-37	PP Material	/	Portable small protective box portable plastic tool box instrument equipment packaging box soldering iron tool bag		Send Order

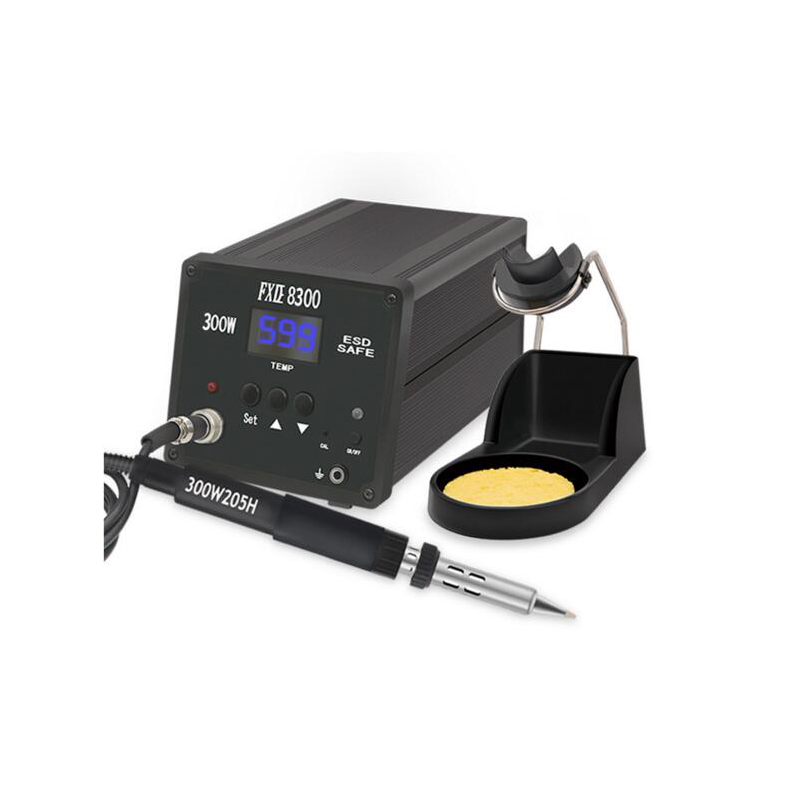

	FBSE-38	Pure copper electric soldering iron	220V	203H/205H high frequency eddy current constant temperature soldering station intelligent digital display high power 100w adjustable anti-static electric soldering iron		Send Order
	FBSE-39	Desoldering table	220V	Hot air gun desoldering station 2-in-1 850B digital soldering iron 850D digital display thermostat desoldering station repair welding tool		Send Order

• What is Soldering Equipment




  Soldering station is a necessary tool for electronic manufacturing and electrical maintenance. It is mainly used for welding components and wires. According to the mechanical structure, it can be divided into internal heating electric iron and external heating electric iron. According to the function, it can be divided into non tin absorbing electric iron and tin absorbing electric iron. According to different purposes, it can be divided into high-power electric iron and low-power electric iron.




  Introduction to electric soldering iron structure:

  Electric soldering irons are divided into external heating type and internal heating type:

  External heating electric soldering iron is composed of soldering iron head, soldering iron core, shell, wooden handle, power lead, plug, etc. Because the soldering iron head is installed in the soldering iron core, it is called external heating electric soldering iron. The soldering iron core is the key component of the electric soldering iron. It is formed by winding the electric heating wire on a hollow porcelain tube in parallel. The mica sheet in the middle is insulated, and two wires are led out to connect with 220V AC power supply. There are many specifications of external heating electric soldering iron, including 25W, 45W, 75W, 100W, etc. the higher the power, the higher the temperature of the soldering iron head.




  The internal heating electric soldering iron is composed of a handle, a connecting rod, a spring clamp, a soldering iron core and a soldering iron head. Because the soldering iron core is installed in the soldering iron head, it has fast heating and high heat utilization rate. Therefore, it is called internal heating electric soldering iron. The common specifications of internal heating electric soldering iron are 20W and 50W. Because of its high thermal efficiency, 20W internal heating electric soldering iron is equivalent to about 40W external heating electric soldering iron. The rear end of the internal heated electric soldering iron is hollow, which is used to be sleeved on the connecting rod and fixed with a spring clamp. When the soldering iron head needs to be replaced, the spring clamp must be pulled out first, and the front end of the soldering iron head must be clamped with pliers and pulled out slowly. Remember not to use too much force to avoid damaging the connecting rod.




  Application method of dianluo iron

  1. Select appropriate soldering tin, and select low melting spot welding tin wire for welding electronic components.

  2. Flux: dissolve 25% rosin in 75% alcohol (weight ratio) as flux.

  3. Tin the electric soldering iron before use. The specific method is: heat the electric soldering iron, apply flux when the soldering tin can be melted, and then apply the soldering tin evenly on the soldering iron head to make the soldering iron head eat a layer of tin evenly.

  4. Welding method: polish the pad and the pins of components with fine sandpaper and apply flux. Dip an appropriate amount of solder with the soldering iron head and contact the solder joint. After all the solder on the solder joint melts and immerses the component lead head, the electric soldering iron head gently lifts up along the pin of the component and leaves the solder joint.

  5. The welding time should not be too long, otherwise it is easy to burn the components. If necessary, clamp the pins with tweezers to help dissipate heat.

  6. The solder joint shall be in the shape of sinusoidal wave crest, the surface shall be bright and smooth, with Wuxi thorn and moderate amount of tin.

  7. After welding, clean the residual flux on the circuit board with alcohol to prevent the carbonized flux from affecting the normal operation of the circuit.

  8. The integrated circuit shall be finally welded, and the electric soldering iron shall be reliably grounded, or welded with waste heat after power failure. Or use the special socket for integrated circuit, and then plug in the integrated circuit after welding the socket.

  9. The electric soldering iron shall be placed on the soldering iron frame.
