Picture Model No. Input voltage LED pcs Single LED Lumen Description Datasheet Order

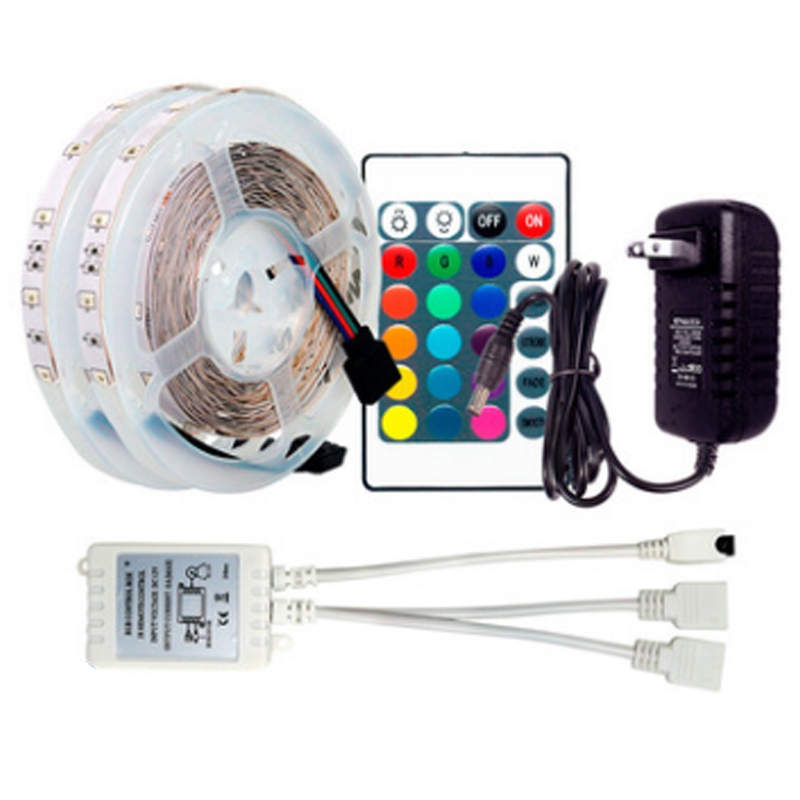

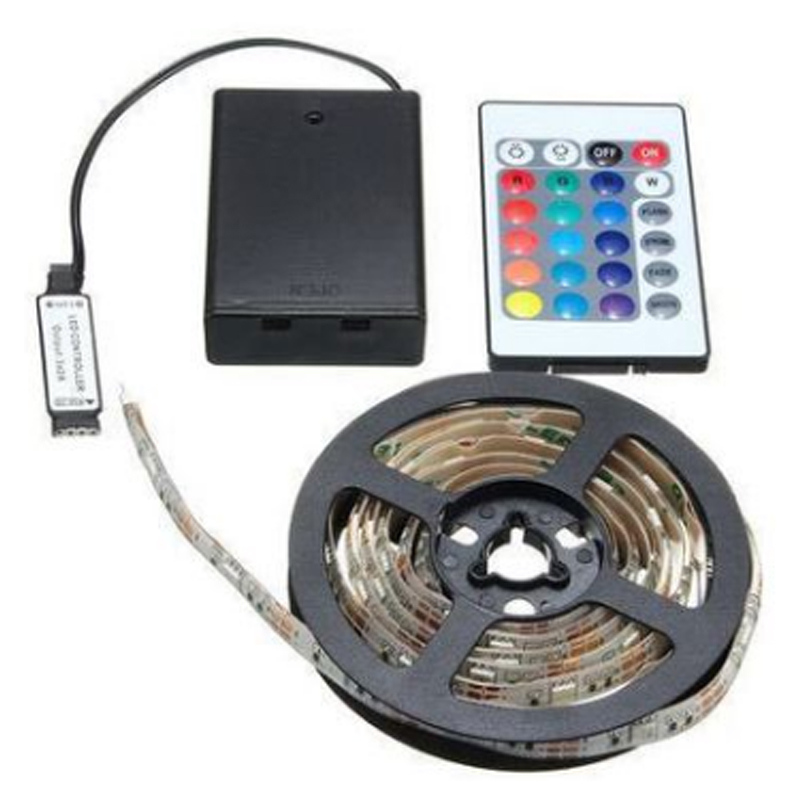

Low voltage LED light with 12v 2835 waterproof 54 lights RGB blister suit colorful color changing soft light bar atmosphere light

FBLSL-01

12V 54 8(lm)

Low voltage LED light with 12v 2835 waterproof 54 lights RGB blister suit colorful color changing soft light bar atmosphere light

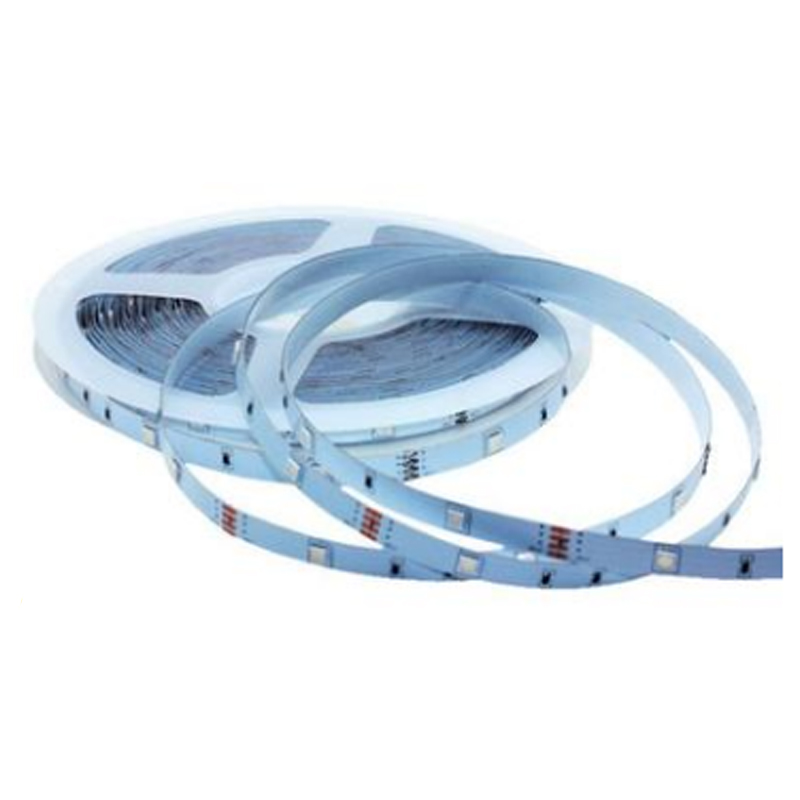

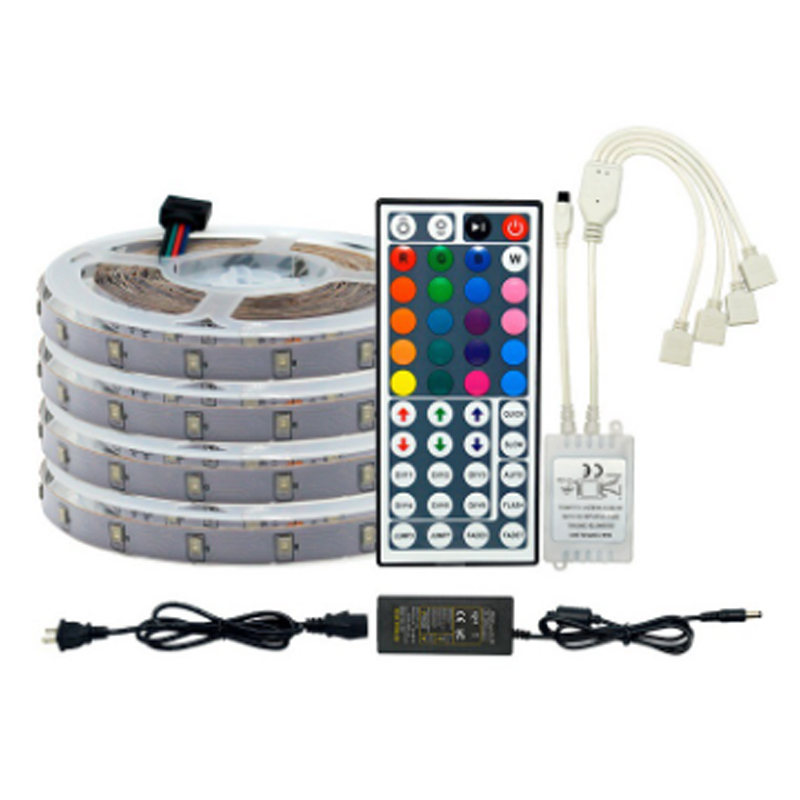

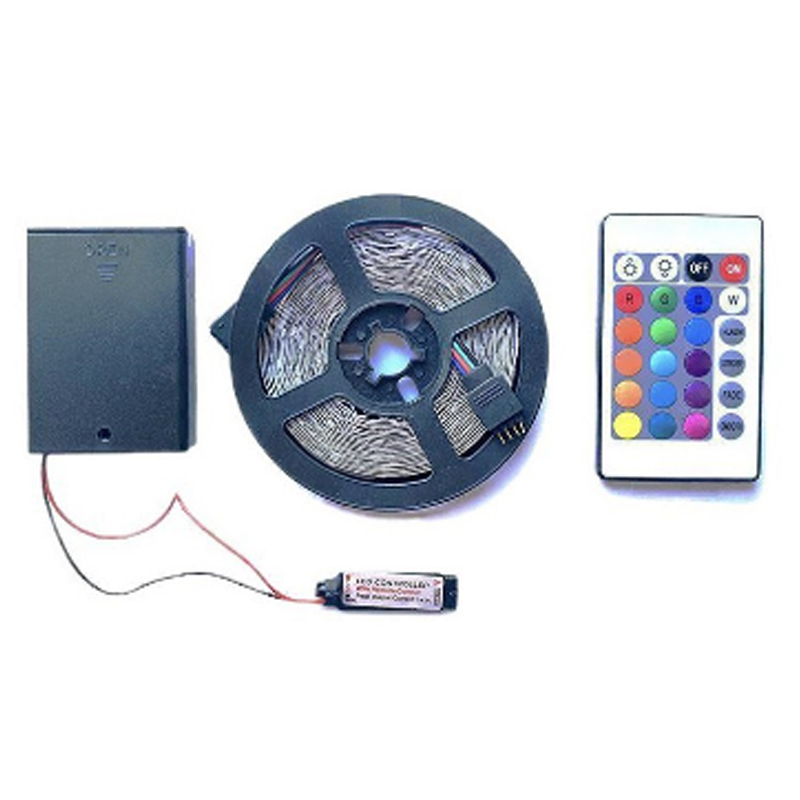

12V2835 54 lights RGB 44 keys infrared IR one with four controllers LED soft light strip Amazon set

FBLSL-02

12V 54 8(lm)

12V2835 54 lights RGB 44 keys infrared IR one with four controllers LED soft light strip Amazon set

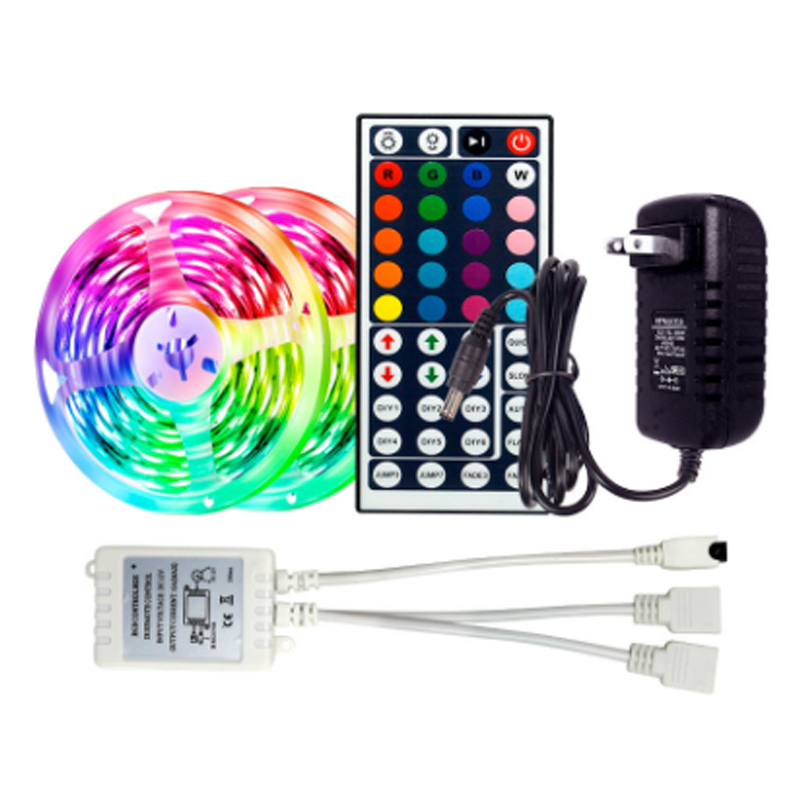

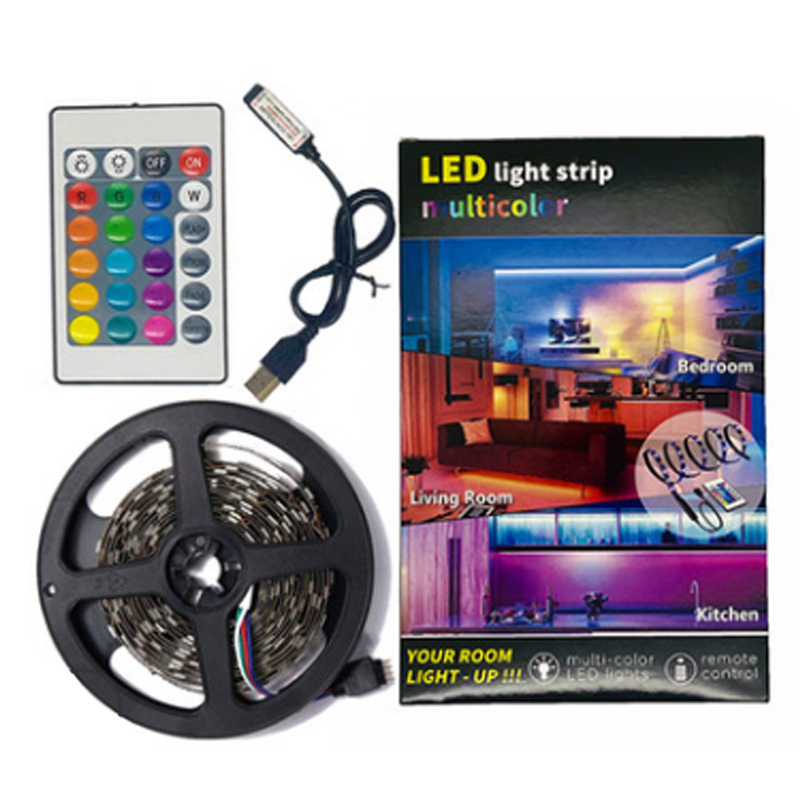

IR infrared 24-key controller 12V 2835 54 lights RGB light with LED light bar set Amazon cross-border

FBLSL-03

12V 54 6-8(lm)

IR infrared 24-key controller 12V 2835 54 lights RGB light with LED light bar set Amazon cross-border

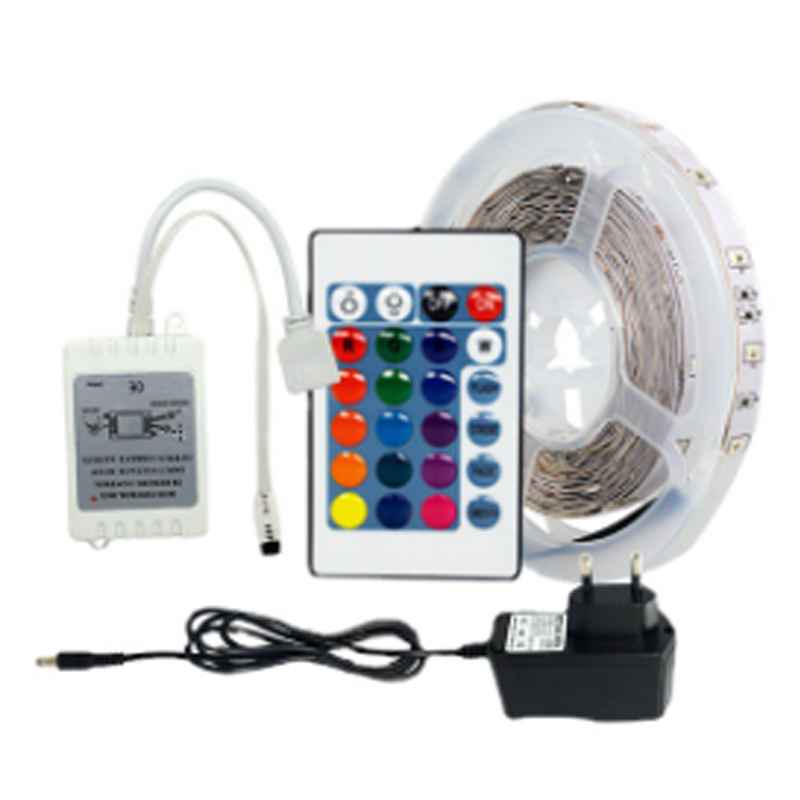

LED lamp with Amazon set 12V5050 18 lamp 30 lamp strip RGB one with two atmosphere lamp bar lamp showcase

FBLSL-04

12V 18 22(lm)

LED lamp with Amazon set 12V5050 18 lamp 30 lamp strip RGB one with two atmosphere lamp bar lamp showcase

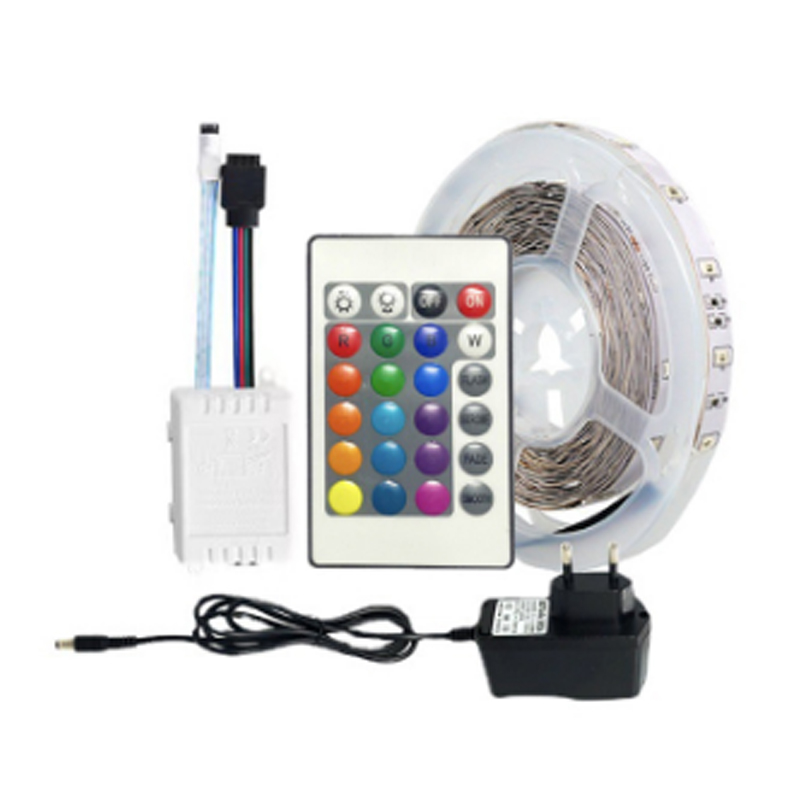

LED 12V 2835 RGB54 light soft light with 20 meters one with two 24-key infrared controller Amazon set

FBLSL-05

12V 54 20(lm)

LED 12V 2835 RGB54 light soft light with 20 meters one with two 24-key infrared controller Amazon set

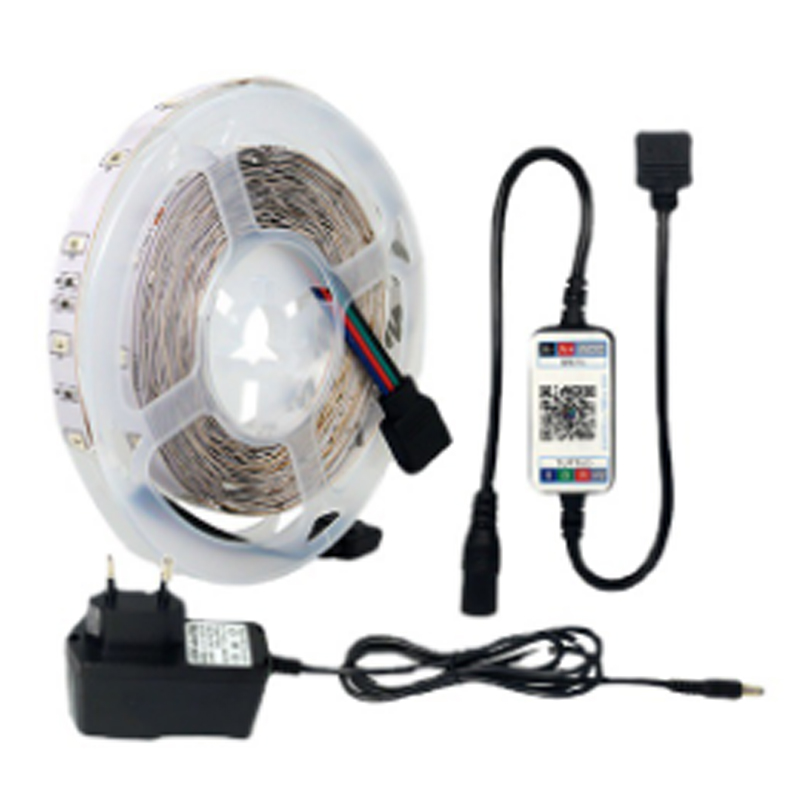

LED light with 12V2835RGB+Bluetooth controller set TV background light atmosphere light showcase light home decoration

FBLSL-06

12V 54 6-8(lm)

LED light with 12V2835RGB+Bluetooth controller set TV background light atmosphere light showcase light home decoration

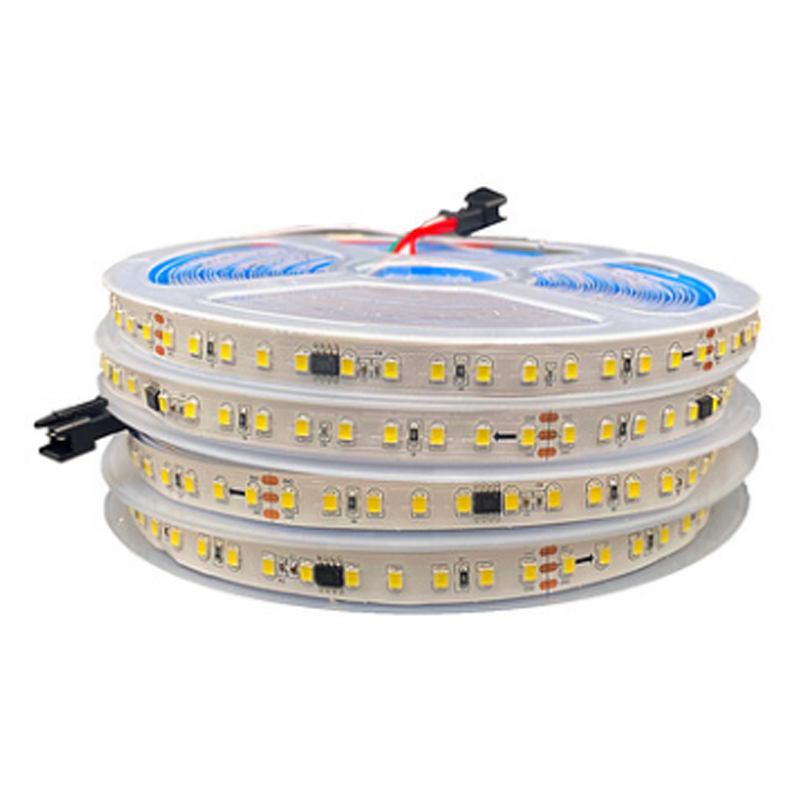

LED24V2835 low voltage linear follow light soft light strip indoor lighting patch light with super bright staircase running water light

FBLSL-07

24V 120 12(lm)

LED24V2835 low voltage linear follow light soft light strip indoor lighting patch light with super bright staircase running water light

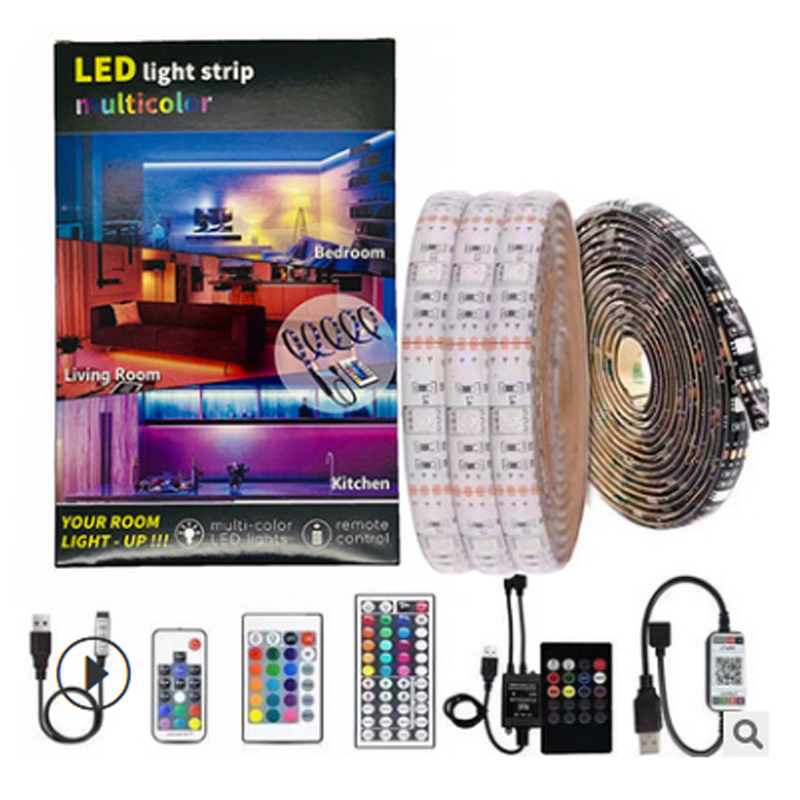

LED light belt set 12V 5050RGB bluetooth music colorful atmosphere light bar computer background light holiday decoration

FBLSL-08

12V 18 18-20(lm)

LED light belt set 12V 5050RGB bluetooth music colorful atmosphere light bar computer background light holiday decoration

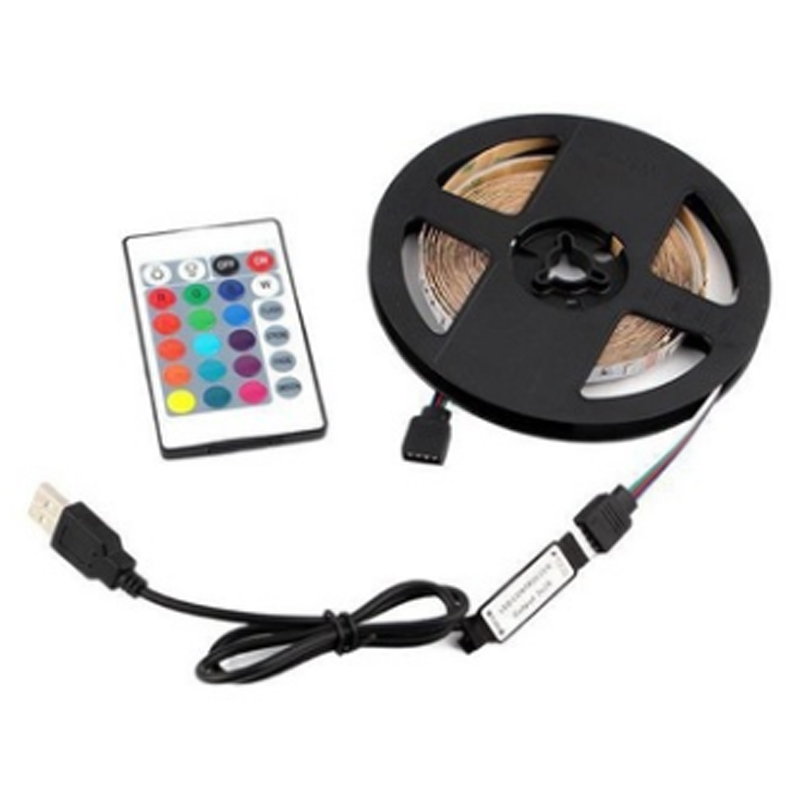

5V TV TV background light with USB colorful 2835 color light charging treasure 2835RGB light bar set TV cabinet light

FBLSL-09

5V 20 6-8(lm)

5V TV TV background light with USB colorful 2835 color light charging treasure 2835RGB light bar set TV cabinet light

LED light with 2835 5V low voltage flexible flexible light bar 60 lights marquee TV background light atmosphere light CE certification

FBLSL-10

5V 60 8-10(lm)

LED light with 2835 5V low voltage flexible flexible light bar 60 lights marquee TV background light atmosphere light CE certification

LED5v low voltage 5050RGBUSB lamp with battery box can drive toys, crafts, gifts on Amazon

FBLSL-11

12V 60 10-12(lm)

LED5v low voltage 5050RGBUSB lamp with battery box can drive toys, crafts, gifts on Amazon

TV usb5v computer case background light decorative light with 5050RGB colorful gaming atmosphere light led light bar

FBLSL-12

5V 60 13(lm)

TV usb5v computer case background light decorative light with 5050RGB colorful gaming atmosphere light led light bar

5050RGB colorful one with four LED lights with USB5V car atmosphere light bar computer case TV background light

FBLSL-13

5V 60 13(lm)

5050RGB colorful one with four LED lights with USB5V car atmosphere light bar computer case TV background light


Led Strip Light

  • What is an LED Strip Light?


    LED light strip refers to the assembly of LED on strip FPC (flexible circuit board) or PCB hard board, which is named because its product shape is like a strip. Because of its long service life (generally the normal service life is 80000 ~ 100000 hours), and very energy-saving and green environmental protection, it has gradually emerged in various decoration industries.


    How to classify led strips:

    LED lamp strips are generally divided into flexible LED lamp strips and led hard lamp strips, but they generally also include old LED lamp strips connected to the circuit board with wires, such as flat three wire 4.3w/m, flat four wire 6.48w/m, flat five wire 8.64w/m, etc.

    1. The flexible LED light band is assembled with FPC as the assembly circuit board and chip LED, so that the thickness of the product is only 0.1cm, which does not occupy space; General specifications include 18 LEDs, 24 LEDs, 15 LEDs, 24 LEDs, 30 LEDs, etc. There are also 60cm, 80cm, etc. different users have different specifications. It can be cut at will or extended at will without affecting the luminescence. The FPC material is soft and can be bent, folded and wound arbitrarily. It can move and expand freely in three-dimensional space without breaking. It is suitable for irregular places and places with narrow space. Because it can be bent and wound arbitrarily, it is suitable for any combination of various patterns in advertising decoration.

    2. The LED hard light strip is an assembly circuit board made of PCB hard board. The LED can be assembled with patch LED or in-line led. Different components are used according to different needs. The advantage of hard light strip is that it is easy to fix, and it is convenient to process and install; The disadvantage is that it can not be bent at will and is not suitable for irregular places. There are 18 LEDs, 24 LEDs, 30 LEDs, 36 LEDs, 40 LEDs and many other specifications for patch LEDs for hard light strips; There are 18, 24, 36, 48 and other different specifications with in-line led. There are both front and side. The light emitting on the side is also called the Great Wall light bar.

    Fbelec Smart LED Strip Light installation guide

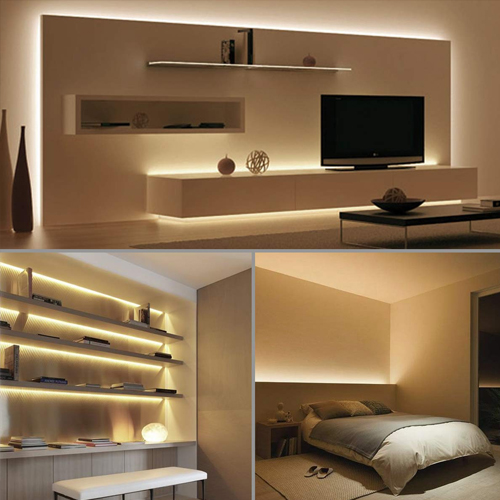

    1. Indoor installation: when the LED light belt is used for indoor decoration, the installation is very simple because it does not have to withstand the wind and rain. Take the LED light tape produced by Guanghong electronics as an example. The back of each LED light tape is pasted with self-adhesive 3M double-sided tape. During installation, you can directly tear off the sticker on the surface of 3M double-sided tape, and then fix the light strip at the place where it needs to be installed and press it flat by hand. As for some places that need to turn or grow, it is very simple. The LED light band is a circuit structure composed of three LEDs in series and parallel. Every three LEDs can be cut and used alone.

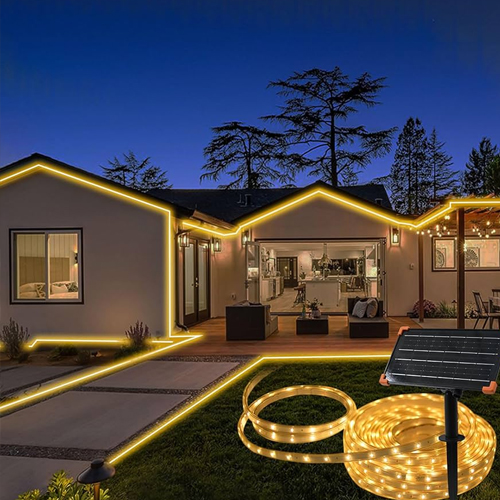

    2. Outdoor installation: outdoor installation will be exposed to wind and rain. If 3M glue is used for fixing, the adhesion of 3M glue will be reduced over time, resulting in the falling off of LED lamp strip. Therefore, the way of card slot fixing is often used for outdoor installation. Where cutting and connection are required, the method is the same as that for indoor installation, but waterproof glue needs to be additionally equipped to consolidate the waterproof effect of the connection point.

    3. Power connection method: the general voltage of LED lamp strip is DC 12V, so it needs to use switching power supply. The size of power supply is determined according to the power and connection length of LED lamp strip. If you don't want each LED light belt to be controlled by one power supply, you can buy a high-power switching power supply as the main power supply, and then connect all the LED light belt input power supplies in parallel (if the wire size is not enough, it can be extended), which is uniformly powered by the main switching power supply. The advantage of this is that it can be controlled centrally. The inconvenient place is that it can not realize the lighting effect and switch control of a single LED strip. The specific method can be measured by yourself.

    4. Controller connection mode: the LED running light belt and RGB full-color light belt need to use the controller to achieve the change effect, and the control distance of each controller is different. Generally speaking, the control distance of the simple controller is 10 to 15 meters, the control distance of the remote controller is 15 to 20 meters, and the longest distance can be controlled to 30 meters. If the connection distance of the LED light band is long, and the controller cannot control such a long light band, the power amplifier needs to be used for tapping.

    5. Pay attention to the connection distance of LED lamp belt: Generally speaking, the longest connection distance of 3528 series LED lamp belt is 20m, and the longest connection distance of 5050 series LED lamp belt is 15m. If the connection distance is exceeded, the LED lamp belt is easy to heat, which will affect the service life of the LED lamp belt during use. Therefore, the installation must be carried out according to the requirements of the manufacturer, and the LED lamp must not be operated under overload. FBelec LED strip lights make your home,garden or businesses magic!
