Ferrite Core

Picture	Manufacturer No.	Weight	Material	Effective Magnetic Path Length	Effective Cross-sectional Area	Effective Volume	Initial magnetic permeability	Curie Temp	Resistivity	Description	Datasheet	Order
	FBFECO-01	5.2g/set	PC40	15.4mm	17.4mm²	270.7mm³	2300±25%	>220	6.5Ω	Magnetic core EE8.3 PC40 magnetic core		Send Order

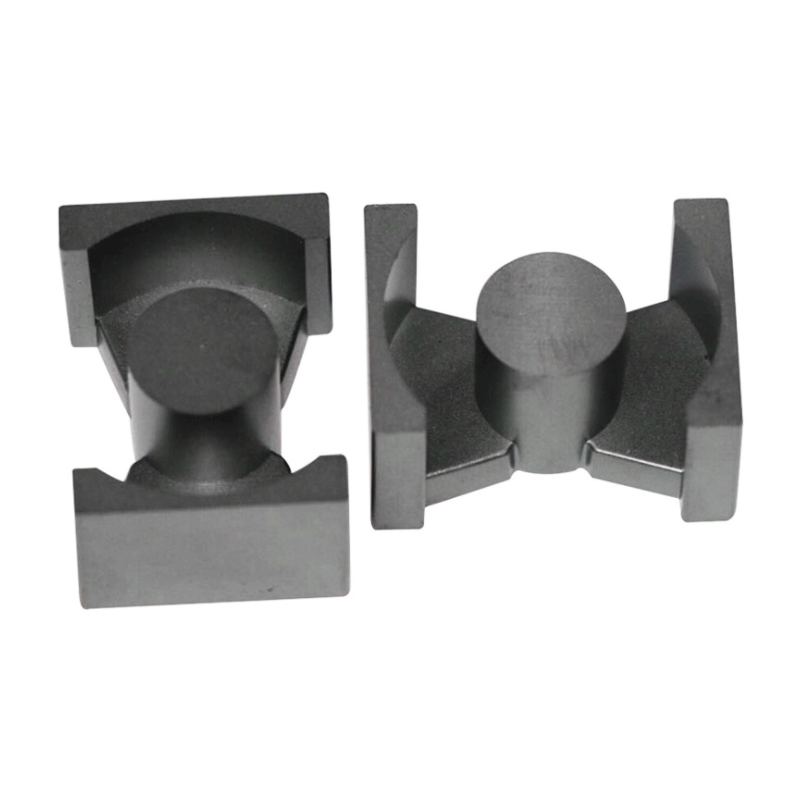

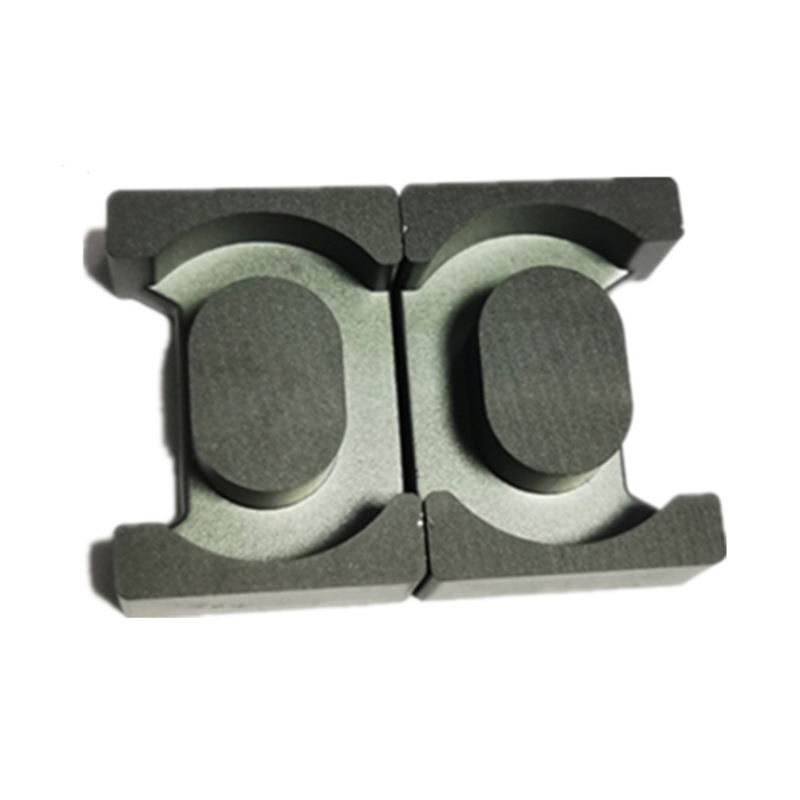

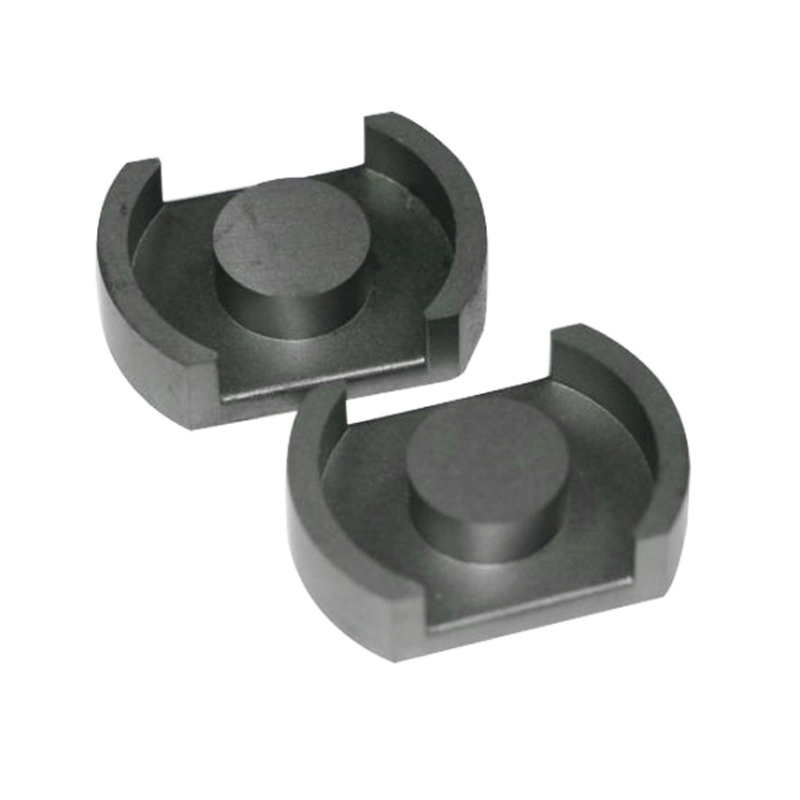

	FBFECO-02	200g/set	PC40/PC44	15.4mm	327mm²	37440mm³	2300±25%	>230	6.5Ω	PQ27*20PC40/PC44 core soft ferrite core		Send Order

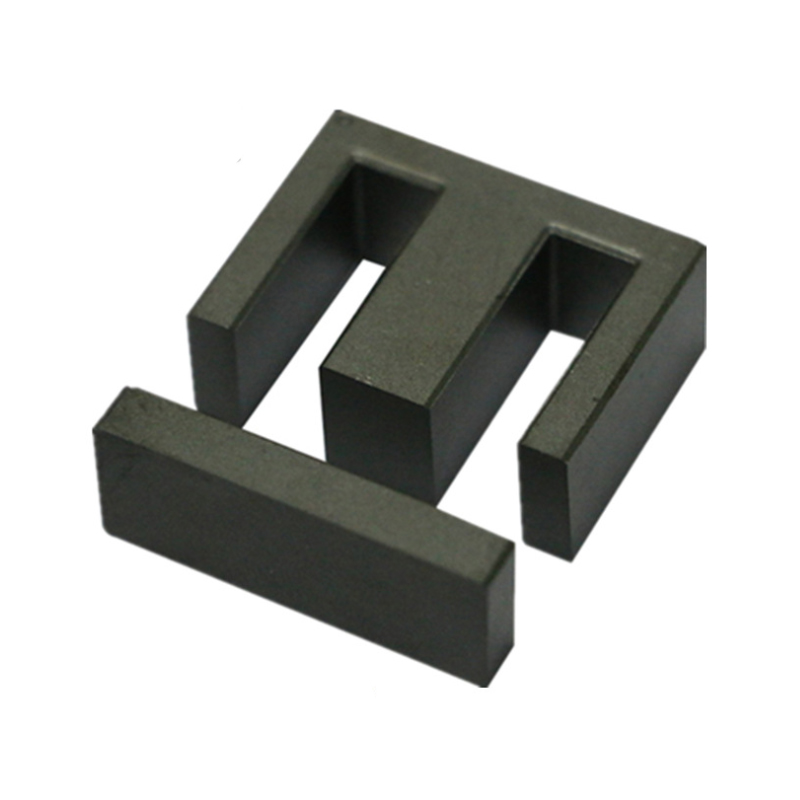

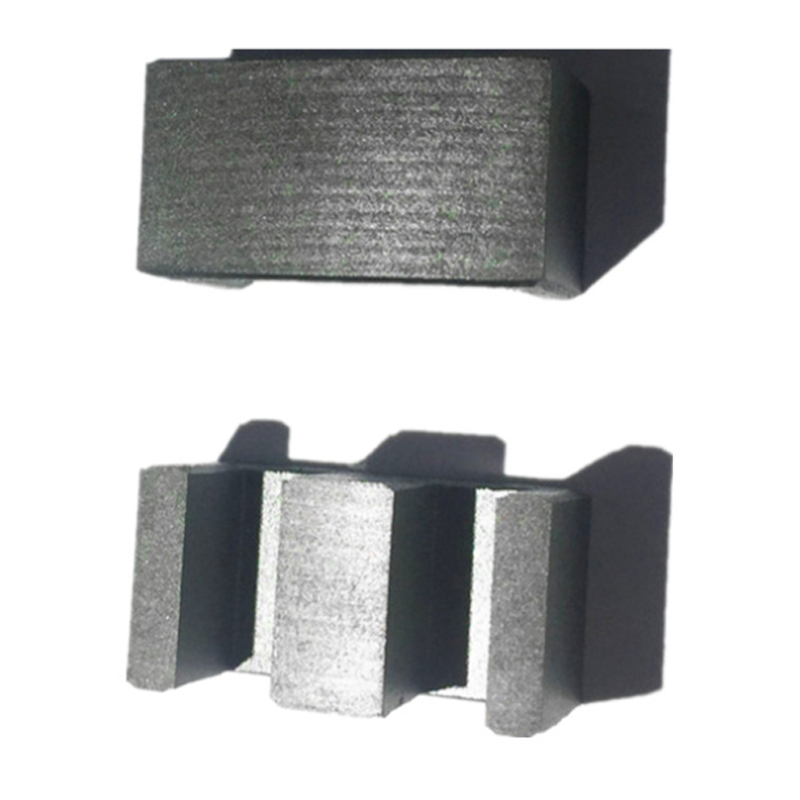

	FBFECO-03		PC40	57.7mm	106.1mm²	6120mm³	2300±25%	>220	6.5Ω	EI30 Ferrite Core		Send Order

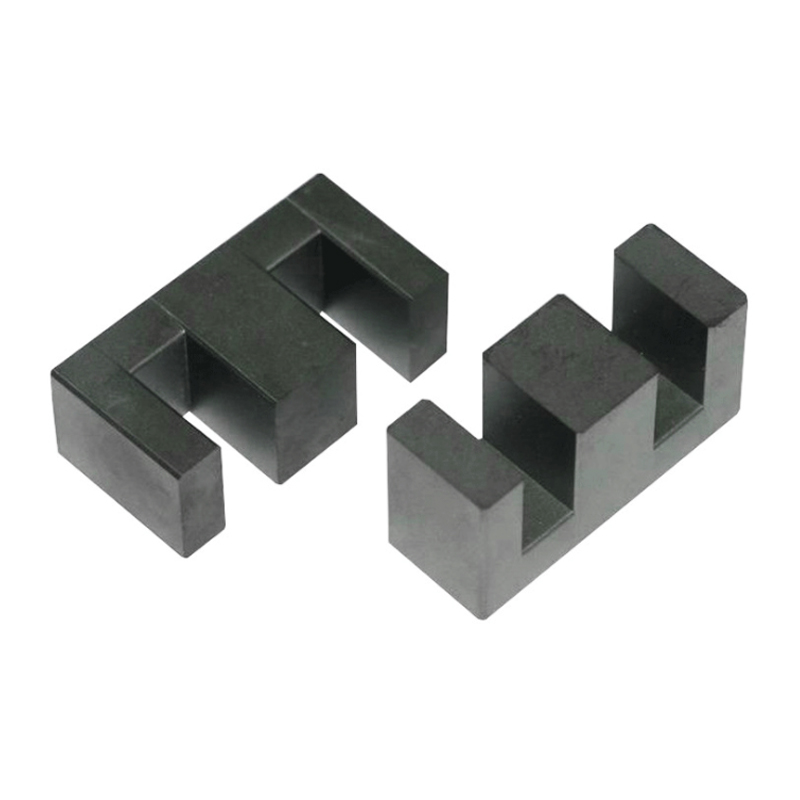

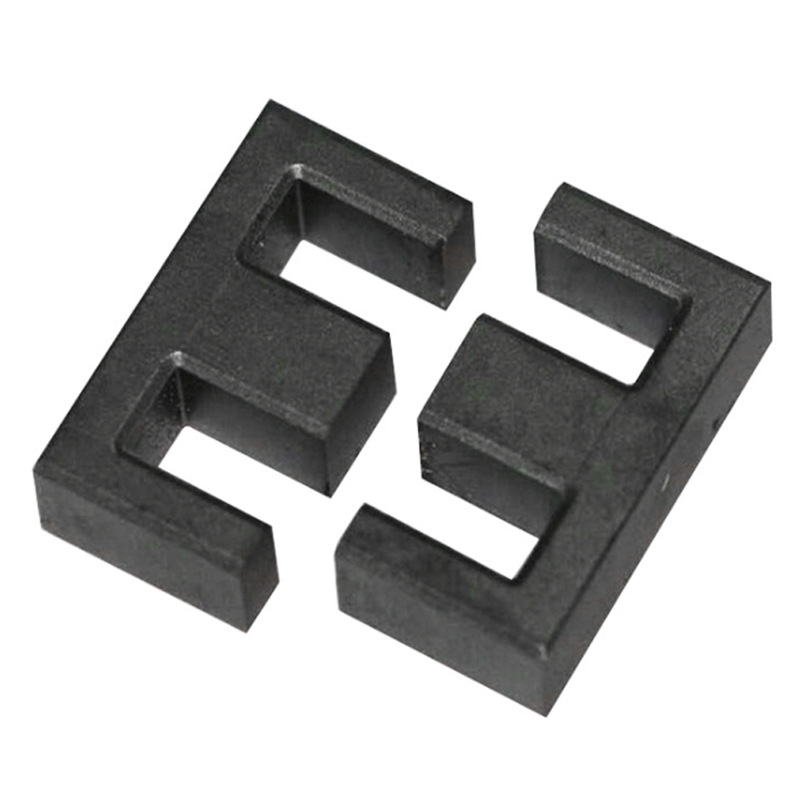

	FBFECO-04	200g/set	PC40	15.4mm	327mm²	37440mm³	2300±25%	>230	6.5Ω	EE40 Oxygen Core Manganese-zinc material for high frequency transformer core		Send Order
	FBFECO-05		PC40	270mm	784mm²	222656mm³	2300±25%	>220	6.5Ω	Magnetic core EE42*20 Magnetic core PC44		Send Order

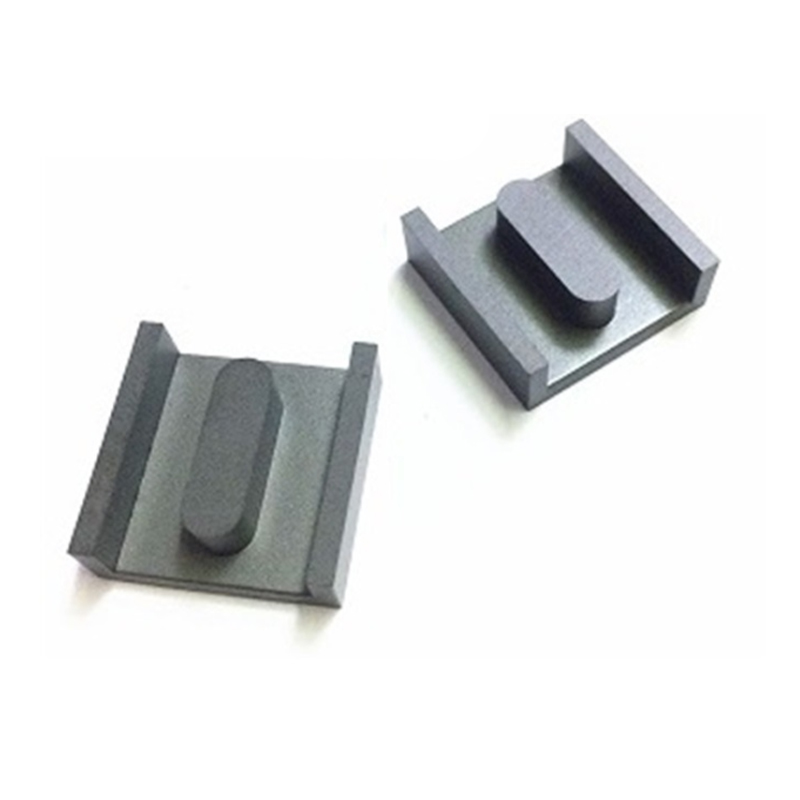

	FBFECO-06	5.3g/set	PC40	46.1mm	22.7mm²	1046.47mm³	2300±25%	≥215	6Ω	EPC19 PC40 ferrite core high-frequency transformer core high-power compression		Send Order

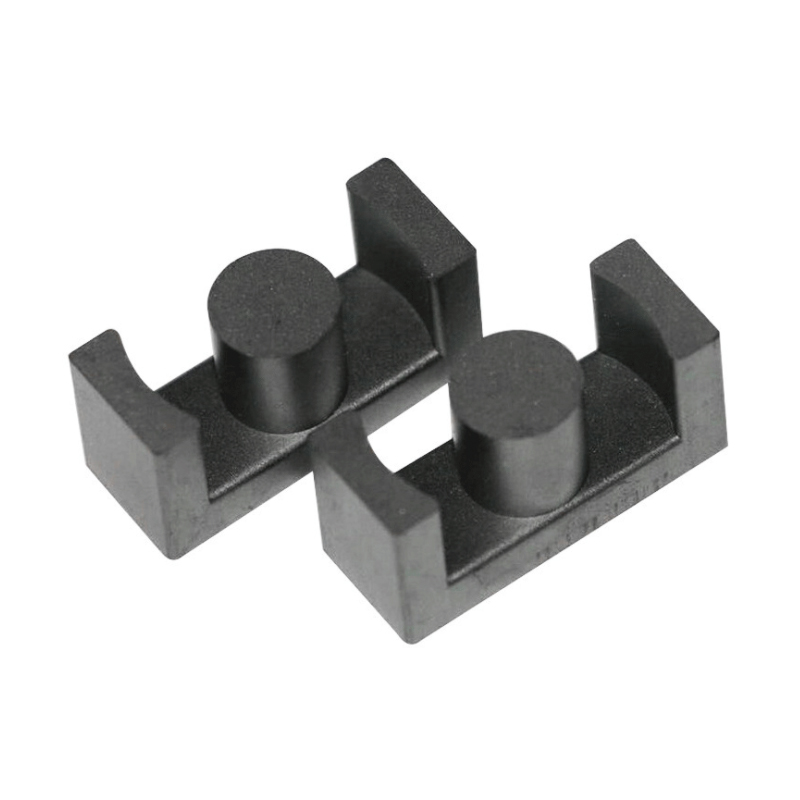

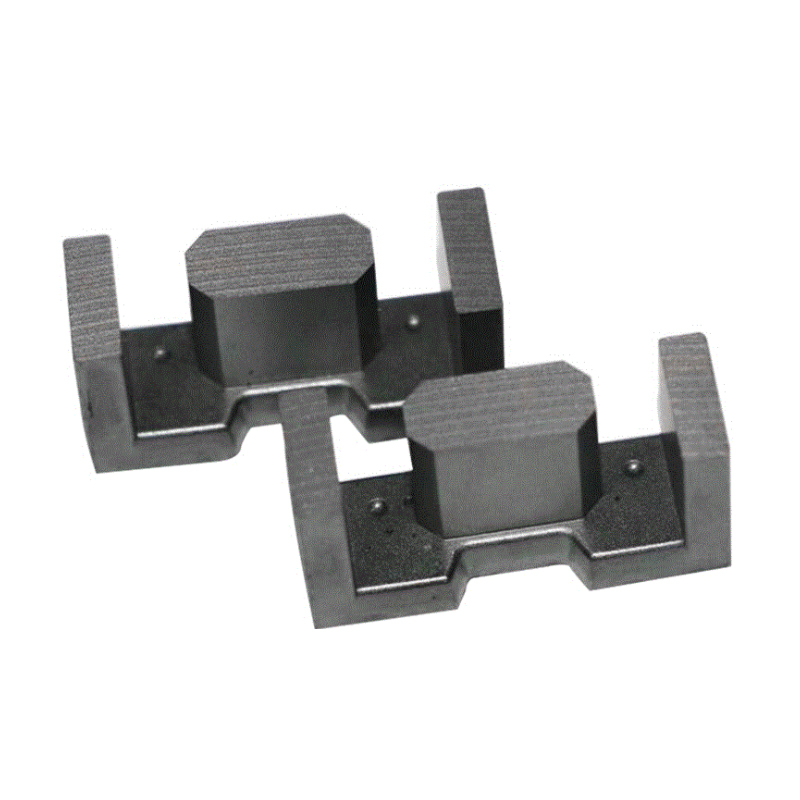

	FBFECO-07	5.2g/set	PC40	15.4mm	17.4mm²	270.7mm³	2300±25%	>220	6.5Ω	ER3940PC40/ETD39 ferrite magnetic material high frequency high power core		Send Order
	FBFECO-08	200g/set	PC44	15.4mm	327mm²	37440mm³	2300±25%	>230	6.5Ω	Magnetic material EQ3814 PC44 core ferrite core manganese zinc ferrite		Send Order

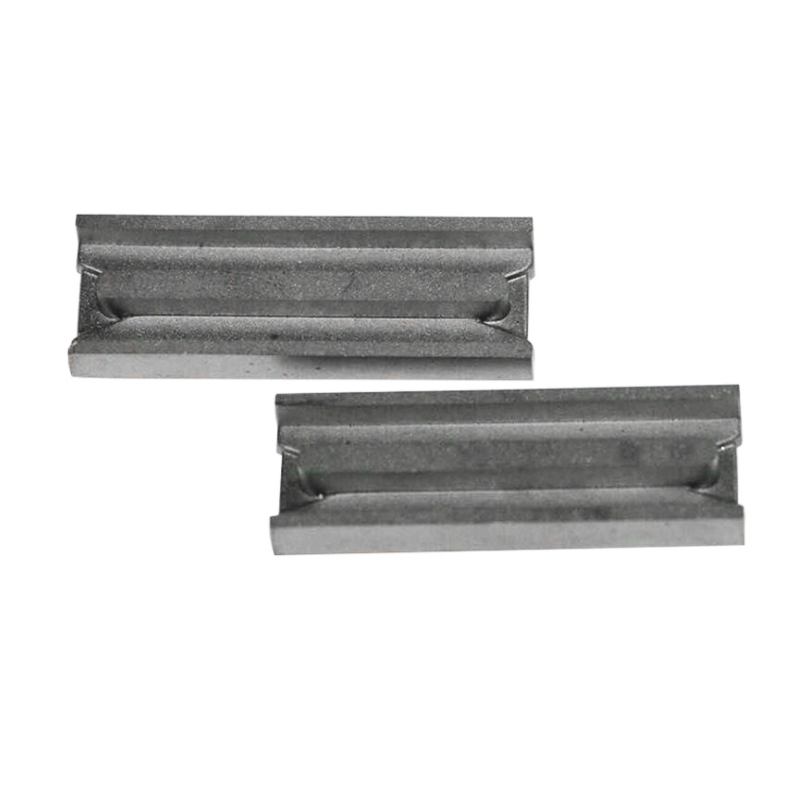

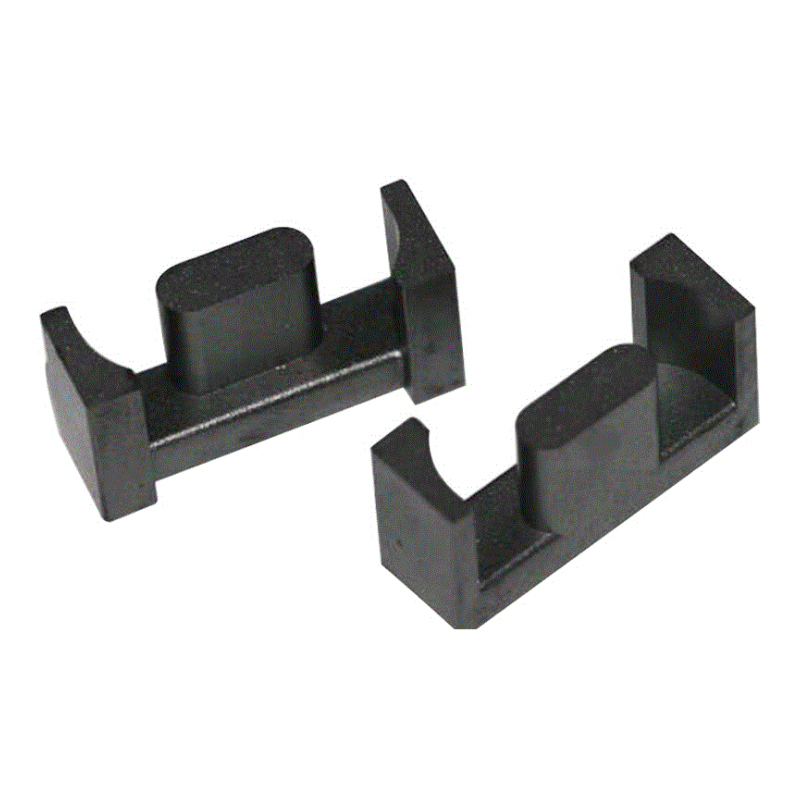

	FBFECO-09	5.2g/set	PC44	15.4mm	17.4mm²	270.7mm³	2300±25%	>220	6.5Ω	EFD30 magnetic core high frequency high voltage high power transformer UF type magnetic core soft magnetic material		Send Order

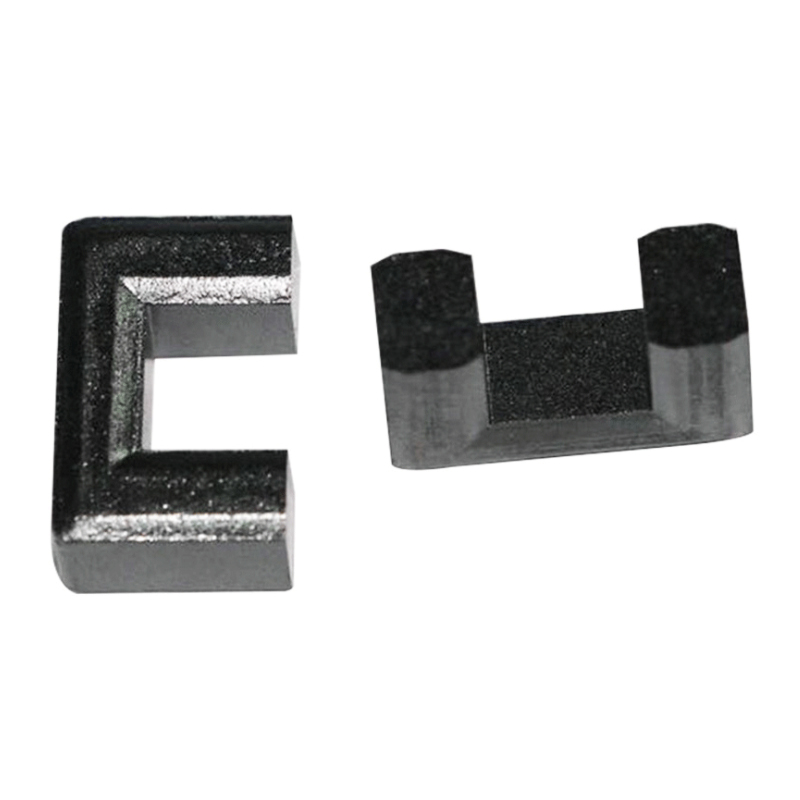

	FBFECO-10	5.2g/set	PC44	76.45mm	17.4mm²	270.7mm³	12000±25%	≥110	6.5Ω	uu10.5 High Conductivity AL4000		Send Order

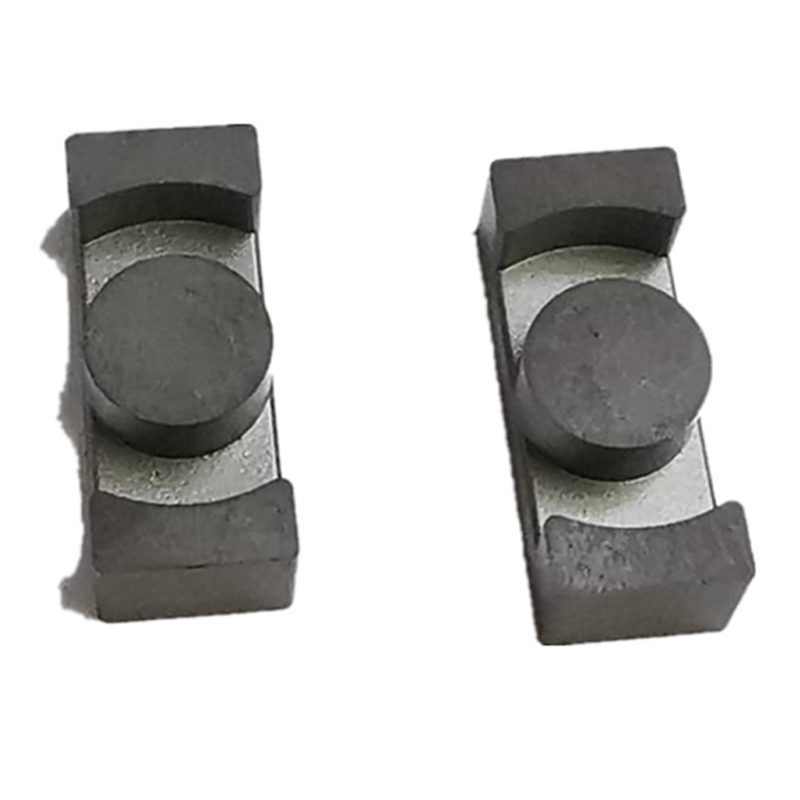

	FBFECO-11	0.7g/set	PC40	14.2mm	8.47mm²	12mm³	2300±25%	>210	6.5Ω	ER9.5 PC44 type manganese zinc ferrite core high frequency electronic transformer core		Send Order

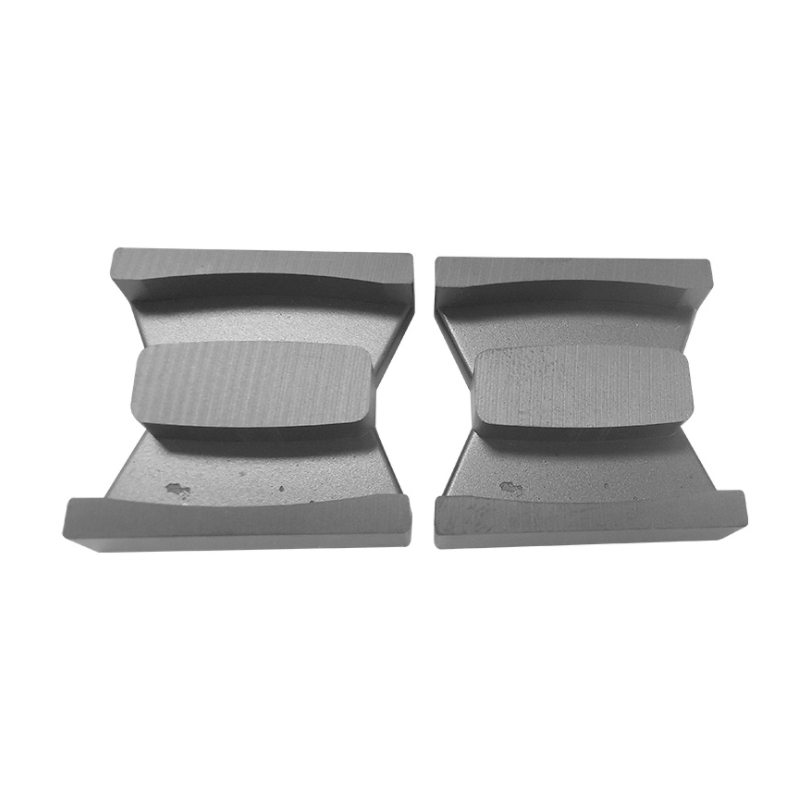

	FBFECO-12	38g/set	/	41.07mm	113.49mm²	4661.8mm³	/	/	/	ED2627 magnetic core PC95 material soft ferrite high permeability magnetic core		Send Order
	FBFECO-13	200g/set	PC95	15.4mm	327mm²	37440mm³	2300±25%	>230	6.5Ω	Magnetic core ATQ1815 PC95 high permeability core power black ferrite core		Send Order

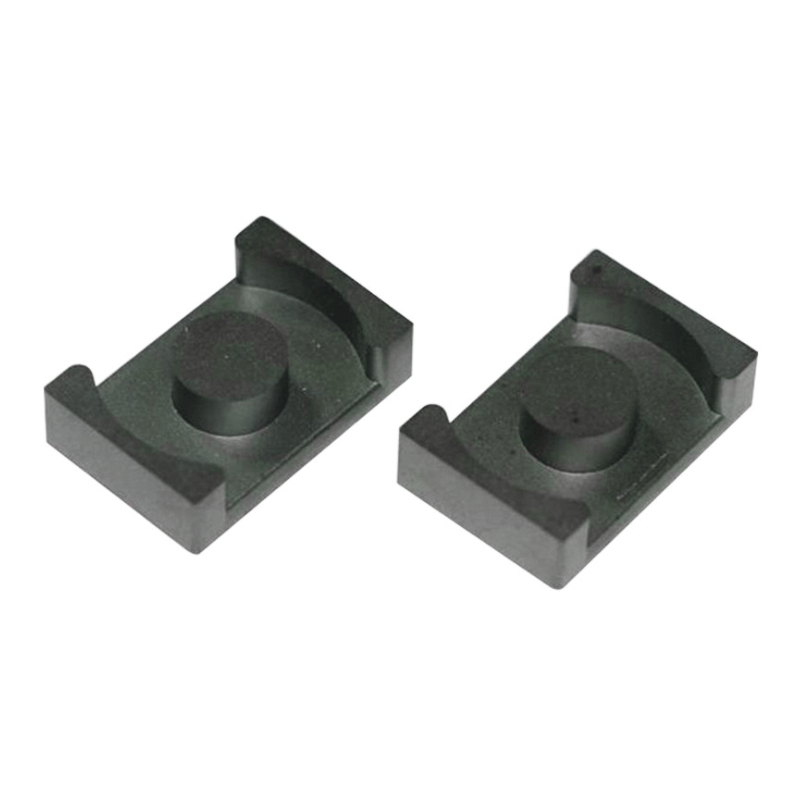

	FBFECO-14	5.2g/set	PC95	15.4mm	17.4mm²	270.7mm³	2300±25%	>220	6.5Ω	RM8 [PC95] without card slot ferrite core		Send Order
	FBFECO-15	5.2g/set	PC95	15.4mm	17.4mm²	270.7mm³	2300±25%	>220	6.5Ω	EDR2009 Core PC95 Soft Core Material Ferrite Core		Send Order
	FBFECO-16	5.2g/set	PC44	15.4mm	17.4mm²	270.7mm³	2300±25%	>220	6.5Ω	ED21*37PC44 ferrite transformer core		Send Order

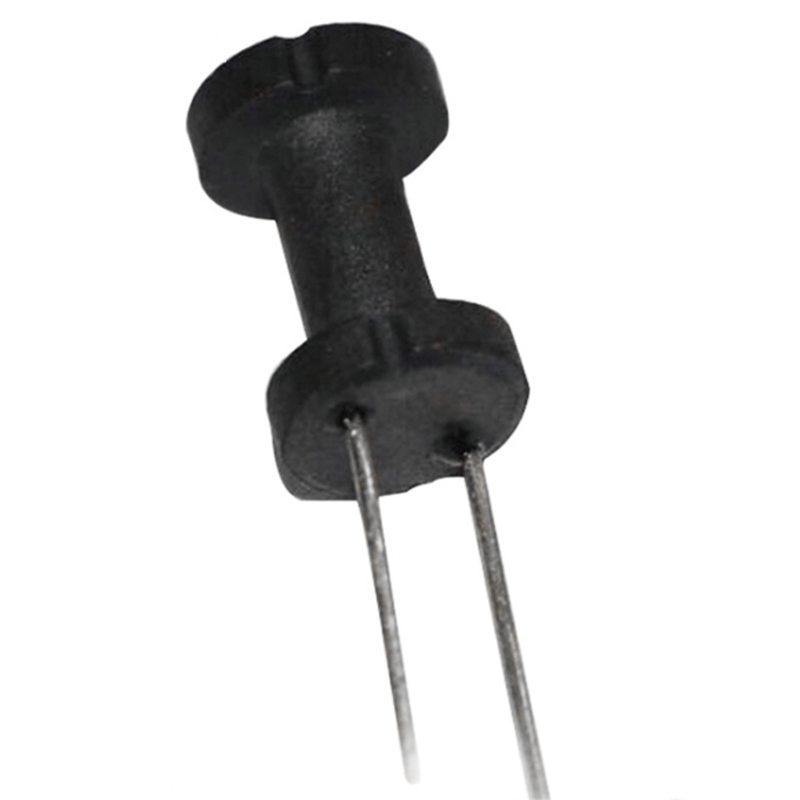

	FBFECO-17	5.2g/set	PC44	15.4mm	17.4mm²	270.7mm³	2300±25%	>220	6.5Ω	DR6*8 I-shaped nickel core ferrite high power inductor core		Send Order

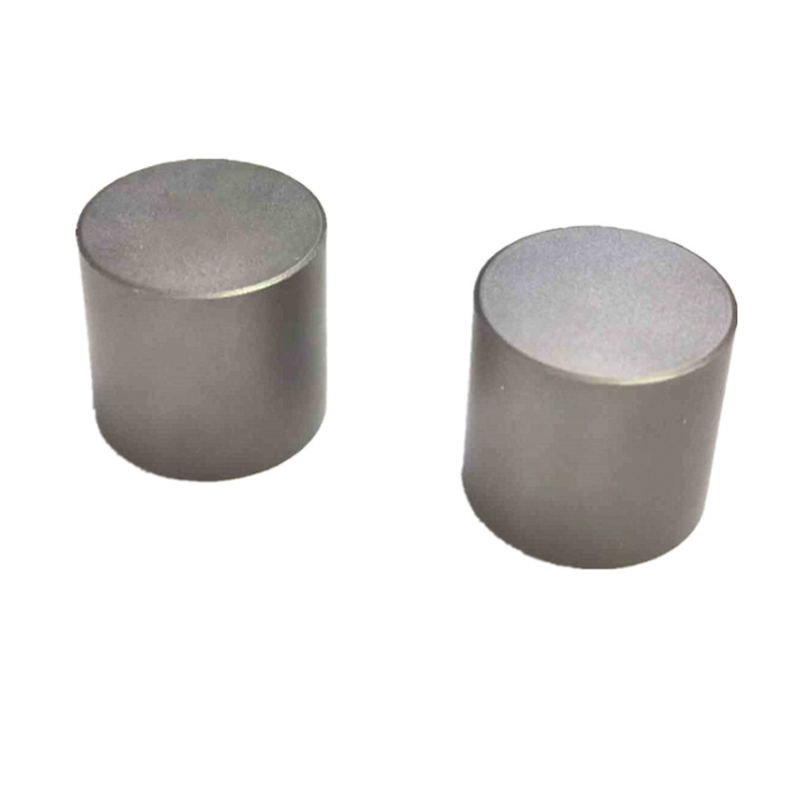

	FBFECO-18	200g/set	PC40	15.4mm	327mm²	37440mm³	2300±25%	>230	6.5Ω	20*20 cylindrical ferrite core with ER82 horizontal 6+6 skeleton		Send Order

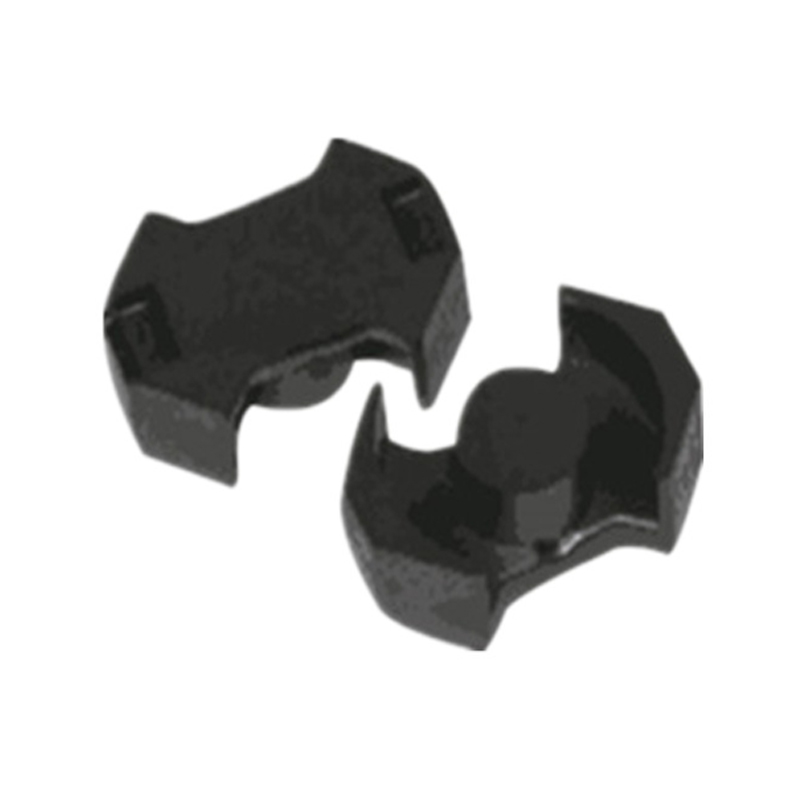

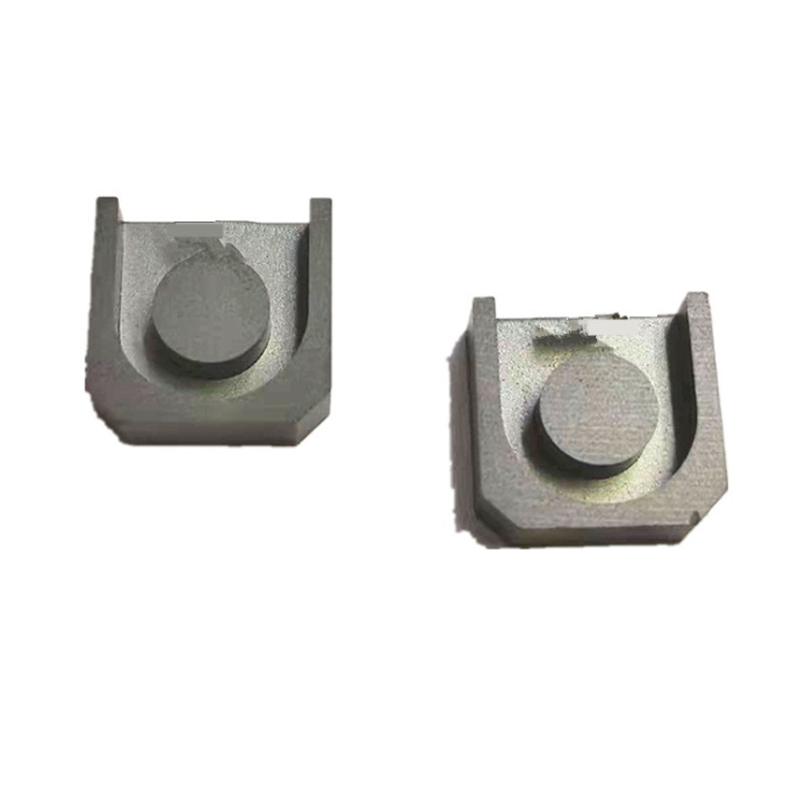

	FBFECO-19	5.2g/set	PC44	15.4mm	17.4mm²	270.7mm³	2300±25%	>220	6.5Ω	EP13 PC44 soft magnetic material manganese zinc ferrite core		Send Order
	FBFECO-20	64g/set	PC40	61.3mm	201mm²	12350mm³	2300±25%	>230	6.5Ω	POT4020pc40/pc44/pc95 core Ferrite power core		Send Order

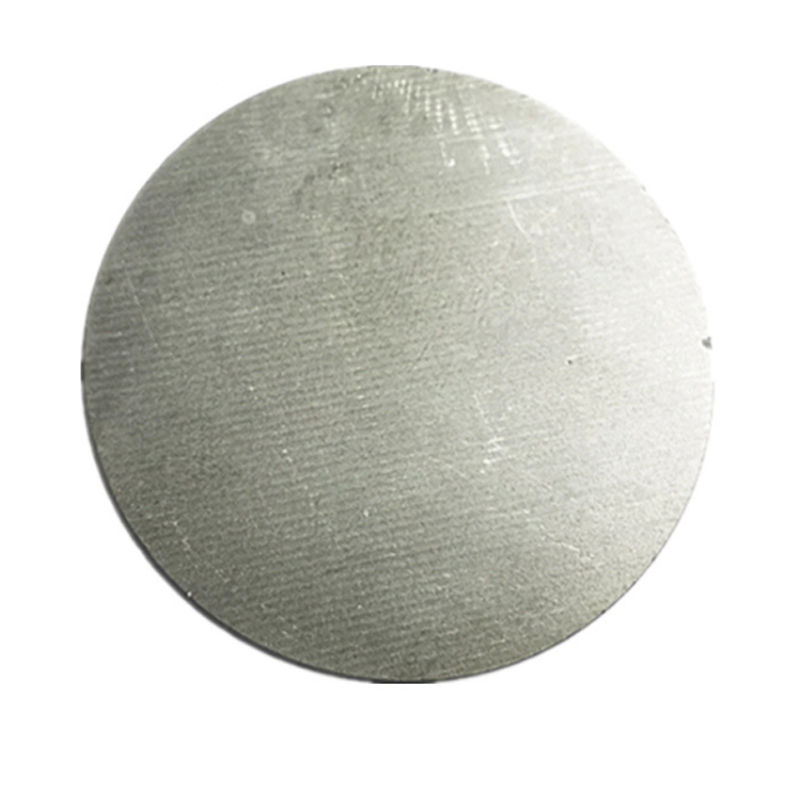

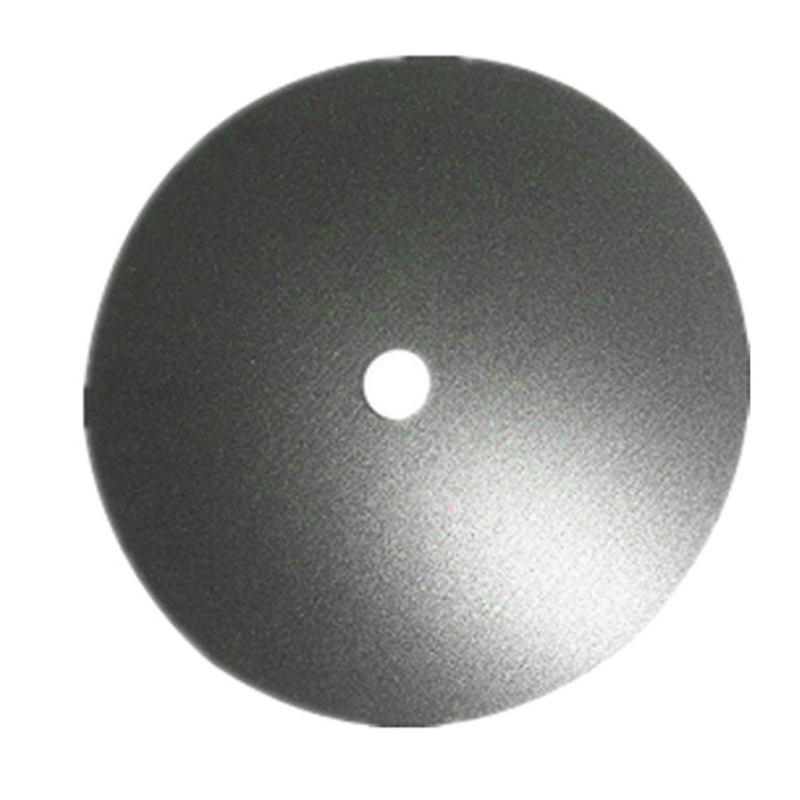

	FBFECO-21	7.5g/set	YR28	46.1mm	32.2mm²	/	2300±25%	>215	6.5Ω	49.5*1.0MM size PC95 material non-porous wireless charging magnetic sheet		Send Order
	FBFECO-22	7.5g/set	PC40	46.1mm	32.2mm²	/	2300±25%	>215	6.5Ω	49.5*1.0MM size PC95 material non-porous wireless charging magnetic sheet		Send Order

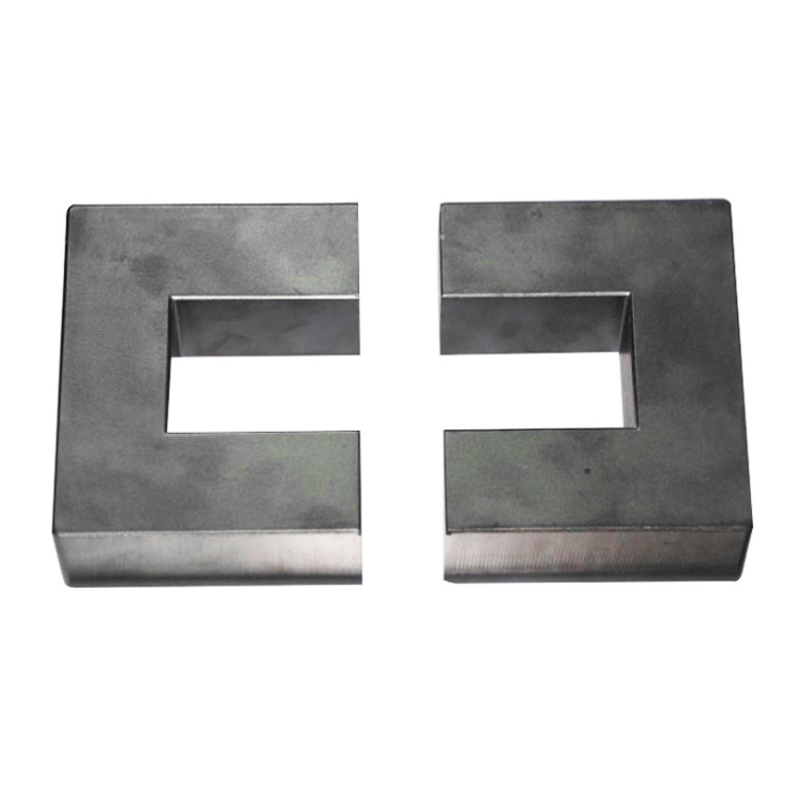

	FBFECO-23	/	PC40	270mm	784mm²	222656mm³	2300±25%	>220	6.5Ω	UF80/64.5 magnetic core for car charging pile		Send Order

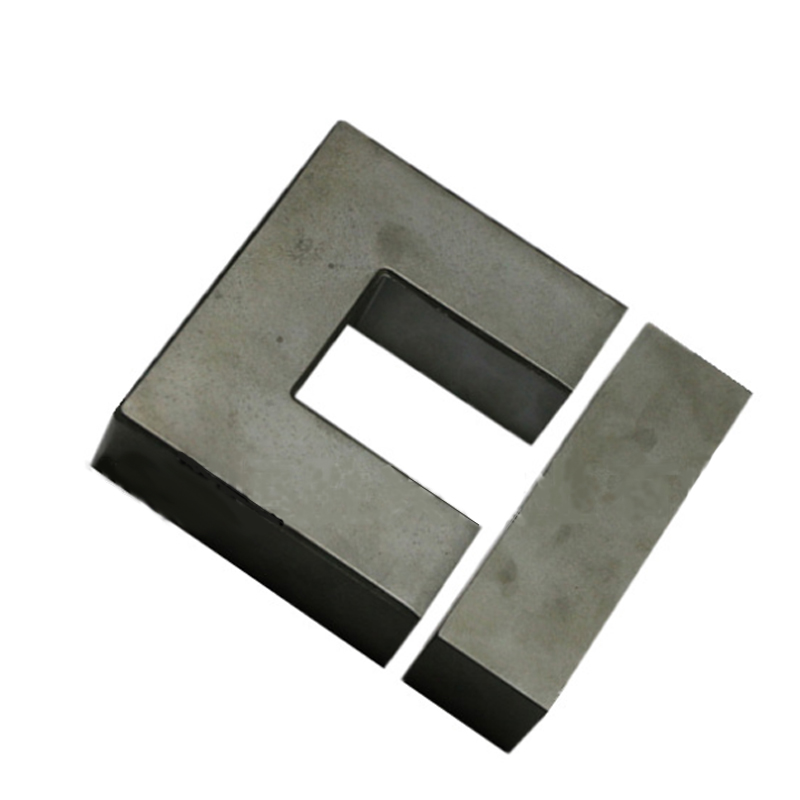

	FBFECO-24	5.2g/set	PC44	15.4mm	17.4mm²	270.7mm³	2300±25%	>220	6.5Ω	UI93 car charging pile magnetic core		Send Order

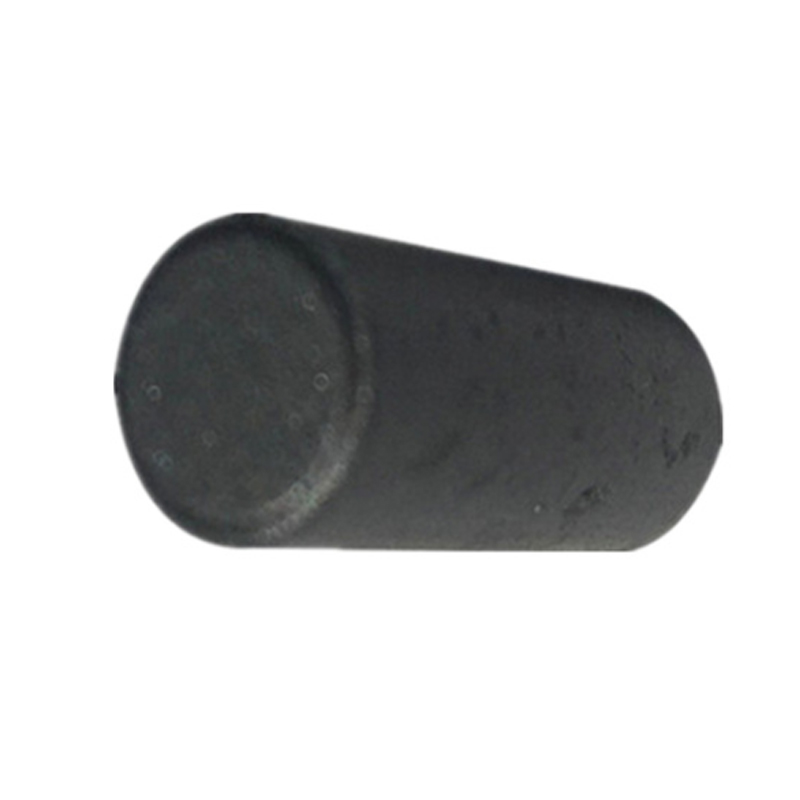

	FBFECO-25	5.2g/set	PC44	15.4mm	17.4mm²	270.7mm³	2300±25%	>220	6.5Ω	R6*20 magnetic rod		Send Order

• Ferrite Core

  Ferrite core is a high-frequency magnetic material mainly composed of metal elements such as iron, manganese, zinc, etc. It has the characteristics of low coercivity and high magnetic permeability.




• Composition and Preparation

  Ferrite cores are composed of iron oxide and other metal oxides or carbonate compounds, and are made by pressing and high-temperature sintering



  Characteristics and Applications

  Ferrite choke have high magnetic permeability, high resistance, and low eddy current losses, making them an ideal material for manufacturing high-frequency circuits such as high-frequency transformers and broadband transformers.



•


  In addition, it can also be made into inductors or transformers, which are widely used in instruments, communication equipment, and household appliances.




•


  How to choose ferrite cores can be approached from the following aspects

  Magnetic properties

  Magnetic permeability: High magnetic permeability means that the coil volume can be smaller under the same inductance requirements.

  Coercivity: Evaluating the ability of ferrite materials to maintain a magnetized state after the removal of a magnetic field.

  Magnetic saturation intensity: measures the magnetic induction intensity of ferrite under strong magnetic field.




  Physical performance

  Density and hardness: affect the mechanical strength and wear resistance of magnetic cores.

  Thermal expansion coefficient: Evaluating the dimensional stability of magnetic cores under temperature changes.




  Electrical performance

  Loss tangent: reflects the energy loss of the magnetic core.

  Quality factor: Comprehensive evaluation of the electrical energy conversion efficiency of the magnetic core.




  Environmental adaptability

  Temperature stability: Ensure that the magnetic core can maintain good magnetic properties in high temperature environments.

  Evaluating the performance of ferrite cores requires comprehensive consideration of multiple aspects such as magnetic properties, physical properties, electrical properties, and environmental adaptability.

• Fbelec as a specific ferrite core manufacturer

  FBelec has been focusing on the supply of strong NdFeB magnets and supporting equipment for many years. It provides production and processing services for strong magnets, NdFeB magnets, magnet manufacturers, special-shaped magnets, motor magnets and other magnetic products. The products cover all parts of the country.

  ORDER NOW

•


  There are many specifications and sizes of ferrite magnetic ring, which can be selected according to the material of magnetic ring, and different coatings can be used to simplify winding and improve breakdown voltage.





  Use of ferrite core

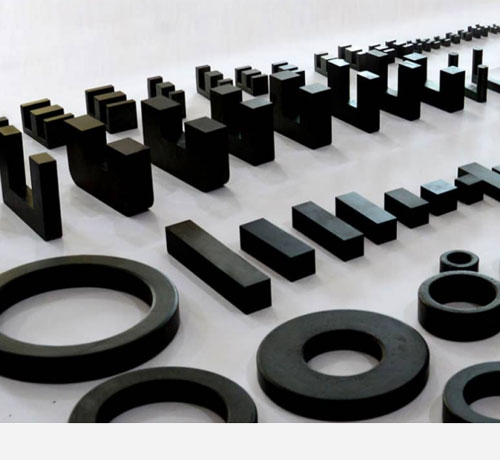

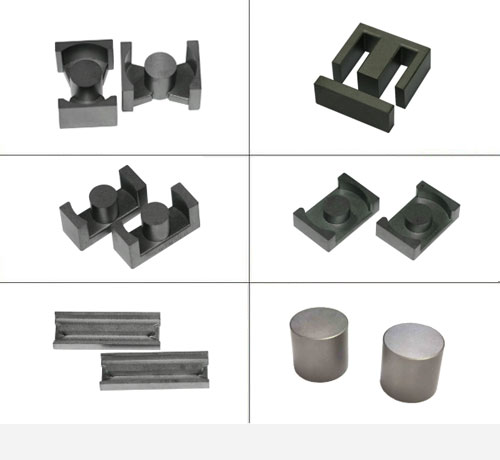

  Coils wound around ferrite cores can be made into inductors or transformers, which are widely used in instruments, communication equipment and household appliances. Ferrite cores have many material brands and various geometric shapes, including cylindrical, I-shaped, cap shaped, single hole, double hole, four hole, U-shaped, can shaped, E-shaped, EI shaped, EC shaped, RM shaped, PQ shaped and EP shaped, as shown in the attached figure. The magnetic cores of each shape form a series for users to choose from. Ferrite cores have a wide range of choices. Different materials and shapes can be selected according to different magnetic parameters. Due to their low magnetic loss at high frequency, they are widely used in switching mode power supply (SMPS), radio frequency (RF) transformers and inductors. Ferrite cores of various shapes and sizes are used in inductors, pulse transformers, high-frequency transformers and noise filters in high-frequency power supply and high-quality communication market. Ferrite is characterized by high permeability, good temperature characteristics and low attenuation rate.




  Specific data of ferrite core

  Compared with the hollow coil of the same volume, the inductor made by winding a coil on the ferrite core has large inductance and high Q value (quality factor). Such as Gu － 22 × 13 can shaped magnetic core. When it is used to make a 4mh inductor, it only needs to wrap 43 turns of coil. If the can shaped magnetic core is not used, it needs to wrap 600 turns to get a 4mh inductor. It can be seen that the volume of inductor or transformer can be greatly reduced after using magnetic core.

•
