LED Module

Picture	Manufacturer No.	Size	Voltage	Suitable for	Description	Datasheet	Order
	FBLM-01	39*39*6mm	12V	all kinds of sign light	The manufacturer sells four-lamp lens 5050 colorful injection LED module RGB high-brightness full-color marquee point light source		Send Order
	FBLM-02	38*28*5.5mm	12V	advertising light boxes, luminous characters	European and American best-selling led high-power side light source waterproof module LED advertising light box luminous high luminous efficiency light source module		Send Order
	FBLM-03	40*35*4.5mm	12V	all kinds of sign light	New high-power 3030 3535 high-brightness LED module led injection molding module waterproof signboard advertising point light source		Send Order
	FBLM-04	38*28*4.5mm	12V	LED advertising lights	1.5W high power LED injection mold advertising light box luminous word logo waterproof light source		Send Order
	FBLM-05	45*42*10mm	12V	advertising light boxes, luminous characters	4 lights 2835 high brightness lens LED injection molding waterproof module advertising logo light box luminous characters high display value and low light attenuation		Send Order
	FBLM-06	71*15*8.5mm	12V	all kinds of sign light	LED module manufacturers advertising signs highlight injection molding module advertising signs luminous characters led waterproof module light source		Send Order
	FBLM-07	30*9*8mm	12V	advertising light boxes, luminous characters	Source factory new mini led small 3 lights injection molding module lens waterproof shop signboard luminous word light source		Send Order
	FBLM-08	72*15*7mm	12V	all kinds of sign light	2019 new LED ultrasonic full color module RGB5050 colorful injection molding module light source light emitting module		Send Order

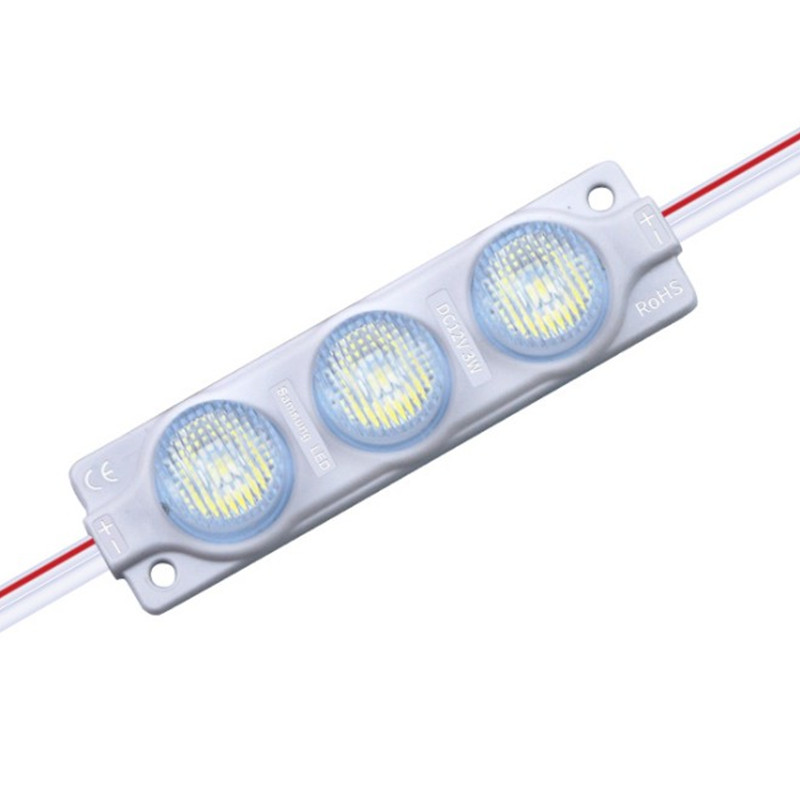

	FBLM-09	74*20*5.5mm	12V	advertising light boxes, luminous characters	Exported from Europe and the United States with 3 lights conjoined 3w high-power side-emitting ASB injection molded led module double-sided light box dedicated module		Send Order
	FBLM-10	50*14*4mm	12V	advertising light boxes, luminous characters	Ultra-thin PVC injection molded 2-lamp lens module 5730 high-brightness waterproof LED module advertising logo light source multiple specifications		Send Order

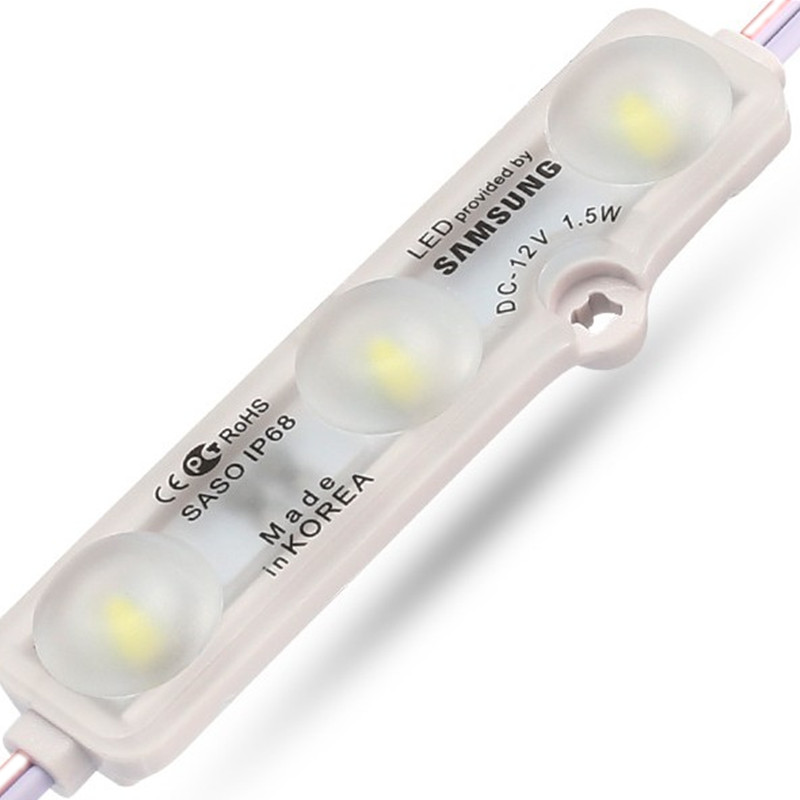

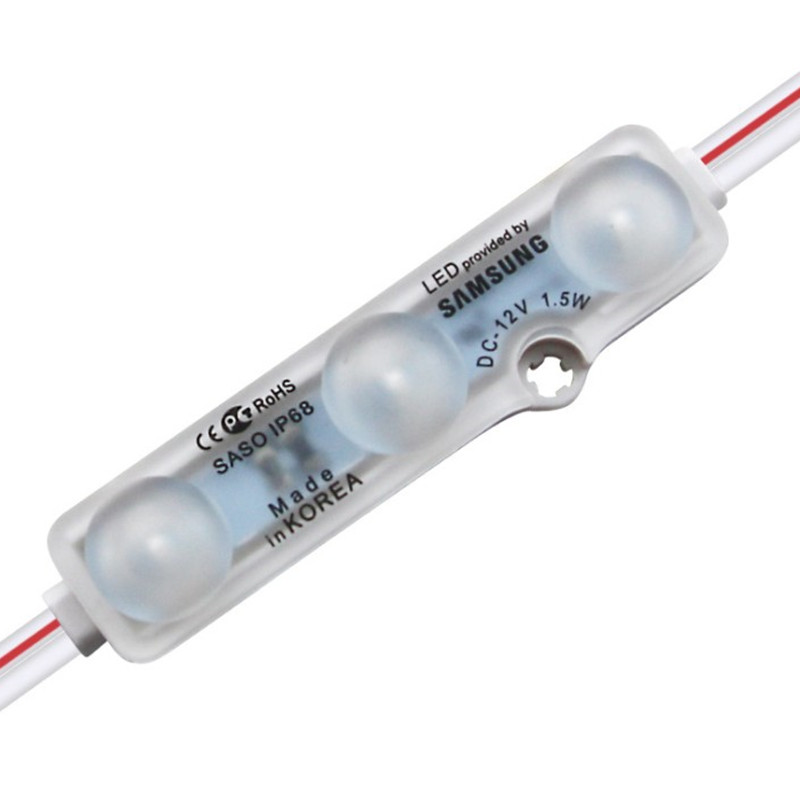

	FBLM-11	71*15*5mm	12V	advertising light boxes, luminous characters	South Korea led 5730 highlight ABS injection module IP68 waterproof 170° luminous DC12V 1.5w module		Send Order
	FBLM-12	45*42*6mm	12V	advertising light boxes, luminous characters	4 lights ABS injection module led highlight lens 2w injection led module advertising sign light box luminous word light source		Send Order
	FBLM-13	45*18*6.5mm	12V	advertising light boxes, luminous characters	Cross-border 2 lights frosted lens injection molding module 2835 high brightness waterproof LED injection molding module LED advertising light source		Send Order
	FBLM-14	38*28*4mm	12V	advertising light boxes, luminous characters	1.5w side-emitting LED high-power injection molding module LED advertising sign light box luminous character light source module		Send Order
	FBLM-15	47*20*7mm	12V	advertising light boxes, luminous characters	165 degree new 3528 high-brightness lens 1W injection waterproof 2 lamp module LED advertising sign light source		Send Order
	FBLM-16	38*28*4.5mm	12V	advertising light boxes, luminous characters	High display value, low energy consumption, high brightness, constant current backlight, LED injection molding module, ultra-thin light box, luminous characters, advertising light source		Send Order
	FBLM-17	45*18*6.5mm	12V	advertising light boxes, luminous characters	Manufacturers supply led lens injection waterproof module 2835 highlight 2 lights advertising signs luminous word light source		Send Order
	FBLM-18	41*41*4.6mm	12V	all kinds of sign light	Focus on customized LED modules, car lights, advertising luminous characters, light sources, shop signs, injection lens waterproof modules		Send Order
	FBLM-19	34*12*6.5mm	12V	all kinds of sign light	Constant current small 1 light high-brightness LED lamp beads 3030 high-brightness injection molding module luminous characters LED advertising light box warranty 5 years		Send Order
	FBLM-20	46*17*7.5mm	12V	advertising light boxes, luminous characters	LED injection module highlight lamp bead tray base luminous characters billboard body plastic frosted light transmission customization		Send Order
	FBLM-21	72*18*6.5mm	12V	advertising light boxes, luminous characters	Cross-border export LED waterproof injection molding module 3 lamp frosted lens 2835 highlight IP68led injection molding module		Send Order
	FBLM-22	46*17*6.5mm	12V	advertising light boxes, luminous characters	Cross-border 2 lights frosted lens ABS injection module 3030 highlight IP68 waterproof led injection module		Send Order
	FBLM-23	70*17*6.5mm	12V	advertising light boxes, luminous characters	Diamond lens 3 lights 1.5w injection 3030LED module ABS injection IP67 waterproof 170°light spot		Send Order

• Good about FBelec's LED Signage Module

  It has stable quality, low energy consumption, low thermal radiation and high luminous efficiency.
  FBelec company offers a variety of LED module solutions to upgrade existing fluorescent
  and CFL lamps to energy efficient LED fixtures.




• What is an LED Light Source Module?

  Introduction to the installation of LED light source modules.



• Concept
  LED modules are widely used in LED products, and there are also significant differences in structure and electronics. Simply put, a circuit board and housing containing LED are used to form an LED module, while complex ones require some control, constant current source, and related heat dissipation treatment to improve LED lifespan and luminous intensity.

  Application
  It is mainly used to display the night effect of advertising fonts (acrylic, vacuum molded) and signs. It uses text or signs as a medium and is installed on the top or wall of buildings. It can not only show the daytime effect of the signs, but also use LED as a luminous light source to show another effect at night. Combined with LED lighting application control system, it can dynamically control the text or signs in video. In some places with a strong entertainment atmosphere, LED light source modules have become one of the most important choices for enterprises to showcase their self-image.




•

•


  Parameters

  1. Color: According to the type of color, it can be divided into three types: monochrome, rainbow, and full-color single point control.

  2. Low voltage modules with a voltage of 12V are quite common. When connecting the power supply and control system, it is necessary to check the correctness of the voltage value before powering on, otherwise it will damage the LED module.

  3. Working temperature: refers to the temperature at which the LED operates normally. Usually, it is between -20 ℃ and+60 ℃.

  4. Luminescence angle: Generally, the luminous angle of the LED module provided by the manufacturer is taken as the angle of the LED module.

  5. Brightness: The brightness we usually refer to in LED modules is usually the luminous intensity and lumen.

  6. Waterproof level: If LED modules are to be used outdoors, this parameter is very important. Generally, in fully outdoor conditions, it is best to achieve a waterproof level of IP68.

  7. Size: It is commonly referred to as the length, width, and height dimensions. The maximum length of a single connection is the number of LED modules connected in a series LED module.

  8. Power: Basically, the power of an LED module is equal to the power of a single LED multiplied by the number of LEDs multiplied by 1.1.



•

•


  Classification

  According to the type of color, it can be divided into three types: monochrome, rainbow, and full-color single point control. Monochrome refers to the module of a single color, which is generally used in red, green, yellow, white, and so on; The seven color LED module is a module product that is transformed by seven different colors, with more colors and greater variability; Compared with seven colors, full-color LED modules are more diverse. They can achieve true color changes, which are not only very beautiful, but also full of dynamic and eye-catching.




  According to the power of a single LED, it can be divided into three types: low power (below 0.3W), medium power (0.3-0.5W), and high power (1W and above). High power modules have higher brightness and longer usage time than low power modules, making them the development trend of LED lighting in the future and more practical. According to sealing properties, it can be divided into two types: waterproof and non waterproof. Waterproof and non waterproof modules are mainly distinguished based on the application environment. Generally, waterproof LED modules can be used for outdoor lighting and promotional purposes. They will not cause problems due to water ingress and are more suitable for harsh environmental applications. Non waterproof modules are mainly used indoors.




  Waterproof modules are also more expensive than non waterproof ones. According to the shape of LED, LED modules are divided into: direct insertion LED modules, piranha LED modules, and SMT LED modules.




•

•


  Requirements

  The voltage of LED ranges from 2-9V, and the power also has a wide range. The specific type of LED to choose depends on the technical requirements of this module as a product. For example, if this LED module needs to output 10lm of light, and it appears that using two LEDs is better, you can choose a 5lm LED. By combining color (LED voltage is related to color), temperature, quality, and other factors, a suitable LED product can be found.

•

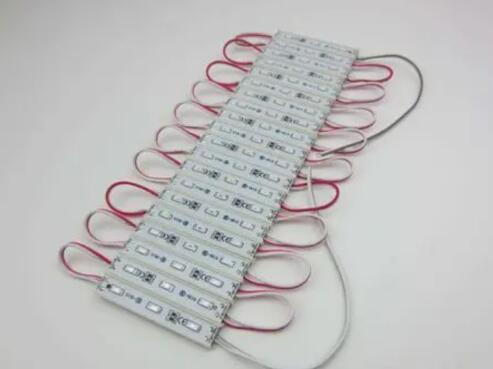

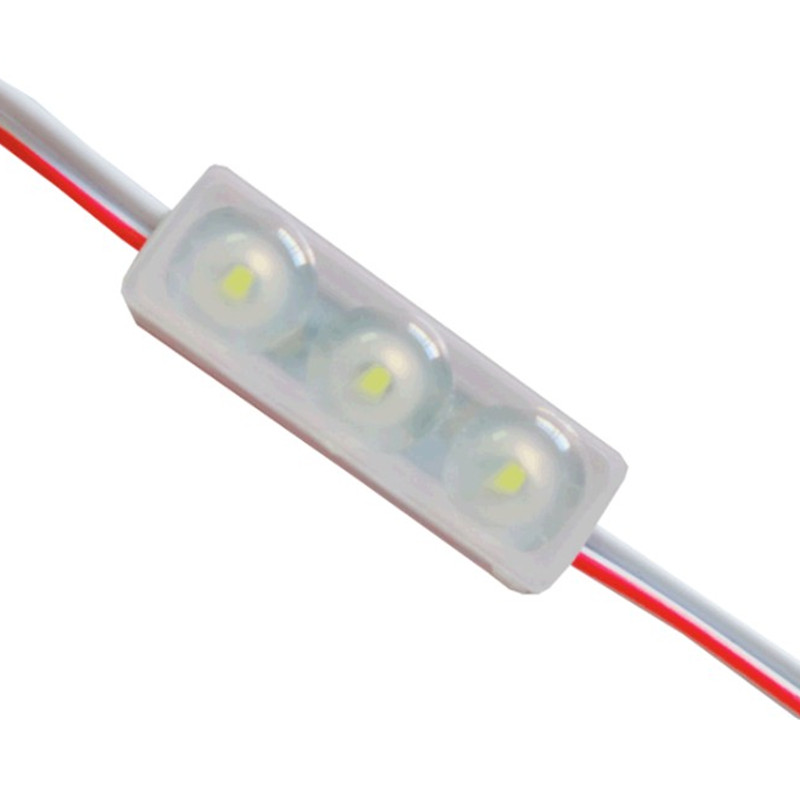

  LED light module

  The LED module is composed of light-emitting diode quadrilateral modules integrated with multiple rows and columns, and at least one side of the quadrilateral module is an edge with more than one group of concave convex groove blocks. The quadrilateral module can have at least one group of opposite sides, and both walls are provided with more than one group of concave convex groove blocks, in which the two opposite sides of concave convex groove blocks can be corresponding or symmetrical.LED module solutions.




  Where are LED applications?

  LED module is widely used in LED products, and there are great differences in structure and electronics. The simple thing is to use a circuit board and shell equipped with led to become an LED module. The complex thing is to add some control, constant current source and relevant heat dissipation treatment to make the LED life and luminous intensity better.

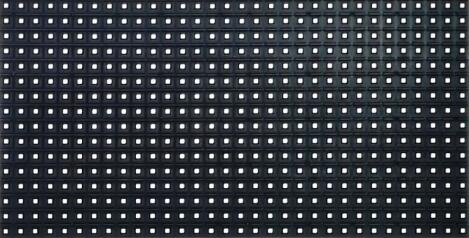

  It is mainly used to display the night effect of advertising font (acrylic, blister) and logo. It takes text or logo as the medium and is installed on the top or wall of the building. It can not only show the daytime effect of logo, but also use LED as luminous light source to show another effect at night. It is equipped with LED lighting application control system to carry out dynamic video control of text or logo, In some places with strong entertainment atmosphere, LED light source module has become one of the most important choices for enterprises to display their self-image. It is generally also used for the production of indoor or outdoor display screens.
