Exit Button

Picture	Manufacturer No.	Dimensions	Input voltage	Standard structure	Contact output	Description	Datasheet	Order
	FBEB01	86*50*25mm	DC12V	organic glass touch trigger	NO NC COM contact	emergency stop button		Send Order
	FBEB02	86*86*25mm	DC12V	organic glass touch trigger	NO NC COM contact	Exit Button		Send Order
	FBEB03	93*30mm	DC12V	stainless steel panel, stainless steel button	/	door exit		Send Order
	FBEB04	86*86*29mm	DC12V	/	NO NC COM contact	door release		Send Order

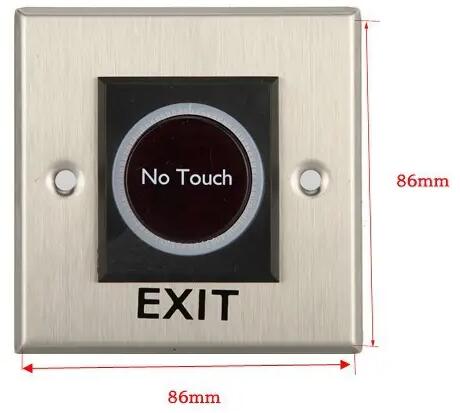

	FBEB05	88*88*20mm	36V	stainless steel panel, stainless steel key switch	NC COM contact	no touch exit button		Send Order
	FBEB06	80*30*23mm	36V	alloy panel, metal button	NC COM contact	exit switch		Send Order
	FBEB07	80*30*23mm	36V	alloy panel, metal button	NC COM contact	emergency door release		Send Order
	FBEB08	86*86*29mm	DC12V	/	NO NC COM contact	door release exit button push switch		Send Order

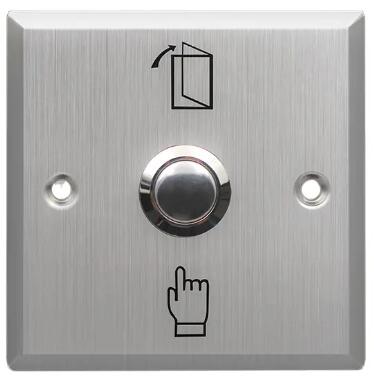

	FBEB09	86*86MM	DC12V	stainless steel panel, stainless steel button	/	Stainless steel waterproof exit button		Send Order
	FBEB10	93*30MM	DC12V	stainless steel panel, stainless steel button	/	access control door release		Send Order
	FBEB11	115*70*29MM	DC12V	SUS 304 stainless steel plate	/	LED door exit switch		Send Order
	FBEB12	86*50*20MM	DC12V	aluminum alloy panel, metal push button	NONC contact	infrared No Touch Door Access Control Exit button		Send Order
	FBEB13	80*30*23MM	DC12V	alloy panel, metal button	NO/COM contact	PIR Emergency button		Send Order
	FBEB14	79*45*21MM	DC12V	PC fire-retardant material	/	Infrared Door Release Switch		Send Order
	FBEB15	86*86MM	DC12V	stainless steel panel, stainless steel button	/	PIR Exit button		Send Order
	FBEB16	86*86MM	DC12V	/	/	Wireless WiFi smart Emergency Button		Send Order
	FBEB17	86*50*46MM	36V	aluminum alloy panel, metal button with light	NC/NO/COM contacts	Metal push door exit button door release button		Send Order
	FBEB18	86*86*20MM	36V	aluminum alloy panel, metal push button	NC COM contact	Metal push exit button emergency exit switch with for access control system		Send Order
	FBEB19	86*86*46MM	36V	aluminum alloy panel, metal button with light	NC/NO/COM contacts	Automatic door Stainless steel Exit push button with light		Send Order
	FBEB20	86*86MM	36V	/	/	Door Release Switch Access Control System		Send Order
	FBEB21	/	36V	SUS 304 stainless steel plate	/	Access Control system Stainless Steel Door Control Switch Exit Push Button		Send Order

• Emergency Button & Exit Button

  FBelec's emergency button & exit button is suitable for indoor and outdoor applications, with various Emergency Exit Buttons, circular button switches, fire alarm buttons, three in one buttons, call point switches and multi-purpose button switches. Many are UL, cul and CE, VDE.




  FBelec door opening button is mostly used in weak current systems, especially in security systems, access control systems, etc. Generally, it is normally open, and there are normally closed buttons on special occasions. The principle is to give a two core dry node signal at the moment of pressing, and return to the normal position under the action of the spring. Contact our sales team to send your Inquiry .




• Exit Button

  The access control emergency button is an important security device mainly used to quickly open the access control system in emergency situations, ensuring that personnel can pass through quickly and safely.

  The installation, use, and maintenance of this button follow a series of standards to ensure its maximum effectiveness at critical moments.

  Enough buzzer production capacity.

  Installation specifications

  The installation position of the Emergency Exit Release Button should consider safety and convenience, and is usually installed in easily accessible and not easily overlooked places, such as employee office areas, warehouses, near elevators, etc. It is recommended to install on non-metallic materials to prevent accidental impact and sparks. The quantity and layout should match factors such as personnel density and risk level. Key areas should increase the number of buttons and ensure sufficient distance between adjacent areas to avoid mutual interference. The button color should be eye-catching, easily recognizable, usually red, and clearly labeled, including the words "emergency door opening" and operating instructions.

  Usage norms

  Employees should be aware of the location and operation method of the emergency door button in order to use it quickly in emergency situations. At the same time, good safety awareness should be developed to avoid accidentally touching buttons in non emergency situations. During major events or holidays, the inspection and maintenance of emergency door opening buttons should be strengthened to ensure that they are in good working condition.

  Training and drills

  Enterprises should regularly conduct emergency evacuation training to enable employees to understand the usage methods and precautions of emergency door opening buttons. Organize emergency evacuation drills to allow employees to experience firsthand how to use the emergency door button in emergency situations and improve their emergency response capabilities.

  The emergency response measures of the intelligent access control system include automatic unlocking when power is cut off, emergency response in conjunction with the crushing button, and linkage with the fire protection system to achieve pre disaster warning, linkage alarm during disasters, and activation of emergency response measures during disasters. These measures together ensure that in the event of an emergency, the unobstructed safety passage is guaranteed, and there will be no situation where people are trapped in a dangerous environment.

• Parameter of Emergency Exit Button

  Access control dedicated outdoor door button (stainless steel with light), external dimensions: 86mm * 86mm * 20mm.

  Standard structure: stainless steel panel, metal button connection.

  Point Output: NO NC COM Contact durability test: 100000 aging tests qualified Applicable type: Suitable for hollow

  Door Frame Panel Processing: stainless steel surface.

  Wire drawing treatment for board, external dimensions: 91mm * 28mm * 20mm, standard structure: stainless steel panel.

  Metal Button Contact Output: NO NC COM, contact resistance.

  Usage Test: 100000 aging tests qualified.

  Applicable type: Applicable hollow door frame panel.

  Treatment: Non embroidered steel panel Drawing treatment.

•

•


  FBelec mainly engages in electronic control locks; Electronic lock; Smart card; Induction lock; Magnetic lock; Access lock; Electric plug lock; IB card; Integrated lock; Spiritual lock; Silent electric control lock; Motor lock; Patrol button; EM card; Door closer; Password access lock; Remote control electronic lock.




  The product has passed military security technology and product security certification, and is listed among the top ten national brands of access control, ranking among the forefront of the national security industry. Its access control and derivative products are widely used in finance, telecommunications, power, prisons, civilian and other fields.




•

•


  What is the Emergency Exit Release Button style?

  Generally standard size,fire alarm buttons

  Special ribbon type small buttons are used for holding in the hand,




  How to determine the quality of exit button

  Press continuously by hand to test the strength and time of return, and feel whether it is smooth and whether it is stuck

  Check the hardness of the panel, especially whether the stress degree of the fixing screw hole meets the requirements.




  How to choose the emergency button?

  1. In case of weak current construction of standardized buildings, 86 bottom boxes are generally used for installation;

  2. If the decoration pattern is high-grade and gorgeous, metal buttons are generally used;

  3. If the decoration style is relatively simple, plastic buttons are generally used;

  4. If the installation space is too small to install 86 boxes, small buttons are generally used.
