Piezo Atomizer

Picture	Manufacturer No.	Size	Material	Description	Datasheet	Order
	FBNOZ13.8-160K	13.8mm	stainless steel	160K Ultrasonic Humidifier Mist Maker Atomized film Ceramics		Send Order
	FBPZT13.8-160K 7-8UM	13.8mm	stainless steel	13.8-160K 7-8UM Ultrasonic Atomizing Piezo Transducer Piezo		Send Order
	FBPZT13.8-160K-5UM	13.8mm	stainless steel	13.8mm 160K 5UM piezo ultrasonic atomizer with rubber		Send Order
	FBPZT13.8-180K 5UM	13.8mm	stainless steel	Piezo Ceramic Ring 160KHz 5um Piezoelectric Ceramic Atomizing with wire		Send Order
	FBPZT13.8-180K 7-8UM	13.8mm	stainless steel	13.8mm atomizer piezo ultrasonic atomizer		Send Order
	FBPZT13.8-160K 9UM	13.8mm	stainless steel	Piezo Nebulizer Ultrasonic Micro Atomizing Piezoelectric Transducer		Send Order
	FBPZT16-108K 11-12UM	16mm	stainless steel	16mm 108K 11-12UM Ultrasonic atomizer pieze ceramic transducer		Send Order
	FBPZT16-108K 4-5UM	16mm	stainless steel	16mm 108k 4-5UM piezo ultrasonic atomizer		Send Order
	FBPZT16-108K 6-7UM	16mm	stainless steel	16mm 108k 6-7UM piezo ultrasonic atomizer		Send Order
	FBPZT16-108K 9UM	16mm	stainless steel	16mm 108k 9um 16mm piezo ultrasonic atomizer		Send Order
	FBPZT16-113K 5-6UM	16mm	stainless steel	16mm 113K 5-6UM piezo ultrasonic atomizer		Send Order
	FBPZT16-113K 8UM	16mm	stainless steel	16mm 113K 8UM piezo ultrasonic atomizer		Send Order
	FBPZT16808	16mm	stainless steel	PZT Material Piezo Ceramic Ring For Micro Nebulizer		Send Order
	FBPZT20-108K 5UM	20mm	stainless steel	20mm 108K 5um piezo ultrasonic atomizer		Send Order
	FBPZT20-108K 7-8UM	20mm	stainless steel	20mm 108k 7-8um piezo ultrasonic atomizer		Send Order
	FBPZT20-111K 12UM	20mm	stainless steel	20mm 111khz 12um piezo ultrasonic atomizer		Send Order
	FBPZT20-111K 4UM	20mm	stainless steel	20mm 111k 4um piezo ultrasonic atomizer		Send Order
	FBPZT20-111K 5-6UM	20mm	stainless steel	20mm 111k 5-6um piezo ultrasonic atomizer		Send Order
	FBPZT20-111K 8UM	20mm	stainless steel	20mm 111k 8um piezo ultrasonic atomizer		Send Order
	FBPZT2520	25mm	stainless steel	MHZ/2.4MHZ/1.7MHZ pzt piezo ceramic Ultrasonic microporous atomizer		Send Order
	FBUA2016	20mm	stainless steel	1.7mhz PZT Piezoelectric Ceramics Piezo Atomizing Transducer		Send Order
	FBUA2020	20mm	stainless steel	Atomization piece Ultrasonic atomization piece ultrasonic		Send Order
	FBULCPD-002	customization	customization	Face Cleansing & Beauty Blackhead Removal Peeling Ultrasonic Skin Scrubber Shovel		Send Order
	FBULSTT-001	customization	customization	Personal Care Multifunctional Beauty Equipment		Send Order

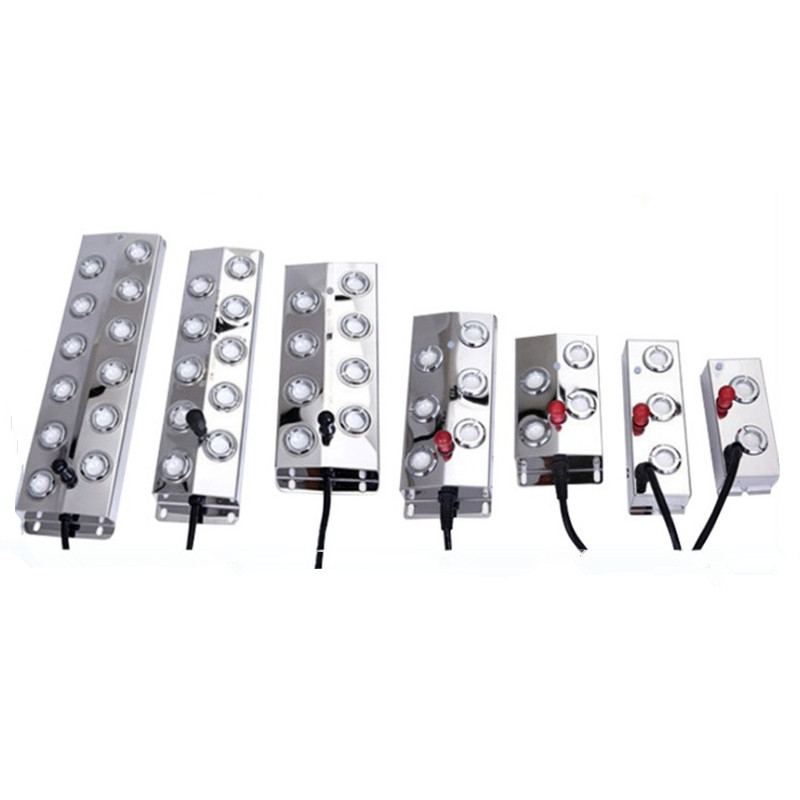

	FBWHB010	customization	customization	Humidifier atomizer module deodorizer atomizer epidemic disinfection machine accessories		Send Order

•


  FBelec Technology Vibrating Piezoelectric Mesh Nebulizer Designs

  Atomized piezoelectric ceramic is a technology that uses piezoelectric effect to control liquid spray. The technique utilizes the vibration of piezoelectric ceramic sheets to generate a high-frequency electric field, thereby causing the liquid to produce tiny droplets, and deliver to the target area through airflow. The advantage of atomized piezoelectric ceramic sheet lies in its spray efficiency.
  High, wide spray range, small spray particle size and other characteristics, suitable for medical, agricultural, chemical and other collar.
  Domain spray application. In addition, this technology also has advantages such as environmental protection and energy conservation, which will become the future.One of the mainstream of spray technology.



  FBelec Founded in 1997

  FBelec focuses on the R & D, production and sales of atomization tablets, atomization plates and atomization tablets related products, with an annual production capacity of more than 10 million units. FBelec's Piezo atomizers are used to atomize liquid, creating and dispensing mist that can be found in nebulizers, fragrance dispensers, or cleaning devices.etc. Piezo Atomizer Disc 16mm 142KHz & 108 KHz Transducer is more popluar. FBelec factory focus on high quality of piezo ultrasonic atomizer and after-sales service. The microporous atomized ceramic tablets produced by our company have passed the appearance inspection For a series of electrical performance tests such as flatness screening, capacitance and frequency full inspection, high-quality metal diaphragm is selected, and the aperture, number of holes and thickness of stainless steel sheet are reasonably matched and glued.

•

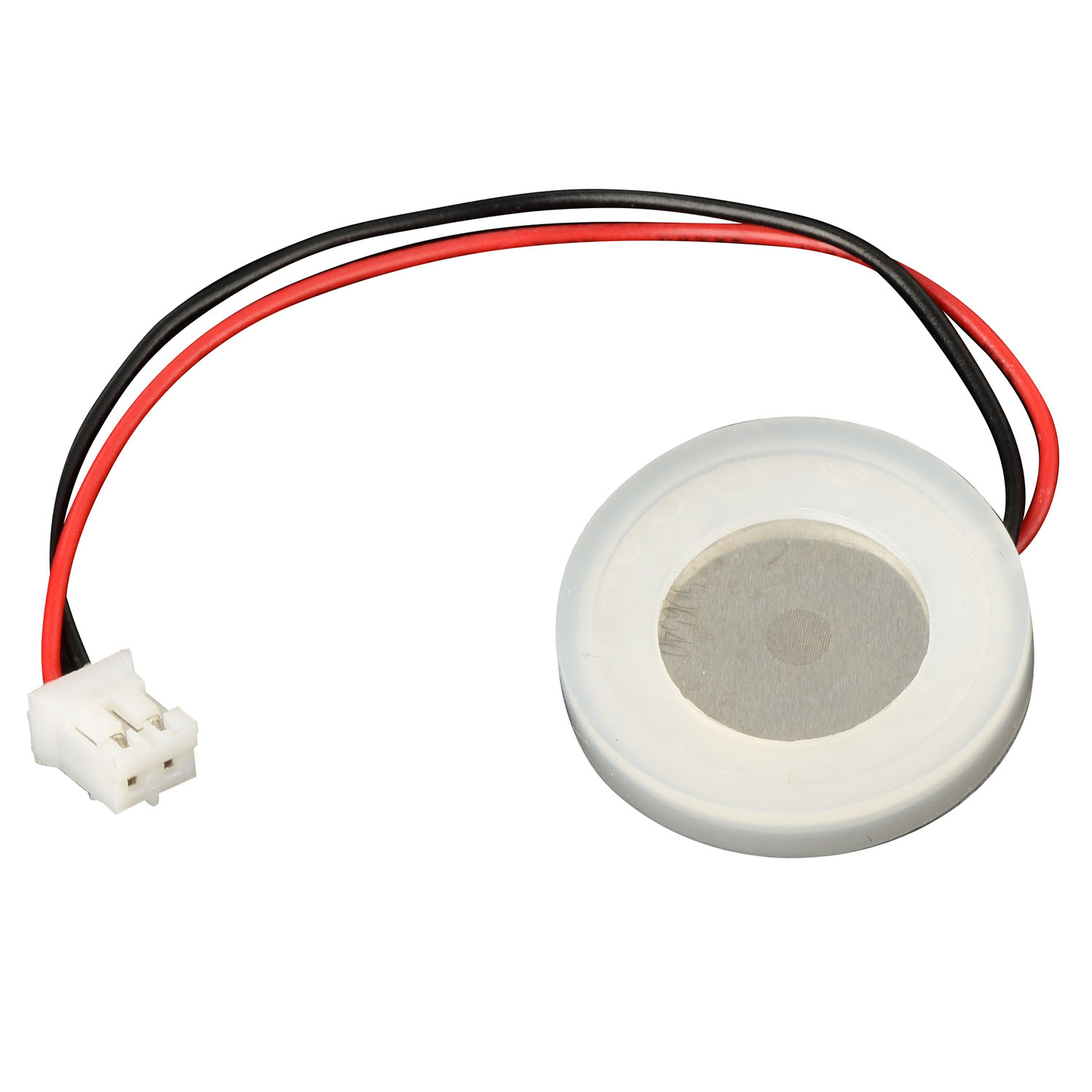

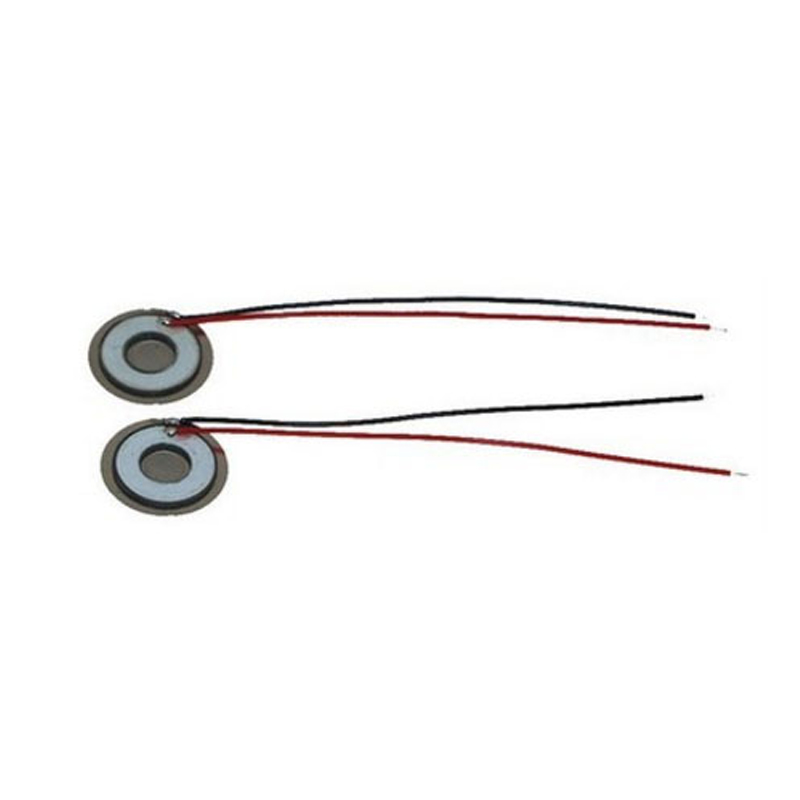

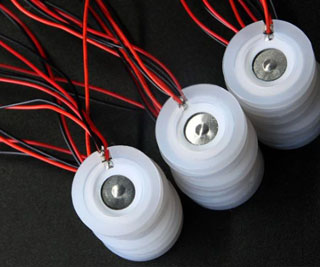

• Piezoelectric ultrasonic atomizer

•

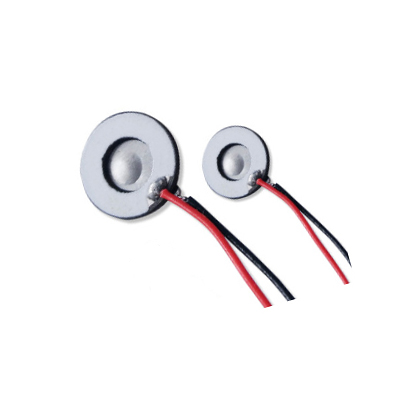

  Piezoelectric ultrasonic atomizer

  Piezoelectric transducers have been widely used in medical, wireless communication, automotive, aviation,health care and environmental protection and other fields.


  Extremely homogeneous aerosols
  Ultrasonic piezo is often used to generate ultrasound to atomize liquids such as water or medication. We have been developing and manufacturing components for inhalers and other medical applications(medical nebulizers) for more than 25 years. FBelec ist always at your side regarding medical requirements and official approvals.


  Our customers benefit from our experience with piezo-based ultrasonic atomization technology. Our Piezo technology offers three different methods for ultrasound generation of droplets – always without introduction of heat. Using Piezoceramics to generate ultrasonic waves for mesh nebulizers offers many advantages:

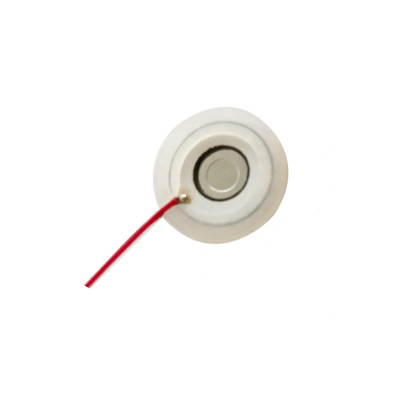

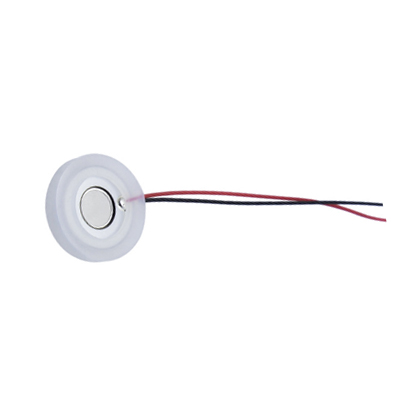

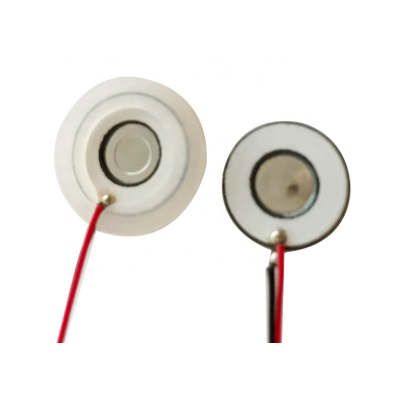

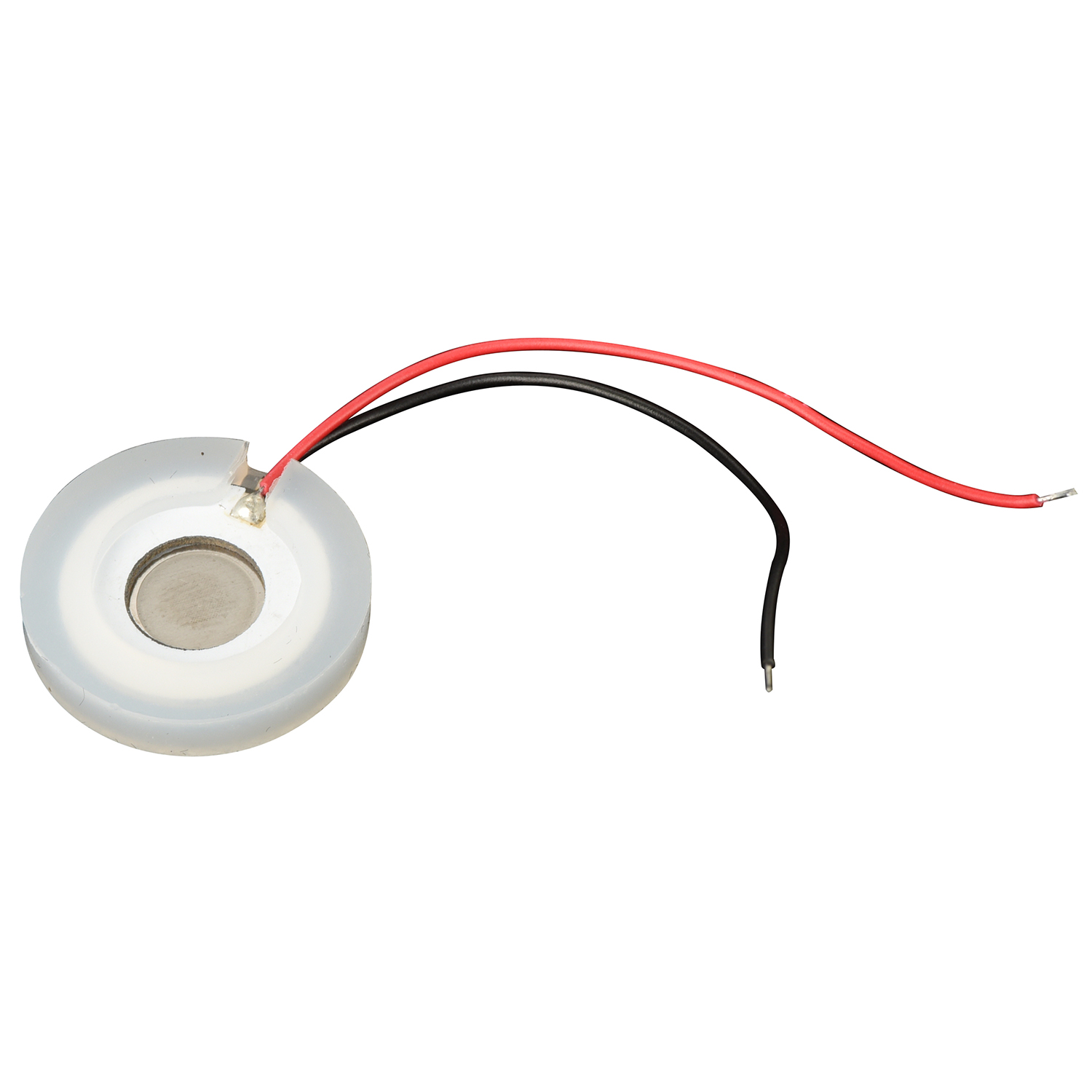

  Mesh atomizer

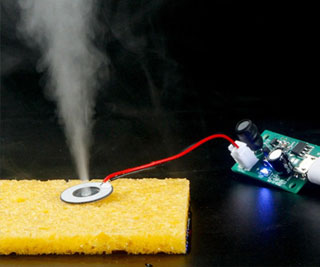

  The nebulizing based on vibrating piezoceramic mesh offers many advantages. The liquid reservoir is placed beside a perforated disc (mesh). With thousands of precision-formed holes this disc is surrounded by a piezoelectric material.
  Due to the rapid vibration of the piezo element, the fluid will be drawn through the holes of the mesh disc and atomized. The droplets produced are very uniform in size. The suspended aerosol can easily be inhaled into the lungs.
  * Very small respirable droplet sizes can be achieved for medical applications, e.g. (MMAD – Mass Median Aerodynamic Diameter) of less than 4 µm
  * Droplet sizes depend on the diameter of the holes in the mesh
  * Typical atomization rate up to 1 ml / min



•

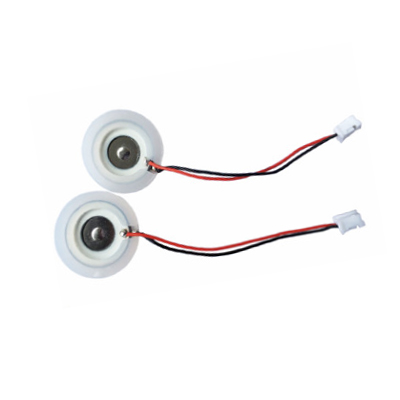

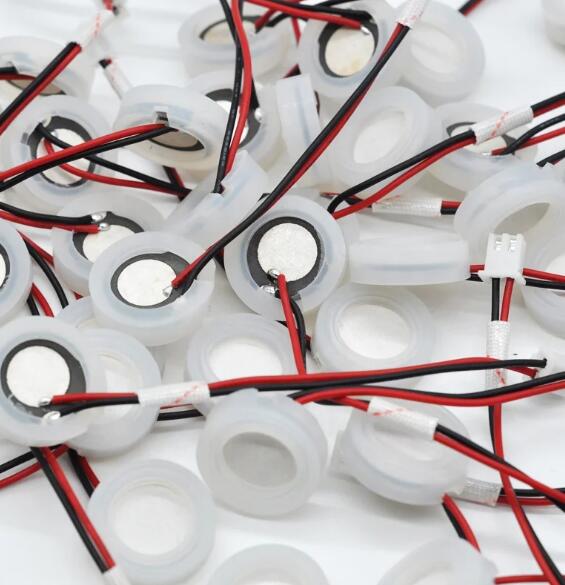

• Wholesale Piezoelectric ultrasonic atomizer

•
  Cavitation ultrasound

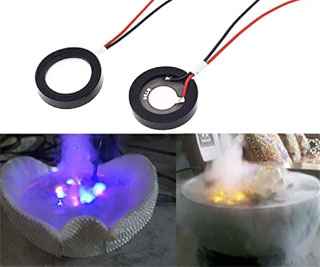

  The piezo transducer is incorporated into the base of a liquid reservoir whose level must be kept constant at all times. The piezo transducer is driven by a high frequency AC power supply and emits ultrasonic waves which are focused on the surface of the liquid, producing an ultrasonic “nozzle”. Very small droplets are emitted from the resulting cone of liquid at the tip.
  The aerosol generation can be regulated by the level of the electrical voltage and by pulse-pause modulation. Of course this way of atomizing works in a closed housing as well as in an open design.
  * Frequency range from 500 kHz up to 3 MHz
  * Typical MMAD is frequency dependent, MMAD with atomization of water at 1.6 MHz approx. 3-5 µm
  * Typical atomization rate up to 0.5 l / h

  Generation of capillary waves
  The generation of capillary waves is driven by a piezoelectric ceramic plate mounted under a conal case.
  Depending on the application, the liquid is transported onto a surface which is set into vibration by the oscillating piezo element . An aerosol is emitted.
  * Frequency range from 20 kHz up to 500 kHz
  * Typical MMAD with atomization of water at 100 kHz approx. 30 µm
  * Typical atomization rate up to 0.5 l / h

• •

    Low Cost

    Due to big production quantity and automatic production, the cost of Ultrasonic Atomizing Transducers is relatively low.

  •

    Non toxic and harmless

    Non toxic and harmless, no need to add any chemicals, using the principle of ultrasound

  •

    Good Consistency

    The automatic production of FBelec ensures the excellent consistency of the Ultrasonic Atomization Discs.

  •

    Long service life

    The working life is more than 8000 hours

•

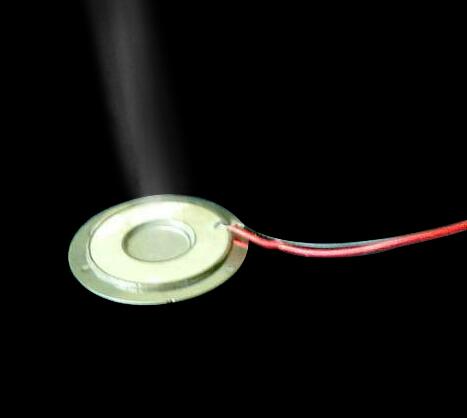

  What is piezo ultrasonic atomizer?

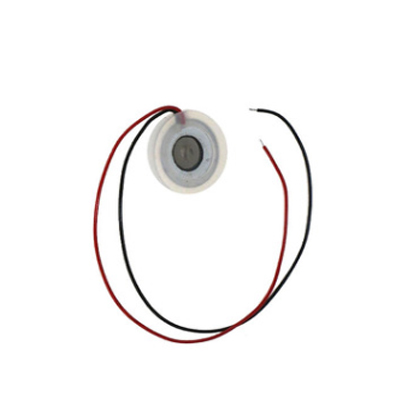

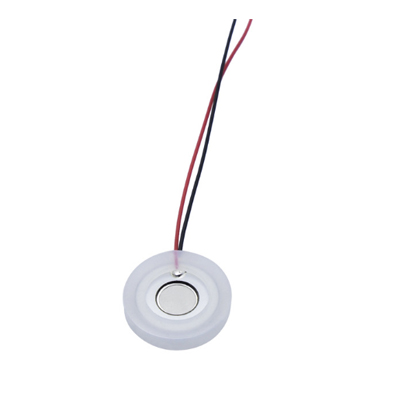

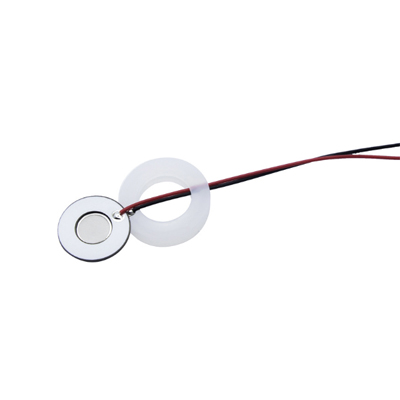

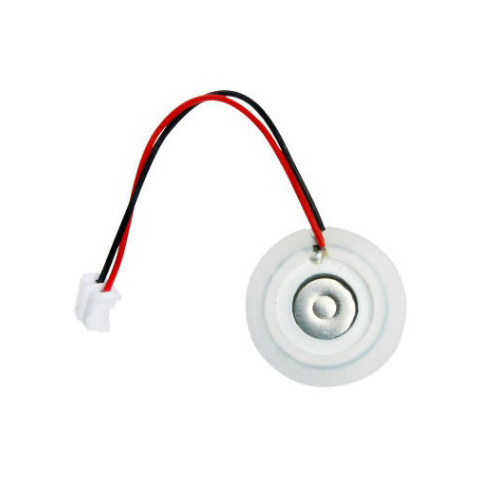

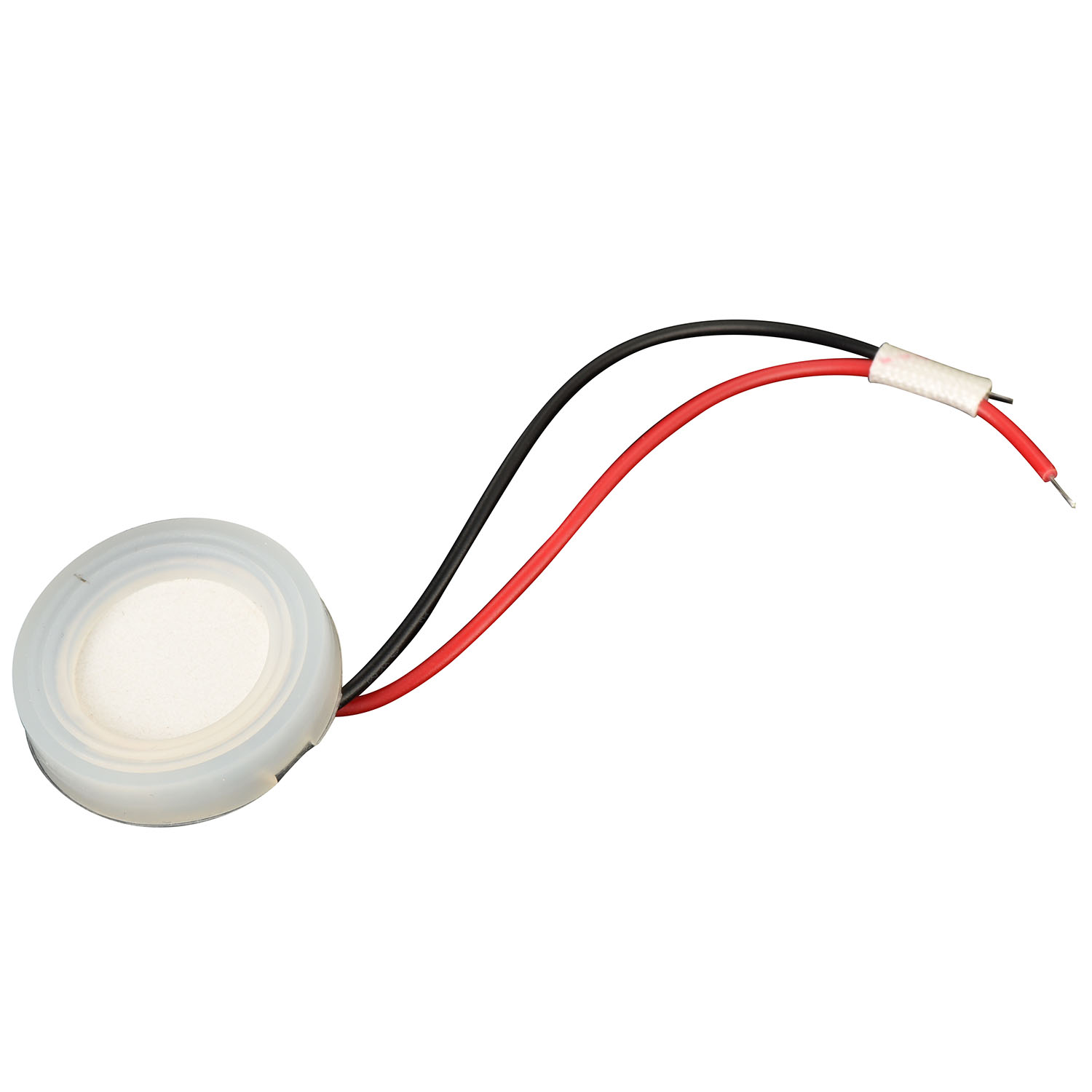

  The ultrasonic energy generated by Ultrasonic Humidifier Ceramic Atomizer will be greater. Focusing on the power of sound pressure will lift the water surface to form a water column. The water film at the tip of the water column is tearing, and then splashing the mist of fine particles into the air. This action is the principle of ultrasonic atomization. FBelec's ultrasonic atomizers provides a special vibrator with excellent durability in terms of high frequency and high power. The size of ultrasonic atomization transducers is 13.8mm, 16mm, 20mm and 25mm.

  Piezo ultrasonic atomizer or piezoelectric ultrasonic atomizer uses electronic high frequency oscillation (the oscillation frequency is 1.7MHz or 2.4MHz, which exceeds the range of human hearing, and the electronic oscillation does no harm to human body and animals). Through the high-frequency resonance of the ceramic atomization sheet, the liquid water molecular structure is dispersed to produce a naturally flowing water mist without heating or adding any chemical reagent. Compared with the heating atomization method, the energy is saved by 90%. In addition, a large amount of water will be released in the atomization process Fine water droplets are adsorbed and combined with smoke and dust floating in the air to precipitate, purify the air and reduce the occurrence of diseases. FBelec factory has focused on this field for more than 20 years and has rich manufacturing experience. Welcome to consult FBelec engineer team for more details.

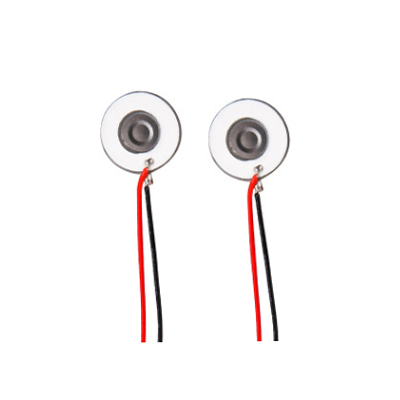

  Nebulizer Atomizers, we also called it: Piezo ultrasonic micro hole atomizer, ultrasonic atomizing piezoelectric transducer, Piezo Ceramic Mesh Atomizer, Ultrasonic humidifier, Nebulizer spray nozzle, Ultrasonic piezo liquid atomizer.
