Relay Socket

Picture	Manufacturer No.	Rated Voltage	Contact Load	Description	Datasheet	Order

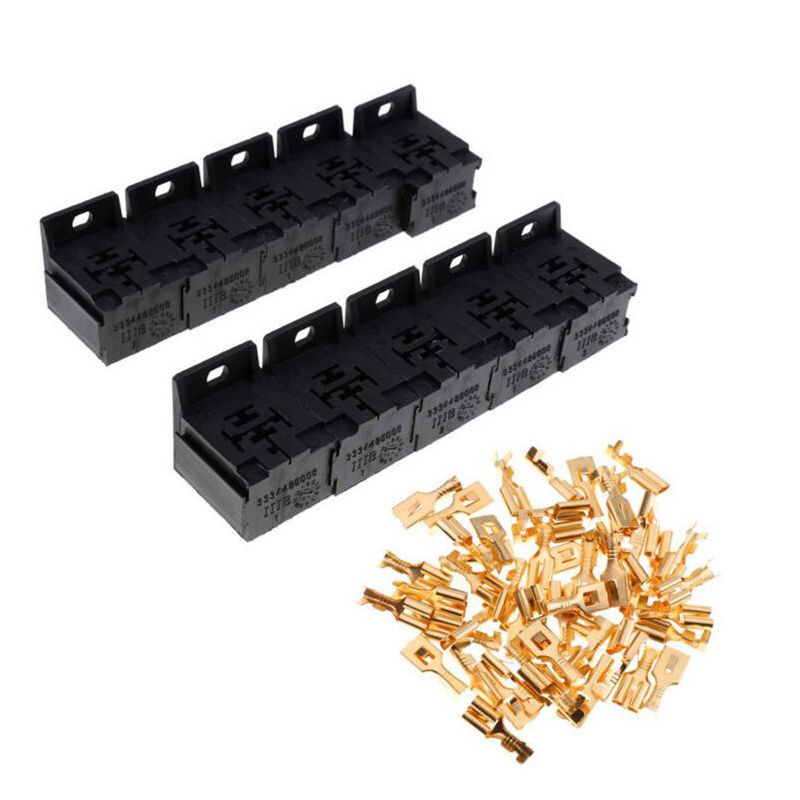

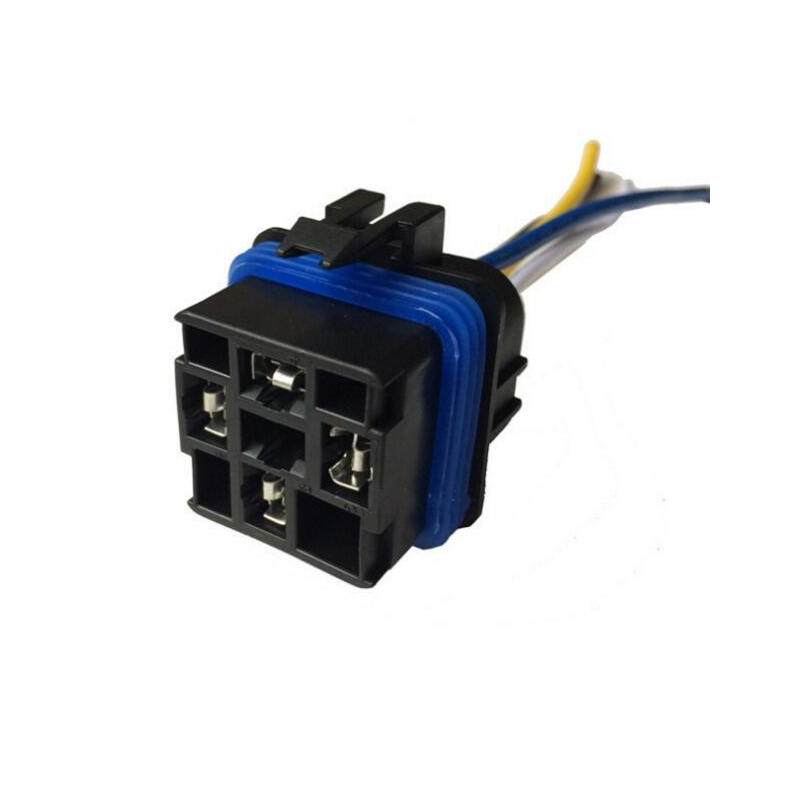

	FBRS-01	12V	40A14V	New Listing High Quality Sealing Waterproof Dc14v-24v 40a Standard Relay Socket Automotive 5 Pin		Send Order

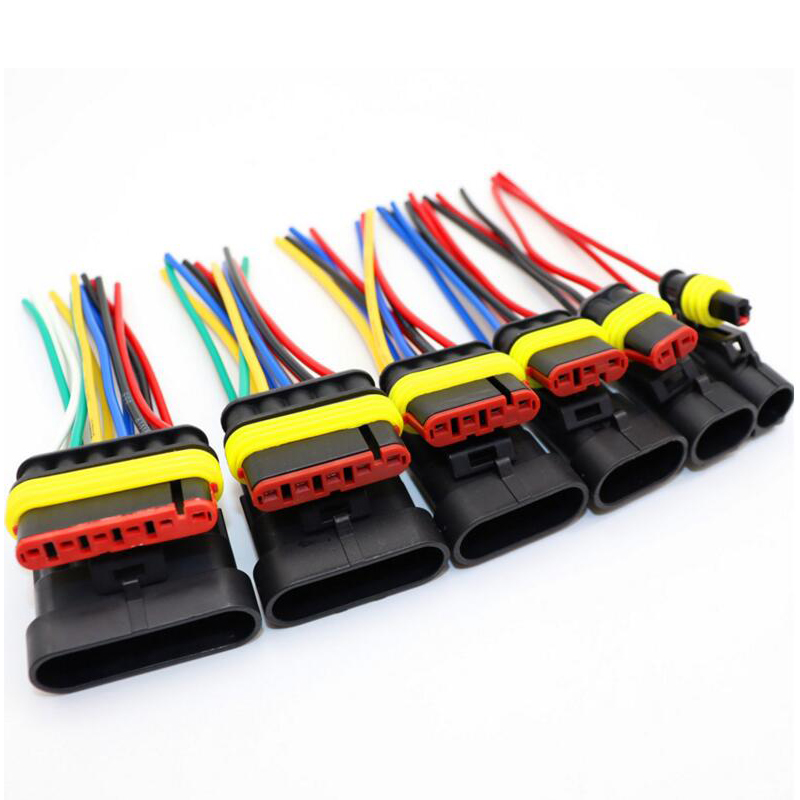

	FBRS-02	220V	40A14V	Automobile waterproof connector amp plug socket male and female waterproof connector 1-6Hole		Send Order

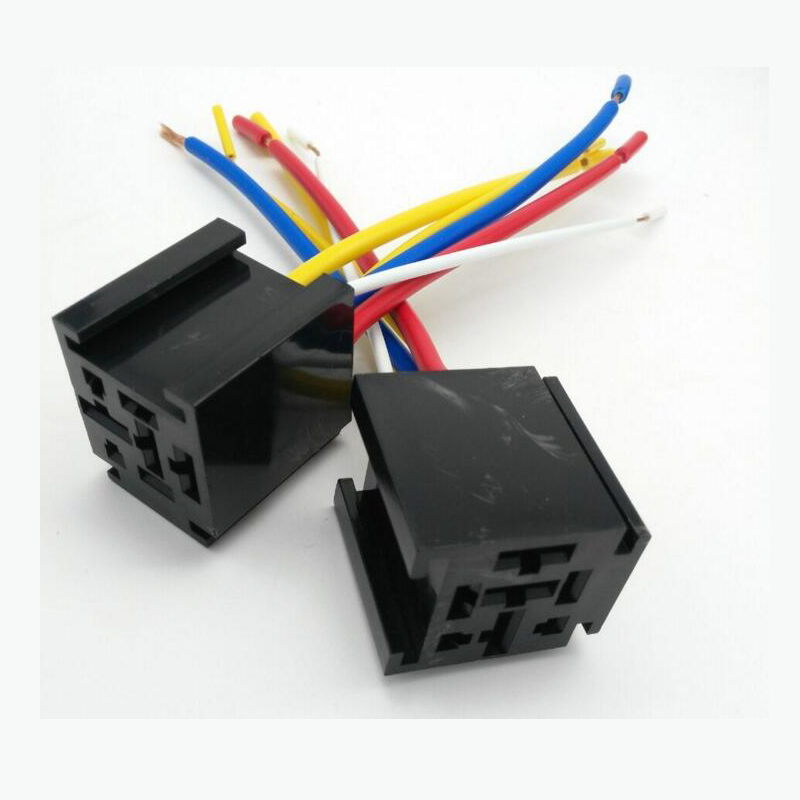

	FBRS-04	12V	40A14V	2 suit automobile relay harness 12v40a4 pin SPST automobile air conditioning harness socket		Send Order

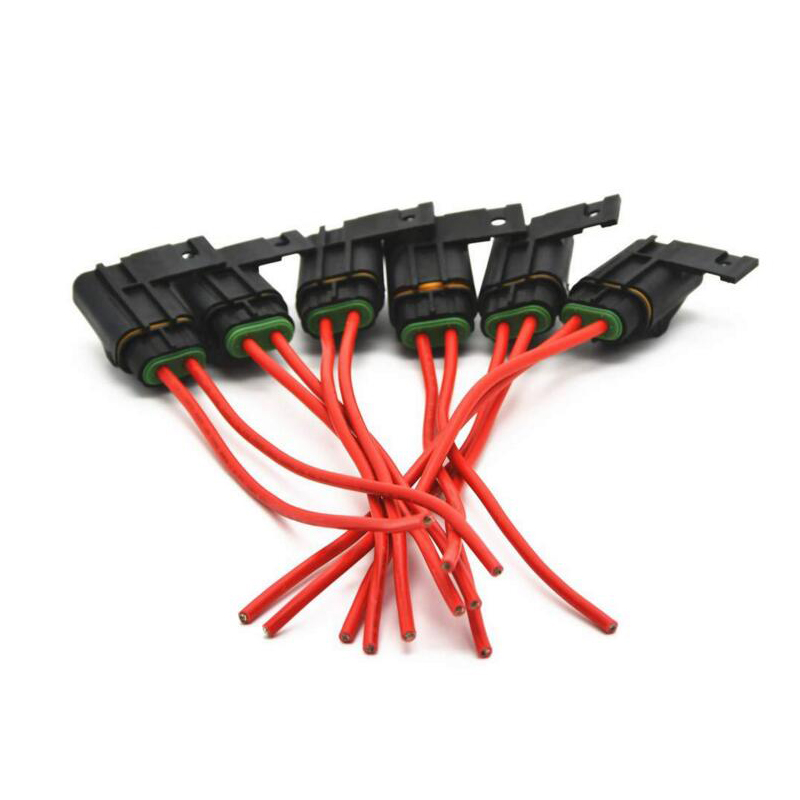

	FBRS-05	250V	40A14V	Automotive / marine weatherproof blade type ATO / ATC fuse box 12 AWG, 30a, 6pcs		Send Order

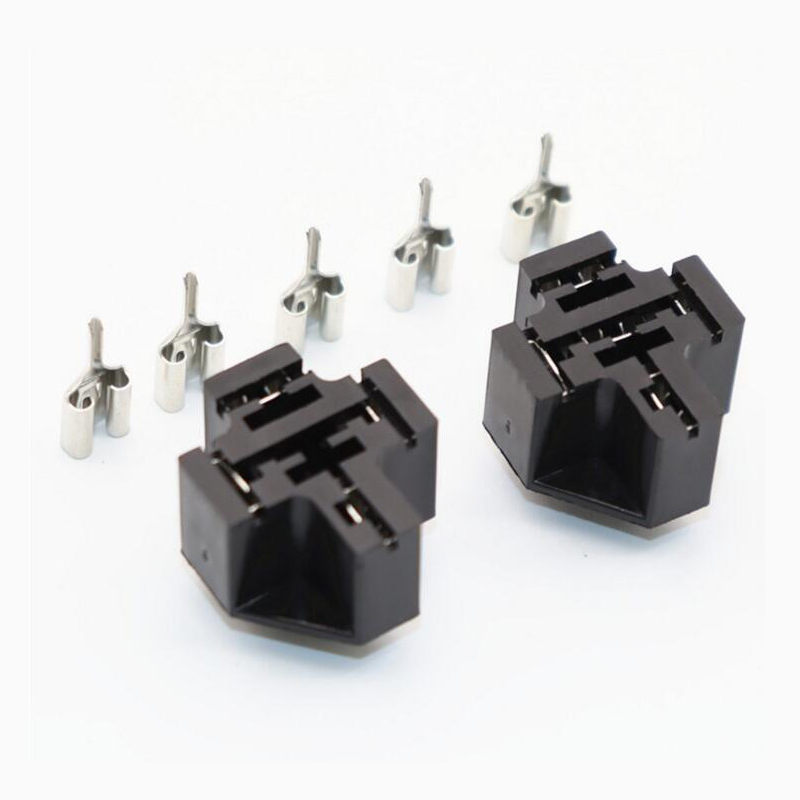

	FBRS-06	12V	40A14V	1Z auto relay 12v/40a 12V 30A 40A RELAY 5PIN 5P car automotive relay socket wire harness		Send Order
	FBRS-07	12V,24V	40A14V	DC 12V Car Automotive Relay 5 Pin 5 Wires harness Socket for car		Send Order

• Relay Sockets

  Relay socket is a device that can control the on/off of current through electrical signals.
  It is commonly used in circuits to control the switches of electrical equipment.

  Relay sockets play a role in automatic regulation, safety protection, and circuit conversion in automation control circuits.

  If you're looking for good wholesale source of relay socket, welcome to buy customized valve at good price here . Known as one of professional relay socket manufacturers and suppliers in China, our factory also offer free sample for quality checking.




•


  Our Advantages


  FBELE: Your Professional Relay Socket Supplier!

• •


    Standardized design
    Our relay sockets usually adopt standardized design, which can be applied to relays of different models and specifications, making it convenient for users to choose and replace.

  •


    Customized response
    For different customer needs, we can flexibly respond according to their requirements. If there are special requirements, we can also customize and create exclusive products for customers.

  •


    High reliability
    The electrical conductivity and mechanical strength of the relay socket are very high, which can ensure that the relay can work stably even in harsh environments


  •


    Easy to install and maintain
    The installation and maintenance of relay sockets are very convenient, and users can easily install them into the electrical system. They can also be easily disassembled and replaced when needed.

•


  Function of relay sockets‌

  Relay socket is a device used for connecting and disconnecting circuits. It achieves basic functions such as timed power on/off, fixed interval power on/off, and delayed power off through an integrated automatic control safety energy-saving converter and intelligent standby energy-saving function of electrical appliances. These functions can not only help users save unnecessary trouble and avoid forgetting to turn off appliances, but also be applied to occasions that require timed turning on or off, as well as more intelligent control of electricity usage. In addition, relay sockets are also used for connecting household appliance power sources and temporary power supply for mobile electrical appliances. Through automatic control of safety energy-saving converters and intelligent standby energy-saving functions of appliances, they play a role in saving electricity consumption. ‌




  When using relay sockets, attention should be paid to the compatibility between the plug and the relay socket to ensure electrical safety. If not matched, it is easy to cause virtual connections and generate high heat, which may lead to fire and electric shock accidents. Therefore, it is very important to choose equipment that matches the relay socket. In addition, the manufacturer of the relay socket provides a relay base, which serves to transition the relay contacts into terminal blocks. Unless there is a short circuit or other damage to the base, there is generally no problem. By measuring whether there is conduction or disconnection at both ends of the relay contact, the quality of the contact can be determined.




•

•


  Relay and socket

  A relay is an electrical component that operates based on electromagnetic principles. It usually contains one coil and multiple electric shocks. The coil of a relay generates a magnetic field when current passes through it, which causes the position of the contact to change. When there is no current on the coil, the contact is in an initial position, which is usually open. When current passes through the coil, the contacts will be attracted and closed. Through different circuit designs, relays can achieve different control functions.




  A socket is an interface that connects electrical equipment and a power source. It typically provides one or more power outlets for inserting and connecting devices to a power source. The main function of relay sockets is to connect relays to electrical equipment, and to control the contact state of relays to achieve the opening and closing of electrical equipment.




•


  Types of Relay Socket

  There are various types of relay sockets, each designed to accommodate a specific type of relay. Understanding different types of relay sockets can help you make informed decisions based on the specific requirements of your project or application

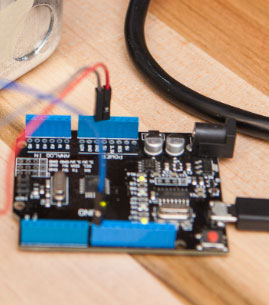

  PCB relay socket

  As the name suggests, these sockets are used for printed circuit boards (PCBs). The PCB relay socket is directly soldered onto the PCB, providing a reliable connection for relays installed on the PCB.

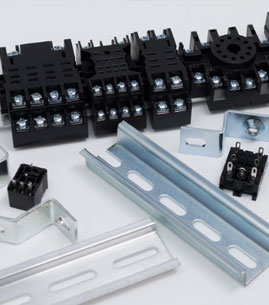

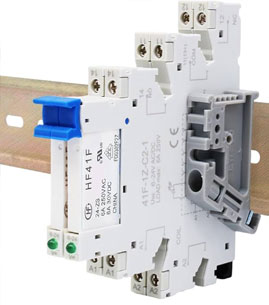

  DIN rail relay socket

  These sockets are designed for installation on DIN rails commonly found in industrial control systems. DIN rail relay sockets have a wide range of applications and can accommodate various types of relays.




  Panel mounted relay socket

  These sockets are suitable for relays that need to be installed on the panel. They come in various sizes and configurations to match relay types installed on different panels.

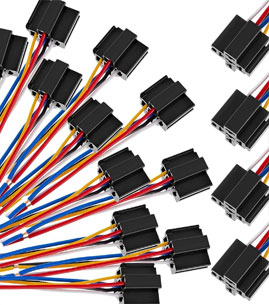

  Automotive relay socket

  Automotive relay socket is an interface device used to connect and fix automotive relays, ensuring that the relays can work normally and stably.




  Finder relay socket

  The viewfinder relay socket is a relay socket used for certain devices such as cameras or camcorders, designed primarily to meet the specific circuit and functional requirements of these devices.




• FBelec produce relay socket, interface relay and socket 2 pole 24VDC 8A relay module, Small Power Relay Socket Base, 5 pin 30A micro auto relay socket.




  FBelec is Professional factory 4 PIN Flasher Relay Fuses Holder Socket Box Relay,12V 30/40 A 5 Pin 5P Automotive Harness New Arrival High-quality Car Auto Relay Socket 5 Wire,Automotive Auto Wire Harness Relay Socket Manufacturer 12v 40a 5 Pin Customized Electromagnetic Relay Low Power Automobile AC/DC，DIN Rail Relay Sockets, Relay Connector.
