Magnetic Buzzer

Picture	Manufacturer No.	Size	Rated Voltag (V)	Operating Voltage (V)	Current Consumption (mA)	SPL (dB)	Resonant Frequency (Hz)	Description	Datasheet	Order

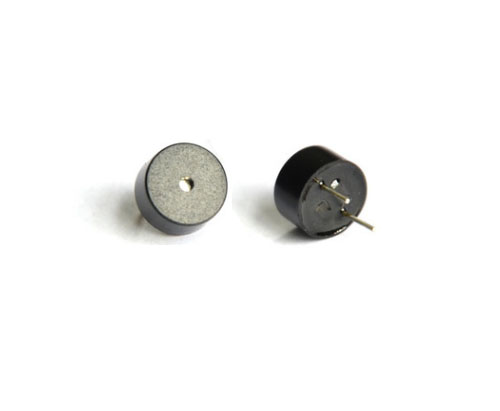

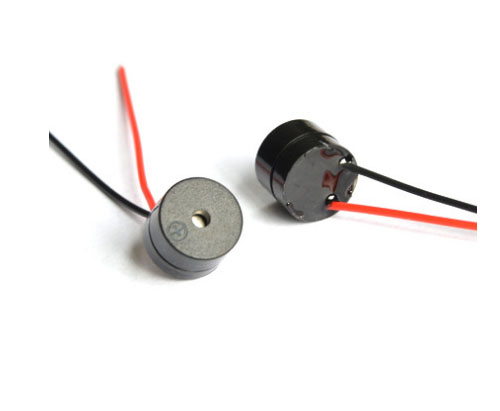

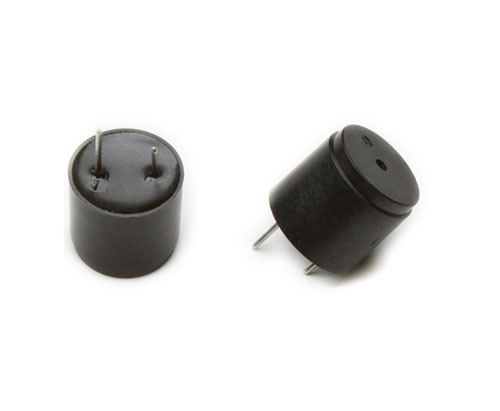

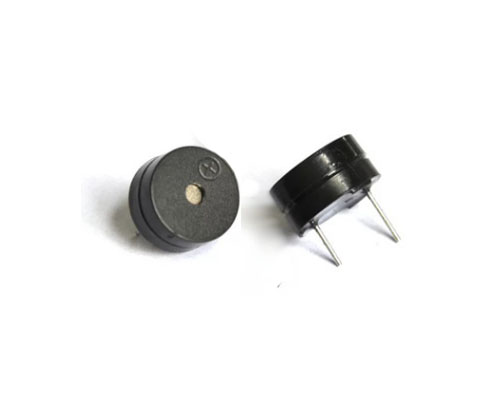

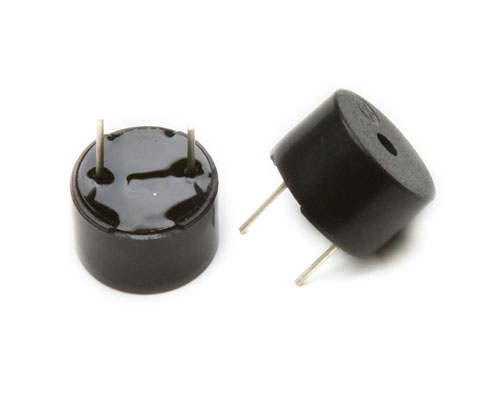

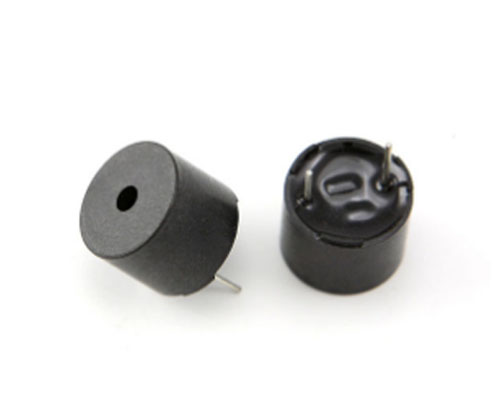

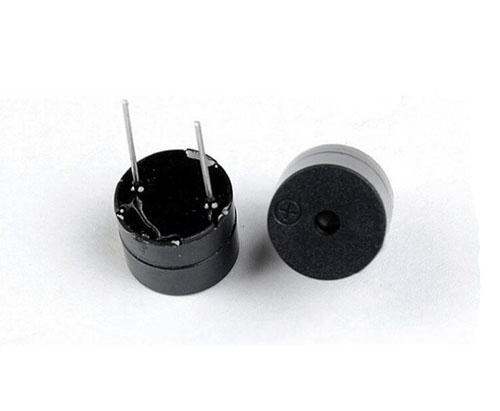

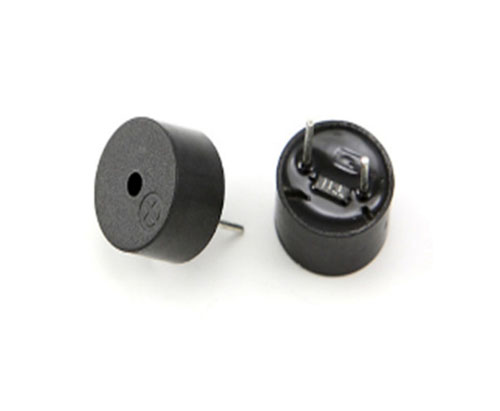

	FBMB1275	12*7.5	3	2～5	≤40	≥85@10cm	2300±500	12*7.5mm magnetic tone buzzer with pin		Send Order
	FBMB1295	12*9.5	12	8～15	≤30	≥85@10cm	2300±500	12*9.5mm 9v self drive piezo buzzer		Send Order
	FBMB1295SWL	12*9.5	12	8～15	≤30	≥85@10cm	2300±500	dia 12mm 6v acoustic singals		Send Order
	FBMB1614	16*14	5	4～8	≤3	≥85@10cm	2300±500	16x14mm aktiver magnetic buzzer with pin		Send Order
	FBMB9055	9*5.5	5	4～8	≤30	≥85@10cm	2300±500	9*5.5mm 3v active magnetic sounder		Send Order
	FBMB9650	9.6*5.0	12	8～15	≤30	≥85@10cm	2300±500	9.6*5.0 self drive piezo buzzer with pin		Send Order
	FBMB12065S	12*6.5	5	4～8	≤30	≥85@10cm	2300±500	12x6.5mm electronic-magnetic buzzer with pin		Send Order
	FBMB12095S	12*9.5	5	4～8	≤30	≥85@10cm	2300±500	12*9.5 1.5v magnetic AC sounder		Send Order

• What is magnetic buzzer?

  Electromagnetic buzzer is a kind of buzzer, which is different from piezoelectric buzzer. Electromagnetic buzzer is an electronic buzzer that makes sound by using the effect of electromagnetic coil on buzzer, which is used as a sound device for electronic products. The active (self-excited) buzzer vibration coil and oscillation coil are combined into one.

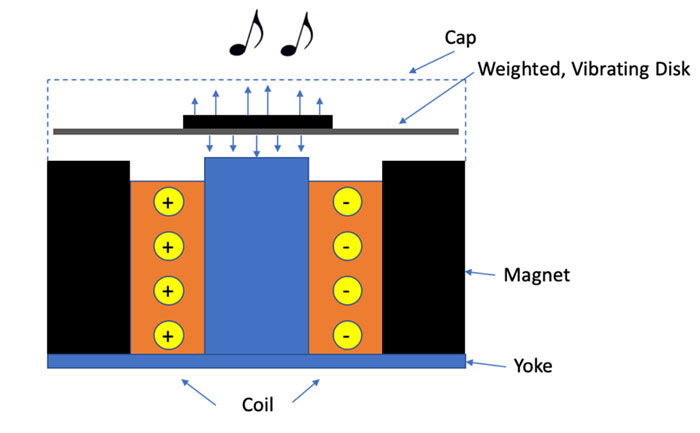

  FBelec buzzers are divided into two categories: piezoelectric and Electro-magnetic Buzzer: piezoelectric buzzers make sound by driving the vibration of metal sheets with the piezoelectric effect of piezoelectric ceramics. Magnetic Audio Buzzer uses the principle of electromagnetism to suck down the metal diaphragm when powered on and bounce back according to the elasticity of the diaphragm when powered off. Therefore, the piezoelectric buzzer is driven by square wave and the electromagnetic buzzer is driven by 1 / 2 square wave. The piezoelectric buzzer needs a relatively high voltage to have enough sound voltage. Generally, it is recommended to be more than 9V. Some specifications of piezoelectric can reach more than 120dB, and larger sizes can easily reach 100dB.

  Electromagnetic buzzer: with 1.5V, it can emit sound pressure of more than 85dB, but the consumption current will be much higher than that of piezoelectric buzzer. When the size is the same, the response frequency of electromagnetic buzzer can be relatively low; The sound pressure of electromagnetic buzzer is generally up to 90dB Mechanical buzzer is a small category of electromagnetic buzzer. You can contact fbelec's engineers for product information.

  the model number of FBMB9055, "FB" means "FBelec","MB" means magnetic buzzer,"9" means the diameter of the buzzer,"55" means the height of the buzzer.
