Arduino Transistor Tester

Picture	Manufacturer No.	Description	Datasheet	Order

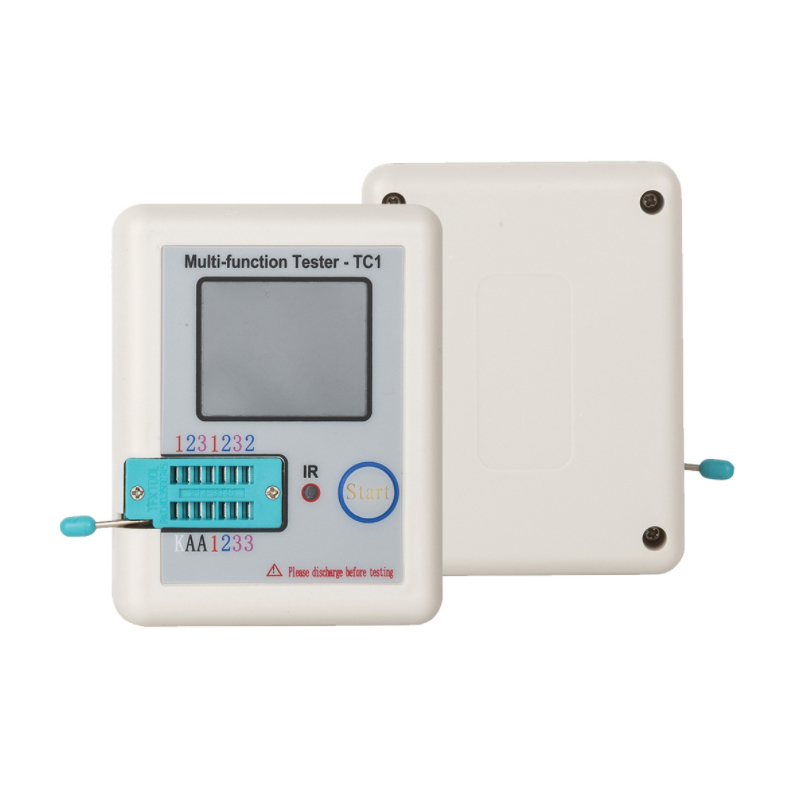

	FBARTT-01	LCR-TC1 Transistor Tester LCR-TC full-color screen graphic display finished product		Send Order

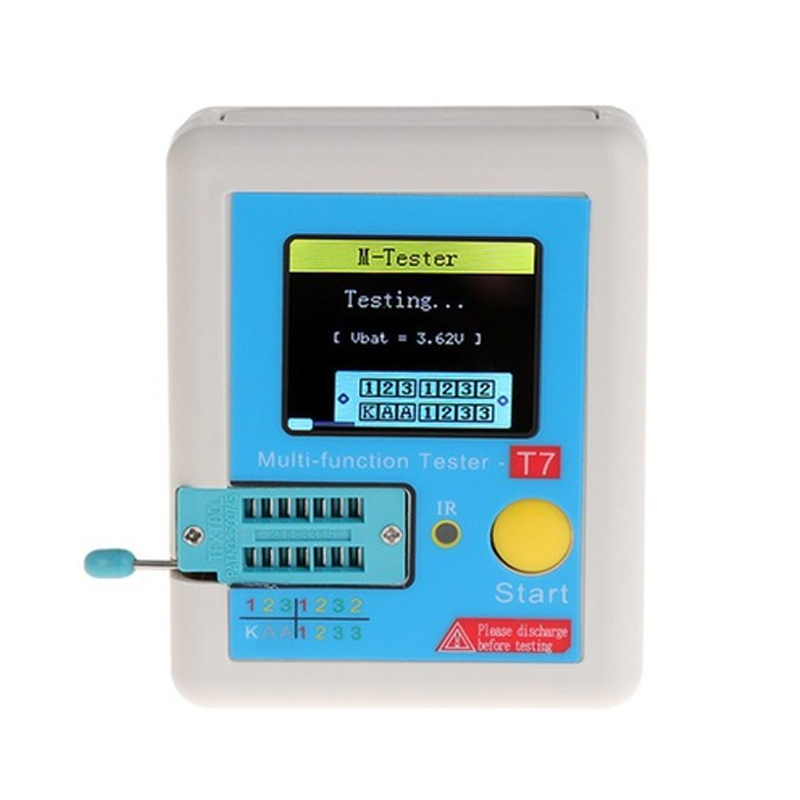

	FBARTT-02	LCR-T7 Transistor Tester LCR-TC7 Full-color screen graphic display ESR meter multi-function test		Send Order
	FBARTT-03	Graphic M8 Transistor Tester Upgrade M328 Edition Inductance Capacitance ESR Meter Multi-function Tester DIY		Send Order
	FBARTT-04	Graphical Transistor Tester LCR Diode Online ESR PWM Square Wave Signal DIY Parts		Send Order
	FBARTT-05	Color screen version graphics display M328 transistor tester resistance meter inductance meter capacitance meter ESR meter		Send Order
	FBARTT-06	GM328 Transistor Tester Frequency Tester PWM Square Wave LCR Meter Voltmeter Full Color Graphic		Send Order

• Arduino Transistor Tester

  Exploring the Wonderful World of Arduino Transistor Testers
  Accurately testing the performance and parameters of transistors is crucial in the field of electronic manufacturing and maintenance. The Arduino transistor tester, as a powerful and practical tool, is gradually gaining popularity among electronics enthusiasts and professional engineers.

  What is Arduino transistor tester? The Arduino transistor tester is an electronic testing device developed based on the Arduino platform. It can automatically detect and measure various types of transistors, such as NPN and PNP bipolar transistors, N-channel and P-channel MOSFETs, JFETs, as well as electronic components such as diodes, double diodes, N-channel and P-channel IGBTs, thyristors, thyristors, inductors, resistors, and capacitors.




•

  Working Principle

  Its working principle is based on Arduino microcontroller and related electronic circuits. By applying specific voltage and current signals to the tested component and measuring its response, various parameters and characteristics of the component can be obtained. For example, for transistors, the tester can measure their amplification factor, cutoff frequency, saturation voltage drop, etc; For resistors and capacitors, their resistance and capacitance values can be measured.

  Hardware composition

  Microcontroller: Commonly used microcontrollers in Arduino, such as ATmega328P, are responsible for controlling the entire testing process, processing measurement data, and communicating with external devices
  Display module: Common types include OLED or LCD display screens, which are used to visually display test results, operation prompts, and menu interfaces, allowing users to easily read test data Test pins: Generally equipped with multiple test pins, used to connect the tested electronic components. These pins can provide different voltage and current signals to meet the testing needs of various components
  Power module: Provides stable power support for the entire tester through Micro USB interface or other power interfaces



  Software Function

  Automatic recognition: It can automatically recognize the type of connected electronic components and conduct corresponding tests based on their characteristics, without the need for users to manually select component types, greatly improving testing efficiency
  Parameter measurement: Accurately measure various parameters of components, such as the current amplification factor of transistors, resistance value of resistors, capacitance value of capacitors, etc., and display the measurement results on the screen for easy viewing by users
  Pin recognition: For multi pin components such as transistors and integrated circuits, the tester can automatically recognize their pin arrangement order, avoiding testing errors caused by user pin connection errors
  Data recording and analysis: Some testers also have data recording functions, which can save data from multiple tests for users to compare and analyze, helping users better understand the performance changes and consistency of components



  Application scenarios

  Electronics enthusiasts: For those who enjoy electronic production, the Arduino transistor tester is an indispensable tool. It can help them quickly detect whether the purchased electronic components are normal, avoiding circuit failures caused by the use of defective components. In addition, it can also be used for screening and reusing waste electronic components, reducing production costs
  In the field of education: In electronic engineering education, this tester can serve as a teaching aid to help students better understand the working principles and characteristics of electronic components. Students can personally measure the parameters of components through practical operation of the testing instrument, thereby deepening their understanding of theoretical knowledge, improving practical ability and learning interest
  Electronic maintenance: Professional electronic maintenance personnel can use this tester to quickly locate faulty components and improve maintenance efficiency. When repairing electronic devices, testing suspicious components can quickly determine whether they are damaged, thereby reducing repair time and costs

• Circuit design and development: Engineers need to rigorously screen and test various electronic components during circuit design and development to ensure the performance and reliability of the circuit. The Arduino transistor tester can provide them with accurate measurement of component parameters, helping them select suitable components and optimize circuit design.




•

•


  Open source and customizability

  The open-source nature of Arduino transistor testers brings great flexibility and scalability. Open source hardware design and software code allow users to customize and improve the tester according to their own needs Users can freely modify hardware circuits, add new functional modules, or optimize software algorithms to meet specific testing requirements. In addition, the open source community provides users with rich resources and technical support. Users can share their experiences and achievements in the community, communicate and cooperate with other enthusiasts and engineers, and jointly promote the development and improvement of testers.

•

•


  Production and use

  For users with a certain foundation in electronic manufacturing, they can also make Arduino transistor testers themselves. There are many open source projects and tutorials online, which provide detailed information on the production process and steps of the tester, including hardware circuit setup, software code writing, and debugging The production process not only exercises users' hands-on ability and electronic technology level, but also allows users to have a deeper understanding of the working principle and internal structure of the tester. In terms of usage, testers usually have a simple and easy-to-use interface. Users only need to connect the tested component to the corresponding test pin, press the test button, and view the test results on the display screen.




• Arduino Transistor Tester Manufacturer

  You can adjust and supplement the content of the article according to the actual situation, or provide me with more specific information so that I can generate more content that meets your needs.

  Arduino Transistor Tester for All Your Needs

•


  The Arduino transistor tester has become a highly regarded tool in the electronics field due to its powerful functionality, open-source features, and wide range of application scenarios. Both electronics enthusiasts, students, and professional engineers can benefit from it, as it provides a convenient, efficient, and accurate solution for the testing and inspection of electronic components, helping to promote the development and innovation of electronic technology
