Piezo Transducer

Piezo transducer & piezoelectric audible sounds produced by FBelec Electronics. Fbelec has a production history of more than 25 years. All Fbelec products have RoHS and REACH Certification. Comply with ISO9001 and IATF16949 standards. for some products sample:1days, delivery time:3days. FBelec's distributors and agents are available all over the world, with abundant stocks and complete varieties!

Picture Manufacturer No. Size Rated Voltag (V) Operating Voltage (V) Current Consumption (mA) SPL (dB) Resonant Frequency (Hz) Description Datasheet Order
9mm*5.5mm  5v piezo transducer with pin

FBPT9055

9*5.5 5 3~24 ≤2 ≥80@10cm 4000±500

9mm*5.5mm 5v piezo transducer with pin

dia 12mm H 7mm 12Vpp piezo transducer with pin

FBPT1207

12*7 5 3~24 ≤2 ≥80@10cm 4000±500

dia 12mm H 7mm 12Vpp piezo transducer with pin

12mm 80 db H 7.5 piezo transducer with round pin

FBPT1210

12*10 12 1~30 ≤2 ≥80@10cm 4500±500

12mm 80 db H 7.5 piezo transducer with round pin

size D12X5.5  4.0khz electronic piezo transducer

FBPT1255

12*5.5 12 1~30 ≤3 ≥80@10cm 4000±500

size D12X5.5 4.0khz electronic piezo transducer

D13mm passive piezo transducer with pin

FBPT1340

13*7 12 1~30 ≤4 ≥80@10cm 4000±500

D13mm passive piezo transducer with pin

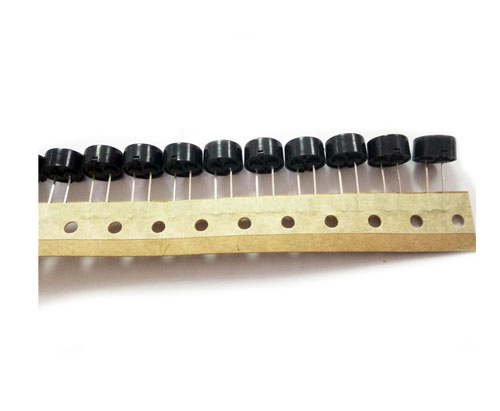

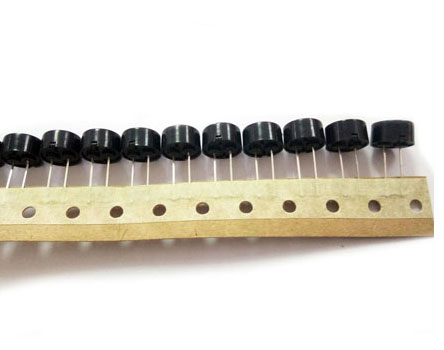

3vpp 70db  sounder with reel packing

FBPT1340P-R

13*7 12 1~25 ≤2 ≥80@10cm 4000±500

3vpp 70db sounder with reel packing

D14mm H7mm piezo sounder with 80db

FBPT1407

14*7 5 3~12 ≤2 ≥85@10cm 4000±500

D14mm H7mm piezo sounder with 80db

14mm passive piezo transducer  pin pitch 7.62mm

FBPT1410

14*7 12 1~30 ≤2 ≥80@10cm 4000±500

14mm passive piezo transducer pin pitch 7.62mm

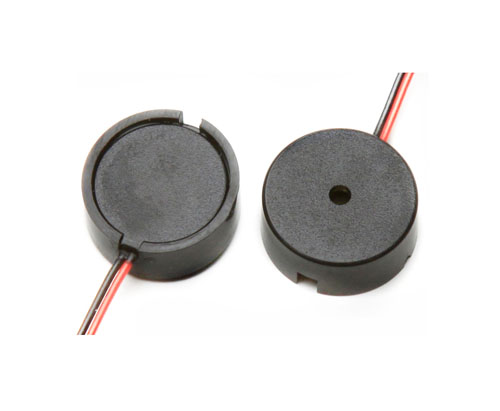

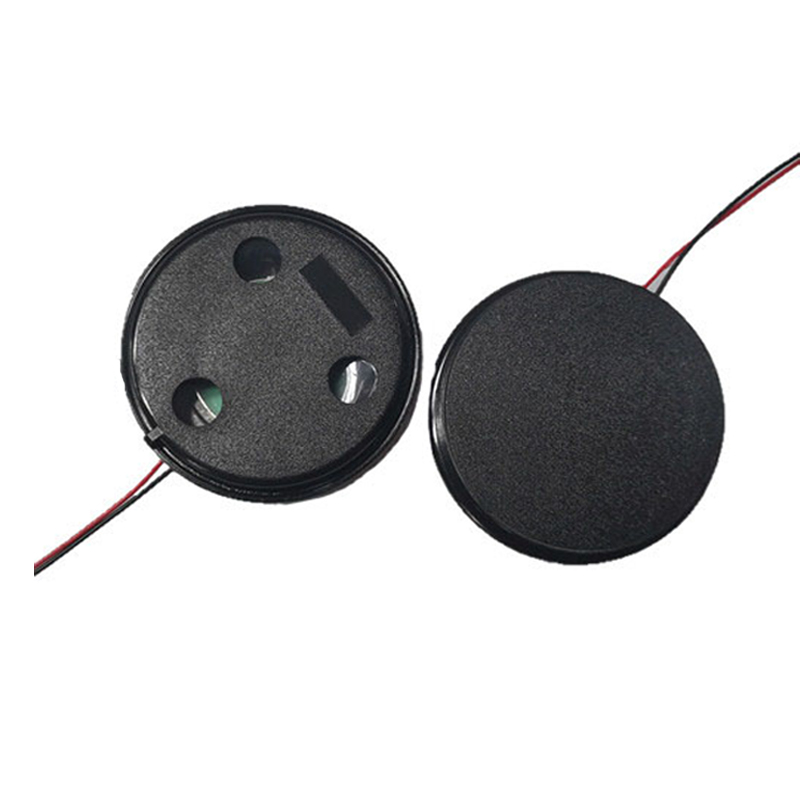

14mm passive piezo transducer with wire

FBPT1440

14*4 12 1~30 ≤2 ≥75@10cm 4000±500

14mm passive piezo transducer with wire

D17mm H7mm electronic piezo transducer with flat pin

FBPT1707

17*7 12 1~30 ≤2 ≥80@10cm 4000±500

D17mm H7mm electronic piezo transducer with flat pin

SFN-17-A 17*7piezo transducer with pin

FBPT1707SH

17*7 12 1~30 ≤2 ≥80@10cm 4000±500

SFN-17-A 17*7piezo transducer with pin

SFN-17-B 17*9.5 piezo transducer with pin

FBPT1795

17*9.5 12 1~30 ≤2 ≥80@10cm 4000±500

SFN-17-B 17*9.5 piezo transducer with pin

dia 17mm 12Vpp 85 db 4.0KHZ audio devices

FBPT1720

17*8 12 1~30 ≤3 ≥85@10cm 4000±500

dia 17mm 12Vpp 85 db 4.0KHZ audio devices

22mm piezo transducer with flat pin

FBPT2210

22*7 12 1~30 ≤3 ≥88@10cm 4000±500

22mm piezo transducer with flat pin

22mm 75db horseshoe Miniature buzzer

FBPT2220

22*7.5 3 1~30 ≤2 ≥80@10cm 2000±500

22mm 75db horseshoe Miniature buzzer

23*4.6 80db small piezo tranducer with ear

FBPT2346

23*4.6 12 1~30 ≤3 ≥80@10cm 4000±500

23*4.6 80db small piezo tranducer with ear

30mm passive piezo  buzzer with pin

FBPT3010

30*7.5 12 1~30 ≤5 ≥90@10cm 2500±500

30mm passive piezo buzzer with pin

12v electronic surface mount buzzer

FBPT3-2912

29*12 12 3~18 ≤12 ≥85@10cm 3000±500

12v electronic surface mount buzzer

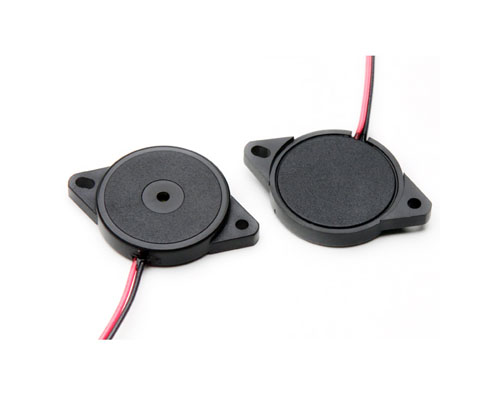

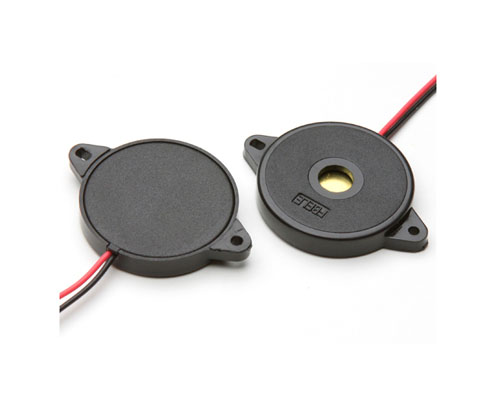

30x5.7mm external sounder with ear

FBPT3057

30*5.7 12 1~30 ≤4 ≥75@10cm 1300±500

30x5.7mm external sounder with ear

39mm 12v piezo transducerwith 3pin

FBPT3916

39*16 3 1~30 ≤30 ≥90@10cm 3200±500

39mm 12v piezo transducerwith 3pin

45mm car buzzer External Drive Pin Type

FBPT4524

45*24 12 3~50 ≤50 ≥95@10cm 3300±500

45mm car buzzer External Drive Pin Type

52mm 95db piezo sounder with pin

FBPT5216

52*16 18 1~30 ≤50 ≥95@10cm 2000±500

52mm 95db piezo sounder with pin

57mm round size electro piezo buzzer

FBPT5720

57*20 5 1~30 ≤5 ≥112@10cm 3300±500

57mm round size electro piezo buzzer
