Picture Model No. Rated Voltage Lead Pitch Ripple Current @ High Frequency Description Datasheet Order

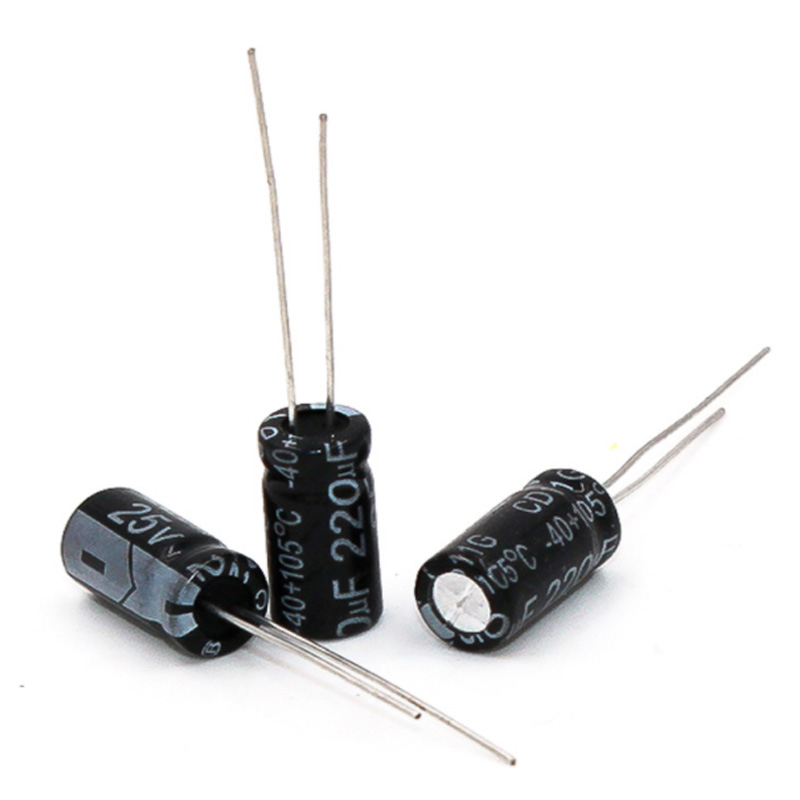

High temperature 105℃ 8*12mm 220UF/25V aluminum electrolytic capacitor

FBCAP-01

25V 2.5-3.5mm 1000HZ

High temperature 105℃ 8*12mm 220UF/25V aluminum electrolytic capacitor

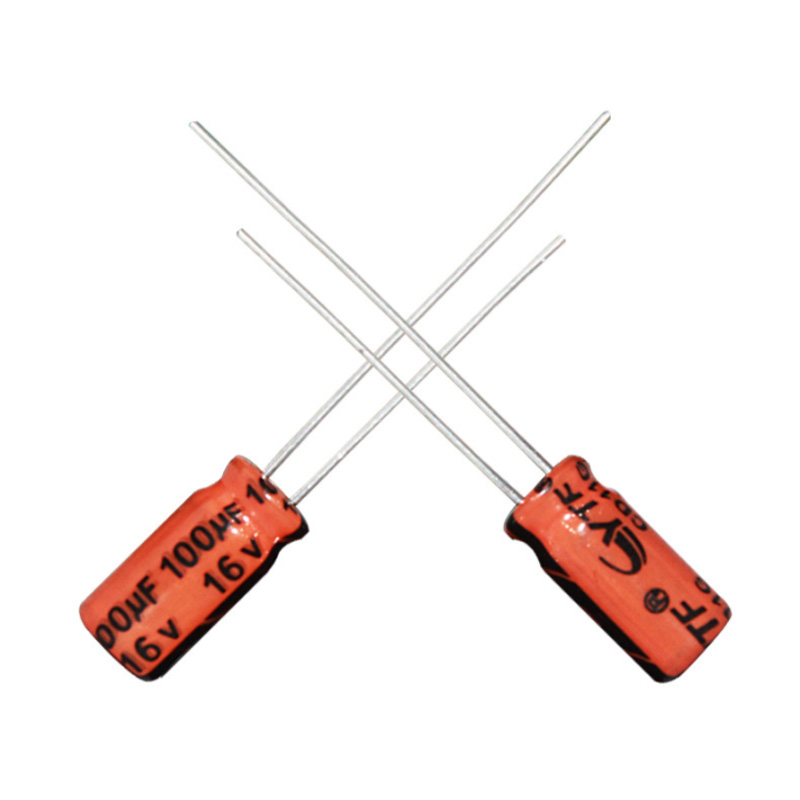

100UF16V disinfection box UV air purifier capacitor 5*11mm

FBCAP-02

16V 2.5mm 100HZ

100UF16V disinfection box UV air purifier capacitor 5*11mm

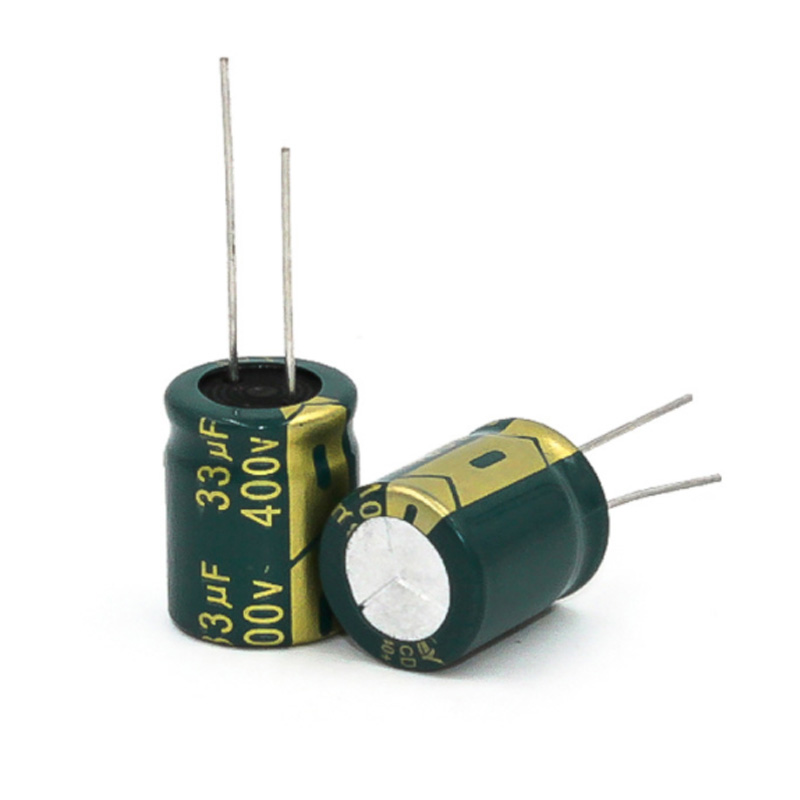

16*20mm 33UF/400V charger commonly used capacitor

FBCAP-03

400V 5mm 100HZ

16*20mm 33UF/400V charger commonly used capacitor

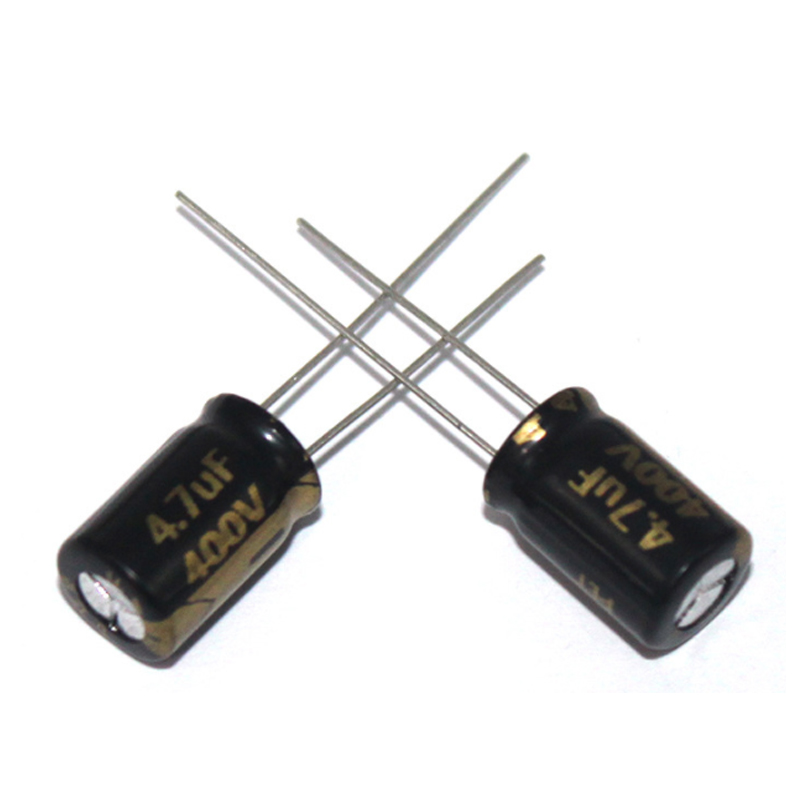

8000H high frequency electrolytic capacitor 4.7UF/400V 8*12mm long life electrolytic capacitor

FBCAP-04

400V 3.5mm 100HZ

8000H high frequency electrolytic capacitor 4.7UF/400V 8*12mm long life electrolytic capacitor

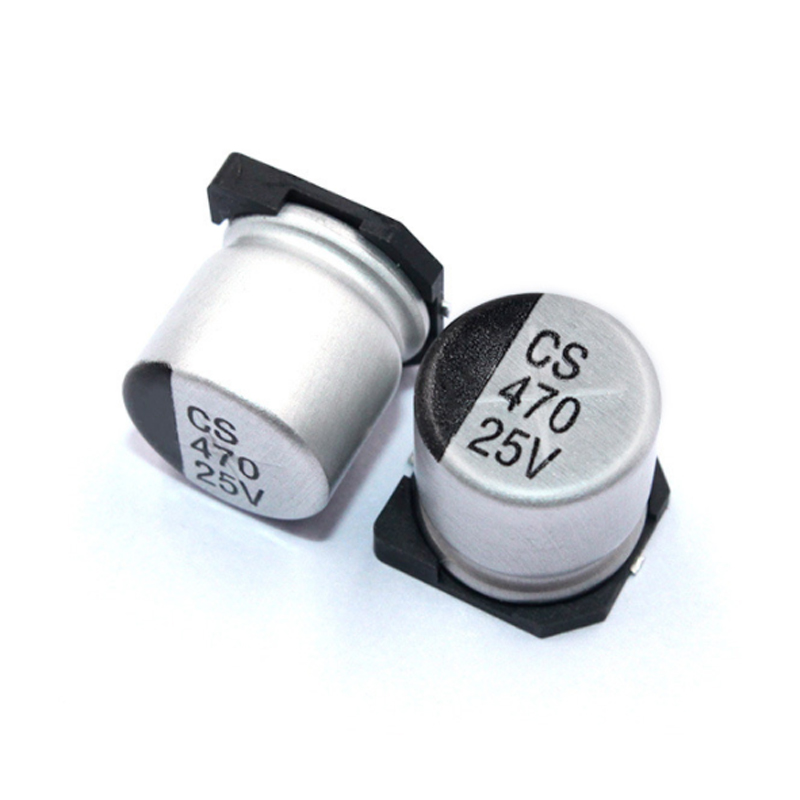

SMD aluminum electrolytic 470UF/25V 10*10.5mm electrolytic capacitor

FBCAP-05

25V 4.7mm 100HZ

SMD aluminum electrolytic 470UF/25V 10*10.5mm electrolytic capacitor

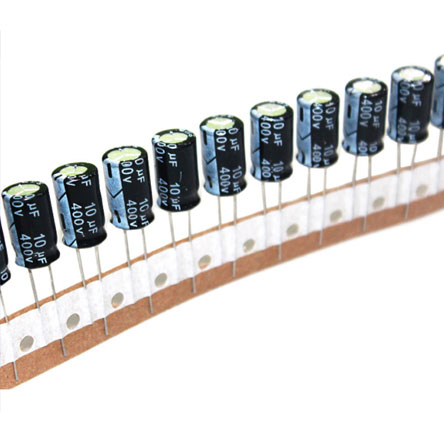

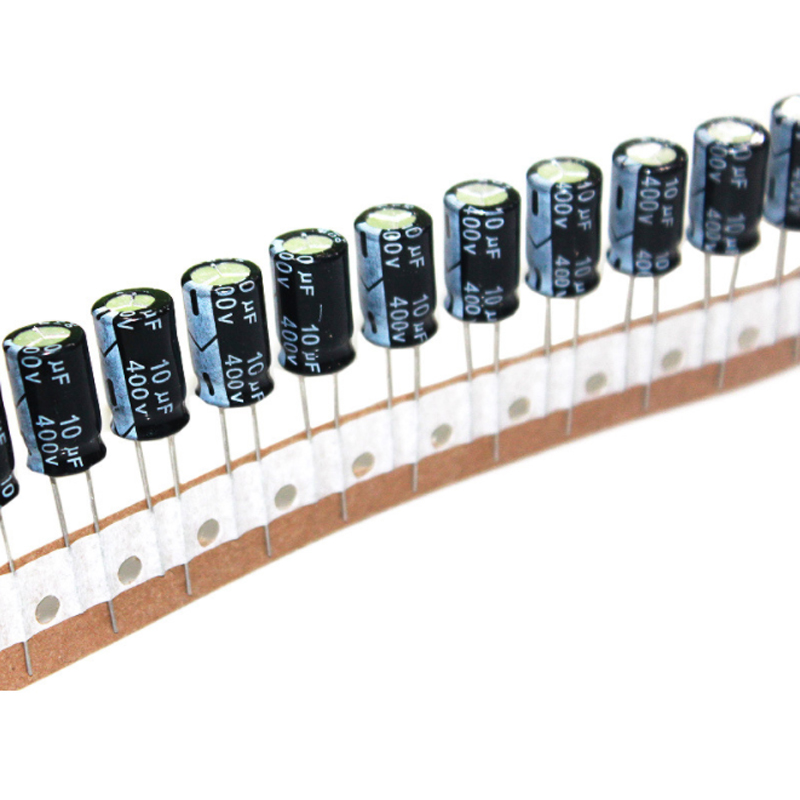

400V/10UF braided electrolytic capacitor 10*17mm aluminum electrolytic capacitor

FBCAP-06

400V 5mm 100HZ

400V/10UF braided electrolytic capacitor 10*17mm aluminum electrolytic capacitor

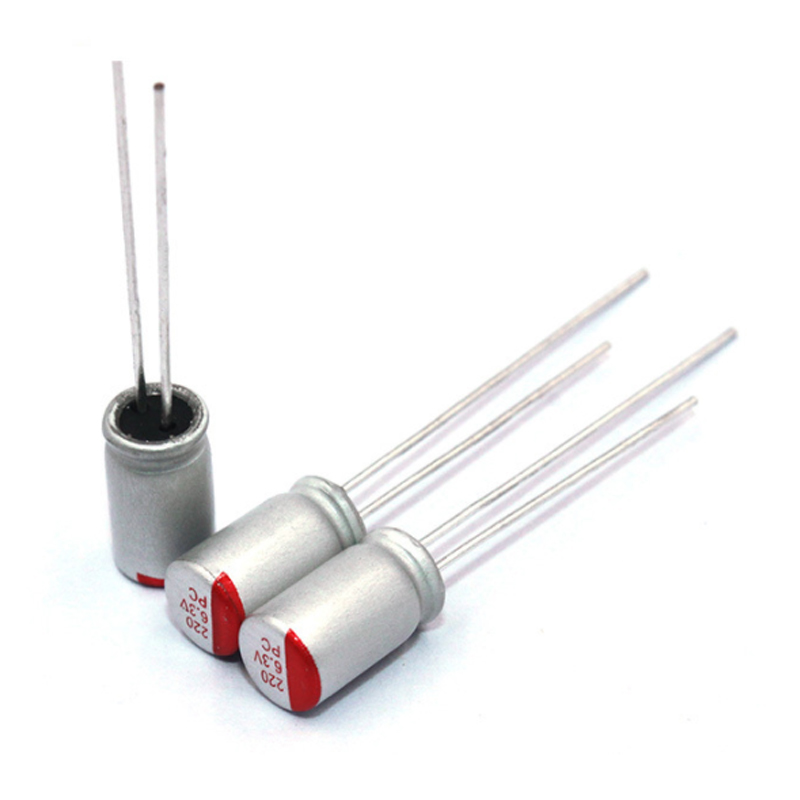

In-line electrolytic capacitor 6.3V220UF 5X8mm long life solid PT

FBCAP-07

6.3V 5mm 100HZ

In-line electrolytic capacitor 6.3V220UF 5X8mm long life solid PT

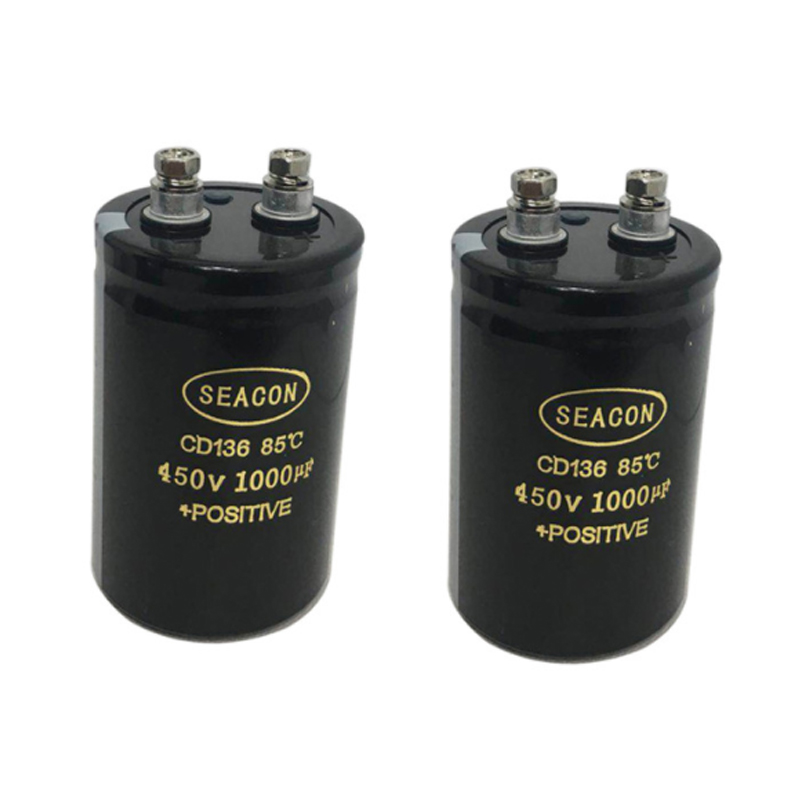

Screw Angle Electrolytic Capacitor 450V1000UF 50*80 Common Capacitors for Ultrasonic Mask Machine

FBCAP-08

450V 22mm /

Screw Angle Electrolytic Capacitor 450V1000UF 50*80 Common Capacitors for Ultrasonic Mask Machine

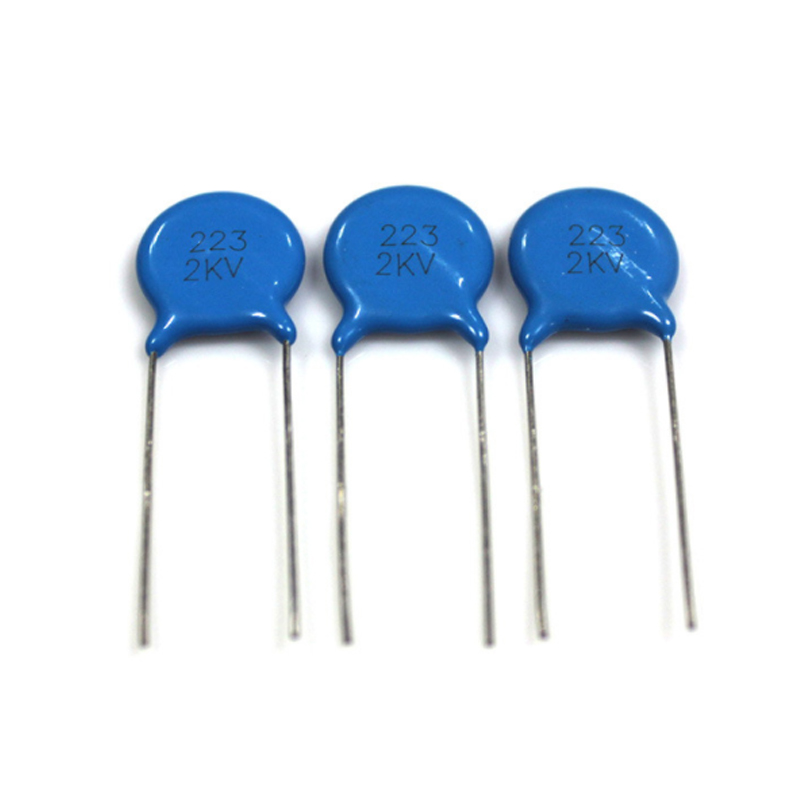

High voltage ceramic capacitor 2KV223 22NF 2000V 223K/2KV ceramic capacitor

FBCAP-09

2000V 10mm /

High voltage ceramic capacitor 2KV223 22NF 2000V 223K/2KV ceramic capacitor

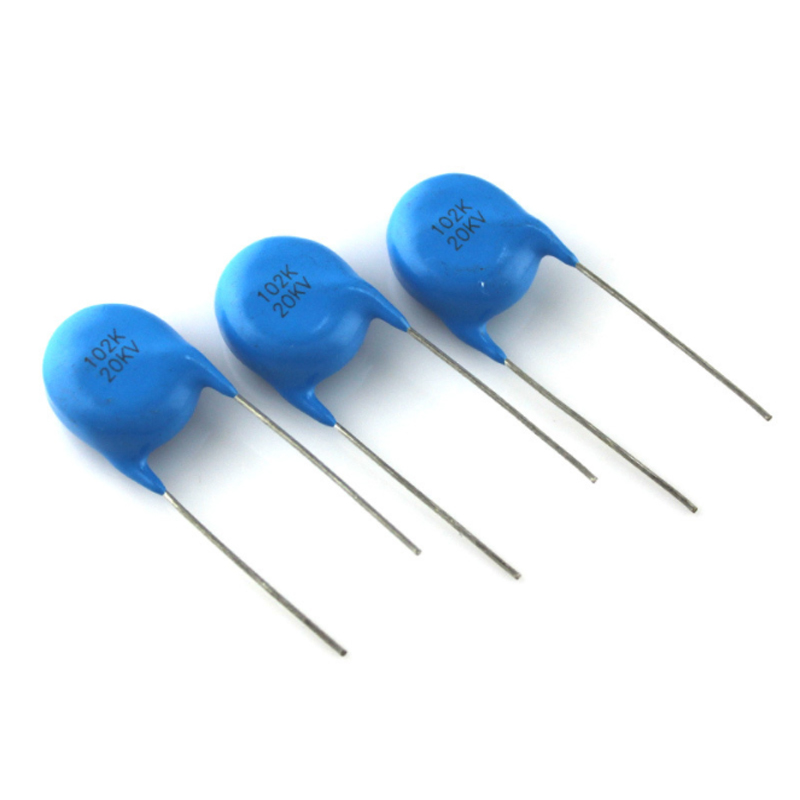

Welding machine high-voltage ceramic capacitor, chip diameter 14.4mm 102K/20KV Y5T material

FBCAP-10

20000V / /

Welding machine high-voltage ceramic capacitor, chip diameter 14.4mm 102K/20KV Y5T material

Ultra-high voltage ceramic chip capacitor 40KV101K film diameter 7.5mm power supply capacitor for scanner sounder

FBCAP-11

40000V / /

Ultra-high voltage ceramic chip capacitor 40KV101K film diameter 7.5mm power supply capacitor for scanner sounder

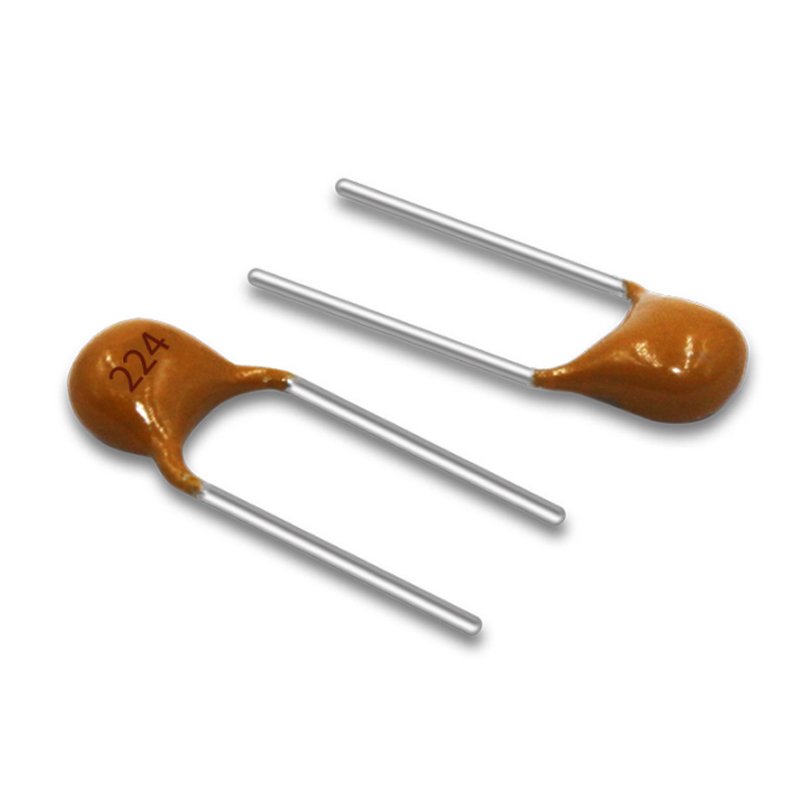

Monolithic capacitor 50V224K pitch 5.08mm ±10% 0.22UF

FBCAP-12

50V 5.08mm /

Monolithic capacitor 50V224K pitch 5.08mm ±10% 0.22UF

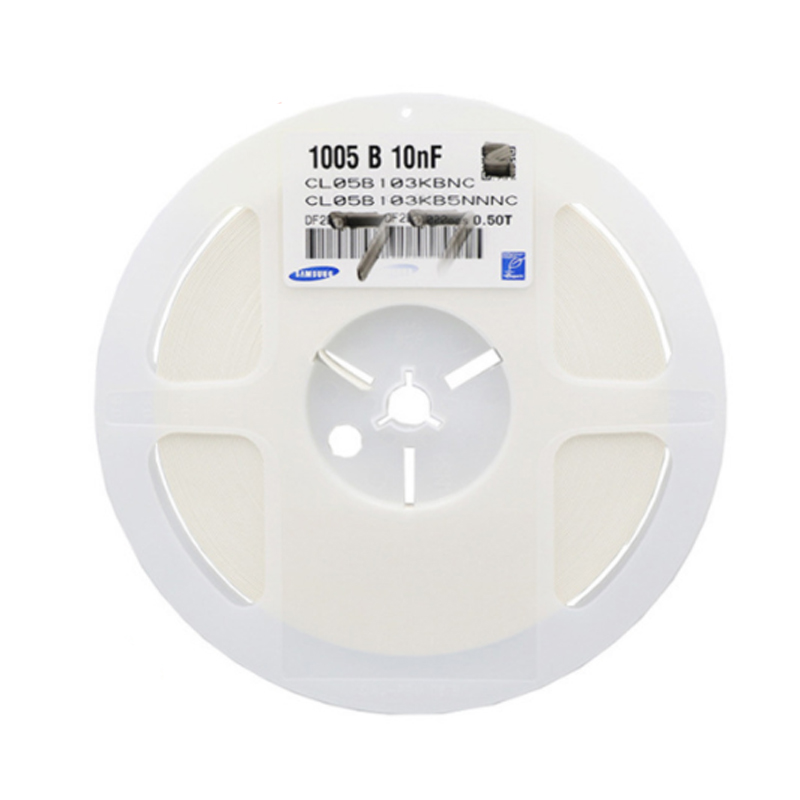

SMD capacitor 103K 10NF 50V 10%

FBCAP-13

50v / 0402

SMD capacitor 103K 10NF 50V 10%

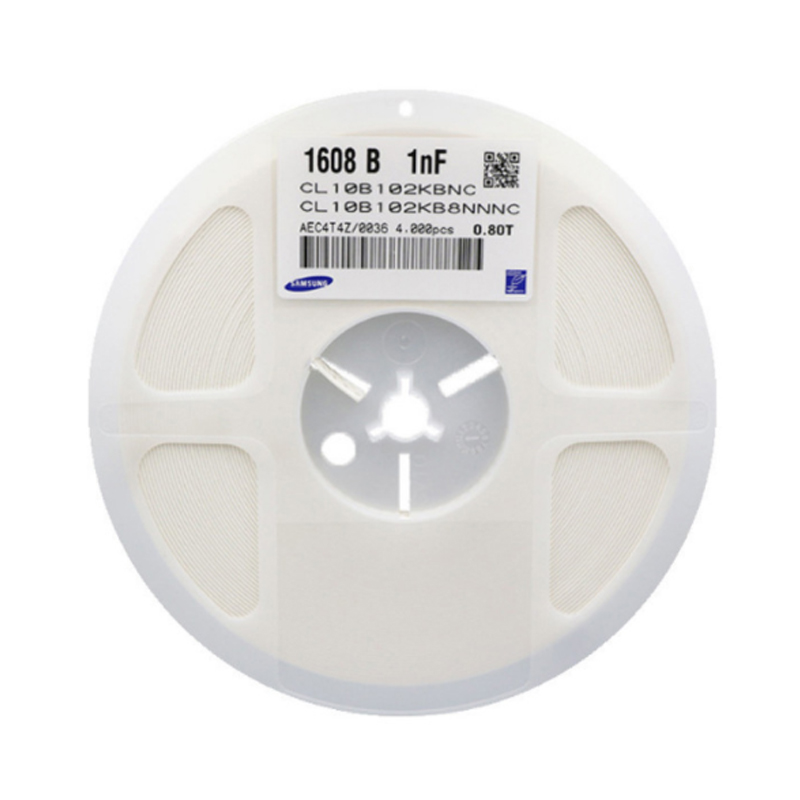

SMD capacitor 0603 50V 1NF 10%

FBCAP-14

50v / 0603

SMD capacitor 0603 50V 1NF 10%

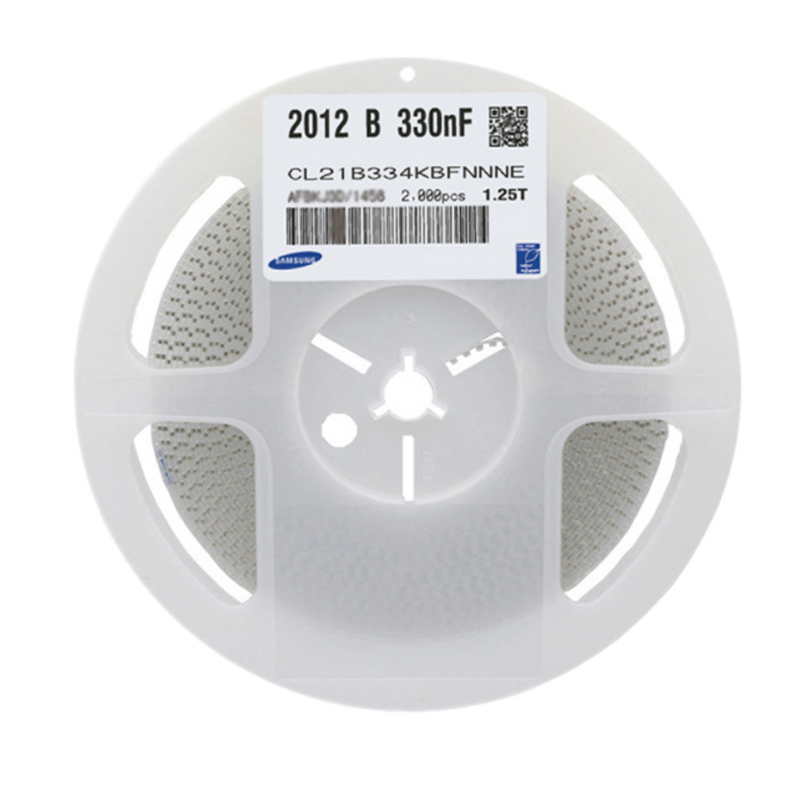

SMD capacitor 0805 334K X7R 50V0.33UF

FBCAP-15

50v / 0805

SMD capacitor 0805 334K X7R 50V0.33UF

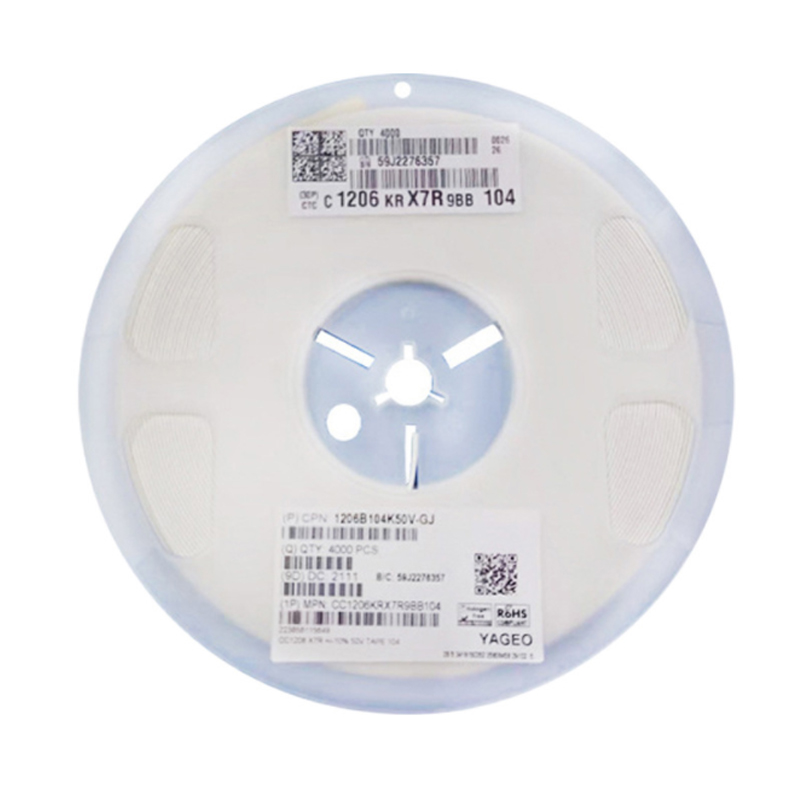

SMD capacitor ceramic 0.1UF50VX7R

FBCAP-16

50v / 1206

SMD capacitor ceramic 0.1UF50VX7R

Murata chip ceramic capacitor 0805 X5R 20%

FBCAP-17

4V / 0805

Murata chip ceramic capacitor 0805 X5R 20%

0805 SMD capacitor X5R 10V33UF ±20% filter TDK

FBCAP-18

10V / 0805

0805 SMD capacitor X5R 10V33UF ±20% filter TDK

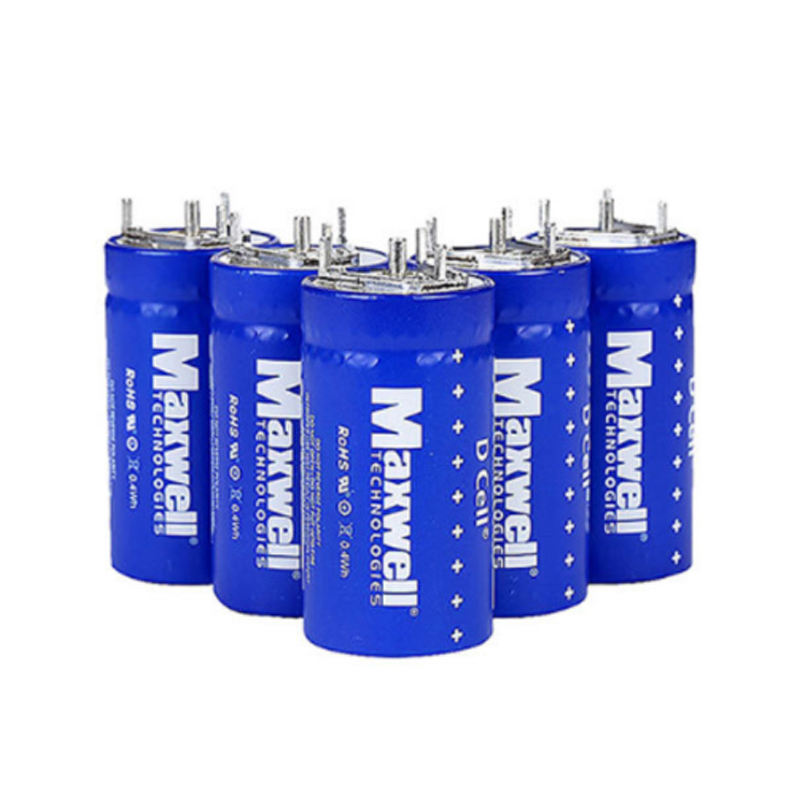

Super capacitor 2.7V350F size 33*63.5mm energy storage farad capacitor

FBCAP-19

2.7V / DIP

Super capacitor 2.7V350F size 33*63.5mm energy storage farad capacitor

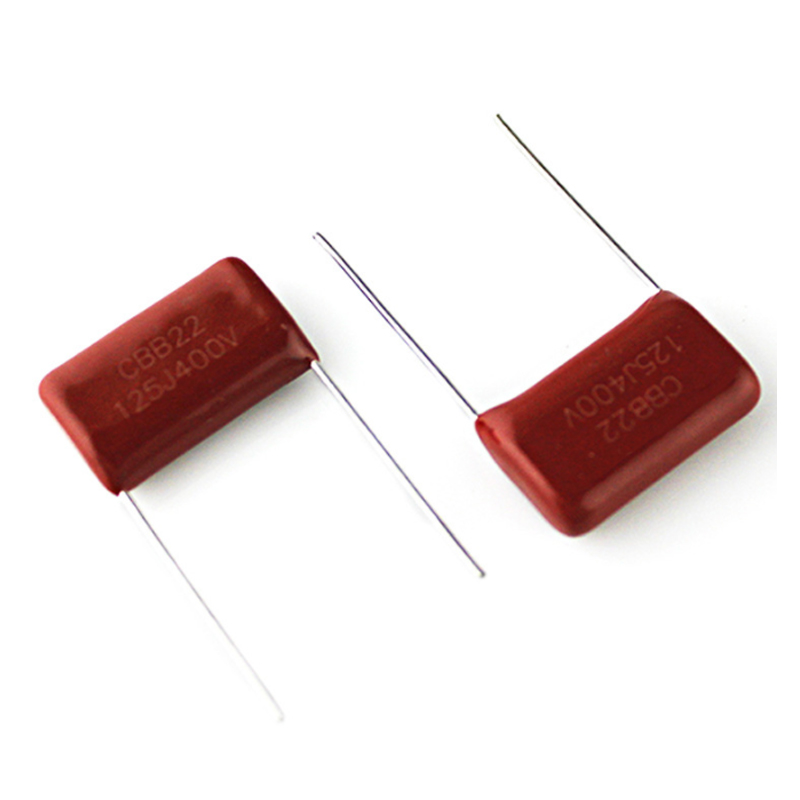

P=20mm Environmental protection film capacitor 1.2UF/400V Special capacitor for LED lighting

FBCAP-20

400V 20mm Bagged

P=20mm Environmental protection film capacitor 1.2UF/400V Special capacitor for LED lighting

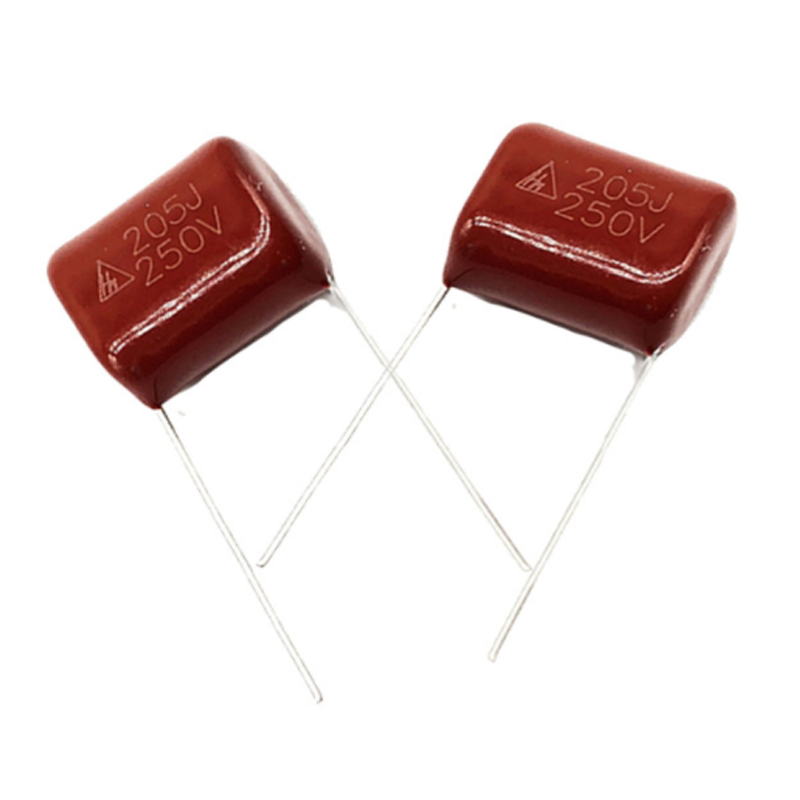

Film capacitance P=15mm 250V205J 2uF metal capacitor

FBCAP-21

250V 15mm Bagged

Film capacitance P=15mm 250V205J 2uF metal capacitor

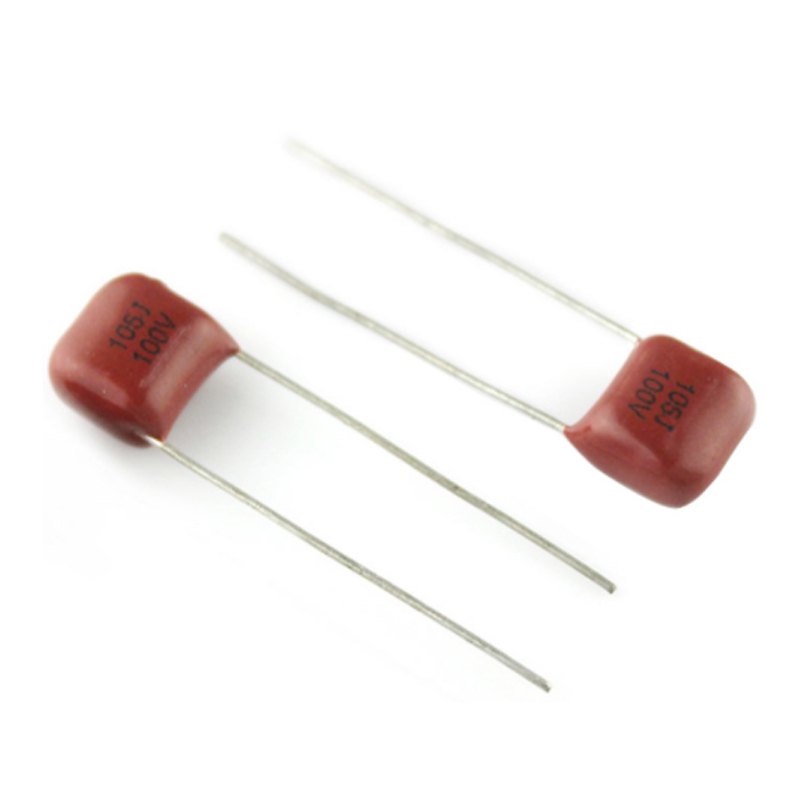

Polypropylene Film Capacitor 105J100V Pitch 10mm LED Driver Cbb Capacitor

FBCAP-22

100V 10mm Bagged

Polypropylene Film Capacitor 105J100V Pitch 10mm LED Driver Cbb Capacitor

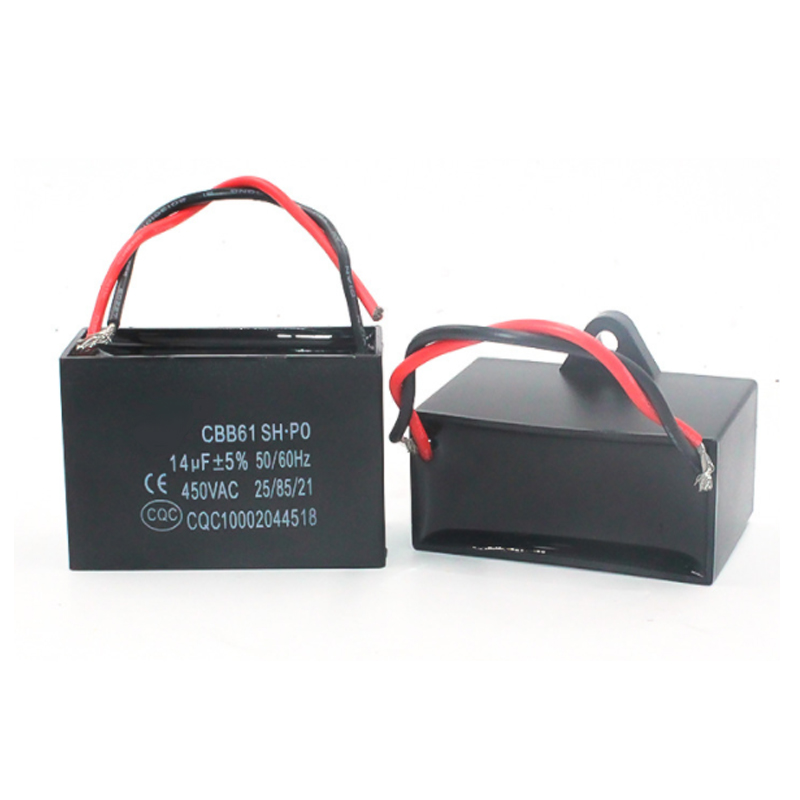

AC motor 450V14UF fan start capacitor fan motor air conditioner capacitor lead

FBCAP-23

450V / plastic shell

AC motor 450V14UF fan start capacitor fan motor air conditioner capacitor lead

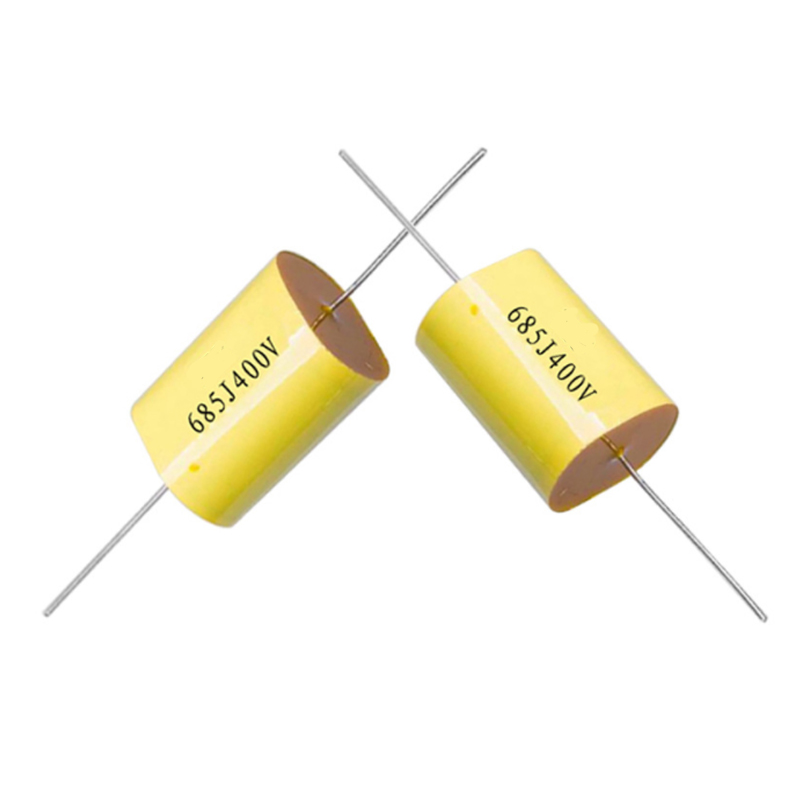

Frequency divider audio capacitor 6.8uf 400V685J audio filter capacitor

FBCAP-24

400V / Bagged

Frequency divider audio capacitor 6.8uf 400V685J audio filter capacitor

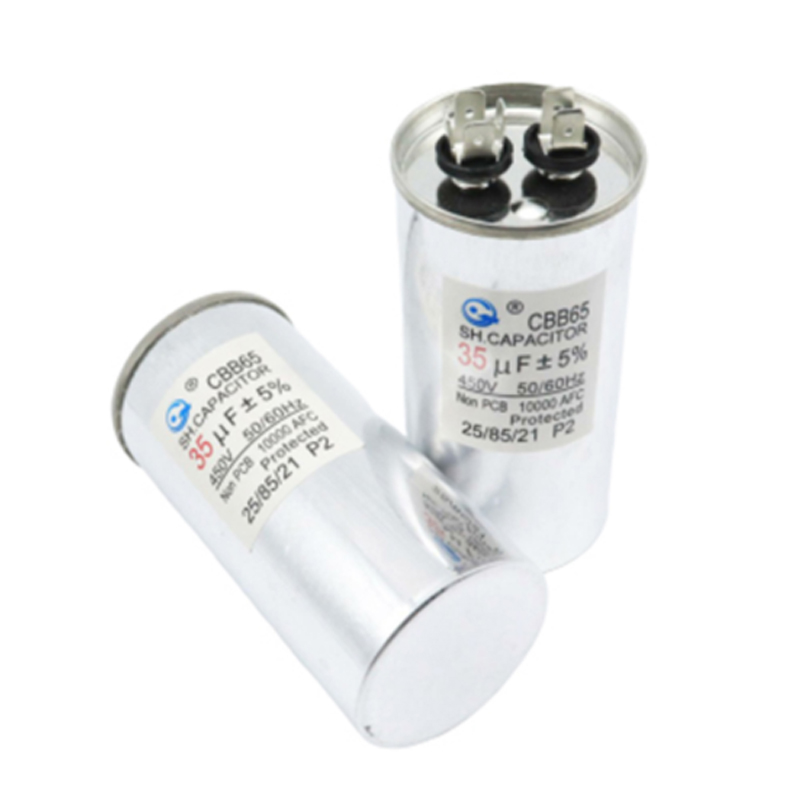

450V air conditioner compressor start capacitor 10/20/30/40/50/60/70UF

FBCAP-25

450V / Potting

450V air conditioner compressor start capacitor 10/20/30/40/50/60/70UF

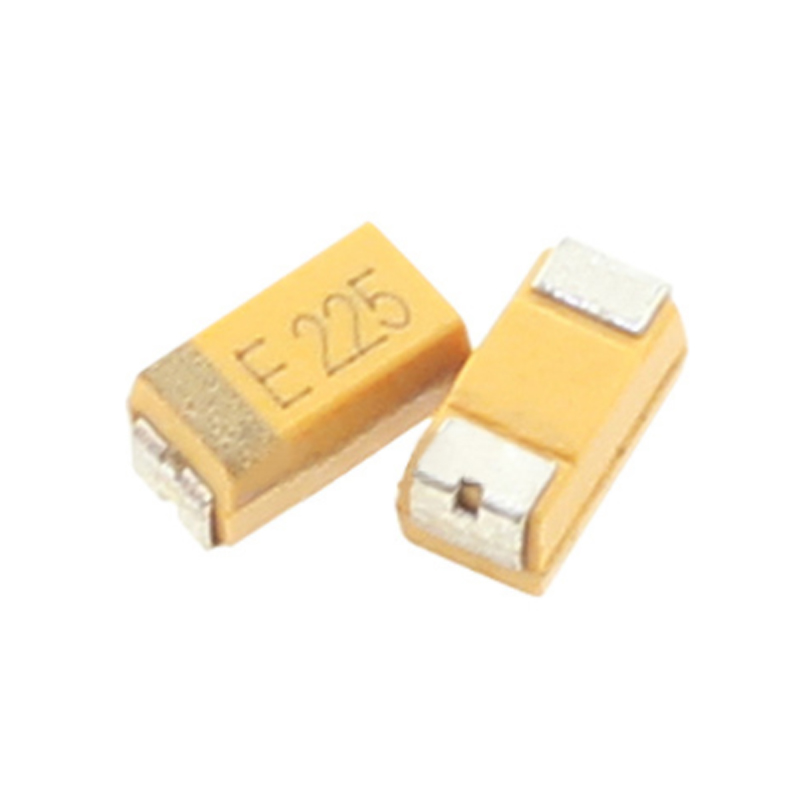

Tantalum Capacitor 25V2.2UF Type A 3216 SMD Tantalum Capacitor

FBCAP-26

25V / Taping

Tantalum Capacitor 25V2.2UF Type A 3216 SMD Tantalum Capacitor

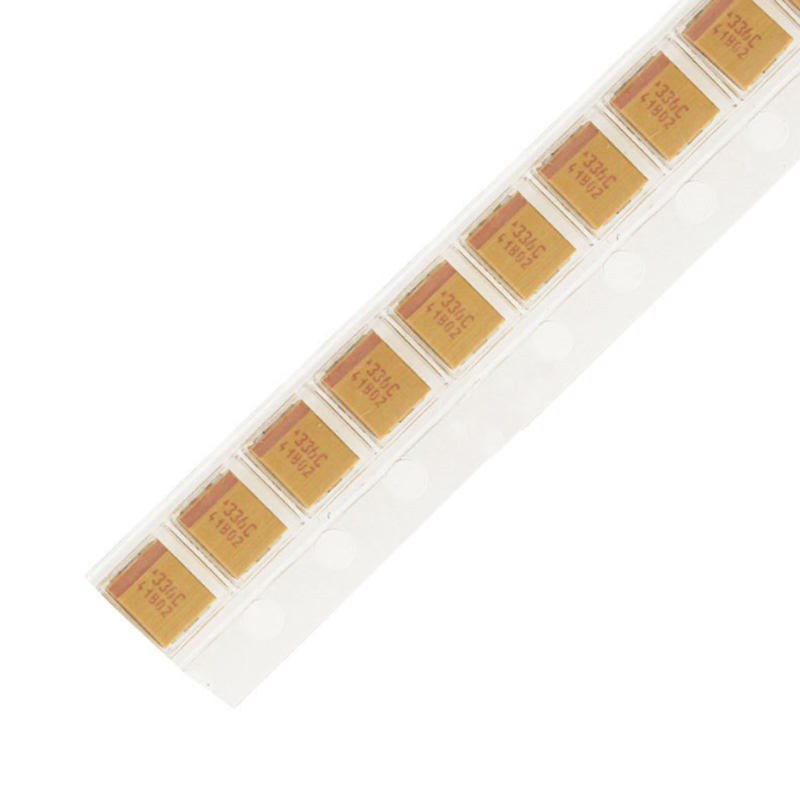

Type B SMD Tantalum Capacitor 16V33UF Original AVX Bile Capacitor 1210

FBCAP-27

16V / 1210/3528

Type B SMD Tantalum Capacitor 16V33UF Original AVX Bile Capacitor 1210

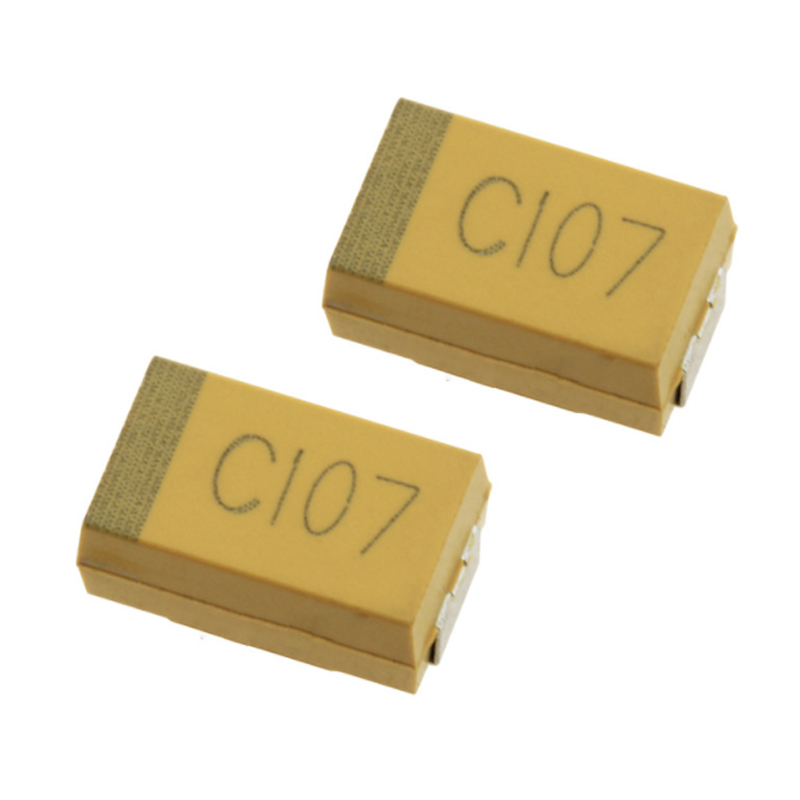

SMD Tantalum Capacitor 16V100UF Type C 107C

FBCAP-28

16V / Disk Mounted

SMD Tantalum Capacitor 16V100UF Type C 107C

Tantalum capacitor 35V10UF SMD D type 2917 tantalum capacitor 106V

FBCAP-29

35V / 7343/2917

Tantalum capacitor 35V10UF SMD D type 2917 tantalum capacitor 106V

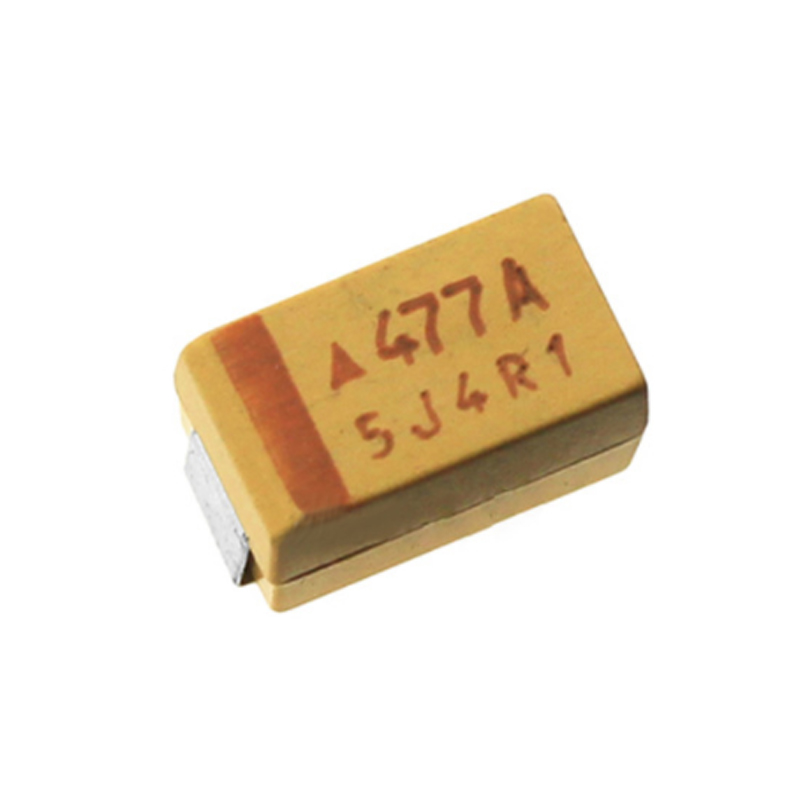

E-type 477A 7343 package 10V470UF tantalum capacitor

FBCAP-30

10V / Disk Mounted

E-type 477A 7343 package 10V470UF tantalum capacitor

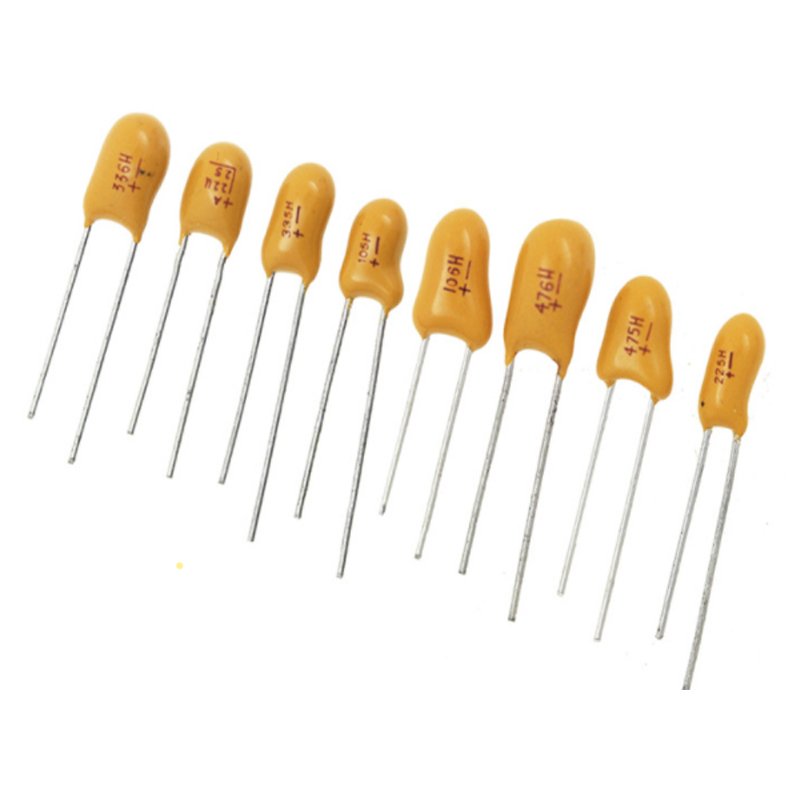

25V straight plug tantalum capacitor 1UF/2.2/3.3/4.7/10UF/22/33/47UF/100UF

FBCAP-31

25V / Straight plug

25V straight plug tantalum capacitor 1UF/2.2/3.3/4.7/10UF/22/33/47UF/100UF

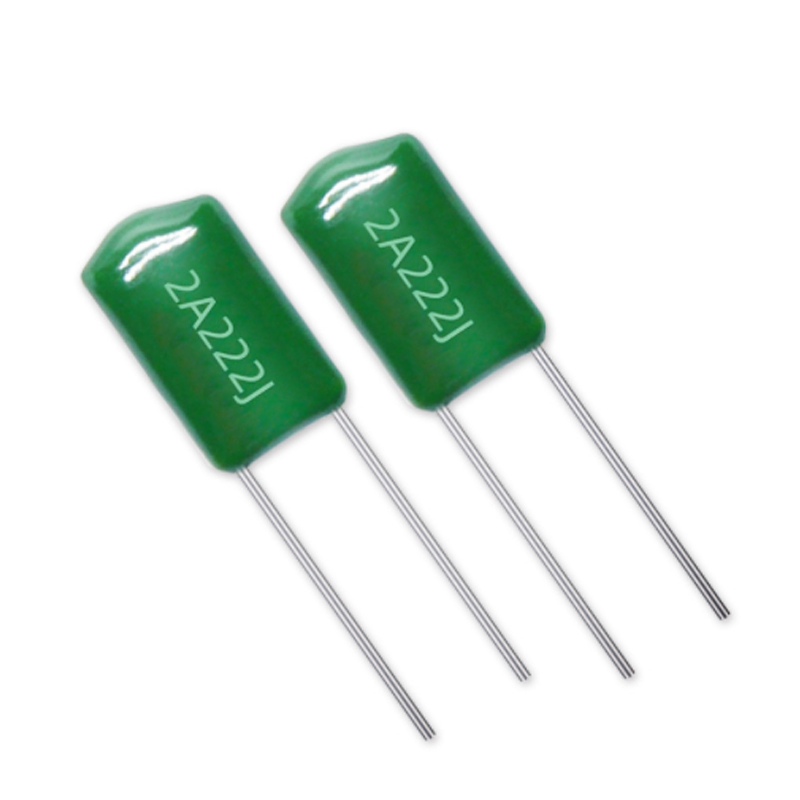

Polyester Capacitor 100V2.2NF Accuracy 5% Grease Dissolving Capacitor Green Plug-in Environmental Protection

FBCAP-32

100V 5mm /

Polyester Capacitor 100V2.2NF Accuracy 5% Grease Dissolving Capacitor Green Plug-in Environmental Protection

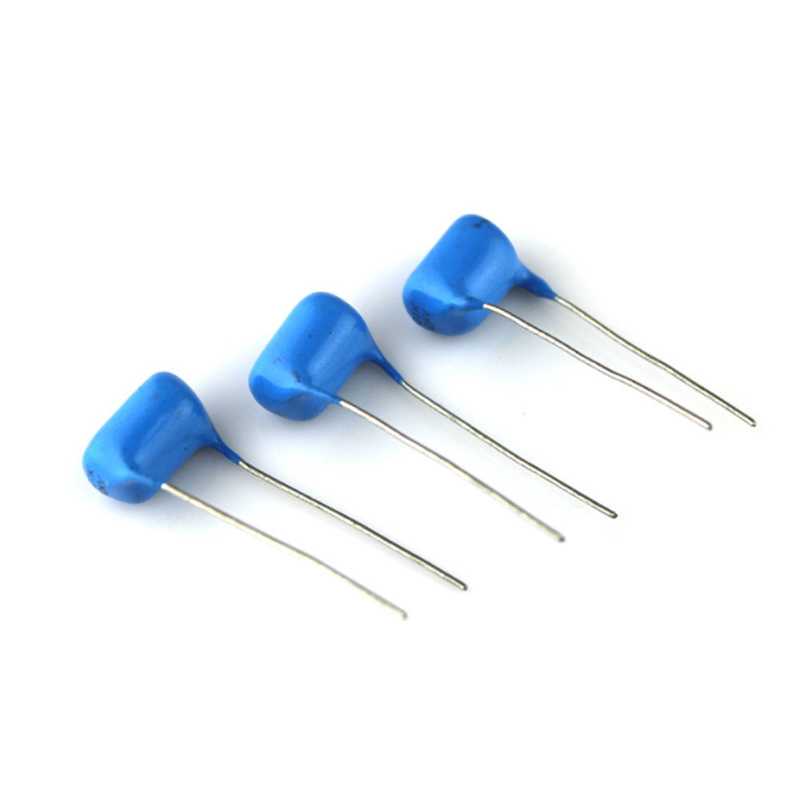

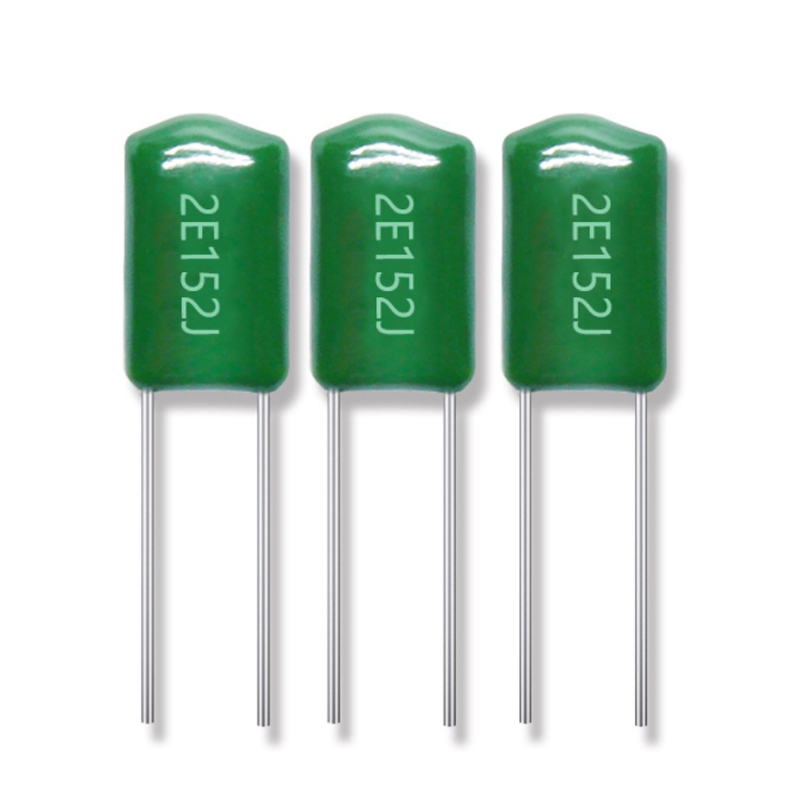

Polyester capacitor accuracy 5% 0.0015UF 250V152J Mira capacitor

FBCAP-33

250V 5mm Bagged

Polyester capacitor accuracy 5% 0.0015UF 250V152J Mira capacitor

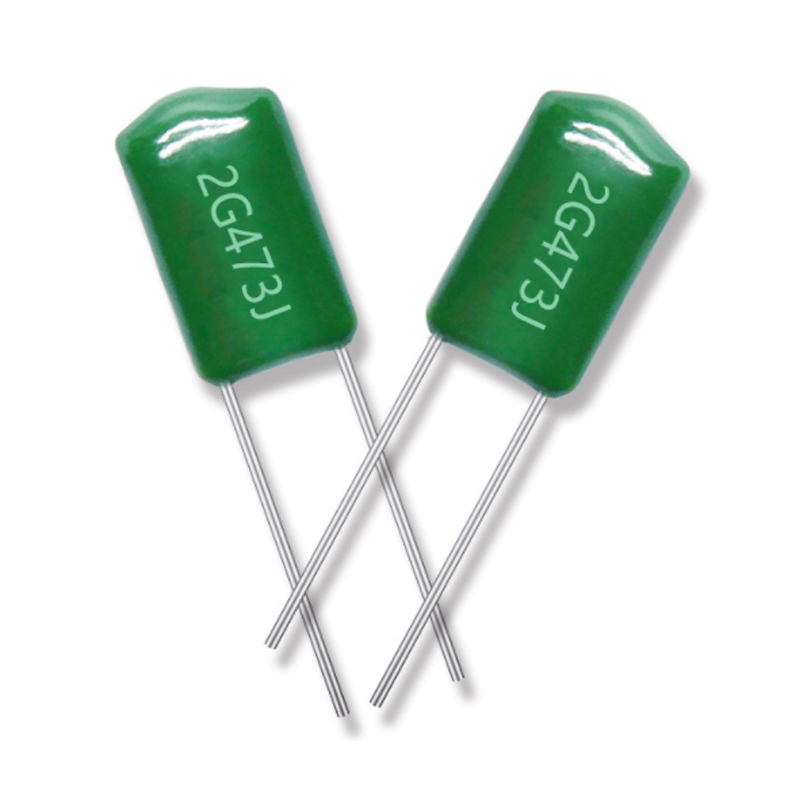

Polyester capacitor 400V473J polyester capacitor

FBCAP-34

400V 5mm Bagged

Polyester capacitor 400V473J polyester capacitor

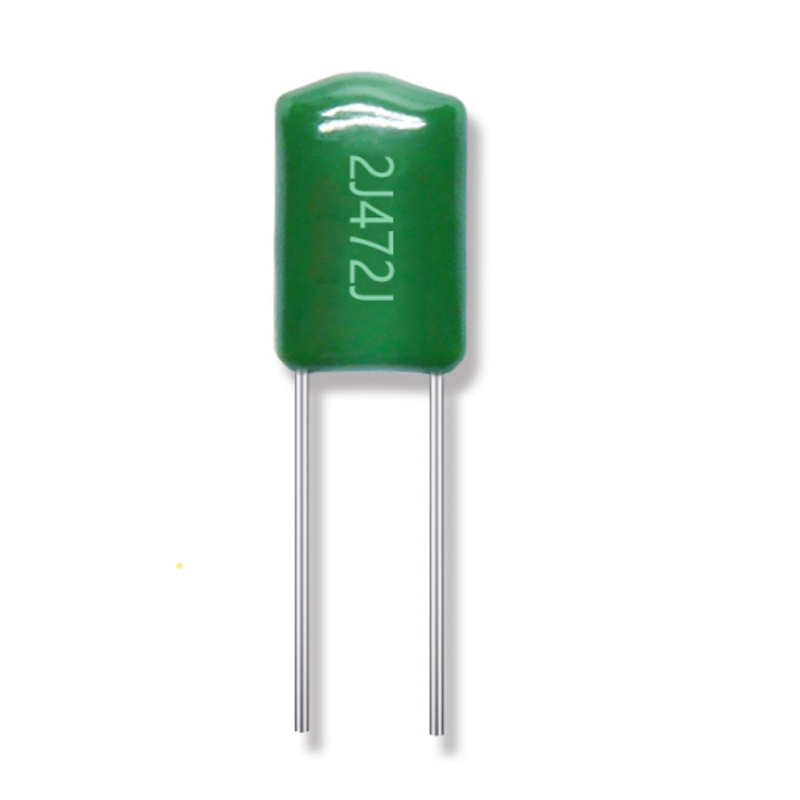

Polyester capacitor accuracy 5% 630V472J flame retardant polyester film capacitor

FBCAP-35

630V 5mm Bagged

Polyester capacitor accuracy 5% 630V472J flame retardant polyester film capacitor

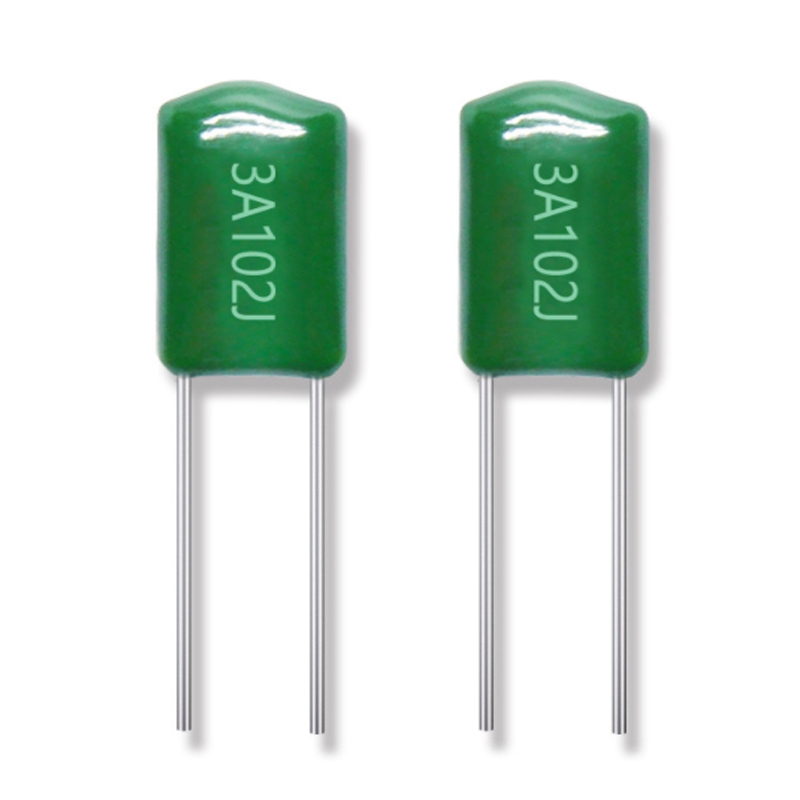

Polyester capacitor accuracy 5% 630V472J flame retardant polyester film capacitor

FBCAP-36

1000V 5mm Bagged

Polyester capacitor accuracy 5% 630V472J flame retardant polyester film capacitor

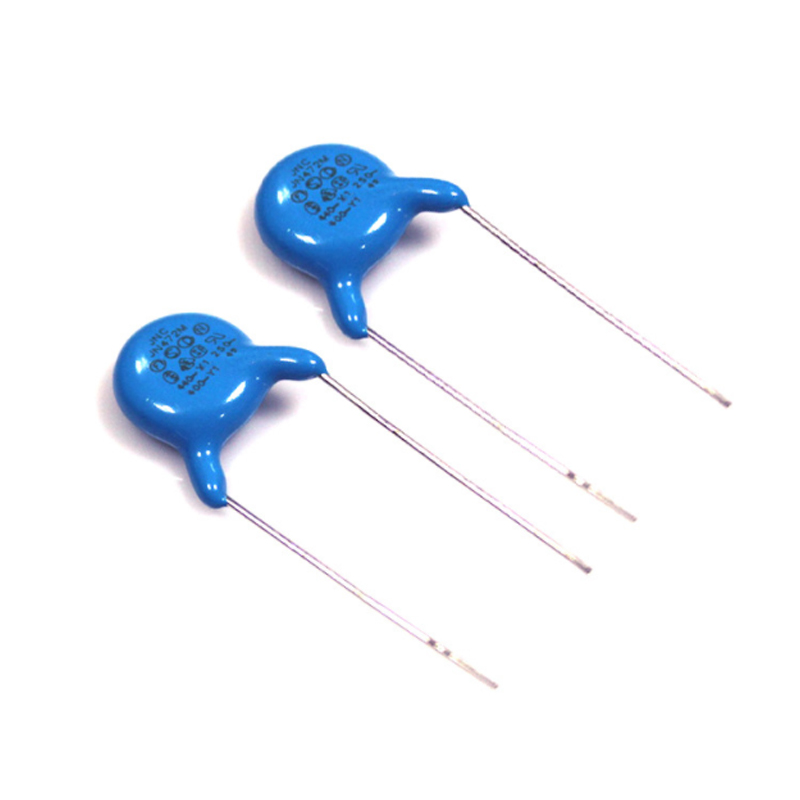

High voltage ceramic chip safety Y capacitor 400V472M 4.7NF X1 Y1 capacitor

FBCAP-37

400V 10mm DIP

High voltage ceramic chip safety Y capacitor 400V472M 4.7NF X1 Y1 capacitor

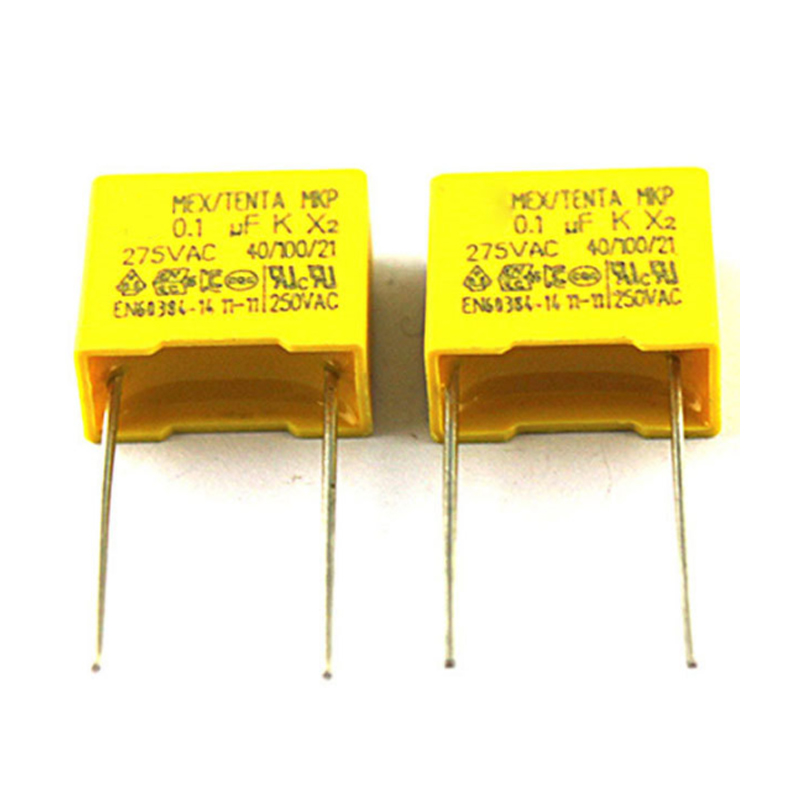

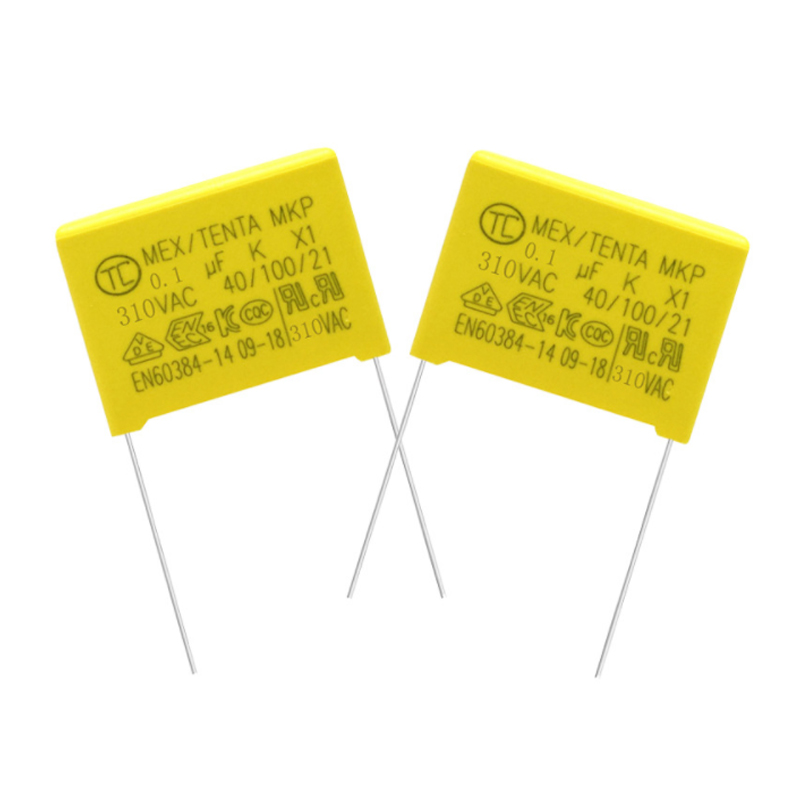

In-line safety capacitor 104K/275V pin pitch 10mm safety high and low voltage capacitor

FBCAP-38

275V 10mm Bagged

In-line safety capacitor 104K/275V pin pitch 10mm safety high and low voltage capacitor

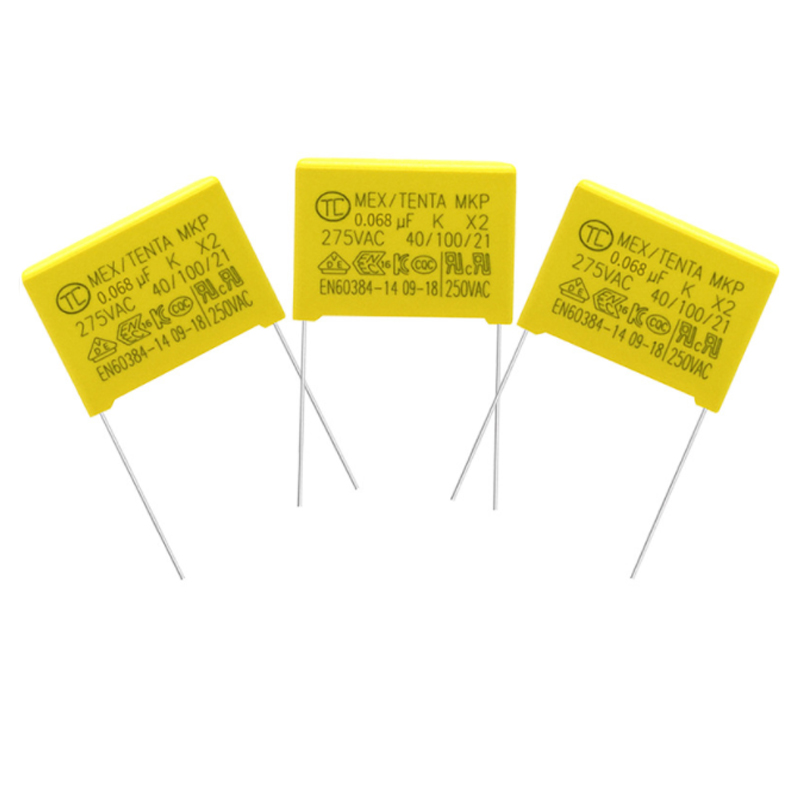

Safety capacitor 683K/275V P15mm 0.068UF film anti-interference

FBCAP-39

275V 15mm Bagged

Safety capacitor 683K/275V P15mm 0.068UF film anti-interference

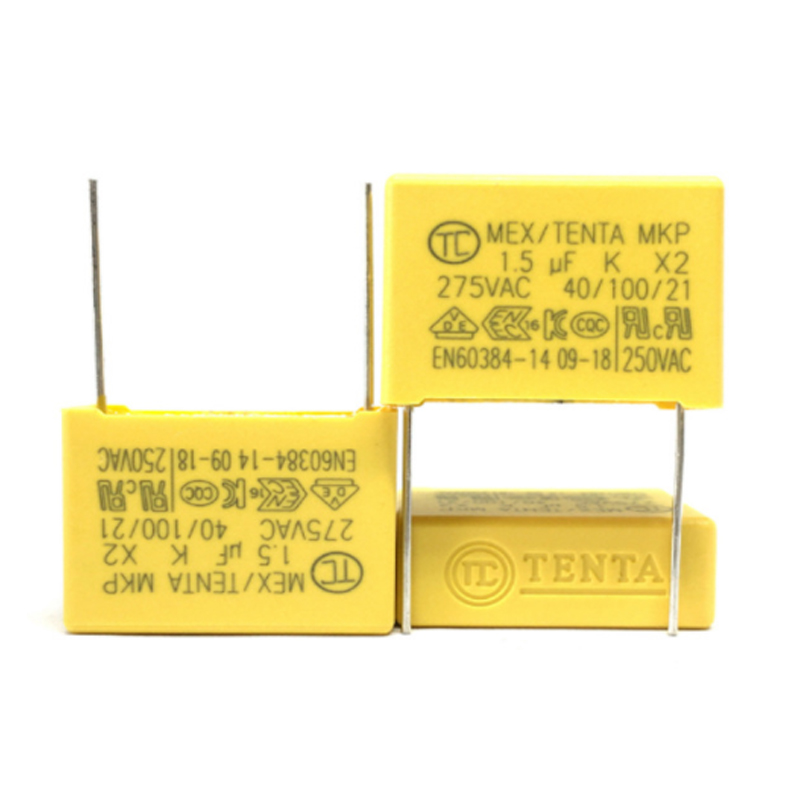

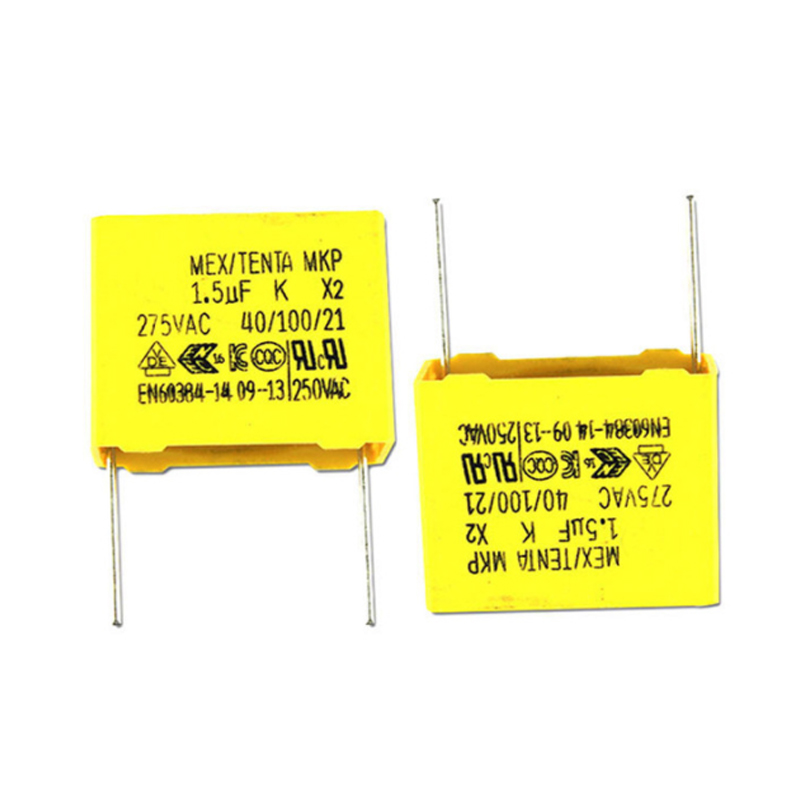

Safety film capacitor 155K foot pitch 22.5mm 1.5UF/275V high power equipment capacitor

FBCAP-40

275V 22.5mm Bagged

Safety film capacitor 155K foot pitch 22.5mm 1.5UF/275V high power equipment capacitor

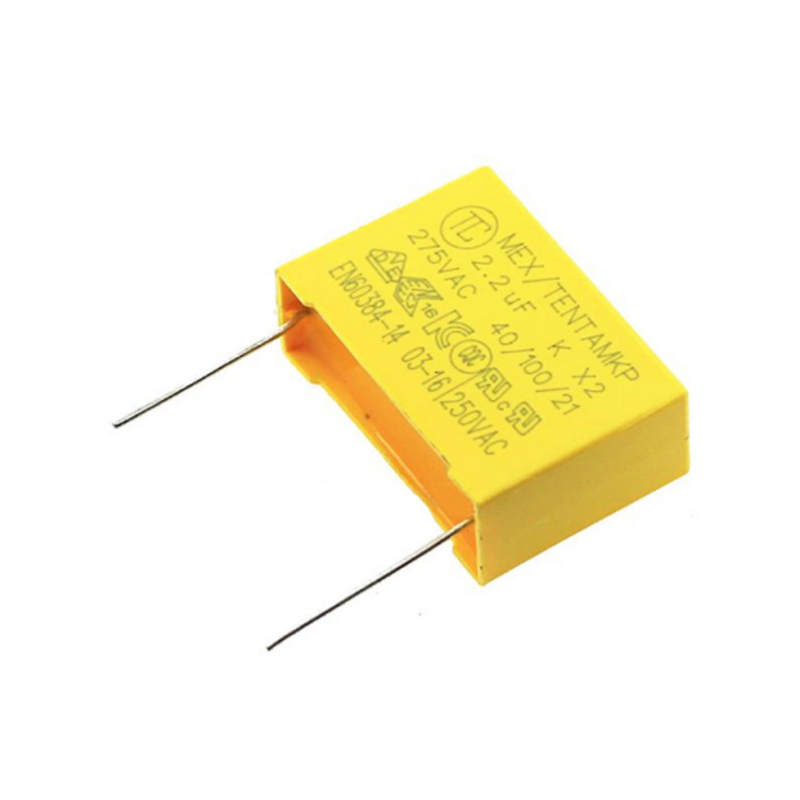

Anti-interference capacitor for safety 275V225K foot pitch 27.5mm 2.2UF/275V high-power power supply

FBCAP-41

275V 27.5mm Bagged

Anti-interference capacitor for safety 275V225K foot pitch 27.5mm 2.2UF/275V high-power power supply

Safety X1 capacitor 333K foot pitch 10mm 0.033UF/300V spark suppression capacitor

FBCAP-42

300V 10mm Bagged

Safety X1 capacitor 333K foot pitch 10mm 0.033UF/300V spark suppression capacitor

X1 safety capacitor 474K pitch 15mm 0.47UF/300V anti-interference capacitor

FBCAP-43

300V 15mm Bagged

X1 safety capacitor 474K pitch 15mm 0.47UF/300V anti-interference capacitor

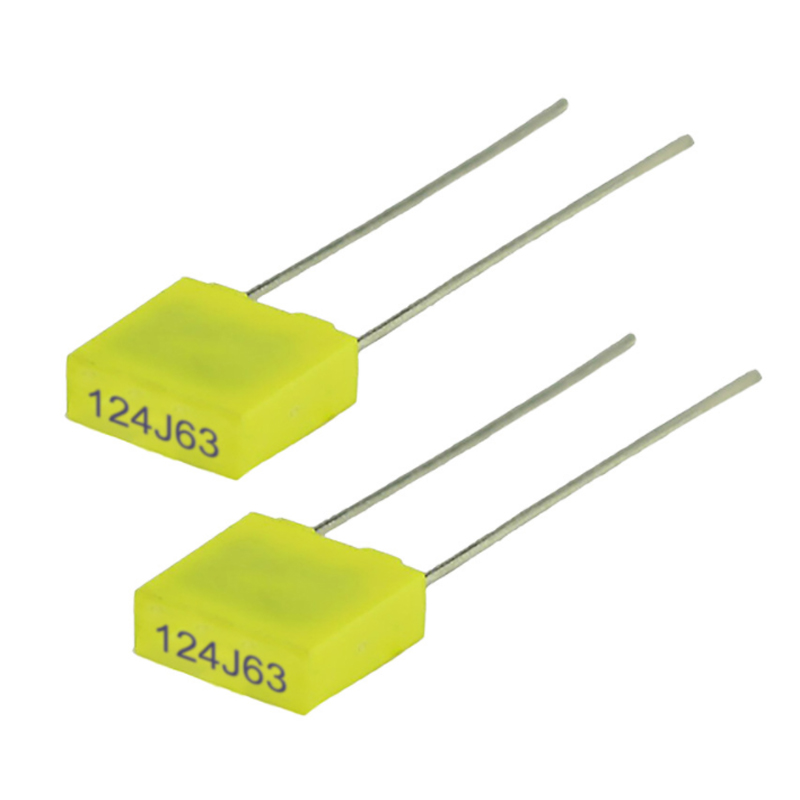

Correction capacitor 0.12UF 120NF P5mm 124J/63V film small capacitor

FBCAP-44

63V 5mm plastic shell

Correction capacitor 0.12UF 120NF P5mm 124J/63V film small capacitor

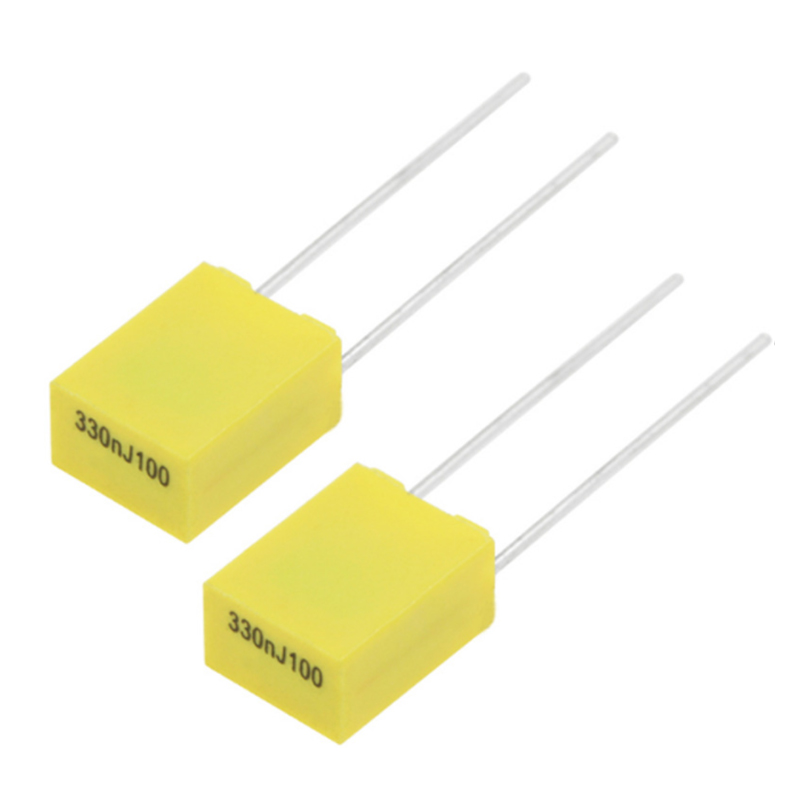

Correction capacitor 0.12UF 120NF P5mm 124J/63V film small capacitor

FBCAP-45

100V 5mm /

Correction capacitor 0.12UF 120NF P5mm 124J/63V film small capacitor

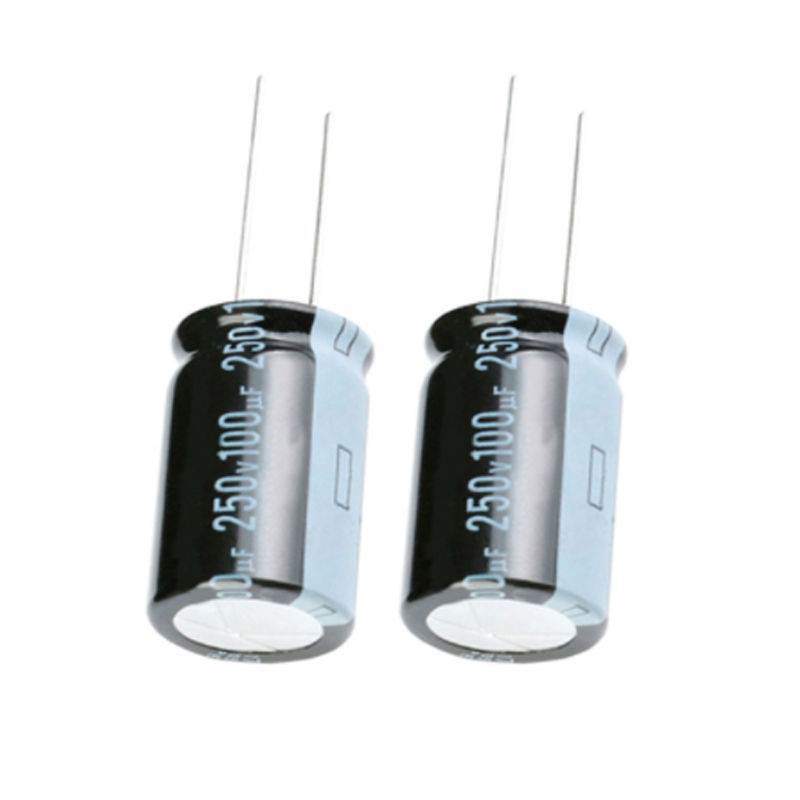

Commonly used aluminum electrolysis 250V100UF for vehicle inverters, volume 16*25mm

FBCAP-46

250V / Bagged

Commonly used aluminum electrolysis 250V100UF for vehicle inverters, volume 16*25mm


Capacitors

  • What is a capacitor?

    Capacitor, also known as "capacitance", refers to the storage of free charge under a given potential difference, which is recorded as C, and the international unit is farad (f). Generally speaking, the charge will move under force in the electric field. When there is a medium between the conductors, it hinders the charge movement and makes the charge accumulate on the conductor, resulting in the cumulative storage of charge. The amount of stored charge is called capacitance. conformal-coated tantalum capacitors

    Capacitance is the ability to hold charge. Any electrostatic field is composed of many capacitors. If there is an electrostatic field, there is a capacitance. Capacitance is described by electrostatic field. It is generally believed that an isolated conductor forms a capacitance with infinity, and the conductor grounding is equivalent to being connected to infinity and connected with the earth as a whole.HVAC capacitors

    Capacitance (or electrical capacity) is a physical quantity that shows the ability of a capacitor to hold charge. Physically speaking, capacitance is a static charge storage medium, which may exist permanently. This is its characteristic. It has a wide range of uses. It is an indispensable electronic component in the field of electronics and power. It is mainly used in power filtering, signal filtering, signal coupling, resonance, filtering, compensation, charge and discharge, energy storage, DC isolation and other circuits.power film capacitors

    Calculation formula of capacitance:

    For a capacitor, if the potential difference between the two stages is 1 volt with 1 Bank of electricity, the capacitance of the capacitor is 1 farad, that is, C = q / u. However, the capacitance is not determined by Q (charge) or u (voltage), that is, the determination formula of capacitance is: C= ε rS/4πkd 。 Among them, ε R is the relative dielectric constant, s is the positive area of the capacitor plate, D is the distance between the capacitor plates, and K is the electrostatic constant. Common parallel plate capacitor, the capacitance is C= ε S/d( ε Is the dielectric constant of the medium between the plates, ε=ε r ε 0 ε 0 = 1 / 4 π K, s is the area of the plates, D is the distance between the plates).

    Definition:

    Calculation formula of electric potential energy of capacitor: e = C * (u ^ 2) / 2 = Qu / 2 = (Q ^ 2) / 2C

    Calculation formula for parallel connection of multiple capacitors: C = C1 + C2 + C3 +... + CN

    Multi capacitor series calculation formula: 1 / C = 1 / C1 + 1 / C2 +... + 1 / cn

    Three capacitors in series: C = (C1 * C2 * C3) / (C1 * C2 + C2 * C3 + C1 * C3)

    Type of capacitor:

    The types of capacitors can be divided into: non-polar variable capacitor, non-polar fixed capacitor, polar capacitor, etc. in principle, they can be divided into: CBB capacitor (polyethylene), polyester capacitor, ceramic chip capacitor, mica capacitor, monolith capacitor, electrolytic capacitor, tantalum capacitor, etc.multilayer ceramic capacitors Nonpolar variable capacitor

    Manufacturing process: the rotatable moving piece is a ceramic piece, the surface is plated with metal film, and the fixed piece is a ceramic bottom plated with metal film; The moving sheet is a coaxial metal sheet, and the fixed sheet is an organic film sheet as the medium

    Advantages: easy production and low technical content.

    Disadvantages: large volume and small capacity

    Purpose: to change the oscillation and resonance frequency circuit. FM, am, transmit / receive circuit


    Nonpolar inductive CBB capacitor

    Manufacturing process: two layers of polypropylene plastic and two layers of metal foil are mixed alternately and then bound.

    Advantages: no inductance, good high frequency characteristics and small volume

    Disadvantages: not suitable for large capacity, high price and poor heat resistance.

    Purpose: coupling / oscillation, audio, analog / digital circuit, high frequency power supply, filtering / decoupling ,Nonpolar CBB capacitor

    Manufacturing process: two layers of polyethylene plastic and two layers of metal foil are mixed alternately and then bound.


    Nonpolar porcelain capacitor

    Manufacturing process: the thin porcelain piece is made by crossing metal film silver on both sides.

    Advantages: small size, high withstand voltage, low price and high frequency (one is high frequency capacitor)

    Disadvantages: fragile, low capacity

    Purpose: high frequency oscillation, resonance, decoupling, sound


    Nonpolar mica capacitor

    Manufacturing process: two layers of metal films are plated on mica sheet

    Advantages: easy production and low technical content.

    Disadvantages: large volume and small capacity. Purpose: oscillation, resonance, decoupling and circuit with low requirements. The volume of non-polar single stone capacitor is smaller than CBB. Others are the same as CBB

    Purpose: analog / digital circuit, signal bypass / filtering, audio


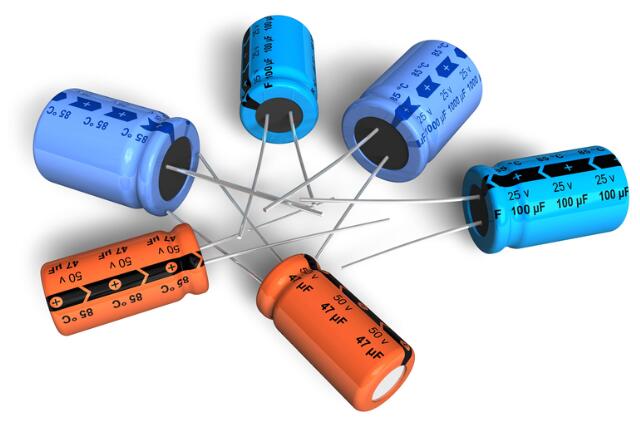

    Polar electrolytic capacitor

    Manufacturing process: two pieces of aluminum strips and two layers of insulating films are stacked with each other, and then immersed in electrolyte after being bundled.

    Advantages: large capacity.

    Disadvantages: poor high frequency characteristics.

    Purpose: low frequency inter stage coupling, bypass, decoupling, power filter, audio


    Tantalum capacitor

    Manufacturing process: use metal tantalum as the positive electrode and spray metal outside the electrolyte as the negative electrode.aluminum electrolytic capacitors

    Advantages: good stability, large capacity and good high frequency characteristics.

    Disadvantages: high cost.

    Application: high precision power filter, signal stage coupling, high frequency circuit, audio circuit


    Polyester (polyester) capacitor

    Symbols: CL

    Capacitance: 40p--4u

    Rated voltage: 63 -- 630V

    Main features: small volume, large capacity, heat and moisture resistance, poor stability

    Application: low frequency circuit with low requirements for stability and loss


    polystyrene capacitor

    Symbol: CB

    Capacitance: 10p--1u

    Rated voltage: 100V -- 30KV

    Main features: stable, low loss, large volume

    Application: circuit requiring high stability and loss


    Polypropylene capacitor

    Symbol: CBB

    Capacitance: 1000p -- 10u

    Rated voltage: 63 -- 2000V

    Main features: the performance is similar to that of polystyrene, but the volume is small and the stability is slightly poor

    Application: instead of most polystyrene or mica capacitors, it is used in circuits with high requirements


    Mica capacitor

    Symbols: CY

    Capacitance: 10p -- 0.1U

    Rated voltage: 100V -- 7kv

    Main features: high stability, high reliability and small temperature coefficient

    Application: high frequency oscillation, pulse and other circuits with high requirements


    High frequency ceramic capacitor

    Symbols: CC

    Capacitance: 1 -- 6800p

    Rated voltage: 63 -- 500V

    Main features: low high frequency loss and good stability

    Application: high frequency circuit


    Low frequency ceramic capacitor

    Symbols: CT

    Capacitance: 10p -- 4.7u

    Rated voltage: 50V -- 100V

    Main features: small size, low price, large loss and poor stability

    Application: low frequency circuit with low requirements


    Glass glaze capacitor

    Symbols: CI

    Capacitance: 10p -- 0.1U

    Rated voltage: 63-400v

    Main features: good stability, low loss, high temperature resistance (200 ℃)

    Application: pulse, coupling, bypass circuit, etc


    Aluminum electrolytic capacitor

    Symbols: CD

    Capacitance: 0.47 -- 10000U

    Rated voltage: 6.3 -- 450V

    Main features: small volume, large capacity, large loss and large leakage

    Applications: power filtering, low frequency coupling, decoupling, bypass, etc

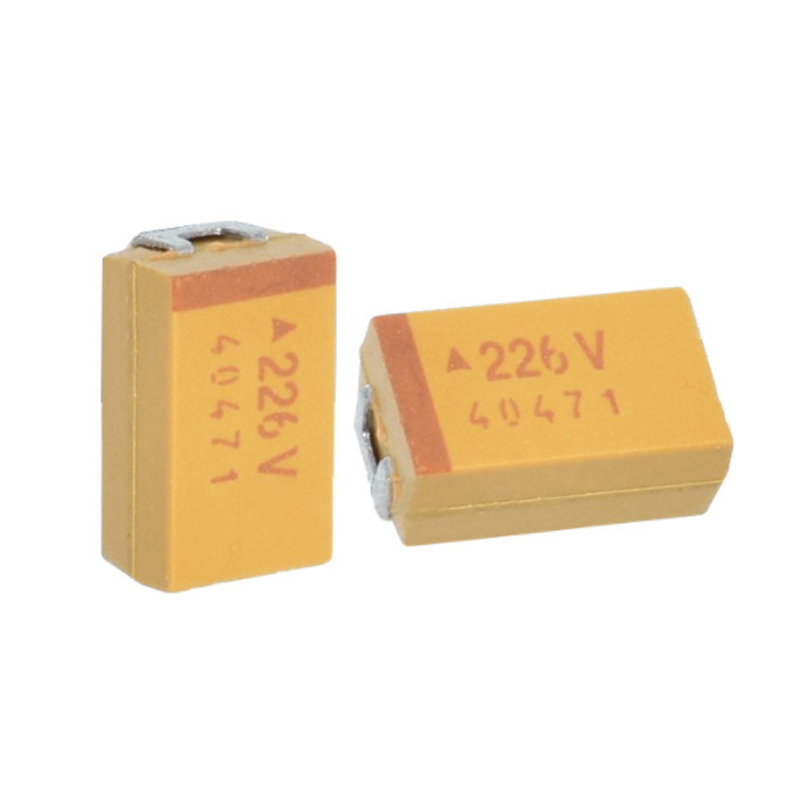

    Tantalum electrolytic capacitor (CA), niobium electrolytic capacitor (CN)

    Capacitance: 0.1 -- 1000u

    Rated voltage: 6.3 -- 125V

    Main features: the loss and leakage are less than that of aluminum electrolytic capacitor

    Application: replace aluminum electrolytic capacitor in circuits with high requirements


    Air dielectric variable capacitor

    Variable electric capacity: 100 -- 1500p

    Main features: low loss and high efficiency; It can be made into linear type, linear wavelength type, linear frequency type and logarithmic type according to requirements

    Applications: electronic instruments, radio and television equipment, etc


    Thin film dielectric variable capacitor

    Variable electric capacity: 15 -- 550p

    Main features: small volume, light weight; The loss is greater than that of air medium

    Application: communication, broadcast receiver, etc


    Thin film dielectric trimming capacitor

    Symbol: variable electric capacity: 1 -- 29p

    Main features: large loss and small volume

    Application: recorder, electronic instrument and other circuits for circuit compensation


    Ceramic dielectric trimmer capacitor

    Symbol: variable electric capacity: 0.3 -- 22P

    Main features: small loss and small volume

    Application: precision tuned high frequency oscillation circuit
