What is the ultrasonic matching of mask machine?

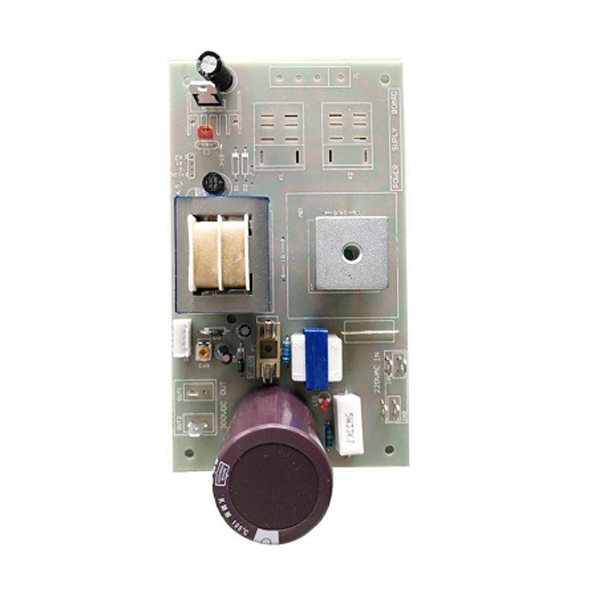

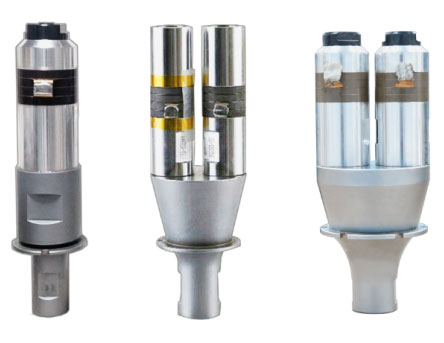

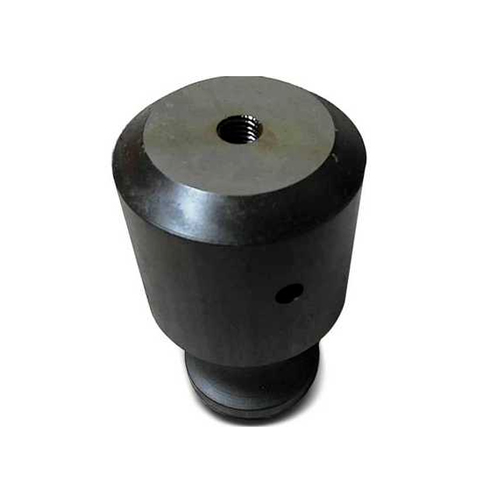

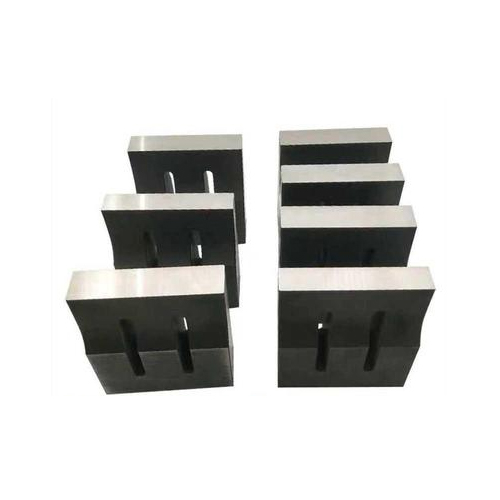

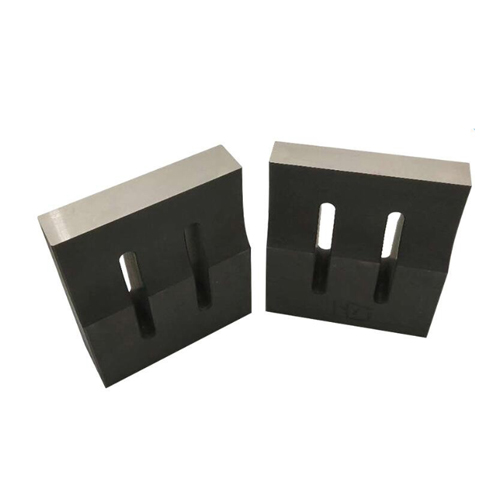

The ultrasonic matching of the mask machine is composed of ultrasonic generator (ultrasonic electric box), ultrasonic transducer, ultrasonic welding head and flange. It is the core welding part of the mask machine. It is used for welding around the mask, nose bridge and ear line. It is widely used in one to one and one to two full-automatic and semi-automatic mask machines.

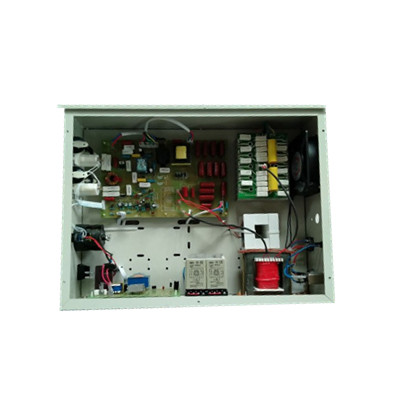

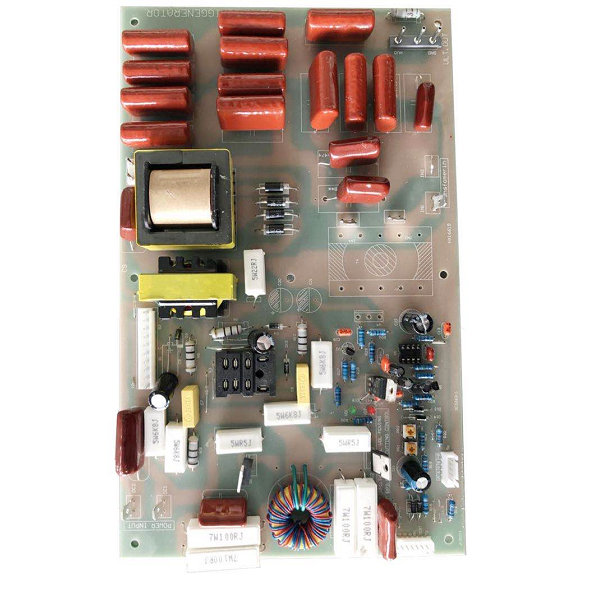

The ultrasonic matching electric box of mask machine is divided into 15K 2600w continuous vibration generation and 20k2000w gap vibration generation.
Continuous vibration generation is mainly used for the welding of mask sheet, and gap vibration generation is mainly used for the welding of ear belt line. Generally, 1 mask machine needs 5-6 sets of ultrasonic supporting equipment, 1-2 sets of continuous vibration generation (different design requirements), and 4 sets of gap vibration generation are used for the welding of ear line.
What is an ultrasonic mask forming machine?
Machine introduction:
It is used for the preliminary forming of cup-shaped masks. There are full-automatic cup-shaped mask forming machines, semi-automatic cup-shaped mask hot pressing machines and other mask forming machines. Each machine is divided into different models. At the same time, four, eight or more products are produced for customers to choose suitable models. The mask forming machine uses the principle of high temperature hot pressing to form the workpiece firmly. The mask forming machine can automatically complete multiple processes from feeding to one-time forming, shearing and returning. Compared with the traditional manual feeding, returning and shearing, it can save 3-5 labor, and can produce 30-36 masks per minute. It adopts PLC control system and touch screen setting. The operation is simple and fast. It can be used by single person and single machine. It only needs manual feeding and reclaiming. It greatly improves the production efficiency.
What is an ultrasonic mask machine?
It is used for the production of outer mask of cup mask. The full-automatic mask machine does not need manual work, has fast speed and high efficiency. It is controlled by computer program and equipped with photoelectric detection device, so the trimming radian is stable; Automatic ultrasonic welding, beautiful mask.
Features of automatic cup mask machine:
1. Pull the barrel for feeding, with more accurate positioning, which can minimize the width of raw materials and save costs
2. The length and size of finished products are controlled uniformly with a deviation of ± 1mm, which can effectively control the length of finished products, so that the slices can not only meet the production process requirements, but also eliminate waste
3. Independent feeding rack for easy access and adjustment of raw materials
Pad printing machine
It is used for pad printing of fonts or patterns on cup masks. Half of them are simple to operate and occupy a small area. It can meet the needs of various characters and patterns of different customers
What is ultrasonic mask trimming machine?
Machine introduction:
It is used to press the cutting edge of the back cover of the cup mask and cut off the excess mask edge. There are single person operated mask trimming machine, rotary cup mask press cutter, etc. the rotary cup mask press cutter has the advantages of high speed, high efficiency and beautiful trimming. It is the preferred model for mass production of cup masks.
It is mainly a machine that completes the welding and punching process of the edge of cup mask by using the principle of ultrasonic welding and automatic edge sealing. The machine creatively combines the two previously completely independent processes of cup mask edging and punching. The multi station rotary table is equipped with a cutting device while welding. The two heads of welding and cutting work at the same time. It adopts PLC control system and touch screen setting. The operation is simple and convenient. It can be used by one person and one machine. Only workers need to discharge and take materials, which can greatly save labor, The production of cup mask is simpler and faster.
Output: 8-10 pieces / min
Ultrasonic breathing valve punching machine
It is used for punching the front breathing valve of cup mask. It has the advantages of small volume, no space, accurate positioning, convenient operation and fast speed. According to the customer's needs, the breather valve can be perforated and installed if there is a demand. If there is no demand, the breather valve can be omitted.
Ultrasonic nose line fitting machine
It is used for fitting the nose bridge line at the front end of cup mask.
Ultrasonic ear band spot welder
It is used for welding the ear belt of cup mask.
What is ultrasonic external ear band welding machine?
Machine introduction:
The external ear belt mask machine fuses the elastic belt to the two outer sides of the mask body by ultrasonic, so as to complete the finished product of ear belt mask. Only one operator needs to place the mask body on the conveyor belt fixture one by one, and the rest subsequent actions to the completion of the finished product are automatically operated by the machine. The output of this machine is higher than that of general ear belt machines.
Product alias: plane mask machine, automatic mask spot welder, ultrasonic mask machine, plane mask spot welder, disposable mask machine, non-woven mask machine, ear band mask machine, N95 mask machine, FFP2 mask machine, etc
Machine features:
1. The machine is compact, small and does not occupy space;
2. PLC program control, high stability and low failure rate;
3. The whole machine adopts aluminum alloy structure, which is beautiful and firm without rust;
4. Photoelectric detection to reduce the error rate.
5. The welding strength of ear strap is adjustable.
Workflow:
Work flow: (mask body) manual feeding → automatic feeding of ear belt → ear belt cutting → ultrasonic ear belt welding → finished product output → counting → finished product stacking → conveyor belt device sending out
Detailed description:
Figure 1 control panel: PLC program control, bilingual display mode; The machine operation control program is developed by our company and has passed repeated tests, so as to ensure the high-precision, low fault and high stability operation of the whole program;

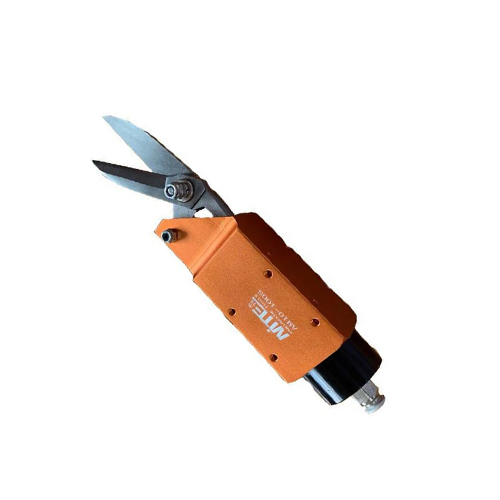

Fig. 2 ear band cutting: high quality steel scissors with sharp blade can effectively ensure the smoothness of cutting action and are durable; The knife position can be adjusted properly to ensure the beauty of the finished product;
Fig. 3 finished product output: through the coordination between the flat belt and the body conveying fixture, the finished mask is stably transported to the finished product collection conveyor belt;
Fig. 4 body conveying: according to the size of the mask body, the position is accurately limited to ensure the accurate positioning of the mask body in the production process without deviation, so as to effectively ensure the beauty of the finished product.
What is ultrasonic folding mask machine？
summary
Folding mask machine, also known as C-type mask machine, is a fully automatic machine for the production of folding mask body. Using ultrasonic technology, 3 ~ 5 layers of PP non-woven fabric, activated carbon and filter materials are bonded, and the folding mask body is cut out, which can process 3M 9001, 9002 and other mask bodies. According to the different raw materials used, the masks produced can meet different standards such as ffp1, FFP2, N95, etc. the ear belt is elastic non-woven fabric, which makes the wearer's ears comfortable and pressure free. The filter cloth layer of the mask has good filtering effect, fits the face of Asians, and can be applied to high pollution industries such as construction and mining.
Functions and features:
1. It can process 3M 9001, 9002 and other folding mask bodies at one time.
2. PLC automatic control, automatic counting.
3. Simple adjustment device, convenient refueling.
4. The mould adopts the method of extraction and replacement, which can quickly replace the mould and produce different models of masks.
5. The whole machine is made of aluminum alloy, beautiful and firm without rust.
7. Advanced feeding and receiving device.
8. High stability and low failure rate.
