Aluminum Heat Sinks

Picture	Manufacturer No.	Size	Material	Description	Datasheet	Order

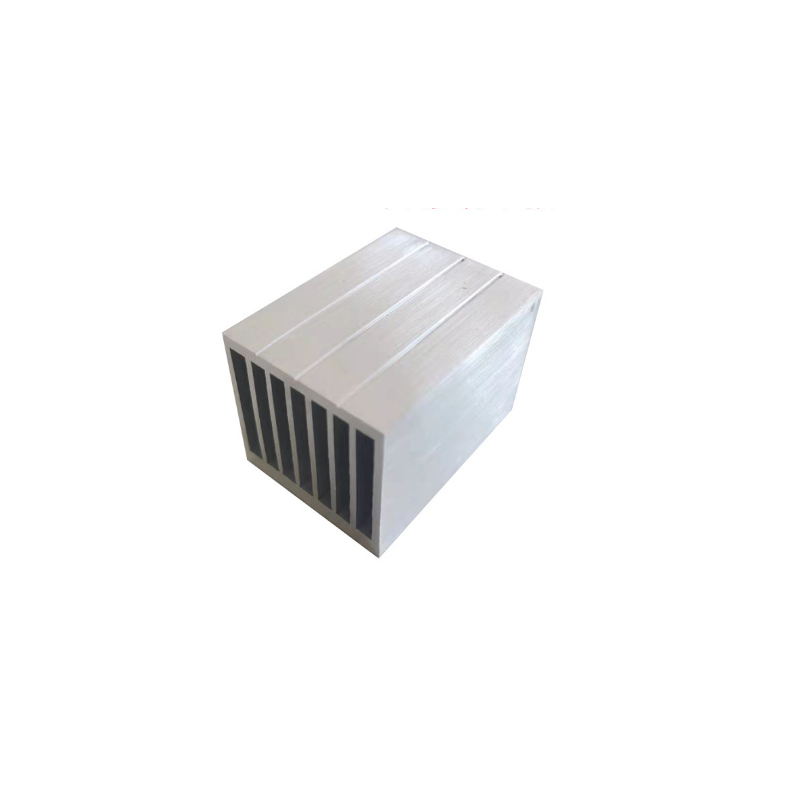

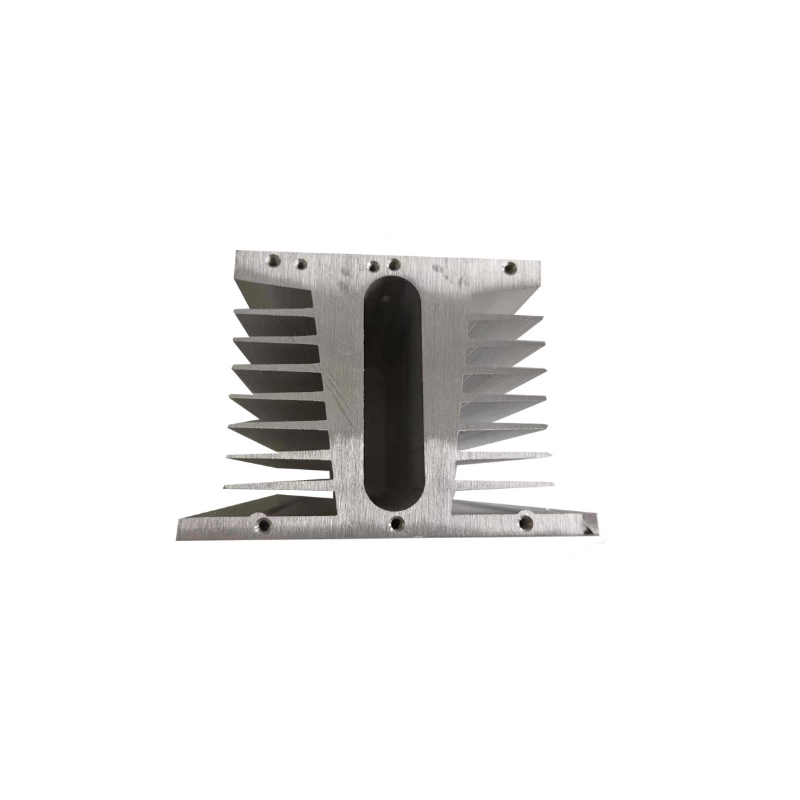

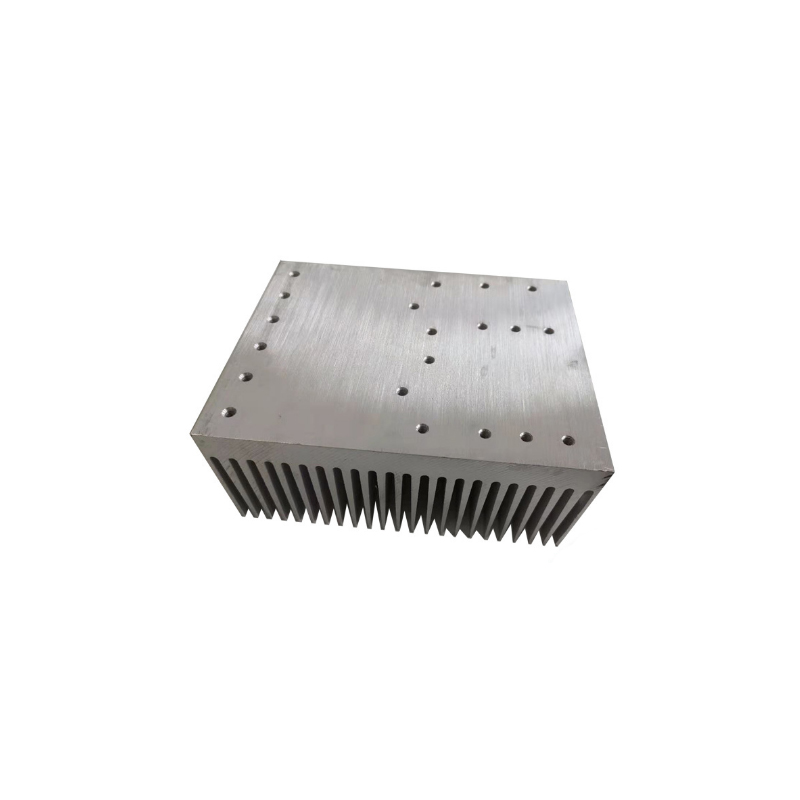

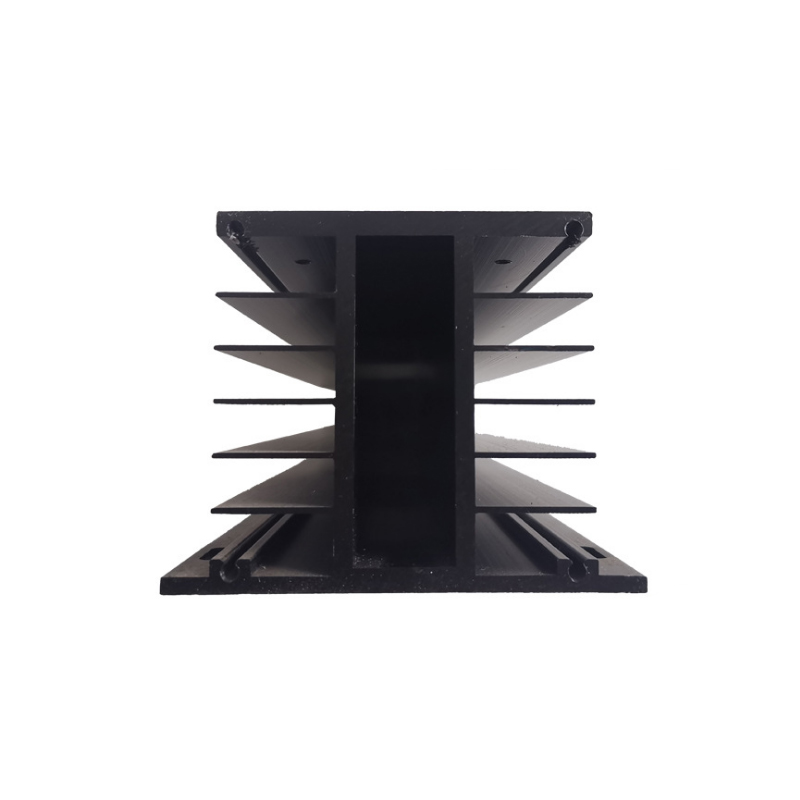

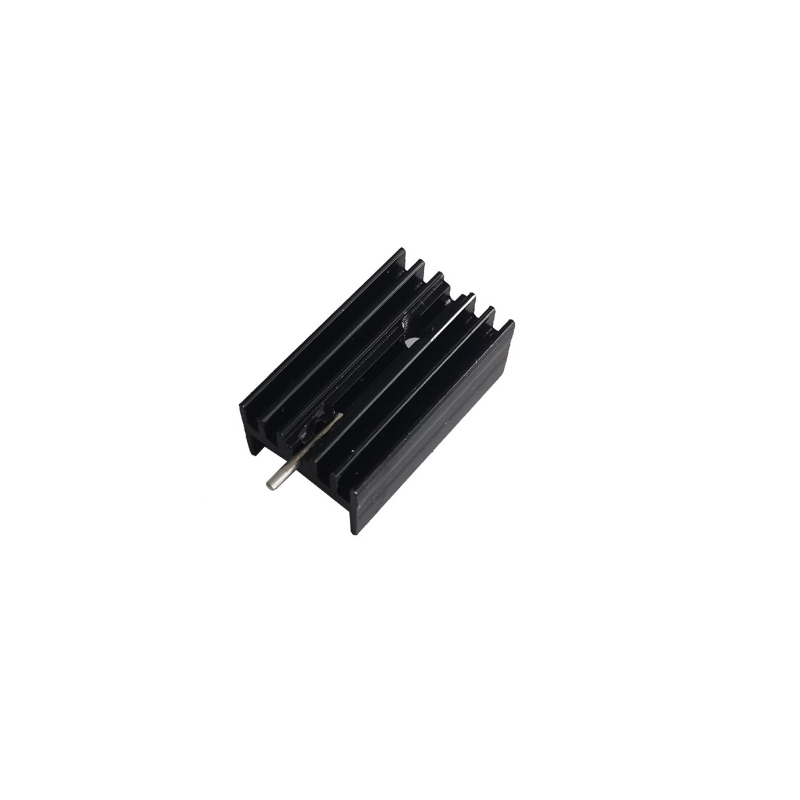

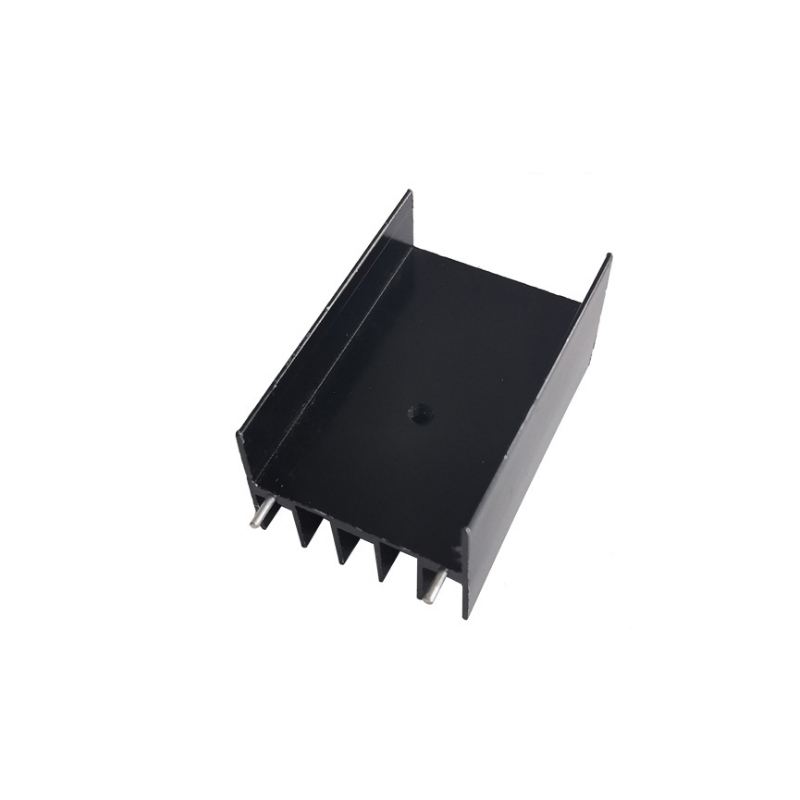

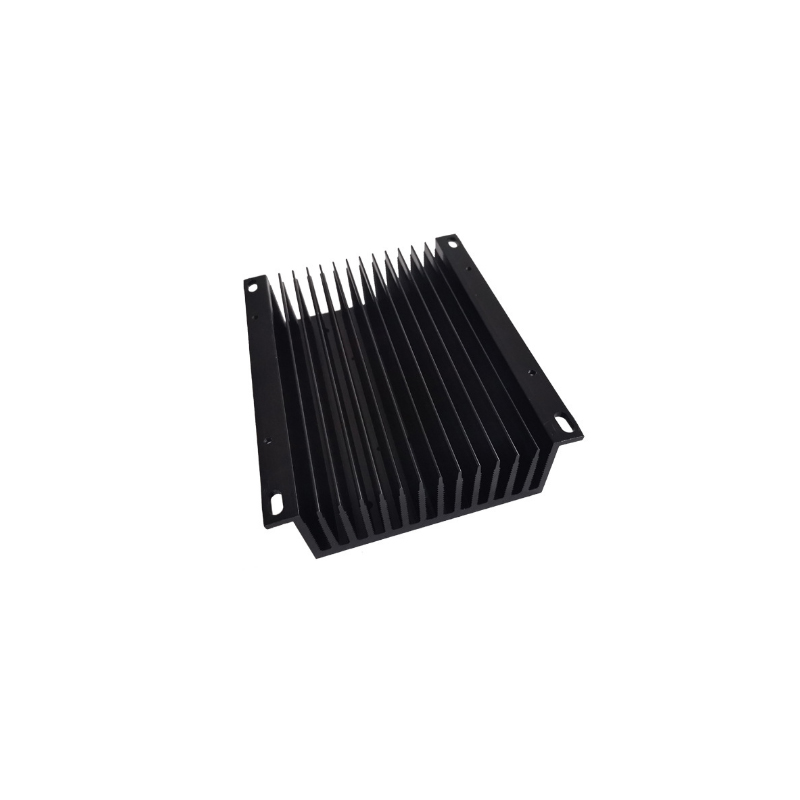

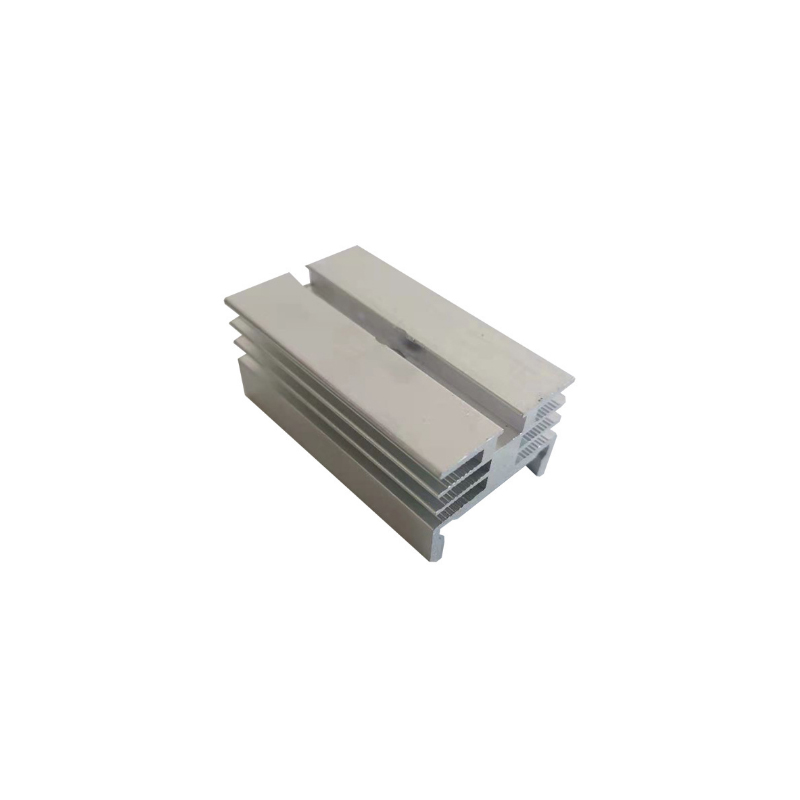

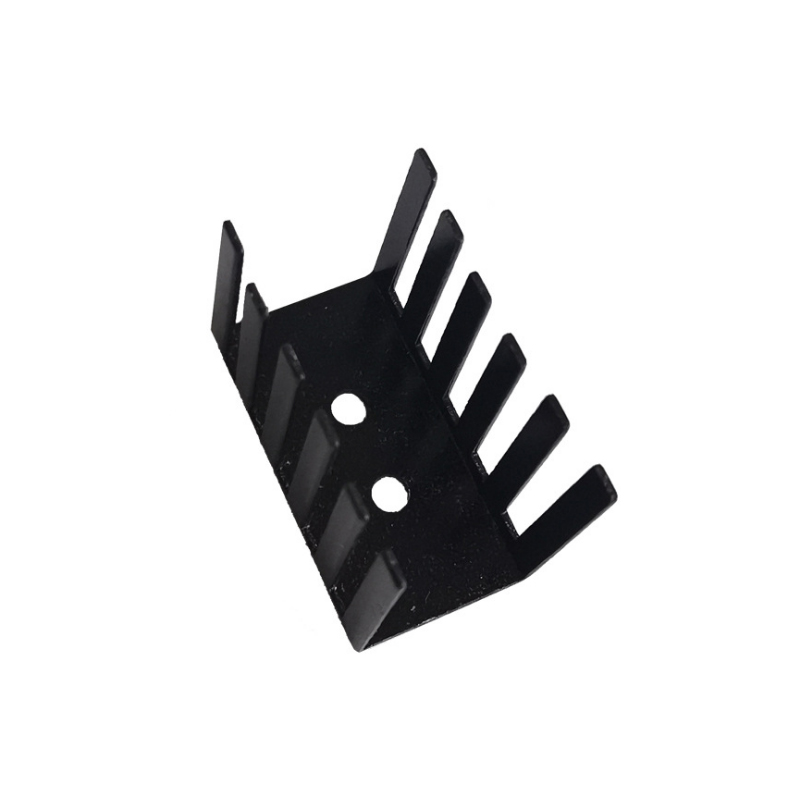

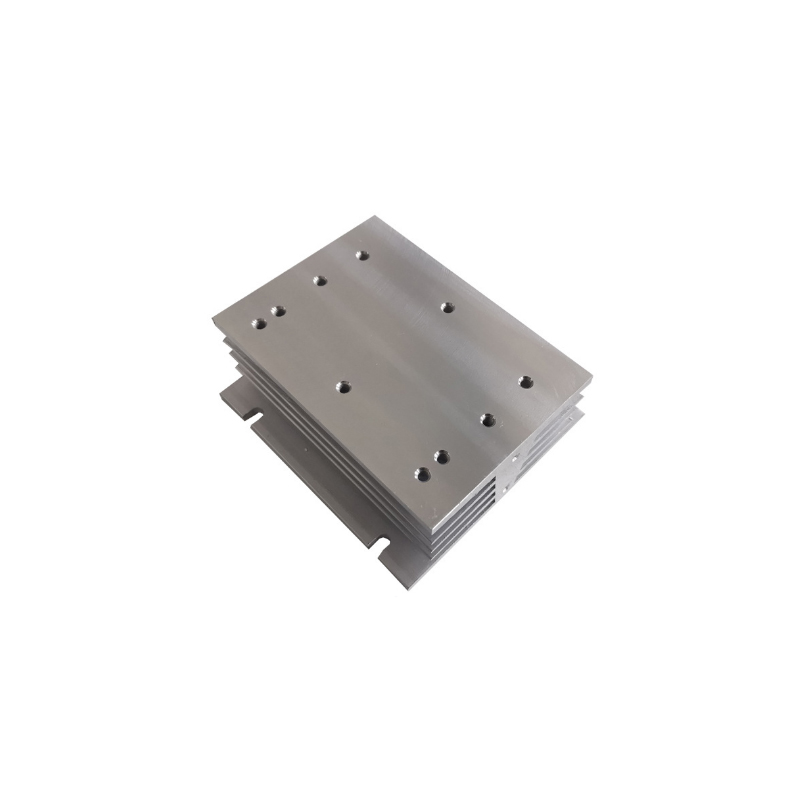

	FBHS-01	14.5x9.5x21（mm）	Steel/Stainless/Aluminum	Machining custom aluminum heat sink 14.5x9.5x21 small aluminum electronic heat sink		Send Order

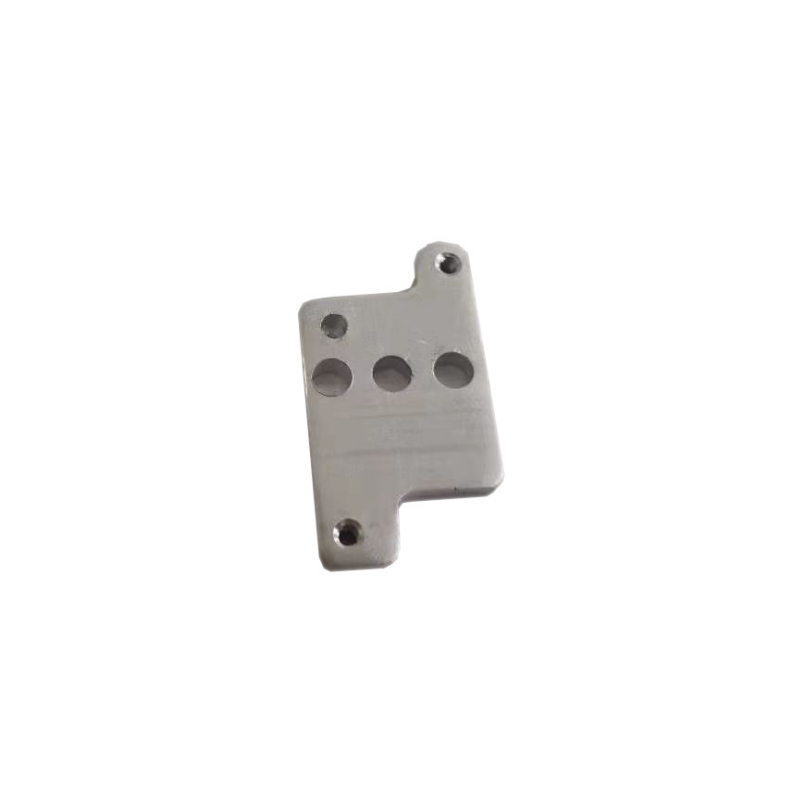

	FBHS-02	15x10（mm）	Steel/Stainless/Aluminum	15x10 triode circuit board power heat sink		Send Order

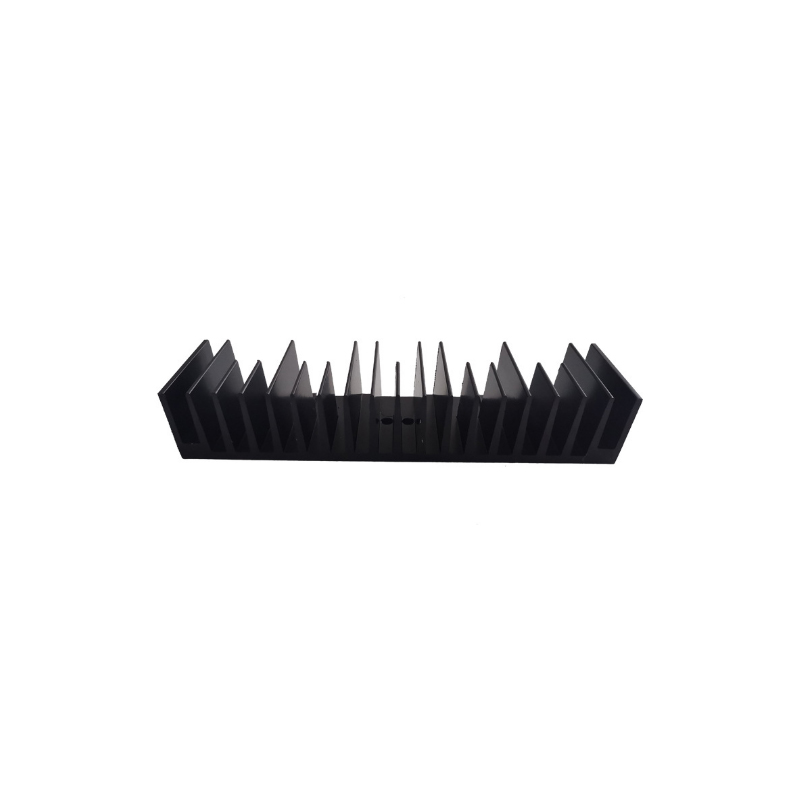

	FBHS-03	23x16(mm)	Steel/Stainless/Aluminum	23x16 aluminum alloy profile electronic power radiator		Send Order

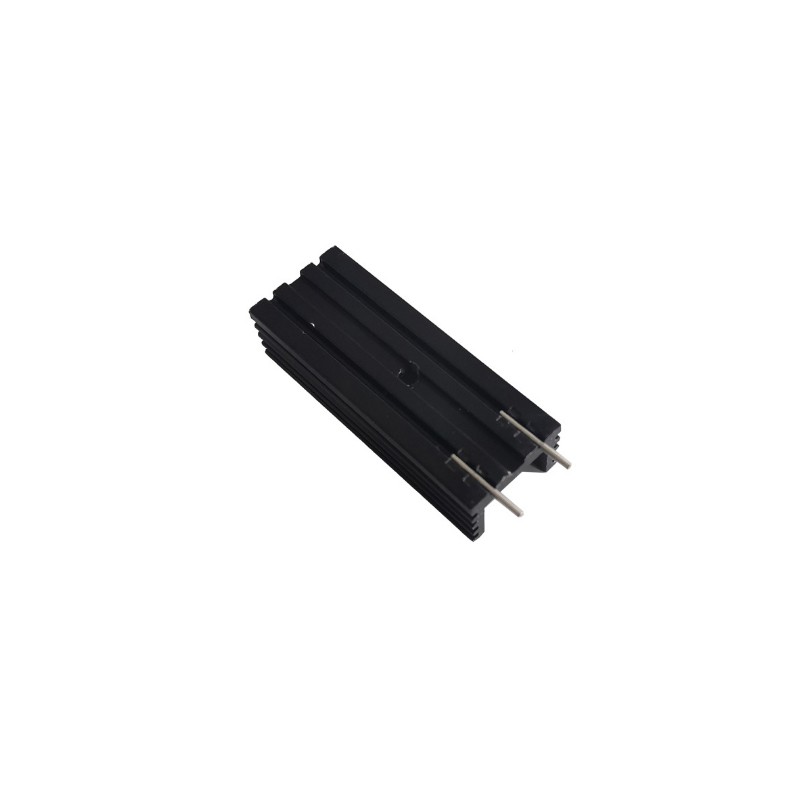

	FBHS-04	42x39	Steel/Stainless/Aluminum	42x39 Power circuit board LED module radiator aluminum heat sink		Send Order

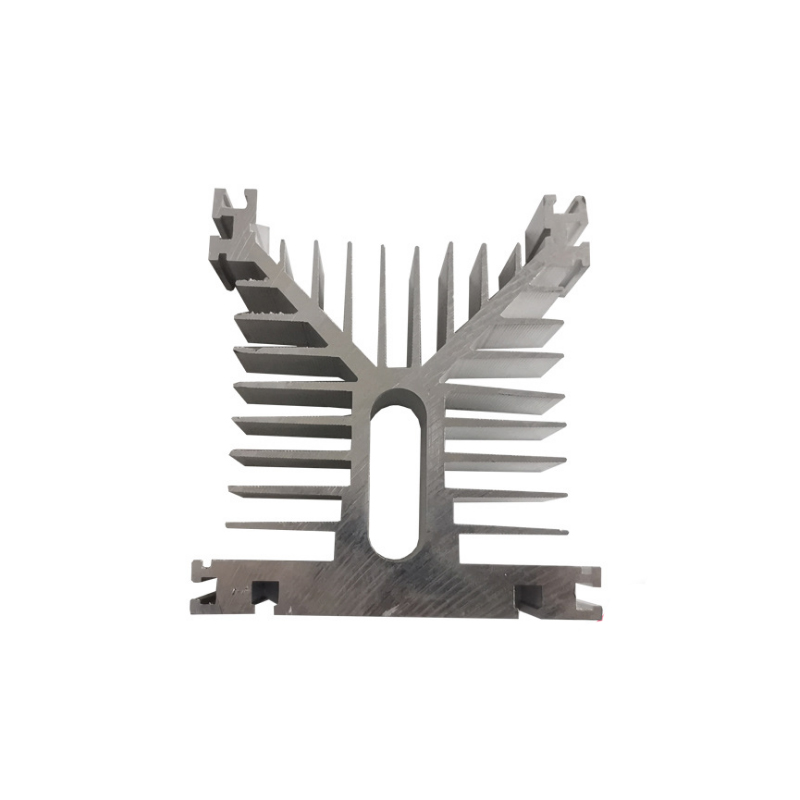

	FBHS-05	35x26	Steel/Stainless/Aluminum	35x26 semiconductor aluminum alloy heat sink		Send Order

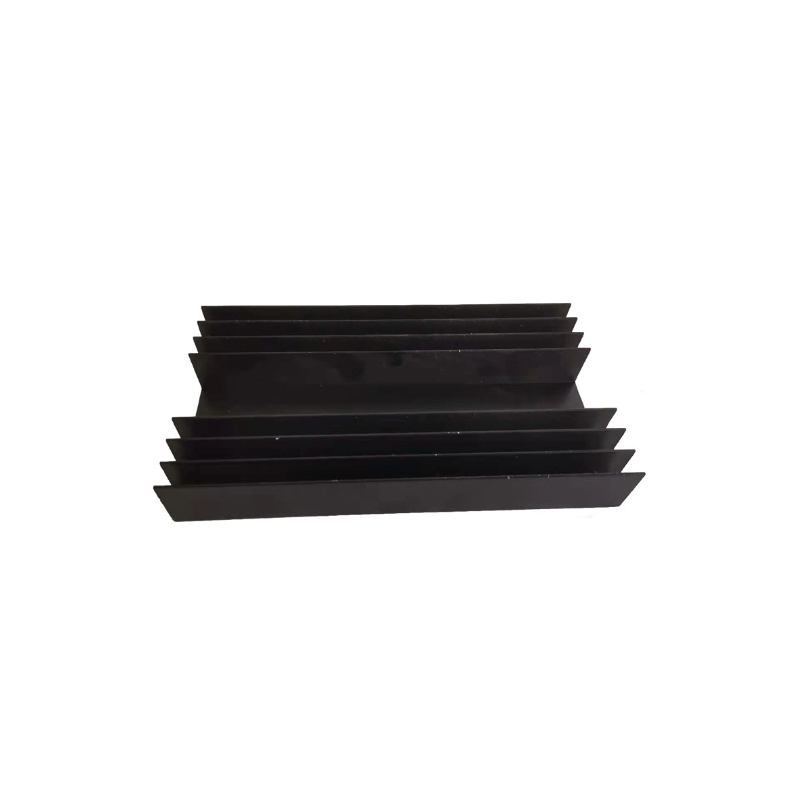

	FBHS-06	30x25	Steel/Stainless/Aluminum	30x25 aluminum alloy profile circuit board heat dissipation		Send Order

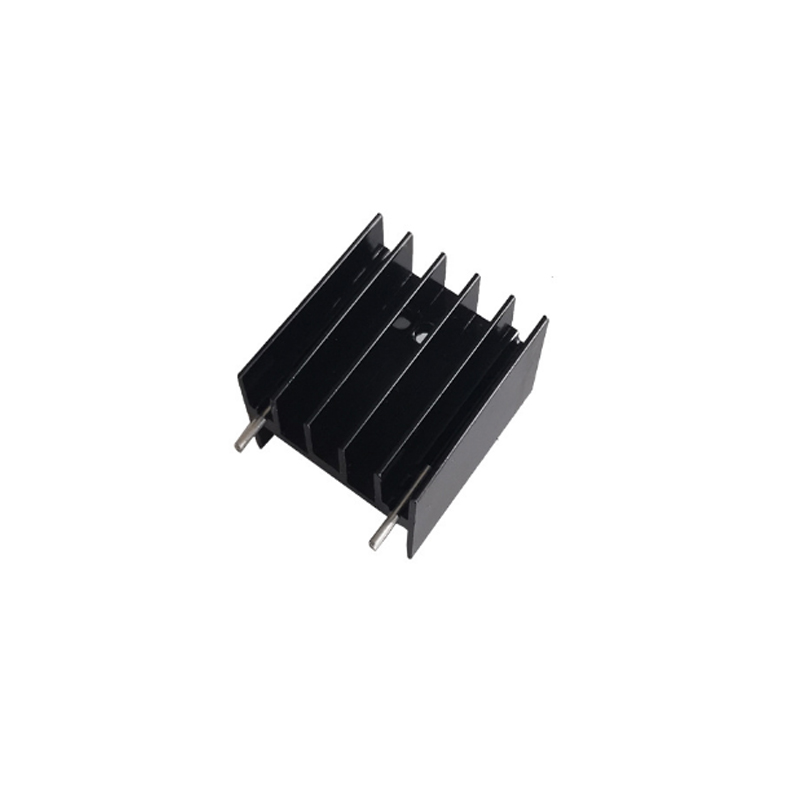

	FBHS-07	15x11x20	Steel/Stainless/Aluminum	Circuit board radiator 15x11x20 profile chip heat sink		Send Order

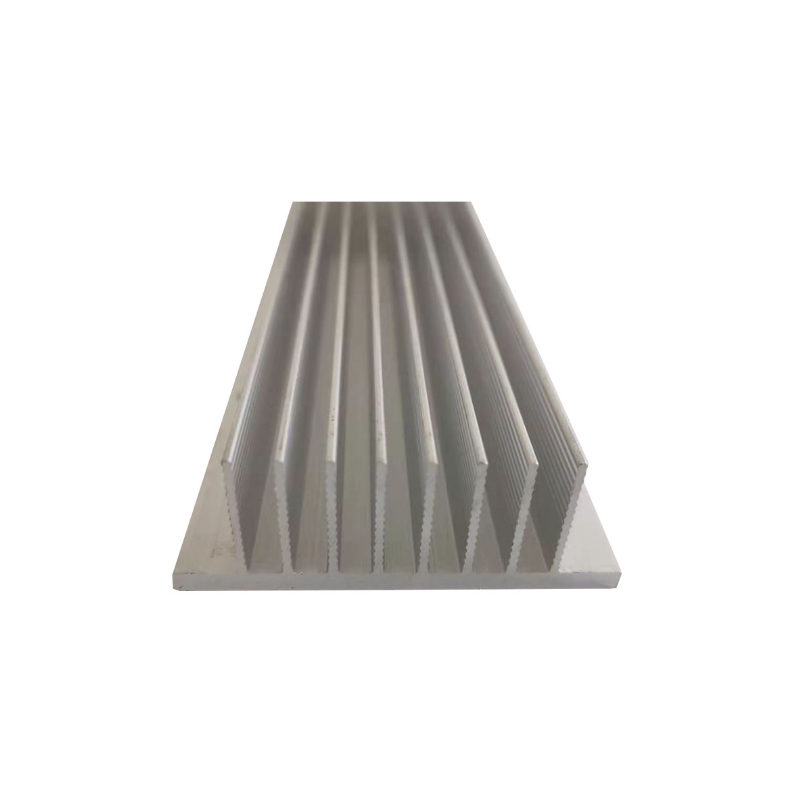

	FBHS-08	/	aluminium alloy	Small aluminum heat sink Aluminum plate heat sink 4 thick aluminum alloy chip heat sink		Send Order
	FBHS-09	120x55	Steel/Stainless/Aluminum	120x55 high-power power insert heat sink		Send Order
	FBHS-10	/	aluminium alloy	High power supply comb insert electronic radiator		Send Order
	FBHS-11	32x27x20	Steel/Stainless/Aluminum	32x27x20 aluminum to-220 fork finger heat sink		Send Order
	FBHS-12	94x40x105	Steel/Stainless/Aluminum	94x40x105 solid state relay module heat sink		Send Order
	FBHS-13	61x22	Steel/Stainless/Aluminum	Aluminum alloy profile heat sink 61x22 Ultrasonic mechanical profile electronic heat sink		Send Order
	FBHS-14	95x24	Steel/Stainless/Aluminum	High power aluminum heat sinkCNC stamped 95x24 aluminum electronic heat sink		Send Order
	FBHS-15	96x30	Steel/Stainless/Aluminum	Aluminium alloy heat sink 96x30 high density tooth mask heat sink		Send Order
	FBHS-16	130x93	Steel/Stainless/Aluminum	Aluminum heat sink 130x93 length arbitrary profiled relay heat sink		Send Order
	FBHS-17	125x135	Steel/Stainless/Aluminum	Heat sink 125x135 SCR electronic stamping heat sink for spot power adapter		Send Order
	FBHS-18	190x80	Steel/Stainless/Aluminum	Aluminum alloy radiator 190x80 high-power aluminum profile loose		Send Order
	FBHS-19	154x50	Steel/Stainless/Aluminum	High power and high density tooth radiator 154x50 welding machine aluminum profile power heat sink		Send Order
	FBHS-20	220x40	Steel/Stainless/Aluminum	Electronic aluminum radiator plate 220x40 high density tooth high power comb heat sink		Send Order
	FBHS-21	220x40	Steel/Stainless/Aluminum	Aluminum gb 6063 electronic fin 301x76 high density tooth high power comb heat sink		Send Order

•


  FBelec ensures prompt delivery and customization options to meet unique requirements, providing reliable and effective cooling solutions for a wide array of electronic devices. Visit our website for more details and to explore our extensive product lineup.




  High-Quality Aluminum Heat sinks for Superior Thermal Management

  Welcome to FBelec, the industry leader in providing top-tier aluminum Heat sinks designed for a variety of electronic applications. With our commitment to excellence and innovation, we strive to deliver cooling solutions that exceed performance expectations.




  Why Aluminum Heat sinks are the Go-To Solution for Thermal Management

  Aluminum Heat sinks are favored in the electronics industry for their unparalleled ability to dissipate heat efficiently. The choice of aluminum for Heat sinks is due to its impressive thermal conductivity, which ensures swift heat transfer away from critical components. Moreover, aluminum is lightweight, corrosion-resistant, and offers excellent mechanical properties for a multitude of design options.

  Our range of aluminum Heat sinks is crafted using high-grade materials, ensuring that your devices stay cool, stable, and operational even under the most demanding conditions.




  Custom and Standard Aluminum Heat sinks to Meet All Your Needs

  At FBelec, we understand that one size does not fit all in thermal management. That's why we offer a vast selection of both standard and custom-designed aluminum Heat sinks.

  > Standard Aluminum Heat sinks: Ready-to-ship options for immediate thermal solutions.

  > Custom Aluminum Heat sinks: Tailor-made designs based on your unique specifications and thermal requirements.

•

• Explore Our Diverse Aluminum Heatsink Portfolio

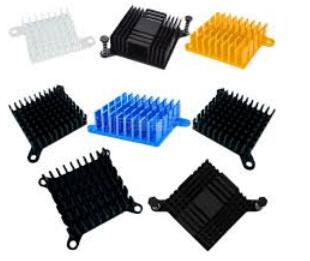

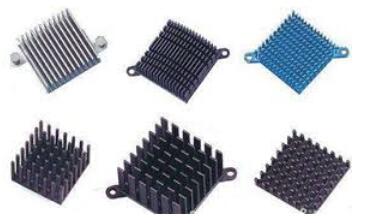

  BGA Aluminum Heat sinks

  Optimized for Ball Grid Array chipsets, our BGA Heat sinks are designed for efficient heat dissipation in compact spaces. With options for various airflow scenarios, we have the perfect solution to keep your BGA components operating at optimal temperatures.

•

• TYPE	MATERIAL	STYLE	LENGTH (MM)	WIDTH (MM)	HEIGHT (MM)	THETA SA (°C/W) AT 200LFM	THETA SA (°C/W) AT 400LFM	THETA SA (°C/W) AT 600LFM
  BGA	Aluminum	Plate Fin	22.1	26.9	14.6	4.2	2.6	2.1
  BGA	Aluminum	Plate Fin	22.1	26.9	17.6	3.5	2.2	1.8
  BGA	Aluminum	Plate Fin	22.1	26.9	22.9	2.7	1.7	1.4
  BGA	Aluminum	Plate Fin	27.2	32.3	14.6	3.1	1.9	1.5
  BGA	Aluminum	Plate Fin	27.2	32.3	17.6	2.6	1.6	1.3
  BGA	Aluminum	Plate Fin	27.2	32.3	22.9	2	1.3	1
  BGA	Aluminum	Plate Fin	29	34.8	14.6	2.9	1.7	1.3
  BGA	Aluminum	Plate Fin	29	34.8	17.6	2.4	1.4	1.1
  BGA	Aluminum	Plate Fin	29	34.8	22.9	1.9	1.2	0.9
  BGA	Aluminum	Plate Fin	34.5	39.1	14.6	2.5	1.5	1.1
  BGA	Aluminum	Plate Fin	34.5	39.1	17.6	2.1	1.3	1
  BGA	Aluminum	Plate Fin	34.5	39.1	22.9	1.7	1	0.8
  BGA	Aluminum	Plate Fin	19	19	9.5	5.71	4.17	3.57
  BGA	Aluminum	Plate Fin	19	19	12.7	5.15	3.72	3.16
  BGA	Aluminum	Plate Fin	19	19	6.3	6.26	4.58	3.97

• DC Aluminum Heat sinks

  Our DC Heat sinks are engineered for devices that require dependable cooling. These Heat sinks are available in various sizes and can be paired with fans for active cooling requirements, ensuring that your power supplies and converters remain cool.


•

• TYPE	STYLE	MATERIAL	LENGTH (MM)	WIDTH (MM)	HEIGHT (MM)	THETA SA (°C/W) AT 200LFM	THETA SA (°C/W) AT 400LFM	THETA SA (°C/W) AT 600LFM
  Pushpin	Platefin	Aluminum	57.9	36.8	11.4	2.2	1.3	1
  Pushpin	Platefin	Aluminum	57.9	36.8	22.9	0.9	0.6	0.5
  DCDC	Platefin	Aluminum	61	57.9	11.4	1.4	0.8	0.6
  Pushpin	Platefin	Aluminum	61	57.9	5.8	2.7	1.7	1.3
  DCDC	Platefin	Aluminum	116.8	61	11.4	1.2	0.7	0.5
  DCDC	Platefin	Aluminum	116.8	61	22.9	0.7	0.4	0.3

• Round Pin Aluminum Heat sinks

  Featuring a high-efficiency design, our round pin Heat sinks are ideal for multi-directional airflow, providing excellent performance in environments where air direction is variable.


•

• TYPE	MATERIAL	STYLE	LENGTH (MM)	WIDTH (MM)	HEIGHT (MM)	THETA SA (°C/W) AT 200LFM	THETA SA (°C/W) AT 400LFM	THETA SA (°C/W) AT 600LFM
  BGA	Aluminum	Roundpin	19	19	11.6	6.87	4.95	4.26
  BGA	Aluminum	Roundpin	19	19	14.6	6.56	4.66	3.96
  BGA	Aluminum	Roundpin	19	19	24.6	4.7	3.4	2.7
  BGA	Aluminum	Roundpin	27	27	11.6	5.04	3.21	2.38
  BGA	Aluminum	Roundpin	29	29	24.6	2.5	1.8	1.4
  BGA	Aluminum	Roundpin	33	33	11.6	3.46	2.25	1.66
  BGA	Aluminum	Roundpin	33	33	19.6	2.3	1.6	1.3
  BGA	Aluminum	Roundpin	33	33	24.6	1.9	1.4	1.2
  BGA	Aluminum	Roundpin	35	35	11.6	3.18	2.04	1.53
  BGA	Aluminum	Roundpin	35	35	14.6	2.97	1.87	1.37
  BGA	Aluminum	Roundpin	35	35	19.6	2	1.5	1.2
  BGA	Aluminum	Roundpin	35	35	24.6	1.8	1.3	1
  BGA	Aluminum	Roundpin	37.5	37.5	14.6	2.83	1.78	1.23
  BGA	Aluminum	Roundpin	40	40	11.6	2.96	1.92	1.39
  BGA	Aluminum	Roundpin	40	40	19.6	1.7	1.2	0.9
  BGA	Aluminum	Roundpin	42.5	42.5	19.6	2.19	1.18	0.73
  BGA	Aluminum	Roundpin	42.5	42.5	24.6	1.3	0.8	0.7

• Elliptical Fin Aluminum Heat sinks

  The elliptical fin design of these Heat sinks maximizes surface area for heat transfer, making them ideal for environments where passive cooling is preferred.


•

• TYPE	MATERIAL	STYLE	LENGTH (MM)	WIDTH (MM)	HEIGHT (MM)	THETA SA (°C/W) AT 200LFM	THETA SA (°C/W) AT 400LFM	THETA SA (°C/W) AT 600LFM
  BGA	Aluminum	Elliptical	17	17	10.7	7.8	6.1	5.43
  BGA	Aluminum	Elliptical	17	17	13.7	7.16	5.54	4.82
  BGA	Aluminum	Elliptical	17	17	21.7	5.74	4.36	3.69
  BGA	Aluminum	Elliptical	17	17	31.7	4.83	3.66	3.18
  BGA	Aluminum	Elliptical	19	19	14.6	5.89	4.48	3.84
  BGA	Aluminum	Elliptical	19	19	17.6	5.45	4.03	3.48
  BGA	Aluminum	Elliptical	19	19	22.6	4.7	3.46	2.98
  BGA	Aluminum	Elliptical	19	19	32.6	3.88	2.88	2.54
  BGA	Aluminum	Elliptical	21	21	14.6	5.1	3.46	2.82
  BGA	Aluminum	Elliptical	21	21	27.6	3.74	2.52	2.04
  BGA	Aluminum	Elliptical	21	21	32.6	3.43	2.29	1.9
  BGA	Aluminum	Elliptical	23	23	14.6	4.22	2.94	2.46
  BGA	Aluminum	Elliptical	23	23	20.6	3.69	2.49	2.06
  BGA	Aluminum	Elliptical	23	23	27.6	3.1	2.1	1.6
  BGA	Aluminum	Elliptical	23	23	32.6	2.82	1.89	1.6

•
