AC/DC Adapter

Picture	Manufacturer No.	Size	Input voltage	Ampere	Output Voltage	Description	Datasheet	Order

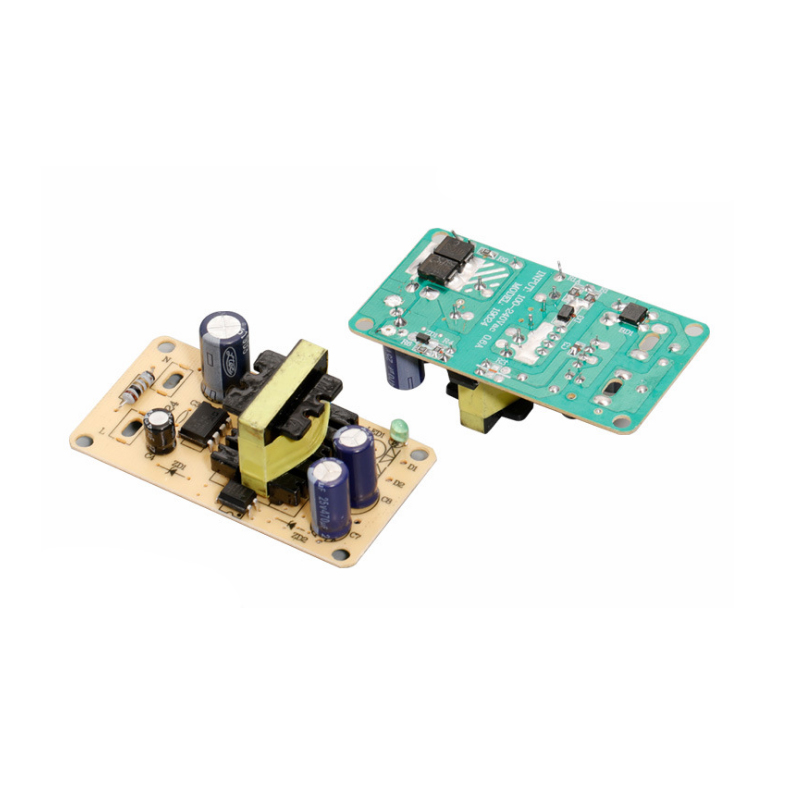

	FBAD-001	70*38*25mm	12V	2A	100-240V	New 12v2a power supply bare board full power built-in LED lamp constant voltage scheme regulated DC power supply circuit board		Send Order

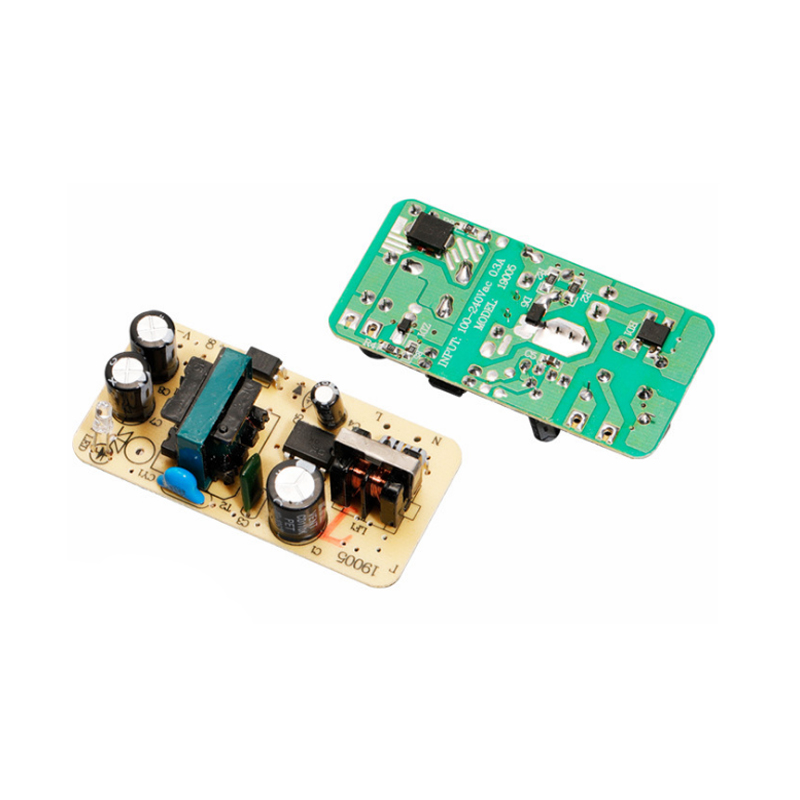

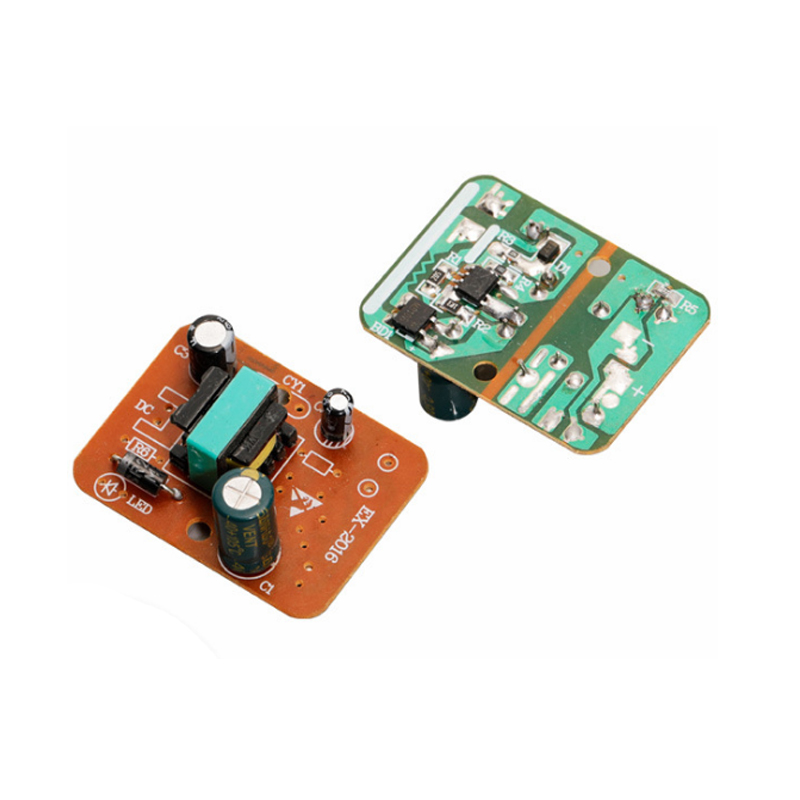

	FBAD-002	40*30*15mm	100-240V	1A	3V 5V 6V 9V 12V	3V5V6V9V12V0. 5A low power bare board new 12v500ma power circuit board with lamp bare board		Send Order
	FBAD-003	92*45*23mm	100-240V	4A	12V	New 12v4a power adapter bare board constant voltage light bar audio display module power PCB circuit board		Send Order
	FBAD-004	100*49*23mm	100-240V	6A	12V	FBELE 12v6a power circuit board motor fan pump display power bare board 72W full power		Send Order

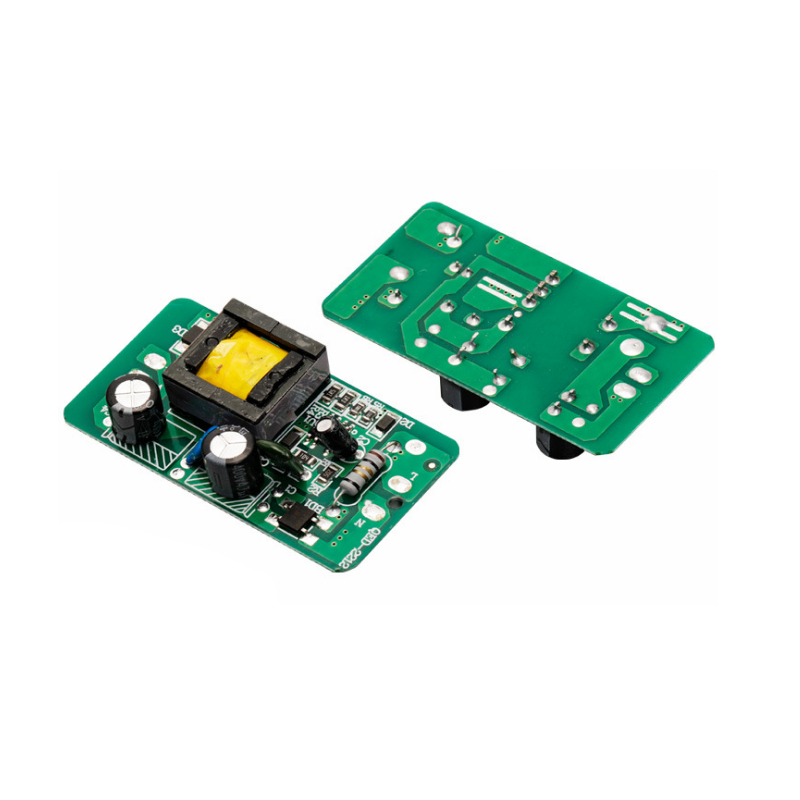

	FBAD-005	56*30*12mm	100-240V	1A	12V	New 12V1A double-sided board power circuit board 12v1000ma LED driving lamp with power bare board patch		Send Order
	FBAD-006	64*32*19mm	100-240V	1.5A	12V	12v1 5A power supply bare board LED built-in power supply bare board 12v1 5A power circuit board with filter		Send Order

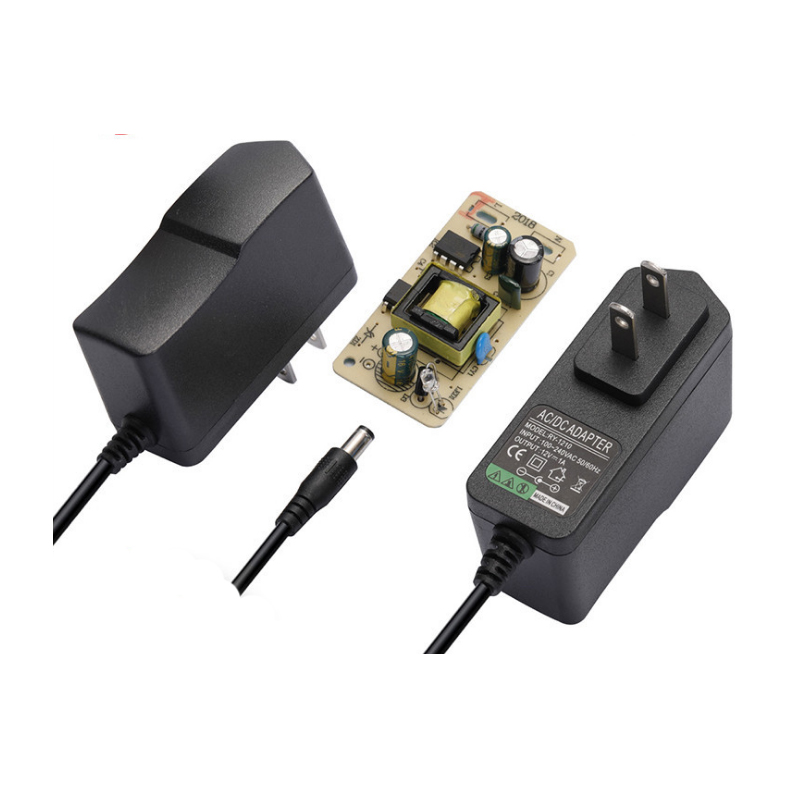

	FBAD-007	75*40*25mm	100-240V	1000mA	12V	5v2a British power adapter 5v1a 6v1a 9v1a 9v2a 12V1A 12v2a British charger		Send Order
	FBAD-008	73*40*25mm	100-240V	1A	9V	9v1a power adapter 9v1000ma optical cat router electronic organ POS card reader nail pen power supply		Send Order
	FBAD-009	112*54*32mm	100-240V	3A	24V	24v3a power adapter RO water purifier booster pump power supply 24V2 5A fill light power supply		Send Order

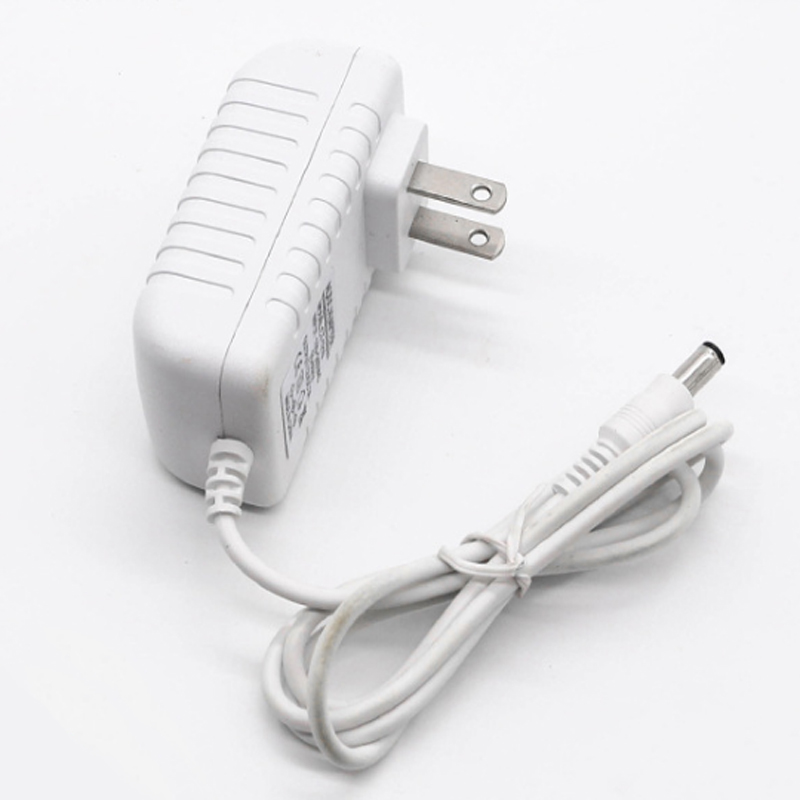

	FBAD-010	75*40*25mm	100-240V	1-3A	12V	12v2a white power adapter 12V1A 3A American, European, Australian and British white LED lamp vanity mirror power supply		Send Order
	FBAD-011	70*48*27mm	100-240V	1A	12V	12V1A two-wire power adapter 12v1000ma security monitoring power adapter camera power supply		Send Order

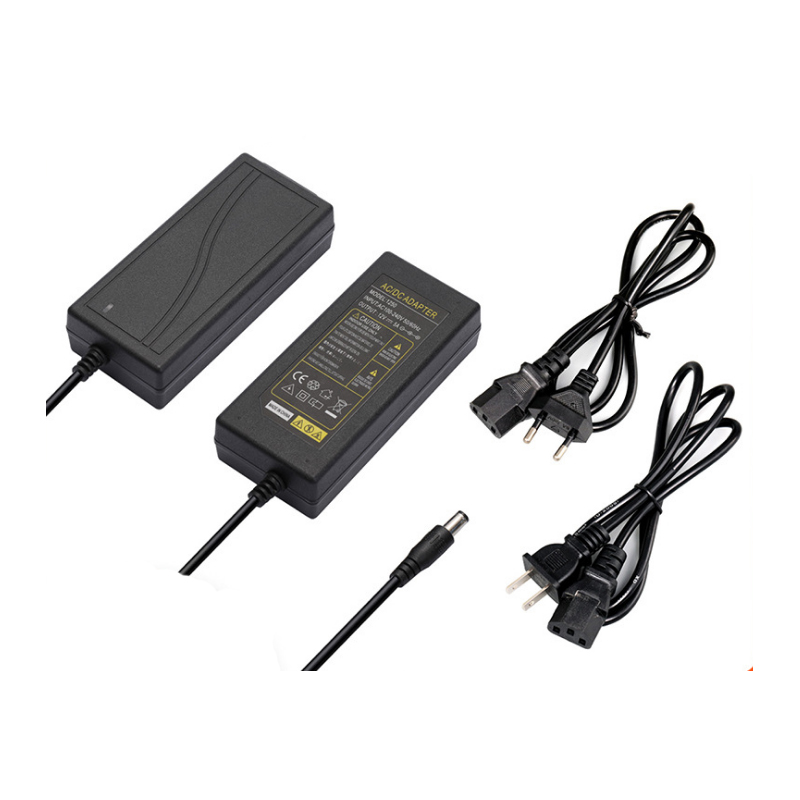

	FBAD-012	128*33*25mm	100-240V	0-5A	12V	12v5a power adapter LED lamp with LCD 60W desktop heating pad power adapter		Send Order
	FBAD-013	99*52*32mm	100-240V	1-3A	12V	12V1A with 303 switching power adapter 12v2a water pump power supply 12v3a motor LED light with power supply		Send Order

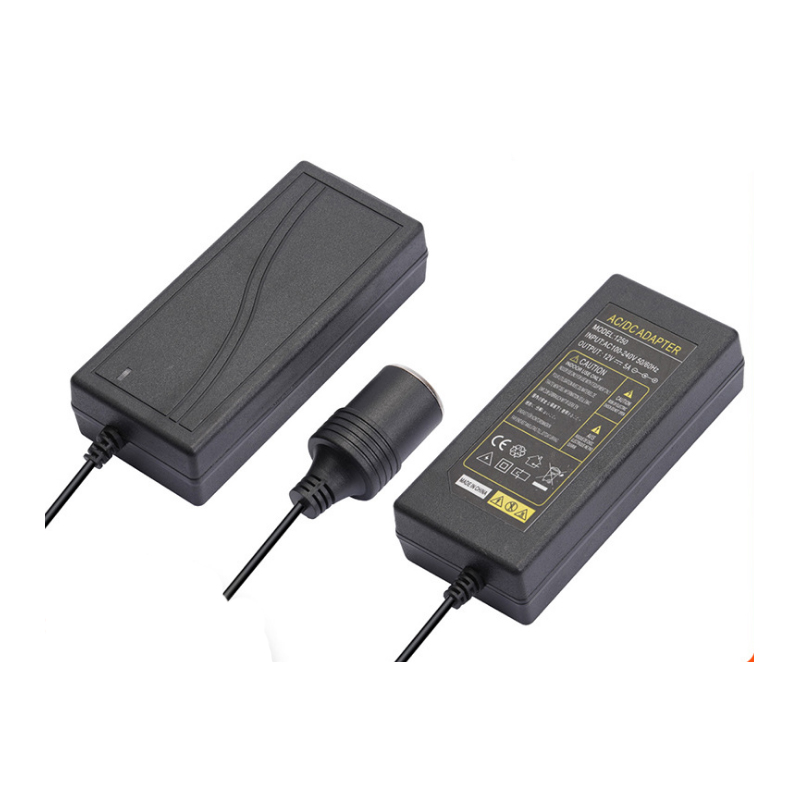

	FBAD-014	115*56*23mm	100-240V	5A	12V	12v5a on-board power adapter 220V to 12V on-board vacuum cleaner power 60W cigarette end charger		Send Order

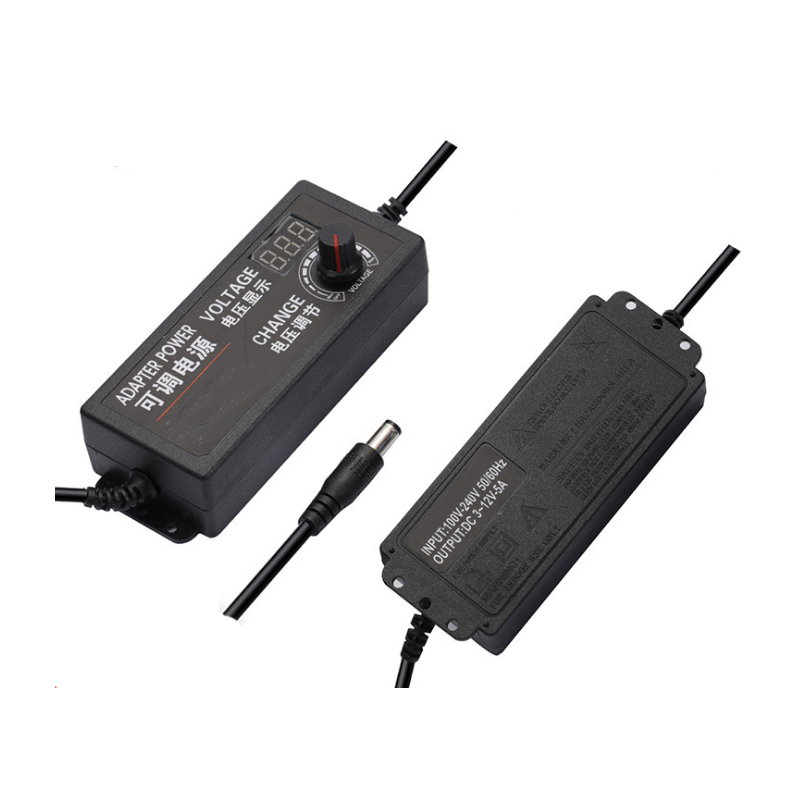

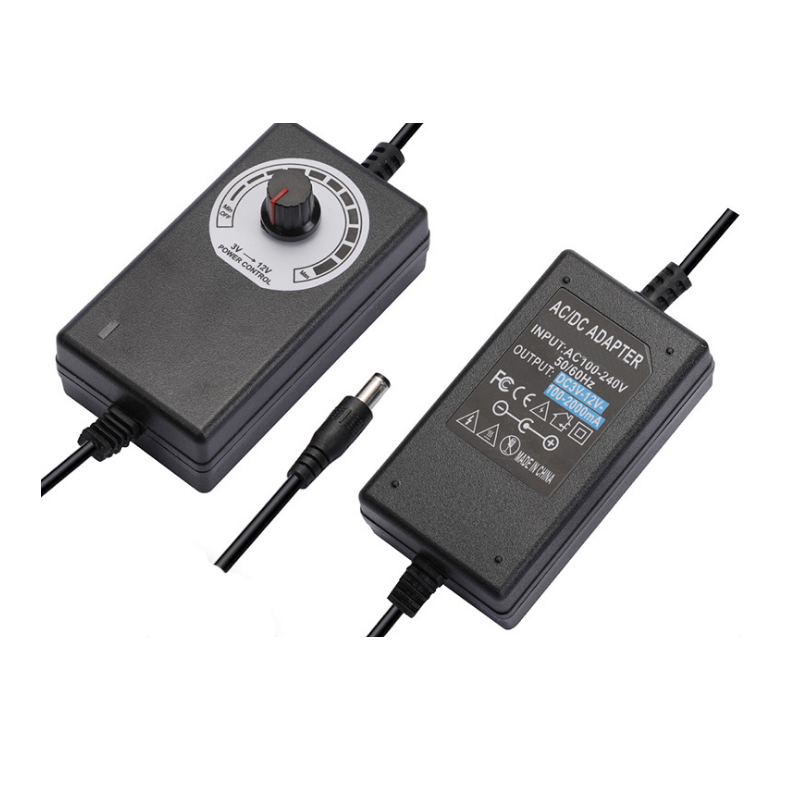

	FBAD-015	110*40*30mm	100-240V	2A 3A 5A	3-24V 9-24V 3-12V	3-12v5a adjustable power adapter 3-24v2a dimming and temperature regulating 9-24v3a two-wire power supply with display		Send Order
	FBAD-016	90*50*30mm	100-240V	1A 2A	3-24V 9-24V 3-12V	3-12v2a adjustable power adapter 3-24v1a dimming, voltage regulating, speed regulating and temperature regulating 9-24v1a two-wire power supply		Send Order

• AC/DC Adapters

  AC adapter (Japanese AC アプー) (AC/DC Adapter), AC means alternating current, and Ac Charger is an AC power source. Many electrical appliances require the use of AC adapters. The term AC adapter is simply used in commercial products, which essentially refers to an AC power supply. In the industrial field, we refer to it as a switching power supply, but there is a slight difference in appearance.



  Safety regulations and standards

  1. Tracing back to safety standards
  EN60335, EN60950, UL60950, AS/NZ60950, EN61558, J60950GB4943, GB17625;
  Electromagnetic compatibility CISPR22, Class B, EN55022, FCC insulation level B.



  2. 19V4.75A power supply, model: FY1904750 Trademark: FBelec

  1. Stress test: Each lead terminal of the product can withstand an axial tensile force of 2 kilograms for 60 seconds without any looseness, blockage, or other damage.

  2. Drop test: The product has a self height of 90CM, with one drop in each X-Y-Z direction. After falling onto a loose wooden board with a thickness of 1 CM, there are no abnormalities. The insulation resistance test is conducted, with a minimum of 10M ohms. Refer to GB/T 4857.

  3. Wire sway test: The wire weighs 200 grams and swings left and right at an angle of 120 degrees. After 300 rounds, it must still be conductive. Refer to UL-817/JISC8306.



  Folding to obtain authentication

  > US/Canada UL, cUL, FCC, NrCAN, CEC

  > Europe/Germany TUV/GS, CE, ErP, CB, RoHS, LVD, EMC

  > British BS,

  > Australia SAA, C-Tick, MEPS

  > Korea KC

  > Japan PSE

  > China CCC

•
• China Leading Manufacturer of AC/DC Adapter

•


  What issues should be noted when purchasing an AC adapter?

  1. It is important to be clear about the range of input voltage for your power adapter, preferably using the world standard AC100-240V voltage input, in order to prevent your computer from being unusable when traveling abroad or smoking when connecting to AC220V when returning to China.

  2. Be sure to understand the output voltage and current of your power adapter!

  It is best to be completely consistent with the nominal voltage and current of your power supply. As for the brand, there is not much difference in quality between different brands, because many brands of power supplies may come from the same power supply manufacturer and are OEM produced.

  Although the output voltage and current of the power supply have a small range of variation, the protection points for overcurrent and overvoltage are precisely tested and set by the manufacturer. Different computers have different load resistance values. Once certain circuit faults occur in the computer, the power adapter can play a protective role. If a power adapter with non nominal voltage and current is selected, its overvoltage and overcurrent protection point settings may not be the same, which may not protect the computer.

  3. Be clear about the aperture size of the DC output line of your power adapter, as well as the positive and negative differences inside and outside. Don't buy it and only realize that it can't be plugged in.




  Ac/Dc Switching Adapter, Folding input and output characteristics

  1. Input Voltage: PLUG MINIMUM NORMAL MAXIUM, 100VAC 50/60Hz 110VAC 50/60Hz 264VAC 50/60Hz

  2. Output Voltage: PLUG LOADING NO LOAD RIPPLE, 24VDC 7.5A 24VDC ± 7.5% 240mVP-P MAX

  3. Input Current: NO LOAD AC 100V 50/60Hz AC 110V 50/60Hz AC 264V 50/60Hz

  4. Input Power: 0.5 W maximum without load, at input voltage of 100-240VAC 50/60 Hz. Load: 200W maximum.

  5. Efficiency: 90% MIN. AT RATED Input and OUTPUT

  6. Temperature Rise: 65 ℃ MAX.

  7. Insulation Resistance: 500VDC100 M Ω MIN.

  8. Voltage Withstand Test: 5mA 3000 VAC for 1 minute, between input and output, input and casing for 1 minute. When selecting to increase the voltage withstand by 5%, the application time is 1 second.

  9. Inrush Current: PEAK INRush Current SHALL BE LIMITED 15A FOR A COLD START




  4. 9-1 Power factor: 0.91 MIN.




•
• China Best power adapter Manufacturer & Supplier

•


  FBelec Dc To Dc Charger, 12v2a power adapter is a professional R&D team that integrates services, focusing on high quality, fast charging, and fast charging.
  Come and visit the factory, fast installation, and focus on power R&D and manufacturing for 20 years.
  PD multi port fast charging, universal power adapter, 3D printer power supply, ac-dc power adapter,
  FBelec. The product appearance is self-designed and independently developed.
  The product quality is good, and the price is excellent.
  Welcome new and old customers to come and purchase!





• AC DC Adapter & Switching Power Supply Manufacturer & Supplier




•

•


  Based on Different Input & Output, our Production include below
  AC/DC switching power supply / DC/DC switching power supply




• •

    Switching Power Supply can switch 220V / 110V to 1V-96V for use.

  •

    Provide current protection, constant voltage, constant current…etc relative electric reliability.

  •

    Provide AC pin include UL, EU, SAA, UK & CN for common use.

  •

    Input range : 110V – 240V

•


  Generally speaking, the commonly used low-voltage AC switching power adapter rectifies 220VAC electricity directly into an AC voltage of around 300V after passing through an EMI filter. The circuit controls the switching tube for high-speed conduction and cutoff, and then converts it into high-frequency AC electricity to supply to the transformer for voltage transformation. This generates one or more sets of voltage required, which is then rectified into the required voltage of AC electricity.




  The AC/DC switching power adapter chip (or module) can be made into a basic switching power adapter by combining some resistive and capacitive components and a switching transformer.
