Coreless Motor

Picture	Manufacturer No.	Size	Voltage	Ampere	Speed	Torque	Description	Datasheet	Order
	FBDCM-01	100*50	12-48V	0.85-27A	4100-7100rpm	1-10（NM）	coreless brushless motor with a diameter of 50mm is suitable for motors of medical devices		Send Order
	FBDCM-02	70*40	12-48V	0.85-12A	1600-7500rpm	1-10（NM）	The manufacturer supplies high torque and high power hollow cup motor with diameter of 40mm DC brush motor robot motor		Send Order
	FBDCM-03	70*40	3-48V	0.12A	2000-100000rpm	0.1（NM）	The manufacturer provides 40mm diameter coreless brush motor reduction motor reduction motor robot motor		Send Order
	FBDCM-04	70*40	12-48V	0.85-12A	1600-7500rpm	20（NM）	40mm diameter coreless brush motor, 4070 high-power coreless reducer motor		Send Order
	FBDCM-05	60*36	12-36V	1-3A	4400-5100rpm	1-10（NM）	coreless brushless motor 3660 electric tool motor can replace maxon motor		Send Order
	FBDCM-06	70*36	3-48V	4-11A	2000-100000rpm	0.1（NM）	Customized hollow cup DC brushless motor diameter 36mm replaceable Maxon power tool		Send Order
	FBDCM-07	40*36	3-48V		2000-100000rpm		DC brush coreless motor, beauty instrument motor. 3640 coreless motor		Send Order
	FBDCM-08	71*35	12-48V	1-10A	6000-7000rpm	0.1（NM）	3571 brush coreless motor brush high power motor replaces johnson motor		Send Order
	FBDCM-09	35*57	12-48V	0.5-2A	5000-6000rpm	0.2-0.4（NM）	The motor manufacturer supplies 3557 DC brush coreless motor Carbon brush coreless motor		Send Order
	FBDCM-10	71*35	12-48V	2-8A	6000-7000rpm	0.1（NM）	high torque Coreless DC brushless motor with diameter of 35mm, suitable for power tools and beauty instruments		Send Order
	FBDCM-11	35*53	12-48V	0.9-4A	6000-10000rpm	1（NM）	FBELE Brand 35mm diameter hollow cup brush motor robot motor large torque reduction motor		Send Order
	FBDCM-12	35*71	12-48V	2-8A	6000-7000rpm	2（NM）	35mm diameter coreless brush DC motor with imported graphite brush		Send Order
	FBDCM-13	64*32	12-36V	4-8A	6000-18000rpm	0.1（NM）	brushless coreless slotless bldc motor cheap price China factory		Send Order
	FBDCM-14	64*32	36V	8A	18000rpm	0.1（NM）	diameter 32mm coreless brushless reducer motor equipment motor electric screwdriver motor		Send Order
	FBDCM-15	63*32	12-48V	0.5-4A	5000-7000rpm	0.1（NM）	3263 coreless motor DC brush hollow cup motor precision instrument motor		Send Order
	FBDCM-16	63*32	12-48V	0.5-4A	6000-11000rpm	0.1（NM）	32mm 12V 24V 36V Coreless Dc Motor Alternative For Maxon Motor 3570		Send Order
	FBDCM-17	45*30	24V	1-12A	4000-10000rpm	0.1（NM）	Can customize coreless DC brushless motor with diameter of 30mm, suitable for power tools and beauty instruments		Send Order
	FBDCM-18	64*30	12-48V	2-10A	14000-15000rpm	0.1（NM）	coreless motor Replace Maxon 17mm magnetic dc motor powerful electric tool motor for steering servo robots tattoo		Send Order
	FBDCM-19	45*30	6-24V	0.4-2A	4000-6000rpm	0.1（NM）	30mm coreless DC brush motor reducer motor		Send Order
	FBDCM-20	56*28	24-36V	3-21A	9000-18000rpm	0.1（NM）	24v 28MM Blength 12000rpm dc micro coreless brushless servo motor for medical pump		Send Order
	FBDCM-21	45*28	12-36V	2-5A	14000-17000rpm	0.1（NM）	Big Torque High Efficiency 30V 36V Coreless Type Brushless DC Motor 28mm for Electric File Power Tools		Send Order
	FBDCM-22	51*28	24V	0.28A	10000rpm	0.8（NM）	2850 carbon brush coreless motor 12V coreless motor high power motor		Send Order
	FBDCM-23	57*28	12V		20000rpm		2857 coreless brushless motor diameter 28mm hollow cup motor Swiss motor substitute		Send Order
	FBDCM-24	24*31	6-24V	0.1-0.5A	7000-9000rpm	1-10（NM）	coreless DC brush motor with diameter of 24mm is suitable for automatic robot of electric tool		Send Order
	FBDCM-25	31*24	6-24V	0.1-0.5A	8000-10000rpm	1-10（NM）	The new 24mm coreless DC motor has a voltage of 6V ~ 30V, stable performance, low sound and high torque		Send Order
	FBDCM-26	60*22	12V	1-3A	18000rpm	1-10（NM）	Customized coreless DC brushless special-shaped motor with diameter of 22mm is suitable for electric tools and instruments		Send Order
	FBDCM-27	45*22	12-36V	0.5-3A	11000-13000rpm	0.1（NM）	FBELE produce DC brushless motor 2245 brushless worm reducer motor can be customized		Send Order
	FBDCM-28	45*22	12-24V	0.8-2A	10000-12000rpm	1-10（NM）	Supply coreless brushless reduction motor electric tool motor DC reduction motor		Send Order
	FBDCM-29	30*22	6-24V	0.2-1A	9000-10000rpm	1-10（NM）	Direct selling 22mm coreless motor high efficiency motor pump motor DC gear reduction motor		Send Order
	FBDCM-30	25*22	6-24V	0.3-1A	9000-12000rpm	1-10（NM）	22mm coreless motor 22 * 25 coreless DC brush motor nail gun motor		Send Order
	FBDCM-31	50*22	6-36V	0.9-2A	7000-11000rpm	1-10（NM）	hollow shaft coreless/hollow cup motor brushless motor dc motor for hollow shaft medical intelligent device, eyebrow tattoo unit		Send Order
	FBDCM-32	30*22	6-24V	0.2-1A	9000-10000rpm	1-10（NM）	Brush hollow cup motor precision instrument motor 2230 beauty instrument hollow cup motor		Send Order
	FBDCM-33	26*7	8V	0.2-0.5A	4000-10000rpm	1-10（NM）	Black 26mm DC hollow cup motor beauty instrument tattoo machine hollow cup motor		Send Order
	FBDCM-34	57*20	24V	0.5-2A	5000-13000rpm	1-10（NM）	The source manufacturer can customize the coreless DC brushless motor with a diameter of 20mm, which is suitable for power tools and beauty instruments		Send Order
	FBDCM-35	59*20	12-36V	1-4A	38000-40000rpm	1-10（NM）	Customized 3V6V/8V/12V/24V/13mm/15mm/16mm/17mm/19mm/20mm/22mm/24mm Coreless Brushed DC Motors		Send Order
	FBDCM-36	22*20	6-24V	0.1-0.7A	8000-10000rpm	1-10（NM）	20mm 24v small medical equipment high speed and torque coreless dc micro motor		Send Order
	FBDCM-37	56*12	6-24V	0.2-2A	8000-11000rpm	1-10（NM）	Hot sals 12v dc motor with dual shaft 16mm coreless double output shaft dc motor		Send Order
	FBDCM-38	36*16	6-24V	0.3-2A	6000-12000rpm	1-10（NM）	16mm long lifespan bldc motor 12v 24v coreless dc motor		Send Order
	FBDCM-39	24*17	3-8V	0.1-0.5A	9000-18000rpm	1-10（NM）	16*36mm high performance coreless dc motor 24 volt 12v brush door locking system electronic locks 12000 rpm 16 mm		Send Order
	FBDCM-40	40*16	12-36V	0.1-0.5A	5000-6000rpm	1-10（NM）	DC brushless motor diameter 16mm applicable to electric tools and beauty products		Send Order
	FBDCM-41	40*16	6-24V	0.1-0.5A	6000-10000rpm	1-10（NM）	Hollow cup DC brush motor diameter 16mm motor precision instrument motor		Send Order
	FBDCM-42	18*16	9-24V	0.1-0.3A	11000-12000rpm	0.1（NM）	16 * 18mm coreless brushless reduction motor, Swiss maxon motor substitute		Send Order
	FBDCM-43	26*16	3.7-24V	0.2-0.7A	6800-8800rpm	1-10（NM）	1625 coreless motor diameter 16mm DC brush hollow cup motor beauty motor		Send Order
	FBDCM-44	22*17	12-24V	0.4-0.8A	21000-23000rpm	1-10（NM）	Diameter 17mm coreless brushless motor can be customized as a substitute for maxon motor in Switzerland		Send Order
	FBDCM-45	26*17	6-24V	0.2-0.8A	10000-11000rpm	1-10（NM）	China 17mm precision instrument motor brush DC hollow cup motor micro motor tattoo motor		Send Order
	FBDCM-46	26*17	6-24V	0.2-0.5A	8000rpm	1-10（NM）	coreless reduction motor, diameter 17 * 25MM, planetary reduction, large torque and low noise		Send Order
	FBDCM-47	18*17	4.2-12V	0.5-1.5A	16000-17000rpm	1-10（NM）	1718 hollow cup motor, diameter 17mm hollow cup motor, micro motor		Send Order
	FBDCM-48	25*15	9-24V	1-3A	40000-55000rpm	1-10（NM）	15*25mm 3V 6200rpm low cost driving dc coreless motor Shenzhen factory		Send Order
	FBDCM-49	25*15	9-24V	1-3A	40000-55000rpm	1-10（NM）	60000rpm 6*15mm 3.7v Dc Coreless Motor For Rc Airplane,Mini Drone Motor With Jst Connector		Send Order
	FBDCM-50	20*13	3.7-24V	0.1-0.5A	7600-9600rpm	0.1（NM）	13mm coreless DC motor is a substitute for precision instrument motor Maxon and Faulhaber motor		Send Order
	FBDCM-51	31.2*13	3-24V	0.4-0.9A	9600-12960rpm	1-10（NM）	DC brush hollow cup motor 13 * 31mm hollow cup motor beauty motor		Send Order
	FBDCM-52	31.2*13	3-24V	0.4-0.9A	9600-12960rpm	1-10（NM）	1331 12v light weight tattoo pen coreless brush micro dc motor		Send Order
	FBDCM-53	24.2*15	3-24V	0.1-0.6A	7600-10000rpm	0.1（NM）	15mm hollow cup reduction motor hollow cup DC motor maxon motor substitute		Send Order
	FBDCM-54	31.2*13	3-24V	0.4-0.9A	8800-13000rpm	1-10（NM）	high quality 12mm 13mm 16mm 22mm 6v 12v dc gear motor coreless motor for smart robot		Send Order
	FBDCM-55	30*12	6-24V	0.2-0.4A	9000-12000rpm	1-10（NM）	The manufacturer produces 12.4mm precision instrument motor coreless brush DC motor and electric tool motor		Send Order
	FBDCM-56	15.2*12	4.5-24V	0.1-0.3A	11000-28000rpm	0.1（NM）	12 * 15mm coreless speed reduction brush motor, 3v-12v, high efficiency, low noise and stable performance		Send Order
	FBDCM-57	20*10	7-12v	0.3-2A	39000-80000rpm	0.1（NM）	FBELE 10mm brushless motor precision high torque DC micro motor 12V intelligent electric motor		Send Order
	FBDCM-58	152*53	12-72V	10-40A	3200-6400rpm	1-10（NM）	Coreless brushless dc motor 9000rpm with encoder from China		Send Order
	FBDCM-59	117*42	24V	6-48A	3700-7400rpm	1-10（NM）	coreless DC brushless motor with diameter of 42mm is suitable for electric tools and medical equipment		Send Order
	FBDCM-60	75*42	12-48V	2-11A	6000-8000rpm	1-10（NM）	42mm 48v 10700rpm high torque brushless dc coreless Replace Maxon Faulhaber motor		Send Order
	FBDCM-61	100*50	24-48V	9-16A	5000-6000rpm	1-10（NM）	24v Bldc Motor Coreless Dc Manufacturer 8300 Rpm 12v 4200rpm Brushless GEAR MOTOR Electric Bicycle CAR Permanent Magnet FAN ROHS		Send Order
	FBDCM-62	100*50	24-48V	9-16A	5000-6000rpm	1-10（NM）	50mm coreless brushless permanent magnet DC micro motor mabuchi motor substitute		Send Order
	FBDCM-63	50*45	24V	0.28A	6000rpm	1-10（NM）	45mm high efficiency brushless motor ec4550 brushless motor electric tool DC motor		Send Order
	FBDCM-64	75*42	12-48V	2-11A	6000-8000rpm	1-10（NM）	42 * 75mm coreless brushless motor high torque motor robot motor		Send Order
	FBDCM-65	26*8	12V	0.1-1A	7200-15000rpm	1-10（NM）	Customized hollow cup DC brush motor 2607 is suitable for electric tools and beauty instruments		Send Order
	FBDCM-66	100*50	36V		5000rpm	1（NM）	Supply high torque and high power hollow cup motor 50mm diameter DC brush motor robot motor		Send Order
	FBDCM-67	36*45	6V	0.05A	10000rpm	0.02（NM）	36 * 45mm coreless brushless motor micro motor precision instrument motor		Send Order
	FBDCM-68	54*28	12-36V	1-5A	13000-15000rpm	1-10（NM）	coreless micro brushless motor with a diameter of 28mm has small volume, low noise and large torque		Send Order

•


  Premium Coreless DC Motors for Precision Applications | FBelec

  At FBelec, we are at the forefront of coreless DC motor technology, delivering unparalleled performance and quality with our meticulously engineered motors. Our specialized range of coreless brush DC motors, available in compact sizes from 3.2mm to 7mm in diameter, is designed to cater to the intricate needs of diverse industries.




  Why Choose FBelec's Coreless Brush DC Motors?

  > Bespoke Motor Solutions: Tailor your experience with our OEM & ODM services, ensuring that the coreless motor you receive is perfectly suited to your unique application.

  > Exceptional Quality: Each motor undergoes rigorous testing, backed by comprehensive specifications, detailed data sheets, robust test reports, and performance data, accompanied by relevant certifications.

  > Responsive Service: Experience our commitment to excellence with a swift response time of 4 hours and benefit from our customer-centric approach.

  > Global Reach: No matter where you are, our worldwide DHL shipping promises prompt and reliable delivery of your coreless DC motors.

  > Flexible Ordering: With a low MOQ starting at just one piece, we make it easy for you to begin your project without delay.

  > Added Value: Receive free cable and connector assembly with your order, streamlining the integration process of our motors into your project.




  Innovative Design for Optimum Performance

  Our coreless motors are designed for efficiency, featuring a lightweight rotor with high-performance wire windings and a stator that ensures a consistent magnetic field. This innovative design results in a motor that is quick to respond, energy-efficient, and easier to control, making it ideal for applications where precision is key.




  Explore Our Diverse Motor Range

  > 3.2mm Coreless Brush DC Motors: Ideal for compact and portable devices, offering precision in a small package.

  > 4mm Coreless Brush DC Motors: The perfect balance of size and power, suitable for a variety of applications.

  > 6mm & 7mm Coreless Brush DC Motors: For applications requiring more torque without compromising on response time and efficiency.

•

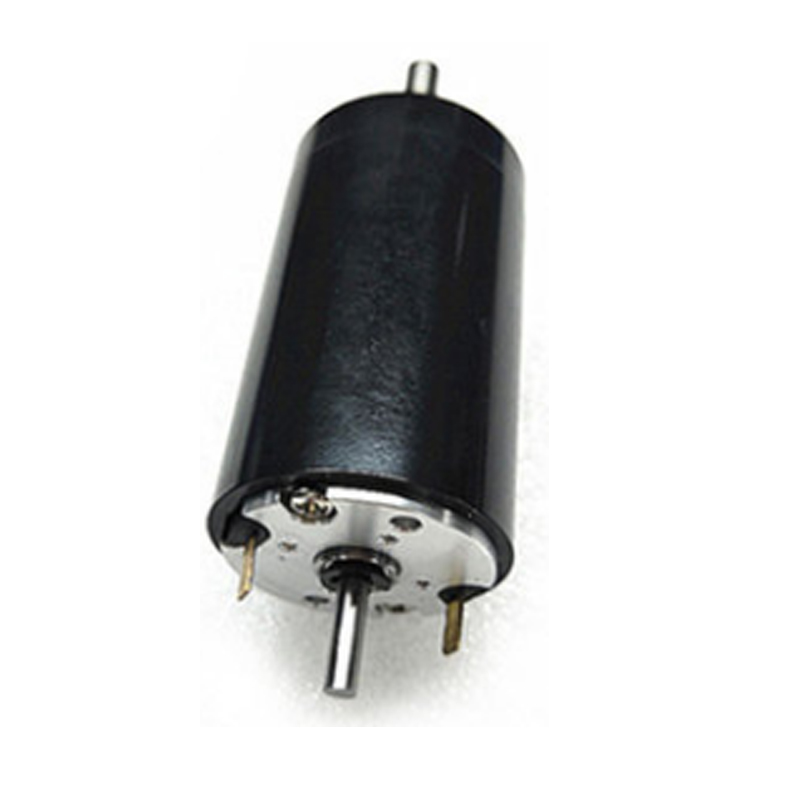

• Coreless Brush DC Motors
  A type of Direct Current motor that differs from the standard can motor in construction.
  It is made of lightweight material with the magnet wire wound around it, rather than a large rotating iron armature.
  They are built for quick acceleration.



• China Best Coreless DC Motor Manufacturer & Supplier
  FBelec hollow cup motor has low noise and long service life High energy conversion efficiency
  Can provide customized development services Hollow cup motor, short product cycle,
  strict quality control and timely delivery.

  Request Our Latest Price



•

•

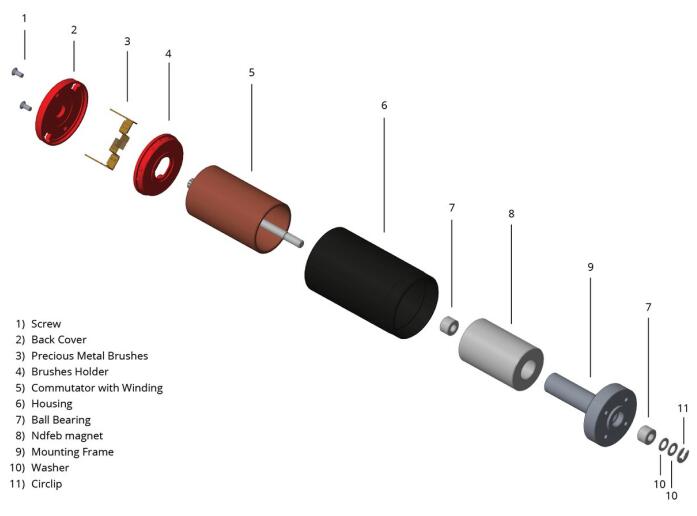

  Structure of a Coreless Motor

  Coreless motors are a type of electric motor that, as the name suggests, do not have an iron core in the rotor. Instead, the rotor is made up of a wire winding shaped like a cylinder or basket around the motor shaft. This design results in several performance benefits compared to traditional motors with an iron core in the rotor. Here's a detailed breakdown of the structure of a coreless motor.




  1. Rotor (Armature)

  > The rotor in a coreless motor is made up of a winding of copper wire that is shaped into a cylinder or basket without a core. This is what makes the motor "coreless."

  > Because there is no iron core, the rotor has very low inertia, which allows it to accelerate, decelerate, and reverse direction quickly.

  > The winding is often supported by a non-magnetic material that provides the structural integrity of the rotor.




  2. Brushes

  > Coreless brushed DC motors use brushes and a commutator to transfer electrical current to the rotor winding.

  > The brushes are typically made of carbon or graphite and make sliding contact with the commutator, which rotates with the rotor.




  3. Commutator

  > The commutator is a split ring that's attached to the rotor and works with the brushes to switch the direction of the current in the windings as the motor turns, ensuring continuous rotation.




  4. Stator

  > The stator provides the stationary magnetic field against which the rotor spins. It can consist of permanent magnets or electromagnetic windings.

  > In the case of permanent magnets, they are usually arranged around the rotor to provide a consistent magnetic field.




  5. Bearings

  > Bearings support the rotating shaft and allow it to turn smoothly with minimal friction.




  6. Housing

  > The motor components are contained within a housing that protects them from environmental factors and also helps to dissipate heat generated during operation.

•

•


  Classification of Hollow Cup motor

  The hollow cup motor is divided into two types: brush and brushless. The rotor of the brush hollow cup motor has no iron core, and the stator of the brushless hollow cup motor has no iron core.




• Why Use a Coreless Motor?

  Since the 1930s, there has been a coreless or moving coil motor.
  In the 1960s, advances in manufacturing made them practical and cost effective.

  > There is no cogging torque.

  > Controlling position and speed with ease

  > High effectiveness

  > Noise Reduction

  > Extreme torque

  > Low weight and rotor inertia

  > Dynamic start-up and shutdown

  Coreless Motor Advantages

  > This design allows for a low inertia and high efficiency motor. Coreless motors accelerate and decelerate much faster than traditional motors.
  > By removing the iron rotor, torque ripple or cogging is reduced. Even at low speeds, the motor runs smoothly. The lack of iron in the rotor reduces the motor's total mass.
  > Noise has been reduced.
  > High Productivity: With less heat produced in operation, efficiency of up to 85% is possible, compared to >50% for an iron core motor.
  > Longer brush life
  > A low time constant indicates a faster response.


•


  Application of hollow cup motor

  Because the hollow cup motor overcomes the insurmountable technical obstacles of the iron core motor, and its outstanding characteristics focus on the main performance of the motor, it has a broad application field. Especially with the rapid development of industrial technology, higher expectations and requirements are constantly put forward for the servo characteristics of the motor, so that the hollow cup motor has an irreplaceable position in many applications.

  After the application of hollow cup motor has entered the large industrial and civil fields from the military and high-tech fields, it has developed rapidly in the past ten years, especially in the industrial developed countries, which has involved most industries and many products.




  1. Servo system requiring fast response. Such as rapid adjustment of missile flight direction, follow-up control of high magnification optical drive, rapid automatic focusing, highly sensitive recording and detection equipment, industrial robot, bionic prosthesis, etc., hollow cup motor can well meet its technical requirements.

  2. Products requiring stable and lasting driving of driving elements. For example, for all kinds of portable instruments and meters, personal portable equipment, field operation instruments and equipment, electric vehicles, the power supply time of the same group of power supply can be more than doubled.

  3. Various aircraft, including aviation, aerospace, model aircraft, etc. Using the advantages of light weight, small volume and low energy consumption of hollow cup motor, the weight of aircraft can be reduced to the greatest extent.

  4. All kinds of civil electrical appliances and industrial products. Using the hollow cup motor as the actuator can improve the product grade and superior performance.

  5. Taking advantage of its high energy conversion efficiency, it is also used as a generator. Using its linear operation characteristics, it is also used as a tachogenerator; Equipped with reducer, it can also be used as torque motor.




  With the progress of industrial technology, the strict technical conditions of various electromechanical equipment put forward higher and higher technical requirements for servo motor. At the same time, the application scope of hollow cup motor has completely separated from the limitations of high-end products, and is rapidly expanding its application scope in low-end products such as general civil products, so as to widely improve product quality. According to relevant statistics, hollow cup motors have been mature and applied to more than 100 civil products in industrial developed countries.
