Magnetic Contact

Picture	Manufacturer No.	Color	Housing	Certificates	Gap	Description	Datasheet	Order
	FBMC22F	black	ABS	FCC,CE ,ROHS	15-25mm	Magnetic Proximity switch with screw for security system		Send Order
	FBMC31	white/brown/black	ABS	FCC,CE ,ROHS	20-30mm	wired magnetic contacts for window		Send Order
	FBMC31B	white/brown/black	ABS	FCC,CE ,ROHS	20-30mm	surface magnetic switch for home alarm NC		Send Order
	FBMC31C	white/brown/black	ABS	FCC,CE ,ROHS	20-30mm	magnetic switch for door alarm surface mounted with screw		Send Order
	FBMC31Y	white/black	ABS	FCC,CE ,ROHS	20-30mm	White Color Plastic Wire door contact sensor magnetic switch		Send Order
	FBMC32	white/brown	ABS	FCC,CE ,ROHS	15-25mm, 20-30mm	Surface Mounted Roller Shutter Normally Closed Magnetic Contact Switch		Send Order

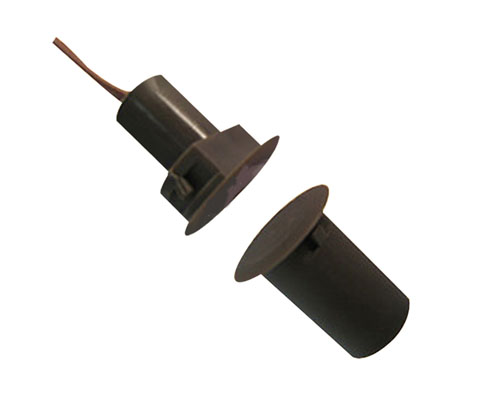

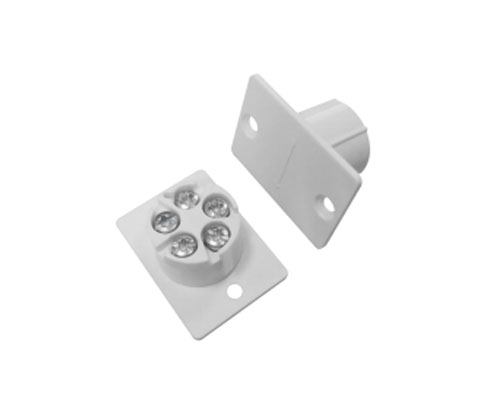

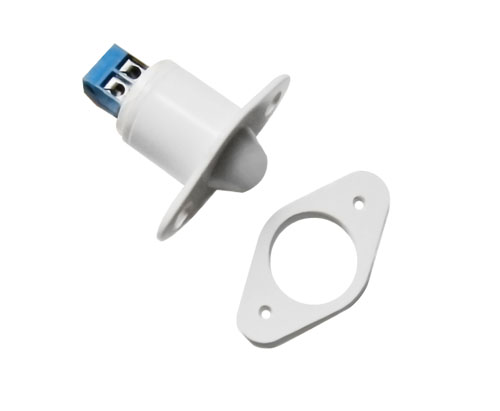

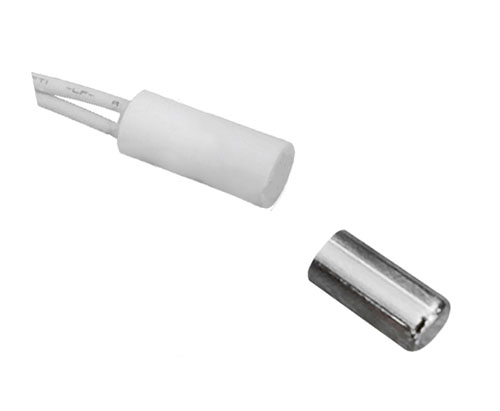

	FBMC33B	white/brown	ABS	FCC,CE ,ROHS	15-25mm	flush mounted round magnetic reed switch sensor		Send Order
	FBMC33H	white/brown	ABS	FCC,CE ,ROHS	15-25mm	flushed magnetic reed switch sensor with CE FCC		Send Order

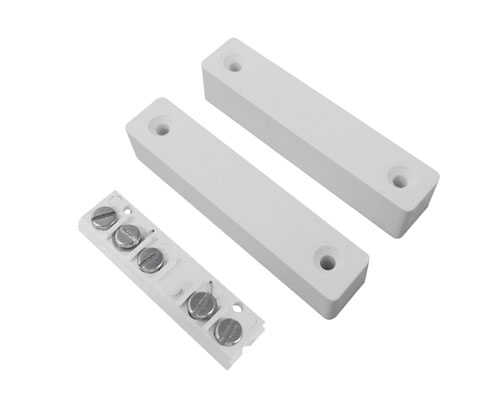

	FBMC33T	white/brown	ABS	FCC,CE ,ROHS	15-25mm	magnetic window sensor with terminal connected in alarm		Send Order
	FBMC34A	white/brown	ABS	FCC,CE ,ROHS	15-25mm	flush mounted magnetic switch for door alarm		Send Order
	FBMC34B	white/brown	ABS	FCC,CE ,ROHS	20-25mm	rare earth magnet reed switch sensor		Send Order
	FBMC35	white/brown	ABS	FCC,CE ,ROHS	15-25mm	flush mounted magnetic contact window sensor		Send Order
	FBMC36	white/brown	ABS	FCC,CE ,ROHS	30-40mm	12v metal door contact magnetic switch		Send Order
	FBMC36B	white/brown	ABS	FCC,CE ,ROHS	25-35mm	recessed steel door reed switch metal door magnetic contacts for alarm		Send Order
	FBMC36F	white/brown	ABS	FCC,CE ,ROHS	15-25mm	220VAC magnetic switch high voltage switch		Send Order
	FBMC36KF	white/brown	ABS	FCC,CE ,ROHS	15-25mm	magnetic contact window sensor for alarm		Send Order
	FBMC36T	white/brown	ABS	FCC,CE ,ROHS	20-30mm	magnetic contacts for intruder alarm system		Send Order
	FBMC37	white/brown	ABS	FCC,CE ,ROHS	15-25mm, 20-25mm	Burglar Alarm Door /Window Sensor Magnetic Reed Switch		Send Order
	FBMC37B	white/brown	ABS	FCC,CE ,ROHS	15-25mm, 20-25mm	magnetic switch door sensor for intruder alarm system		Send Order
	FBMC38	white/brown	ABS	FCC,CE ,ROHS	15-25mm	Wired Magnetic Door Sensor Alarm with CE, FCC		Send Order
	FBMC38C	white	ABS	FCC,CE ,ROHS	15-25mm	window sensor magnetic switch for alarm stick with tape		Send Order
	FBMC39	white/brown	ABS	FCC,CE ,ROHS	15-25mm	surface window door sensor magnetic contact stick with double side tape		Send Order
	FBMC40	white/brown	ABS	FCC,CE ,ROHS	15-25mm	window and door sensor magnetic door 12v contact switch		Send Order
	FBMC40B	white/brown	ABS	FCC,CE ,ROHS	15-25mm	Magnetic Contact for door alarm		Send Order
	FBMC41	white/brown	ABS	FCC,CE ,ROHS	15-25mm	ABS case magnetic door sensor window		Send Order
	FBMC41B	white/brown	ABS	FCC,CE ,ROHS	15-25mm	magnetic contacts flush mounted ABS case		Send Order
	FBMC43	white/brown	ABS	FCC,CE ,ROHS	2-3mm	magnetic switch with roller ball reed contact		Send Order
	FBMC43B	white	ABS	FCC,CE ,ROHS	15-25mm	recessed magnetic switch for wooden door with roll ball		Send Order
	FBMC44B	white/brown	ABS	FCC,CE ,ROHS	15-25mm, 20-25mm	wired magnetic switch screw surface mounted approved with CE ROHS		Send Order

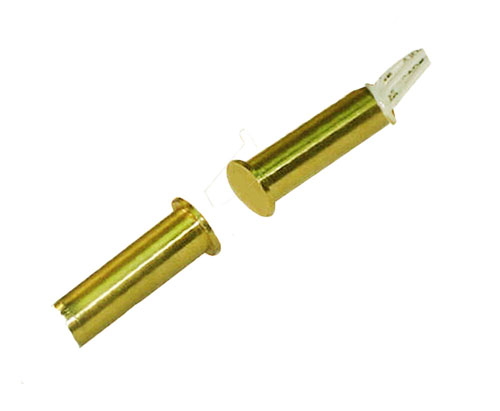

	FBMC46	copper yellow	copper material	FCC,CE ,ROHS	20-30mm	Flush mounted door magnetic contacts reed switch sensor copper case		Send Order
	FBMC47F	white	ABS	FCC,CE ,ROHS	10-20mm	window and door sensor for security system		Send Order
	FBMC47T	white/brown	ABS	FCC,CE ,ROHS	15-25mm, 20-25mm	magnetic sensor door sensor with CE		Send Order
	FBMC48	white/brown	ABS	FCC,CE ,ROHS	20-30mm	Surface mounted magnetic contact switch sensor for door and window security system		Send Order
	FBMC48F	white	ABS	FCC,CE ,ROHS	15-25mm	220V LED Cabinet Door Light Sensor Refrigerator Door Light magnetic Switch		Send Order
	FBMC505	brown	ABS	FCC,CE ,ROHS	25-35mm	door contact sensor magnetic switch		Send Order
	FBMC505T	white/brown	ABS	FCC,CE ,ROHS	≥18mm	magnetic contact window sensor		Send Order

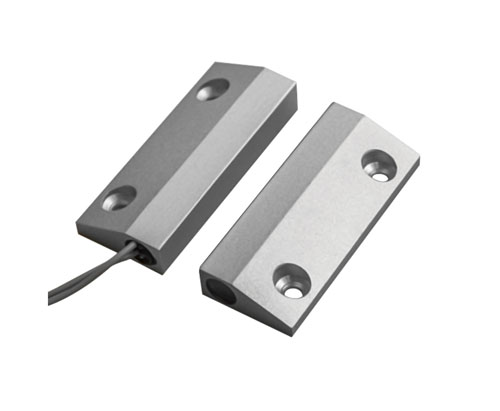

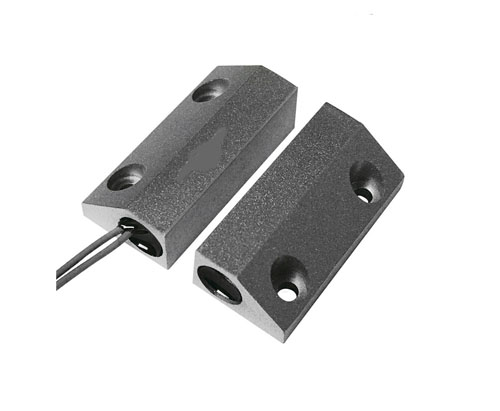

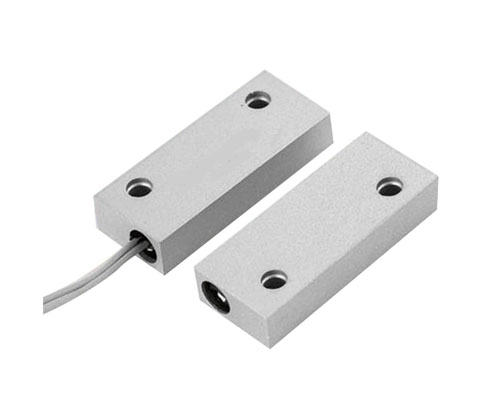

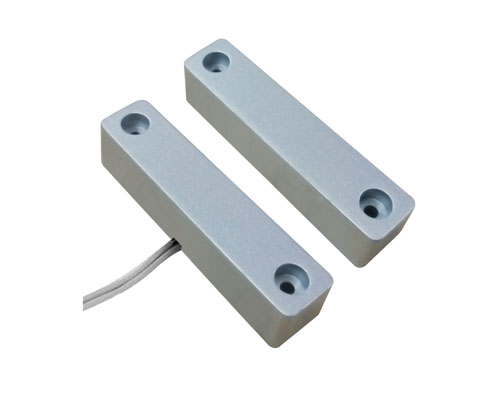

	FBMC51	grey	zinc material	FCC,CE ,ROHS	20-30mm	Surface Mounted Wired Metal Magnetic Contact		Send Order
	FBMC52	grey	alloy zinc material	FCC,CE ,ROHS	25-35mm,30-40mm	Metal Magnetic Contact Detector Door Sensor for Security Alarm System		Send Order

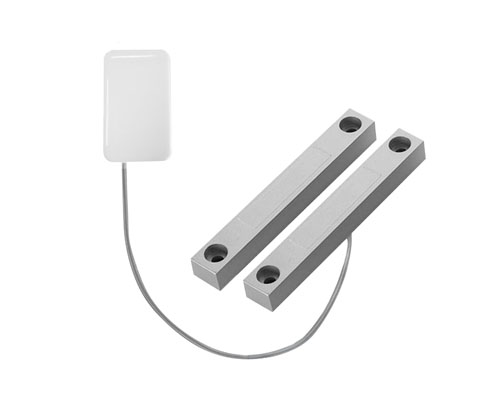

	FBMC52W	grey	zinc material	FCC,CE ,ROHS	≥30mm	wireless metal door sensor		Send Order
	FBMC53	white/grey	ABS	FCC,CE ,ROHS	40-60mm	White Color Plastic Wire door contact sensor magnetic switch		Send Order
	FBMC54	white	ABS	FCC,CE ,ROHS	50-60 mm	Rolling Door Magnetic Contact Sensor Roller Shutter Magnetic Contact Switch Alarm		Send Order
	FBMC55W	grey	zinc material	FCC,CE ,ROHS	≥50mm	Wireless magnetic door contact switch for burglar alarm system		Send Order

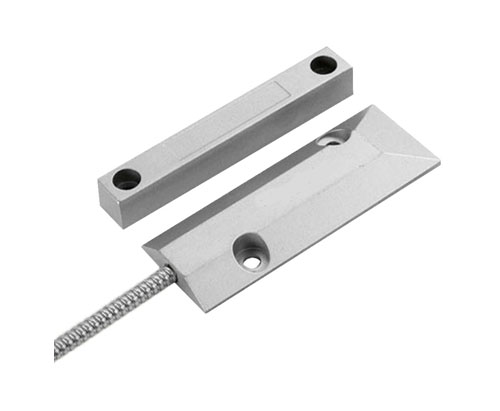

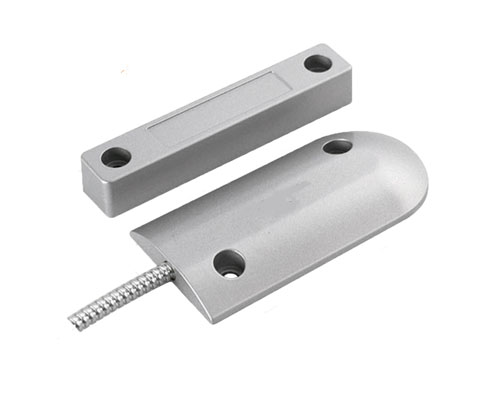

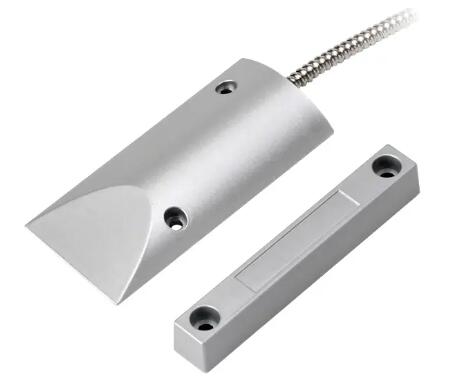

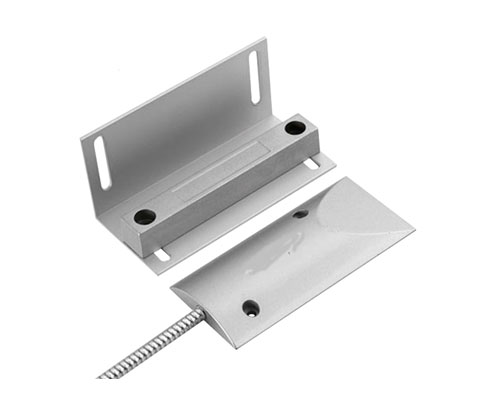

	FBMC55Z	grey	alloy zinc material	FCC,CE ,ROHS	50-70 mm	magnetic contact for garage door or roller door alarm		Send Order

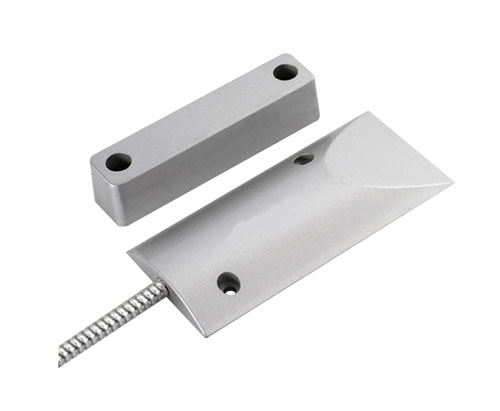

	FBMC55ZL	grey	zinc material	FCC,CE ,ROHS	50-70 mm	Wired Normally Closed Overhead Magnetic Door Contact Reed Switch		Send Order
	FBMC56	grey	zinc material	FCC,CE ,ROHS	40-50mm,50-60mm	magnetic trigger alarm door contact		Send Order
	FBMC57	grey	aluminum material	FCC,CE ,ROHS	30-40mm	Overhead metal sliding door magnetic contact		Send Order
	FBMC58	grey	zinc material	FCC,CE ,ROHS	40-60mm	garage door magnetic switch normally closed metal case		Send Order
	FBMC58B	grey	zinc material	FCC,CE ,ROHS	40-60mm	metal case surface magnetic contact for door alarm		Send Order
	FBMC59	grey	ABS	FCC,CE ,ROHS	40-50mm	ABS wide gap magnetic door contact for metal door		Send Order
	FBMC59W	grey	ABS	FCC,CE ,ROHS	≥40mm	door magnetic contact		Send Order
	FBMC60	grey	zinc material	FCC,CE ,ROHS	50-70 mm	Surface Mount Roller Shutter Door Magnetic Contacts For Alarm System		Send Order

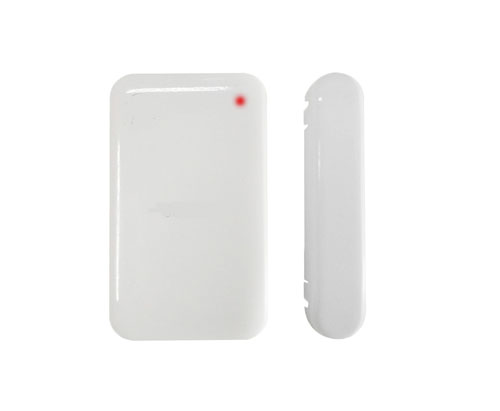

	FBMC618	white	ABS	FCC,CE ,ROHS		mini wireless door sensor		Send Order
	FBMC619	white	ABS	FCC,CE ,ROHS		receiver for smart home wireless door sensor 433MHZ		Send Order
	FBMC61L	grey	zinc material	FCC,CE ,ROHS	50-70 mm	zinc case magnetic contact for floor roller door		Send Order
	FBMC62	grey	zinc material	FCC,CE ,ROHS	50-70 mm	rollder door magnetic switch magnetic sensor		Send Order
	FBMC63	grey	zinc material	FCC,CE ,ROHS	50-70 mm	wireless door sensor		Send Order

• What is magnetic door contact?

  as alarms to form a door and window monitoring system, achieving real-time monitoring of the status of doors and windows. In the field of smart home, Home Alarm Systems, door magnetic sensors are usually used in conjunction with smart door locks and other devices to effectively enhance home safety.

•

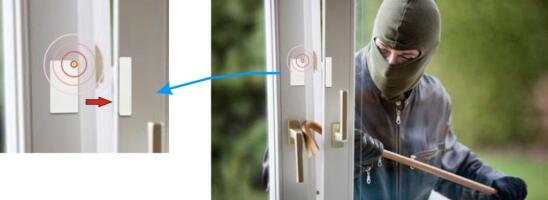

• Door magnets are used to detect whether doors, windows, drawers, etc. have been illegally opened or moved. It consists of two parts: a wireless transmitter and a magnetic block. The door magnet is composed of two parts: a wireless transmission module and a magnetic block. There is a component called "steel spring tube" at the two arrows of the wireless transmission module. When the distance between the magnet and the steel spring tube is kept within 1.5 centimeters, the steel spring tube is in a disconnected state. Once the distance between the magnet and the steel spring tube exceeds 1.5 centimeters, the steel spring tube will close, causing a short circuit. When the alarm indicator light is on, it will emit an alarm signal to the host.




•

• What is a door magnet?


  A door magnet is a magnet and a switch that usually closes under the action of a magnet. After the door is opened and there is a certain distance from the magnet, the switch loses the force of the magnet and jumps open. Trigger a signal to the host. The difference between access magnet and access control:

  1. A door magnet is a small sensor used to detect whether a door is closed, and many electric locks come with a door magnet function. The security of the access control system is not only the security of the identification method, but also includes the security of the control system, software system, communication system, and power system. The entire system is a whole. For example, some fingerprint access control systems have an integrated controller and fingerprint recognition device, which should be installed outdoors. This way, the wire controlling the lock switch is exposed outdoors, making it easy for people to open it.




  2. Once the distance between the magnet and the steel spring tube of the door magnet exceeds 1.5 centimeters, the steel spring tube will close, causing a short circuit, and the alarm indicator light will light up while emitting an alarm signal to the host. Access control can effectively prevent external salespeople from entering the company and disrupting office order, and its practicality is relatively good. Working principle of door magnet:

  The door magnet is composed of two parts: a wireless transmission module and a magnetic block. There is a component called "steel spring tube" at the two arrows of the wireless transmission module. When the distance between the magnet and the steel spring tube is kept within 1.5 centimeters, the steel spring tube is in a disconnected state. Once the distance between the magnet and the steel spring tube exceeds 1.5 centimeters, the steel spring tube will close, causing a short circuit. When the alarm indicator light is on, it will emit an alarm signal to the host.




  How to install the door magnet

  Installation method for door magnetic switch

  1. Select a wide gap switch for embedded installation.

  2. Drill installation holes for magnets horizontally at the outer edge of the door. Apply RTV fixing substance to the magnet. Then, insert the magnet into the hole. If a wide gap switch with bare magnet is used, the red end of the magnet should be pointed towards the outer side (the switch is sensitive to polarity).

  3. Remove the threshold.

  4. Fix the switch inside the threshold using RTV fixing material. Adjust its position so that it is directly below the magnet (and parallel) after the door threshold is installed.

  5. Install the door sill. Use an ohmmeter to test the switch for both open and closed doors. Connect the switch to the alarm circuit.




• All types of Magnetic Contact Factory in China

  For 25 years, FBELE has focused on the R & D, application, design and production of door magnet, door magnet switch, floating ball switch, proximity switch, reed, detector and anti-theft accessories. More than 50 million sets of door magnet switches are used in the field of anti-theft and automatic control.

  ORDER NOW

• The principle and working mode of door magnetic sensor

  A door magnetic sensor or Magnetic Alarm Contacts, is a contact type sensor typically composed of a switch body and a magnet. When the door is closed, there is an attraction between the switch body and the magnet, and the two fit tightly together. When the door is opened, the magnet and switch body will separate and disconnect, thereby changing the state of the switch body and outputting a door status signal.

  Door magnetic sensors are usually installed on the frame or door leaf of doors, with high sensitivity, fast response speed, and long service life. Door magnetic sensors can generally be divided into two categories: wired door magnetic sensors and wireless door magnetic sensors. Wireless door magnetic sensors are mainly used in fields such as smart homes.




  Application fields of door magnetic sensors

  Door magnetic sensors are widely used in security fields, smart homes, commercial buildings, and other places. In the field of security, door magnetic sensors can be connected to devices such.
