Washing Machine Switch

Picture	Manufacturer No.	Description	Datasheet	Order
	FB446M4	Latest Product door switch original/ 6601EN1003D genuine washing machine door switch for LG		Send Order
	FB448M4	Made In China Ac220-240V Wash Machine Door Switch Lock Spare Parts Washing Machine		Send Order
	FB450M4	FBelec brand Door switch original genuine washing machine door switch for 6601EN1003D		Send Order
	FB666	Slide Door Lock Washing Machine Parts PP Black and White Original Part Washer Door Lock Switch		Send Order
	FB667	Suitable for Electrolux Washing Machine Door Lock Switch Interlock		Send Order
	FB5318-P5	Clothes Assembly Universal Washing Machine Electronic Original Part Washer Door Lock Switch		Send Order
	FB5412	Washing machine Door Lock Washing Machine Door Switch Washing Machine Parts		Send Order
	FB5413	Factory direct sale Washing machine door lock switch for samsung washing machine washer spare parts		Send Order
	FB5434-4P	washing machine door lock switch ZV-446L5 DC64-01538A METALFLEX ZV 446		Send Order
	FB5459	Washing Machine Electronic Door Lock Delay Switch ZV-446 Household Appliances Washer Parts For Beko T2805310400		Send Order
	FB5460	ZV-446 switch original front loading spare parts washing machine door lock for IFB		Send Order
	FB5461	Excellent safety performance Hot selling parts Original DC64-01538A washing machine door lock switch for Samsung		Send Order
	FB5462	2805311400 Suitable for Beko Washing Machine Door Lock Switch Interlock		Send Order
	FB5463	WDS87013 Original Km-5 Washing Machine Parts Assembly Replace Washing Machine Door Lock Switch		Send Order
	FB5465	PartsNet Washing Machine Door Interlock Lock switch EBF49827803 washing machine parts home appliance parts		Send Order
	FB5466	Washing machine Door Lock/Washing Machine Door Switch Washing Machine Parts		Send Order
	FB5467	For Samsung Washing Machine Door Lock Door Switch ZV-446L5 Household Appliances Washer Parts		Send Order
	FB5827-M	Washing Machine Door Lock Switch Suitable for Haier Washing Machine 00216001005900		Send Order
	FB5828-H	OEM accept various customized design washing machine interlock switch assembly safety door lock switch		Send Order
	FB5830-T4	Washing machine Door Lock/Washing Machine Door Switch Washing Machine Parts		Send Order
	FB5831-A	KM-6 Spare Parts Accessories Washing Machine Door Switch Door Lock		Send Order
	FB5832-M4	Wholesale EBF49827801 Washer Door Lock Latch for LG Electronics Switch Assembly 1268254, 6601ER1004E, EBF49827802		Send Order
	FB8410	Suitable for Vestel Washing Machine Door Lock Switch Interlock		Send Order
	FBM4-2	6601EN1003D LG washer door switch washing machine electronic washer door lock switch		Send Order

•





• 0How to deal with the broken door lock of the washing machine?

  The principle and maintenance of the door lock of the washing machine

  Washing machine is a very common household appliance in our life, and it is also very helpful to our life. Especially in winter, we rely on washing machine very much. Especially when washing large clothes in winter, washing machine is more important. But many friends find that washing machines will also break down when they are often used. The most common fault is that the door lock of the washing machine is broken. Next, I will share with you the knowledge of washing machine door lock maintenance.

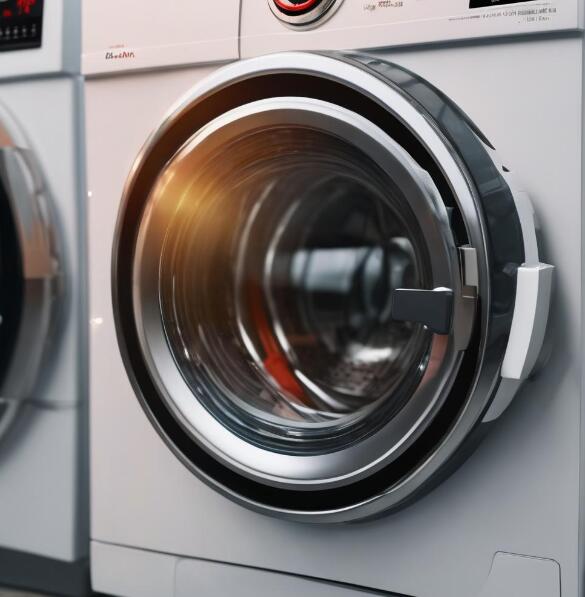

  washing machine door switch

  Washing Machine Door Lock Maintenance

  • 1. If the lock sign appears on the display, it means that the washing machine has been misoperated to set the child lock function during the working process.

  • 2. You need to remember which gear the washing machine was locked when it was working. Just turn the knob to the locked position at that time, and then press and hold the reservation key for 5 seconds to unlock it.

  • 3. If you don't remember where it was locked, you can only try one position by one. For each position, press and hold the reservation key for 5 seconds until it is unlocked. One is to change the micro delay. The other is that there are three wires on the micro delay. If n1n2n3n1 and N3 are connected, N2 can be used without moving, but do not connect it backwards. By the way, the micro delay is simply the door lock. In addition, the door cannot be opened: the water level may not reach the safe level. Therefore, the automatic protection cannot be opened. You can remove the top cover (there are screws at the back). There is a door switch with your hand. Press the plastic buckle of the door with your hand and push it outward to open it. If the problem has not been solved, contact the local maintenance point to replace the door switch.

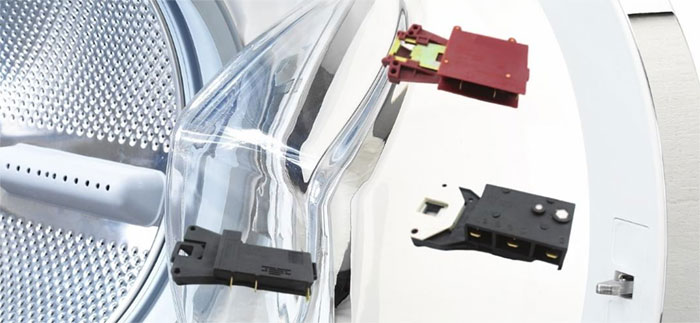

  Washing machine door locked

  Function and Opening Conditions of Door Lock

  • 1. Opening / closing function of main circuit: both ends of the contact switch of the electric door lock are connected in series in the main circuit of the washing machine to control the opening / closing of the electric part of the working device. When the electric door lock switch is powered off, the motor, drainage pump, water inlet valve, etc. of the washing machine cannot work.

  • 2. Safety function: when the washing machine is washing normally, the door cannot be opened to prevent the clothes from being thrown out or the washing water in the cylinder from overflowing, and to prevent accidental touch from causing danger.

  • 3. Time delay switch function: after the washing procedure is completed, the electric door lock will delay for a period of time after the power is cut off, so as to prevent the door from being opened when the inner cylinder is not stopped stably and the user from being injured.

  • 1. Opening / closing function of main circuit: both ends of the contact switch of the electric door lock are connected in series in the main circuit of the washing machine to control the opening / closing of the electric part of the working device. When the electric door lock switch is powered off, the motor, drainage pump, water inlet valve, etc. of the washing machine cannot work.

  • 2. Safety function: when the washing machine is washing normally, the door cannot be opened to prevent the clothes from being thrown out or the washing water in the cylinder from overflowing, and to prevent accidental touch from causing danger.

  • 4. Conditions for door lock opening:

    • 1) The machine is in a suspended state (i.e. the start / pause indicator is flashing).
    • (2) The water level in the cylinder should be a certain distance lower than the lower edge of the observation window. If the water level is too high, the drainage pipe can be laid on the ground to drain the excess water.
    • (3) Whether the temperature in the barrel is lower than 50cc. If the drying or heating function is selected, the door can be opened only after the temperature in the barrel is lower than 50 ℃.



  The above is the knowledge we share in detail about the maintenance of washing machine door locks. I hope our fbele sharing will be helpful to you. Many friends don't know where the door lock of the washing machine is, let alone the maintenance of the door lock of the washing machine? As for the above, we have shared the maintenance of washing machine door locks and washing machine door locks in great detail.

  Friends who want to know more about washing machine door lock
  FBelec sharing content more

•

• Working principle of door lock switch of drum washing machine.(Washing Machine Switch)




  The automatic delay door lock is composed of PTC, bimetallic sheet, plastic pin, movable plate, etc. The bimetallic sheet is clamped with the plastic pin.




  When the door lock is not powered on, the plastic pin is not inserted into the slot of the movable plate, and the movable plate is not locked. The door can be opened and closed freely.

  When the door is closed, the hook on the door pushes the movable plate to the right, and the hook is hooked on the shell of the washing machine.




  When the washing machine is powered on, the computer board energizes the L and N ports of the time-delay door lock, PTC generates heat, and the bimetallic sheet is driven by the hot belt. The plastic pin is inserted into the slot of the movable plate to lock the movable plate. At the same time, the bimetallic sheet is connected to port C.




  At this time, the movable plate is locked, and the hook on the door cannot move the movable plate to the left, so the door cannot be opened.

  After the PLC is powered off, there will be residual heat, and the door cannot be opened at this time. After about 2 minutes, it is no longer hot. The bimetallic sheet is reset, the movable plate is unlocked, and the door can be opened. Micro time delay Switch Electronic Door Lock Door Switch.




  If the door is not closed and the door lock is powered on first, the plastic pin is butted by the movable plate. Although the bimetallic sheet has been heated, it cannot move. Therefore, port C is not connected, and the computer board will detect that port C has no power and generate an alarm. As soon as the door closed, it was connected.Micro delay door switch lock.




  The door lock can only be unlocked after cooling for more than 1 minute. Therefore, after washing, the washing machine will display that there is still 1 minute left. This 1 minute is used to cool the door lock. When the display reaches 0 minute and the washing is over, open the door immediately and open the door normally.
