Picture Model No. Switch Rating Non-Switch Rating Circuit Waterproof Description Datasheet Order
High quality 2.54 dial switch electronic products environmental protection and high temperature resistance potentiometer can be processed

SMT-04

25mA,24VDC 100mA,50VCD Single pole single throw NO

High quality 2.54 dial switch electronic products environmental protection and high temperature resistance potentiometer can be processed

DIP Switch End-stackable Type Switch New Design Wholesale Factory Price

DA-04

25mA,24VDC 100mA,50VCD Single pole single throw NO

DIP Switch End-stackable Type Switch New Design Wholesale Factory Price

1.27/2.54 mm Pitch Spst Spdt Dip Switch Smd Double Single Rows 2-12pins 1-10 position Pcb piano dip switches

DIL-07

25mA,24VDC 100mA,50VCD Single pole single throw NO

1.27/2.54 mm Pitch Spst Spdt Dip Switch Smd Double Single Rows 2-12pins 1-10 position Pcb piano dip switches

Dp-04 4 Pin SPST push pull switch Electronic red DIP Switch

DP-04

25mA,24VDC 100mA,50VCD Single pole single throw NO

Dp-04 4 Pin SPST push pull switch Electronic red DIP Switch

PCB Piano DP series 2.54mm pitch DIP SWITCH FBELE Brand

DS-04

25mA,24VDC 100mA,50VCD Single pole single throw NO

PCB Piano DP series 2.54mm pitch DIP SWITCH FBELE Brand

SMD SMT DIP Switch 1P 2P 3P 4P 5P 6P 8P Position 1.27mm Pitch DIP Black Toggle Switch Snap Switch

SMT-05W

25mA,24VDC 100mA,50VCD Single pole single throw YES

SMD SMT DIP Switch 1P 2P 3P 4P 5P 6P 8P Position 1.27mm Pitch DIP Black Toggle Switch Snap Switch

CDM-R dust-proof DIP switches SMD 254mm standard type 3 pin dip switch

SMT-03W

25mA,24VDC 100mA,50VCD Single pole single throw YES

CDM-R dust-proof DIP switches SMD 254mm standard type 3 pin dip switch

High Quality Black 1~12 Position Plastic SMD Type SMT SERIES Rotary Dip Switch

SMT-08W

25mA,24VDC 100mA,50VCD Single pole single throw YES

High Quality Black 1~12 Position Plastic SMD Type SMT SERIES Rotary Dip Switch

Lateral 10X10 2.54mm foot pitch with handle 10-speed rotary encoder switch

FBRCS-01

0.1A,24VDC / One open multi-control NO

Lateral 10X10 2.54mm foot pitch with handle 10-speed rotary encoder switch

Lateral 2.54mm foot pitch 6-position rotary coding switch, lighting control power knob switch

FBRCS-02

0.1A,24VDC / One open multi-control NO

Lateral 2.54mm foot pitch 6-position rotary coding switch, lighting control power knob switch

Lateral 16-bit BCD rotary encoder switch, 4-to-1 pin hexadecimal digital DIP switch

FBRCS-03

0.1A,24VDC / One open multi-control NO

Lateral 16-bit BCD rotary encoder switch, 4-to-1 pin hexadecimal digital DIP switch

Side-plug 10X10 5.08 feet 10-bit rotary encoder switch

FBRCS-04

0.1A,24VDC / One open multi-control NO

Side-plug 10X10 5.08 feet 10-bit rotary encoder switch

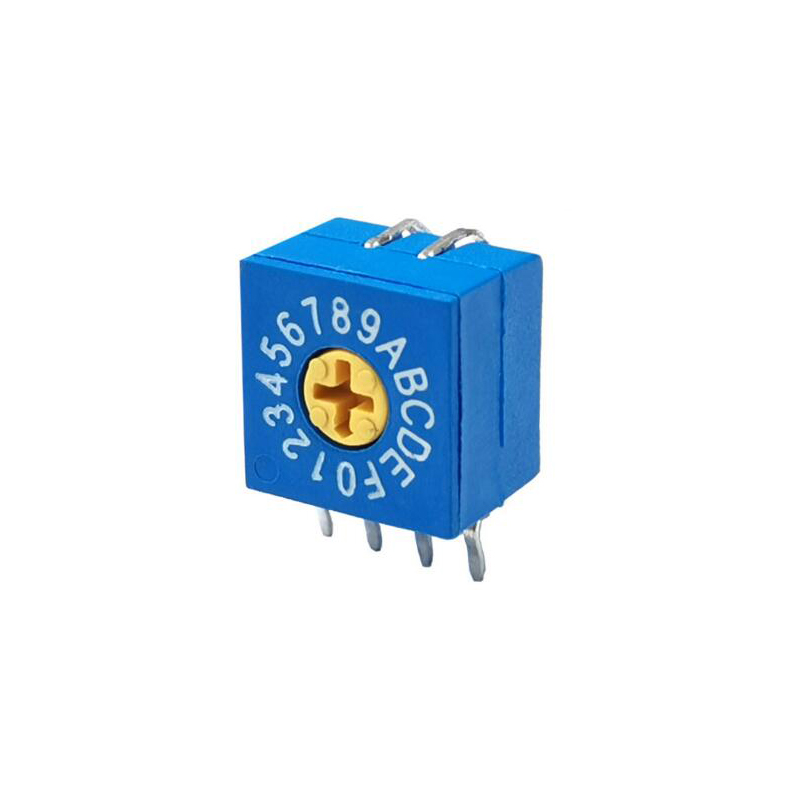

10X10 side plug 16-bit 0-f rotary encoder switch, BCD code program switch

FBRCS-05

0.5A,24VDC / One open multi-control NO

10X10 side plug 16-bit 0-f rotary encoder switch, BCD code program switch

Inner package foot 7.2X7.2 10-bit SMD rotary coding switch, DIP switch

FBRCS-06

0.5A,24VDC / One open multi-control YES

Inner package foot 7.2X7.2 10-bit SMD rotary coding switch, DIP switch

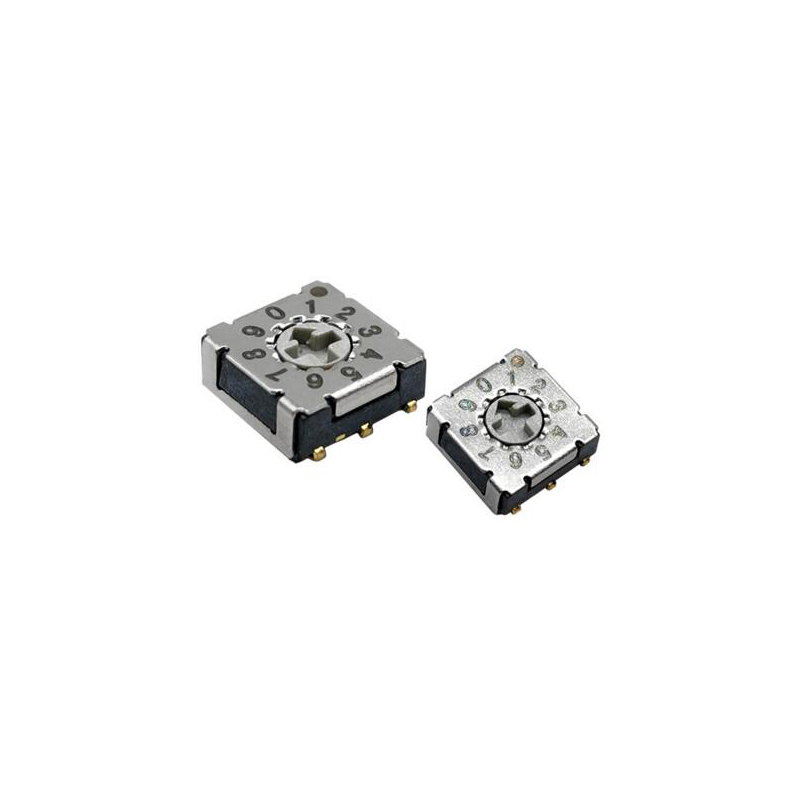

7.2X7.2 SMD 10-speed 16-speed rotary coding switch

FBRCS-07

0.5A,24VDC / One open multi-control NO

7.2X7.2 SMD 10-speed 16-speed rotary coding switch

10X10 3 three-gear selection rotary coding switch 1,2,3 digital selection output 1:1 gear switch

FBRCS-08

0.1A,24VDC / One open multi-control NO

10X10 3 three-gear selection rotary coding switch 1,2,3 digital selection output 1:1 gear switch

4-block patch 6-pin selection coding switch, 4-bit 0-4 power supply current adjustment switch

FBRCS-09

0.5A,24VDC / One open multi-control NO

4-block patch 6-pin selection coding switch, 4-bit 0-4 power supply current adjustment switch

ROTARY DIP HEX COMP 100MA 5V

FBRCS-10

0.5A,48VDC / One open multi-control YES

ROTARY DIP HEX COMP 100MA 5V

Side rotary coding switch, female keyboard 10-bit side dial coding switch

FBRCS-11

0.5A,24VDC / One open multi-control NO

Side rotary coding switch, female keyboard 10-bit side dial coding switch

10X10 in-line 16-speed 6-pin rotary coding switch with knob cap, waterproof DIP switch

FBRCS-12

0.5A,48VDC / One open multi-control YES

10X10 in-line 16-speed 6-pin rotary coding switch with knob cap, waterproof DIP switch

Mini 7X7 multi-function keyboard 4 gear knob switch rotary selection switch coding switch

FBRCS-13

0.5A,24VDC / One open multi-control NO

Mini 7X7 multi-function keyboard 4 gear knob switch rotary selection switch coding switch

12*12*4.95 silicone heavy touch soft touch long stroke buttons, multi-function steering wheel switch

FBRCS-14

0.1A,12VDC / One open multi-control NO

12*12*4.95 silicone heavy touch soft touch long stroke buttons, multi-function steering wheel switch

10*10 Rotary coding switch BCD DIP switch

FBRCS-15

0.1A,24VDC / One open multi-control NO

10*10 Rotary coding switch BCD DIP switch

Side 4-position rotary coding switch, address code adjustment DIP switch

FBRCS-16

0.1A,24VDC / One open multi-control NO

Side 4-position rotary coding switch, address code adjustment DIP switch

10X10 plug-in with knob cap 10-bit 6PIN8421C rotary coding switch

FBRCS-17

0.1A,24VDC / One open multi-control NO

10X10 plug-in with knob cap 10-bit 6PIN8421C rotary coding switch

10-bit/16-bit patch with cap 8421C rotary coding switch

FBRCS-18

0.1A,24VDC / One open multi-control NO

10-bit/16-bit patch with cap 8421C rotary coding switch

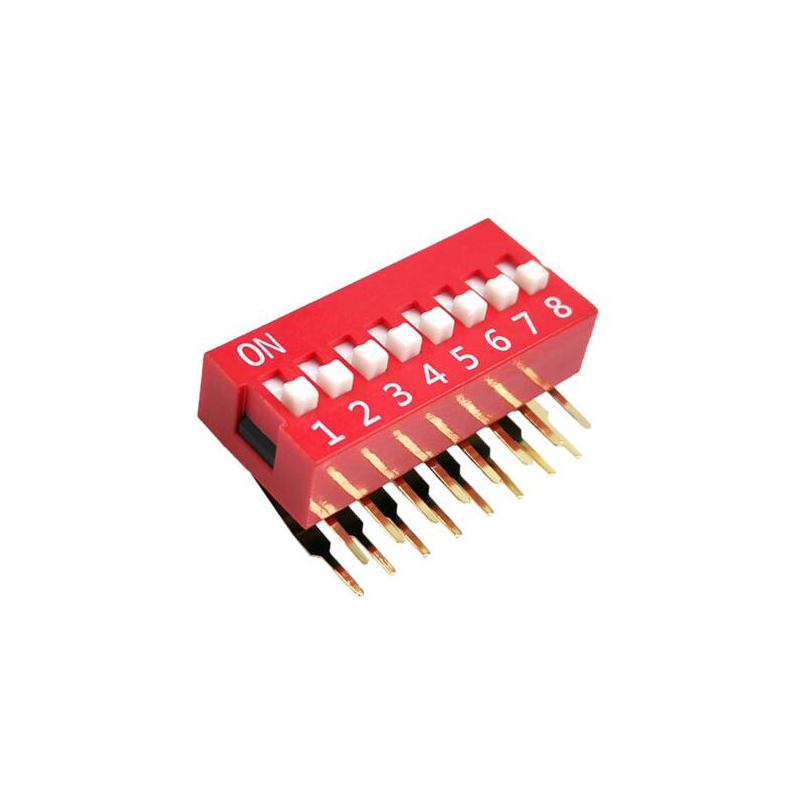

8-bit inclined 180-degree DIP switch, DIP SW

FBRCS-19

0.1A,24VDC / One open multi-control NO

8-bit inclined 180-degree DIP switch, DIP SW

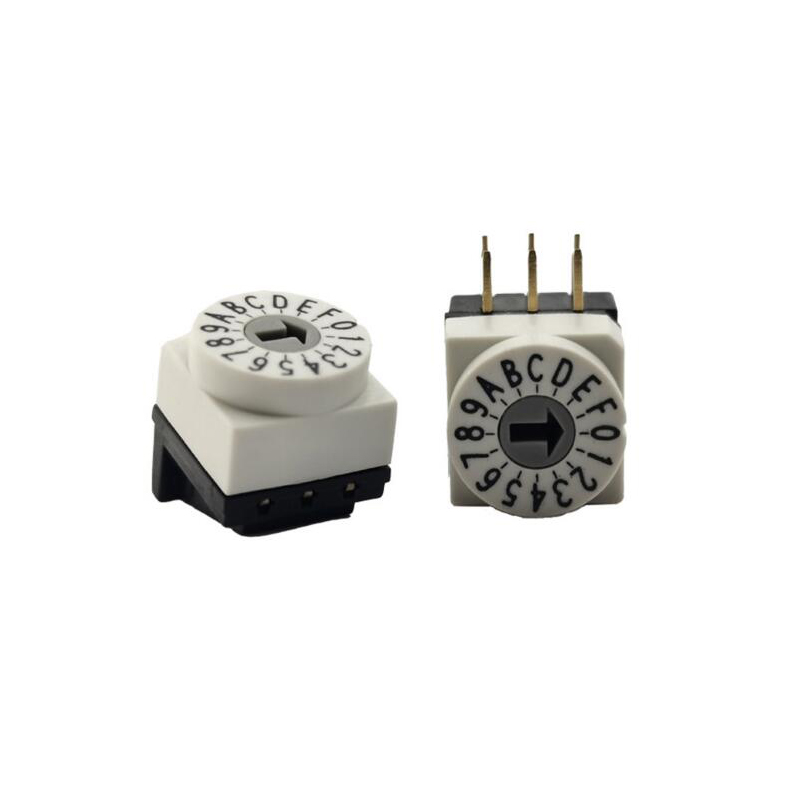

Side rotary encoder switch, 16-bit selection 8421C encoder switch BCD side mounted knob

FBRCS-20

0.5A,50VDC / One open multi-control NO

Side rotary encoder switch, 16-bit selection 8421C encoder switch BCD side mounted knob

6-bit plug-in gold-plated temperature-resistant DIP switch, stable program switch, 6PDIP for industrial communication

FBRCS-21

0.1A,30VDC / One open multi-control NO

6-bit plug-in gold-plated temperature-resistant DIP switch, stable program switch, 6PDIP for industrial communication

10*10 plug-in multi-position 8421 rotary coding switch

FBRCS-22

25mA,12VDC / One open multi-control YES

10*10 plug-in multi-position 8421 rotary coding switch

Lighting lamp adjustment encoder, 10X10 rotary gear switch, 4-bit patch temperature-resistant coding switch

FBRCS-23

0.1A,12VDC / One open multi-control YES

Lighting lamp adjustment encoder, 10X10 rotary gear switch, 4-bit patch temperature-resistant coding switch

4/6/8/10/16 gears are optional, positive code negative code rotary coding switch

FBRCS-24

0.1A,50VDC / One open multi-control NO

4/6/8/10/16 gears are optional, positive code negative code rotary coding switch

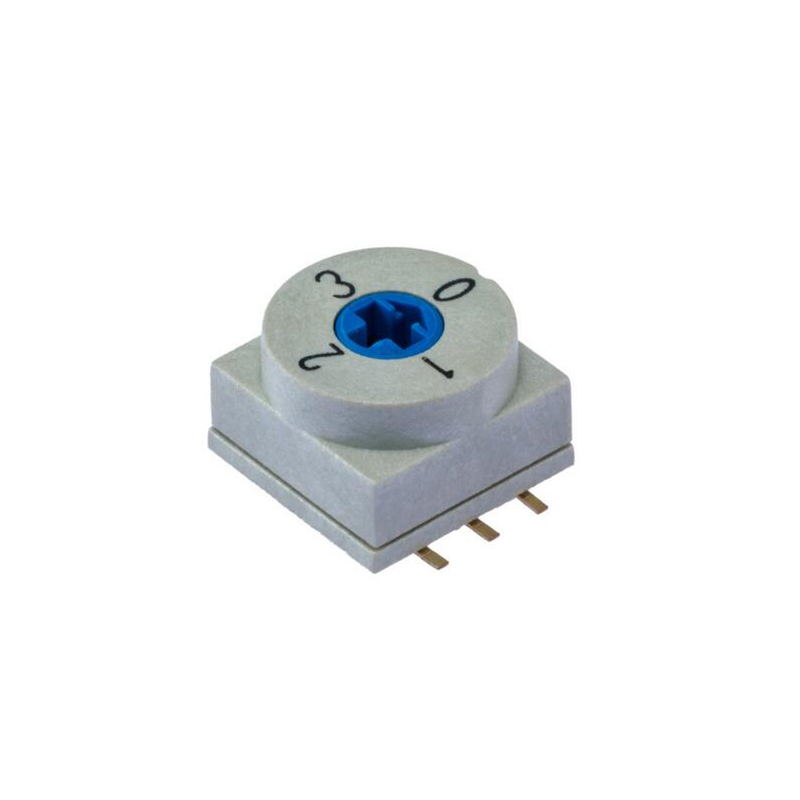

Rotary switch, 4-position front side rotary switch, plug-in SMD package

FBRCS-25

0.1A,50VDC / One open multi-control NO

Rotary switch, 4-position front side rotary switch, plug-in SMD package


Dip Switch & Rotary code switch

  • What is the DIP switch?


    Dip switch is what we usually call a dial switch. It is a switch that is installed on the base of the switch and uses the position and wiring of the dial to output different codes to control the corresponding devices. It is widely used in overclocking and wireless communication of the computer motherboard, frequency modulation of radio and television equipment and computer software programming of automation equipment.

    Dip switch is widely used in overclocking of computer motherboard, FM code matching of wireless communication, radio and television equipment, computer software programming of automation equipment, numerical control equipment, instruments (wireless remote control, time relay, temperature controller, counter) and automatic control, and control elements in preset circuit.

    Next, I will tell you in detail what the dip switch means, how to use the dip switch and precautions for the dip switch.

    How to use DIP switch

    By default, all dip switches are in the "off" state.

    printing thermal sensitive materials, please turn dip switch "1" to on.

    Dip switch 2 - Tear Mode. To print one label, tear one label. Please turn dip switch "2" to on.

    Dip switch 3 - cutter setting. When installing cutter printing, please turn dip switch "3" to on.

    Dip switch 4 - stripper setting. When installing the stripper for printing, please turn the dip switch "4" to on.

    Dip switch 5 - paper sensor setting. By default (off), the paper sensing mode of the printer is reflective. When it is necessary to adjust the sensing mode to the penetrating mode, please turn the dip switch "5" to the on state.

    Precautions for DIP switches

    1. Ensure that the switch is in the "off" position during all operations.

    2. Wave soldering: the recommended soldering temperature is 500 ° f (260 ° C) for up to 5 seconds.

    3. Manual welding: use 30 watts to control the temperature at 608 ° f (320 ℃), and the welding time is about 2 seconds.

    4. Cleaning process: ultrasonic cleaning can give better results. When steam is used, the temperature shall not exceed 125 ° f (51 ℃)

    What are the types of DIP switches?

    There are many types of DIP switches, including sliding switches, dial switches, rotary coding switches, etc.

    Each switch of the slide switch has two states of on or off (1 / 0), so it operates as an SPST switch (single pole single throw switch). There is also a three position sliding dip switch with a neutral position in the middle and a contact at each end, which is usually configured as on / off / on.

    The dial switch is similar to a slide switch. However, the dial switch is not placed horizontally, but is controlled by the forward and backward switches, which need to be moved up and down.

    The rotary coding switch needs to be rotated to switch the switch, and the amount of rotation determines the output state of the switch. The rotary dip switch with four output pins can produce up to 16 different binary code output configurations.

    Which DIP switch Manufacturer Has Better Quality?

    1. Ensure that the switch is in the "off" position during all operations.

    2. Wave soldering: the recommended soldering temperature is 500 ° f (260 ° C) for up to 5 seconds.

    3. Manual welding: use 30 watts to control the temperature at 608 ° f (320 ℃), and the welding time is about 2 seconds.

    4. Cleaning process: ultrasonic cleaning can give better results. When steam is used, the temperature shall not exceed 125 ° f (51 ℃)

  • What is Dip switch:


    Dip switch, also known as dial switch, is a switch that can be manually adjusted. It is mostly a group of several switches in the form of standard dual in-line package (DIP). "Dip switch" can refer to individual switches or a whole group of switches. Dip switches are generally designed on printed circuit boards and used with other electronic components. The main purpose is to adjust the characteristics of electronic equipment.


    Dip switch can be regarded as a substitute for jumper group. Its main advantage is that the switch is easier to switch state than jumper, and there is no short connector that may be lost or fall off. The dip switch with sliding rod applied for U.S. patent in 1976. The dip switch was used in 1974 and in the flip game of Atari in 1977.


    Where are dip switches used?

    Dip switch is widely used in industry standard architecture (ISA) computer expansion card to select interrupt request (IRQ) and memory address. Before the advent of cheaper battery powered ram, arcades in the 1980s also used dip switches to set game parameters, such as difficulty or the amount of money to be invested each time. Dip switch is also commonly used in garage door opener or some early wireless phones to set security code. The maximum length of the security code can be set with 12 switches, which can be used to avoid electromagnetic interference with other garage door openers or other equipment. The current garage door opener has been changed to a rolling code with high security.


    The display cards used in early computers often had dip switches because of their compatibility with other display specifications. For example, color graphics adapter (CGA) graphics card allows compatibility with monochrome display adapter (MDA) specifications, which can be achieved through the setting of DIP switch.


    Mechanical DIP switch is rarely used in consumer electronic products since 1990. The reasons include the trend of product volume reduction, the relatively simple setting of product configuration through software menu, and the price reduction of nonvolatile memory. However, dip switches are still often used in industrial products, mainly because they are cheap, easy to integrate with circuits, and can be set in case of power failure.

    Dip switches can still be set on some remote control devices to avoid interference between different devices. For example, the remote controller for controlling ceiling fans and lamps. There will be a dip switch on the remote controller, which can set different RF for different transmitters / receivers. Therefore, the remote controller can be used in different rooms in the same house without unexpected mutual interference.

    In X10 smart home devices, the rotary switch is also commonly used to set the home, room or device number. Rotary switches are also used in some transmitters (especially VHF and FM broadcast transmitters) to set the DC bias of the VCO (determine the center frequency of the carrier)


    What are the switch types of FBelec?

    1 flat dip switch

    2. Key type dip switch

    3. Right angle dip switch

    4. IC dip switch

    5. Chip dial switch

    6.  Rotary code switch


    What are the electrical characteristics of DIP switch?

    1. Electrical life: piano DIP switches is tested under the voltage of 24VDC and current of 25mA, and can be toggled back and forth for 2000 times;

    2. Rated current of infrequent switch switching: 100mA, withstand voltage 50VDC;

    3. Rated current frequently switched by the switch: 25mA, Withstand Voltage 24VDC;

    4. Contact impedance: (a) the maximum initial value is 50m Ω; (b) The maximum value after test is 100m Ω;

    5. Insulation impedance: minimum 100m Ω, 500VDC;

    6. Withstand voltage strength: 500VAC / 1min;

    7. Inter polar capacitance: max. 5pf;

    8. Circuit: single contact single selection: DS (s), DP (L).


    Dip switches have various forms and styles, and switches from different manufacturers vary due to different specifications.

    FBelec dip switch is widely used in overclocking of computer motherboard, FM code matching of wireless communication, radio and television and computer software programming of automation equipment.


    What are the characteristics of DIP switches?

    mechanical properties

    1. Operating force: 800g Max

    2. Push button stroke: 2.00mm

    3. Service temperature: - 20 ℃ ~ + 70 ℃

    4. Storage temperature: - 40 ℃ ~ + 85 ℃
