Picture | Manufacturer No. | Datasheet | Order |
---|---|---|---|
![]() ![]() |

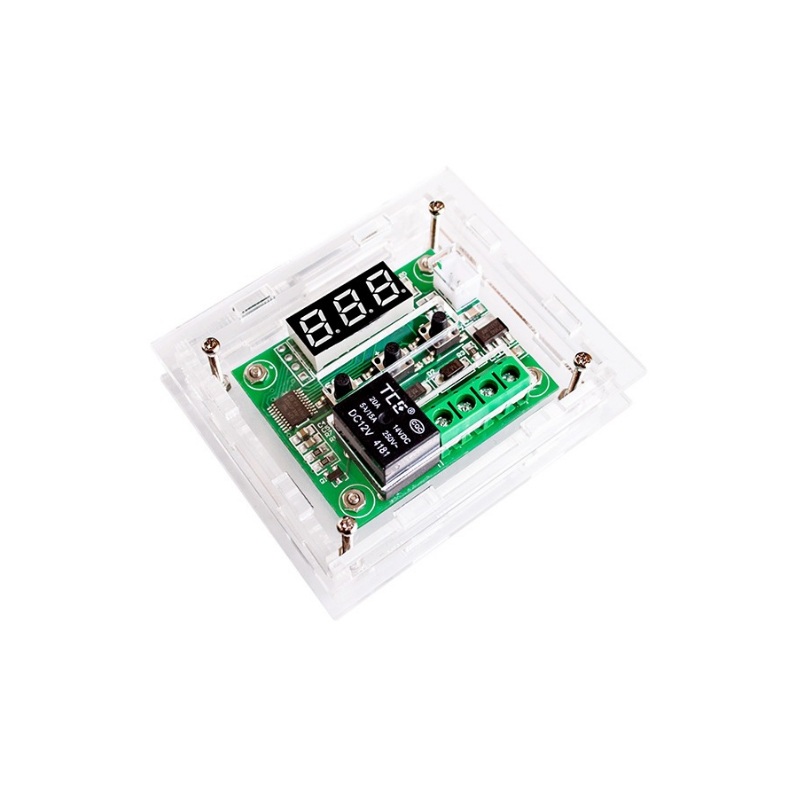

FBARTM-01 |
![]() |
|
![]() ![]() |

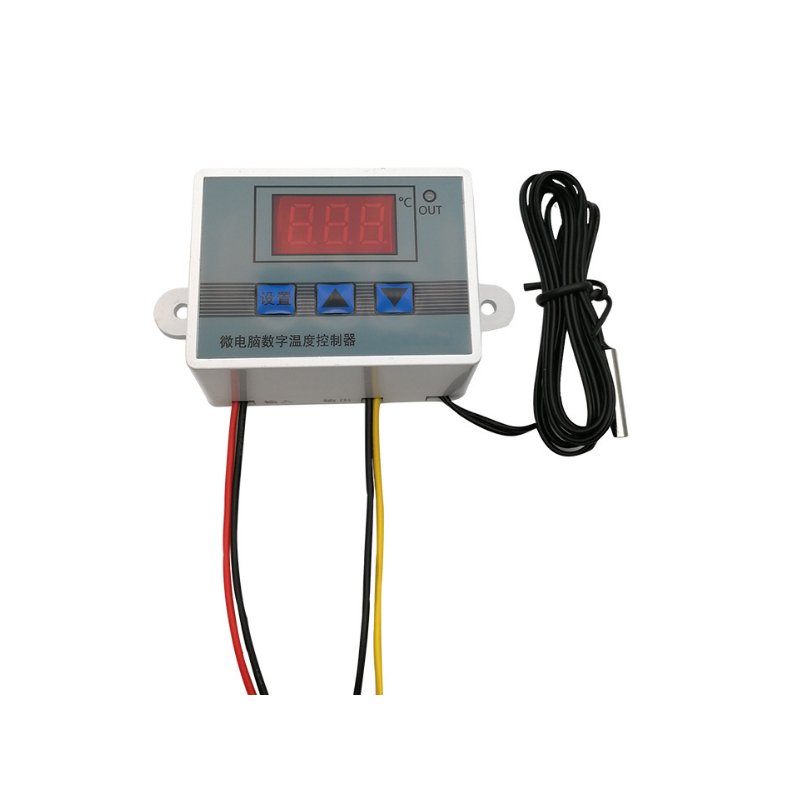

FBARTM-02 |
![]() |
|
![]() ![]() |

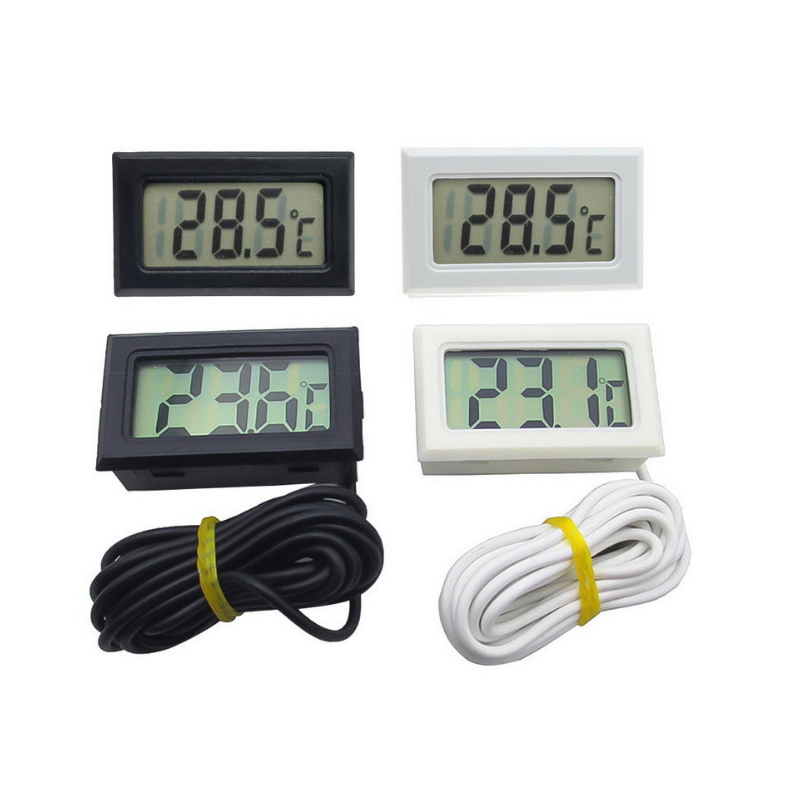

FBARTM-03 |
![]() |
|
![]() ![]() |

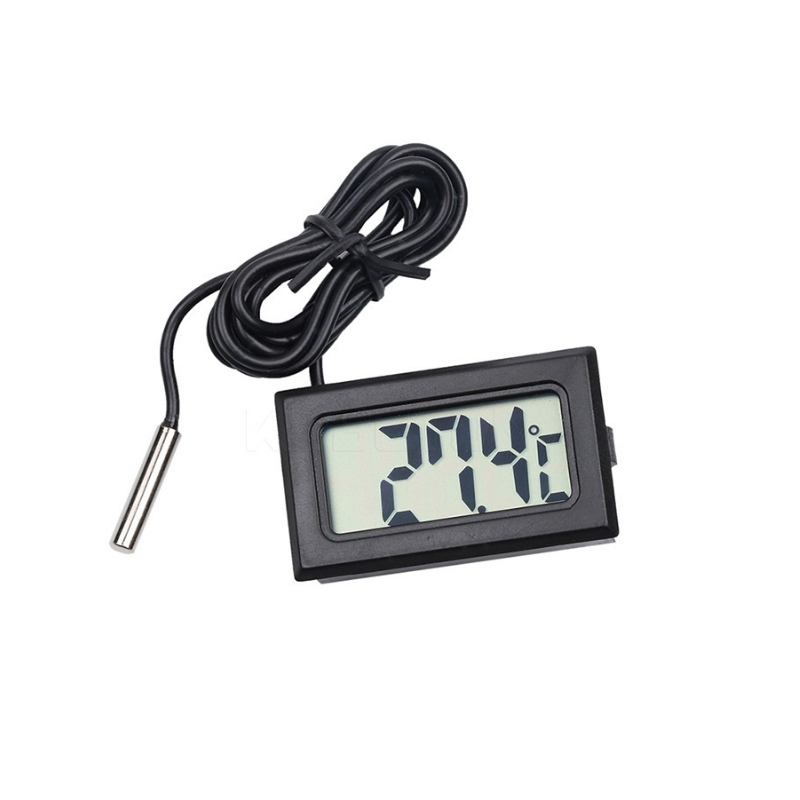

FBARTM-04 |
![]() |
|
![]() ![]() |

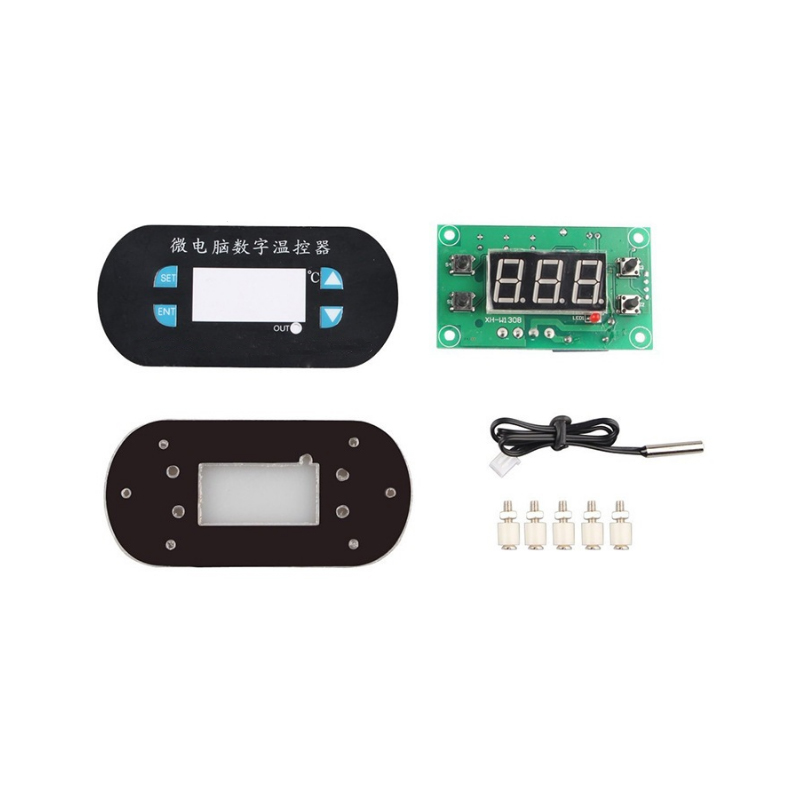

FBARTM-05 |
![]() |
|
![]() ![]() |

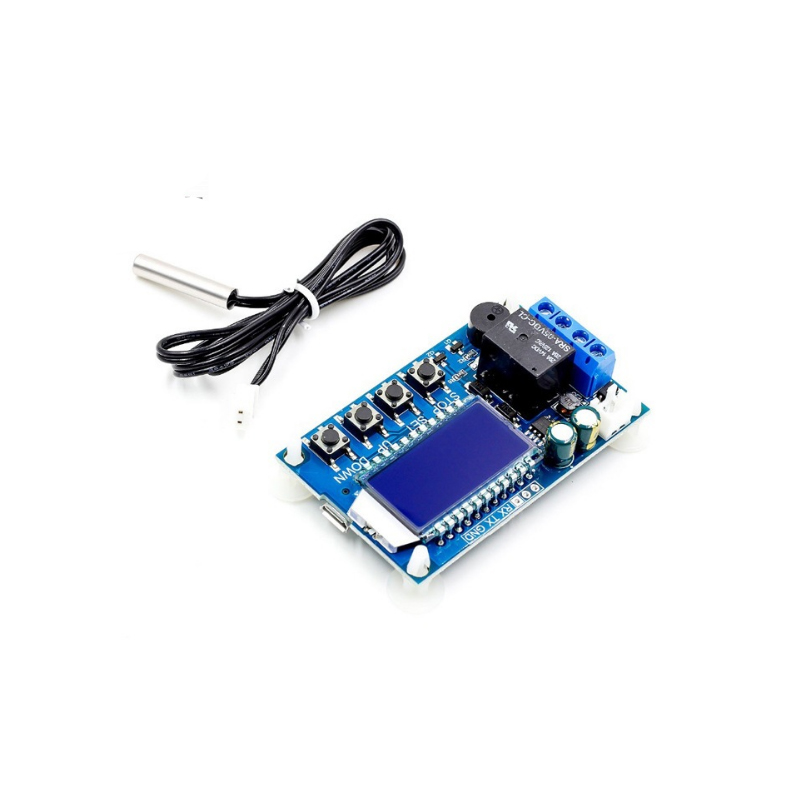

FBARTM-06 |
![]() |
|
![]() ![]() |

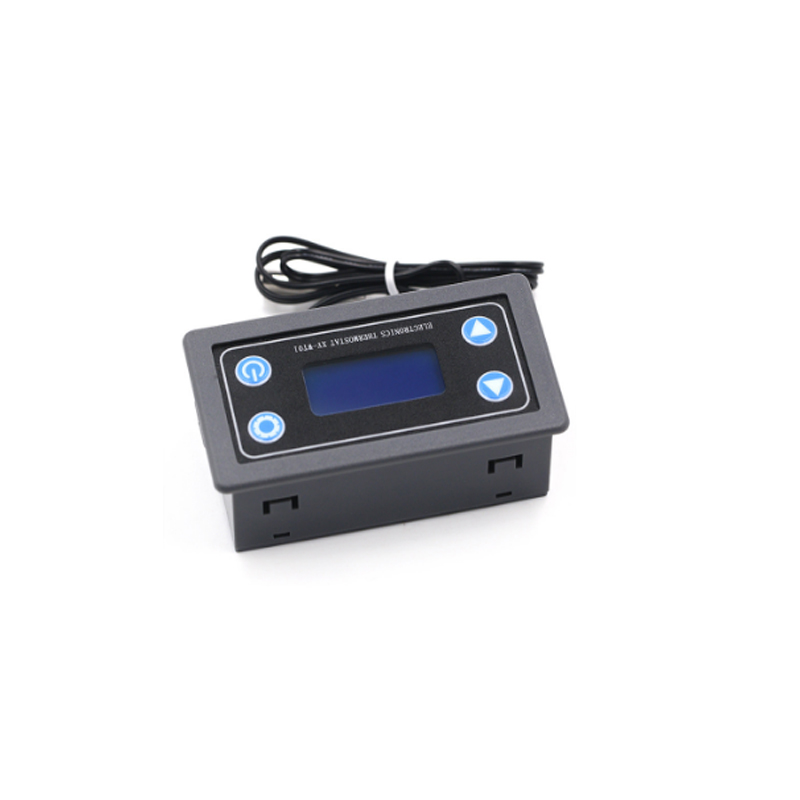

FBARTM-07 |
![]() |
|
![]() ![]() |

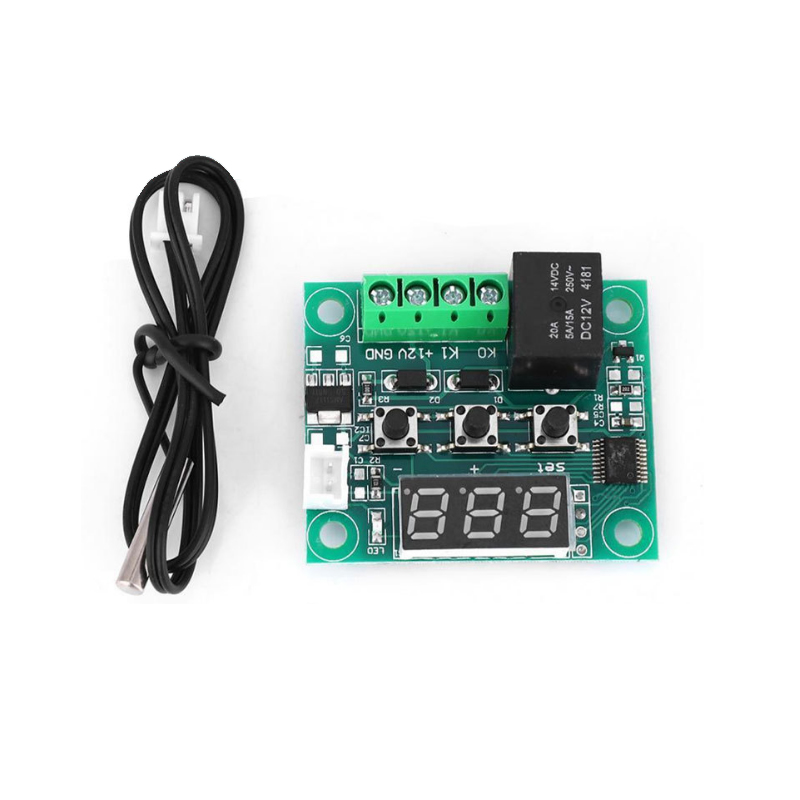

FBARTM-08 |
![]() |
|
![]() ![]() |
FBARTM-09 |
![]() |
Thermostat Module
About Thermostat Modules
A thermostat module is a component of a thermostat system. These modules add functionalities or features to the overall thermostat system and can vary in the complexity and capabilities they provide. For example, a thermostat module may facilitate wireless communication, zoning, programming, or smart-home integration. Some models offer occupancy and humidity sensing.
Our TBH300 Energy Management System (EMS) Kit combines hardware and software to reduce energy consumption in unoccupied hotel rooms. The TBH300 EMS Kit utilizes occupancy and door/window sensors to determine if a guest is present and switches between temperature modes and adjusts power accordingly. The system can be controlled with a mobile app.medical thermostat module.
Thermostat, (smart thermostat module)also known as a thermostat in English, is a temperature sensing device that automatically opens or closes to maintain the controlled part within a certain temperature range during normal operation. Its operating temperature is only fixed or adjustable.
Thermostat is a temperature sensing device that maintains a controlled part within a certain temperature range by automatically opening or closing the circuit under normal operation. Its operating temperature is only fixed or adjustable.
A thermostat is a device that directly or indirectly controls one or more heat and cold sources to maintain the required temperature. To achieve this function, a thermostat must have a sensitive element and a converter. The sensitive element measures temperature changes and has the required effect on the converter. The converter converts the action from sensitive components into a device that can control the temperature appropriately.
Our selection of thermostat modules includes models compatible with line-voltage and 24-volt FBelec thermostats.
Working principle of programmable thermostat module
The constant temperature automatic sampler is equipped with a cooling/heating module and uses Peltier elements to effectively cool the air. When turned on, set the front of the Peltier element for heating/cooling based on temperature. The fan draws in air from the sample tray area and passes it through the channels of the heating/cooling module. The fan speed is determined by environmental conditions such as humidity and temperature. In the heating/cooling module, the air reaches the temperature of the Peltier element, and then these transverse thermostats are blown under the special sample tray, where they are evenly distributed and flow back to the sample tray area. The air then enters the thermostat from there. This cyclic mode ensures efficient cooling/heating of the sample bottle.
In cooling mode, the other side of the Peltier element becomes very hot, and cooling is necessary to maintain foresight performance, which is achieved through a large heat exchanger on the back of the thermostat. Four fans blow air from left to right together to exhaust heated air. The fan speed determines the temperature control of Peltier components.
During the cooling period, condensation may occur in the heating/cooling module. Condensed water will be stored in thermostats everywhere.
The most commonly used principle for sensing temperature changes is:
(1) The expansion rates of two different metals (bimetallic sheets) combined together are different;
(2) The expansion of two different metals (rod and tube) is different;
(3) Expansion of liquids (sealed membrane box with external temperature measuring bubble, sealed corrugated tube with or without external temperature measuring bubble);
(4) The saturated vapor pressure of the liquid vapor system (pressure measuring membrane box);
(5) Thermistor components.
The most commonly used converters are
(1) A switch that connects or disconnects a circuit;
(2) Potentiometer driven by sensitive components for the cursor;
(3) Electronic amplifier;
(4) Pneumatic actuator.

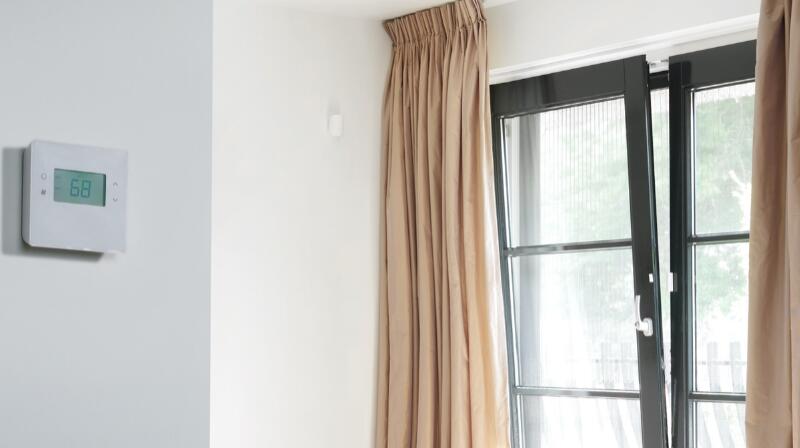

The most common use of a thermostat is to control room temperature. Typical applications include: controlling gas valves; Control the fuel furnace regulator; Control the electric heating regulator; Control the refrigeration compressor; Control the gate regulator.
Room temperature regulators can be used to provide various control functions, such as heating control; Heating cooling control; Day and night control (controlling at lower temperatures at night); Multi level control, which can perform one or more levels of heating, one or more levels of cooling, or a combination of multiple levels of heating and cooling control.

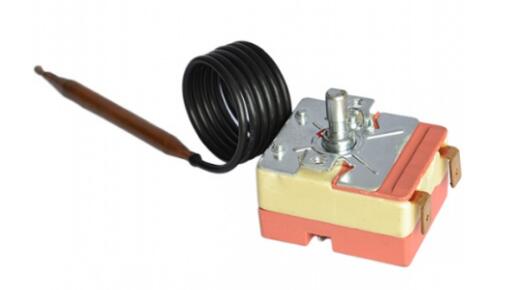

There are generally several types of thermostats: plug-in type - thermostats are installed on pipelines, and sensitive components are inserted into pipelines; Immersion type - sensitive components are immersed in liquid in pipelines or containers to control the liquid; Surface type - Sensitive components are installed on the surface of pipelines or similar surfaces.
FBelec is a manufacturer engaged in the production of temperature controllers, specializing in the production of refrigerator temperature controllers (REFRIGERATOR), refrigerator temperature controllers (FREEZER), air conditioning temperature controllers, water dispensers, ice fryers, display cabinets, and various types of pressure type temperature controllers used in automotive air conditioners, with dozens of varieties. The product has passed various certifications and has obtained UL certification in the United States. It can meet the matching needs of refrigerators, freezers, household air conditioners, car air conditioners, water dispensers, ice fryers, etc. The product is exported to all over the world. New and old customers at home and abroad are welcome to call or write to inquire and negotiate!
