Temperature sensor & Humidity sensor

Picture	Manufacturer No.	Size	Accuracy	Description	Datasheet	Order
	FBTSHS-001	53*27MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	Digital T/H module T/H sensor		Send Order
	FBTSHS-002	16.1*5.8MM	Temperature: ±0.5°C Humidity: ± 3% RH (25°C)	Humidity & Temperature Sensor		Send Order
	FBTSHS-003	99*16MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	digital hygro sensor		Send Order
	FBTSHS-004	21.5*8.6MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	Miniature integrated temperature and humidity sensor		Send Order

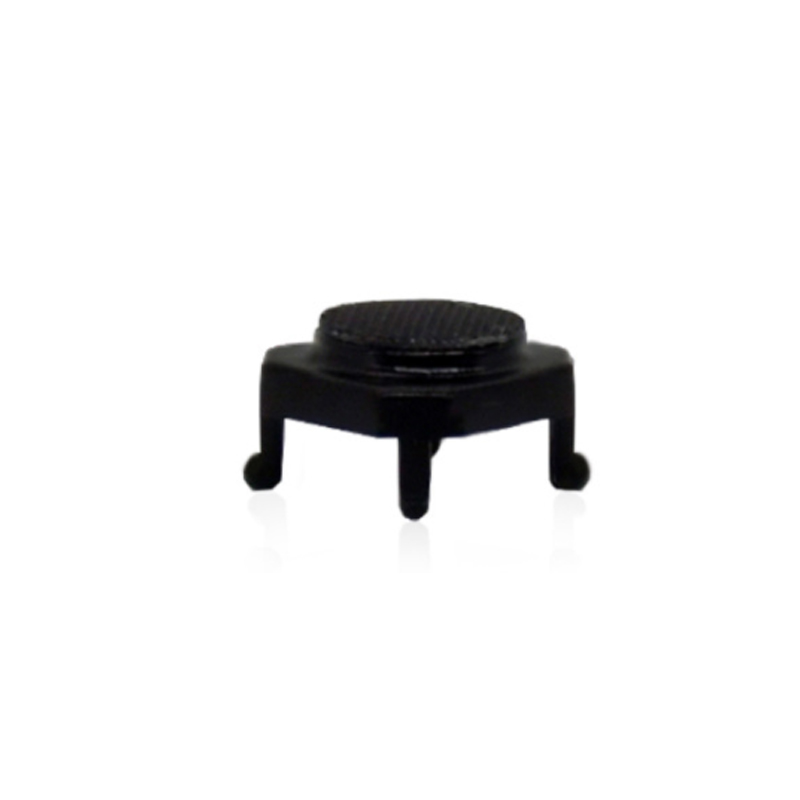

	FBTSHS-005	6.4*6.4MM	/	Dust cover T/H sensor		Send Order

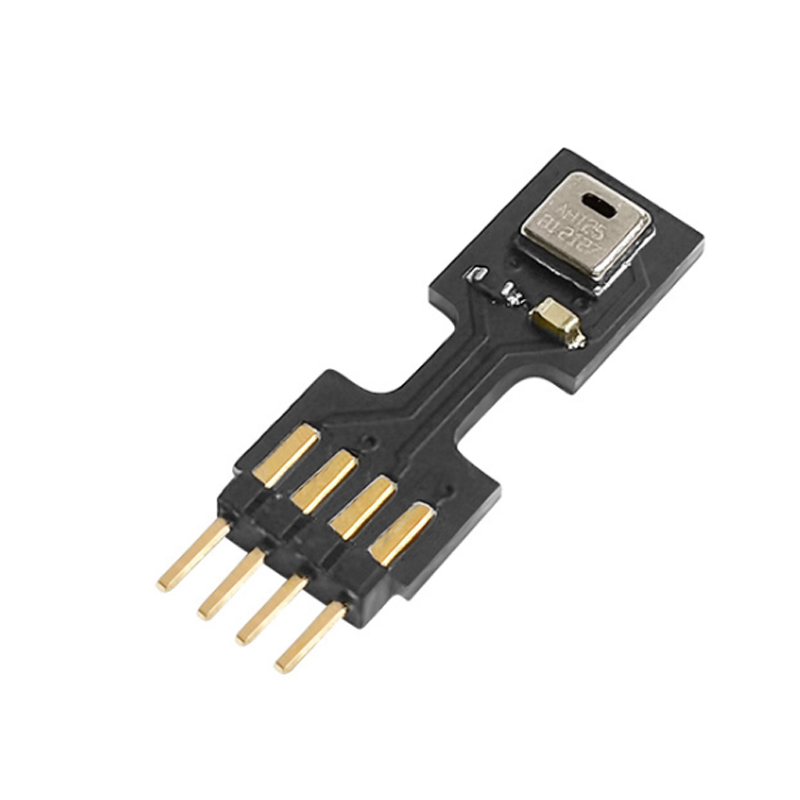

	FBTSHS-007	18*5MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	AHT25 T/H sensor		Send Order

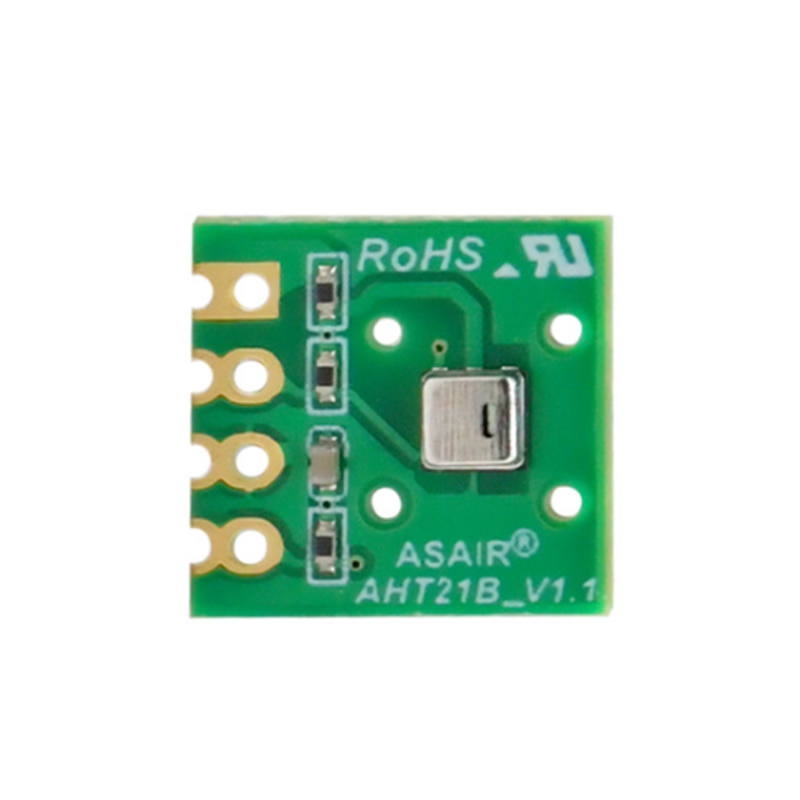

	FBTSHS-008	12*12MM	Temperature: ±0.5°C Humidity: ± 3% RH (25°C)	AHT21B Digital T/H module T/H sensor		Send Order

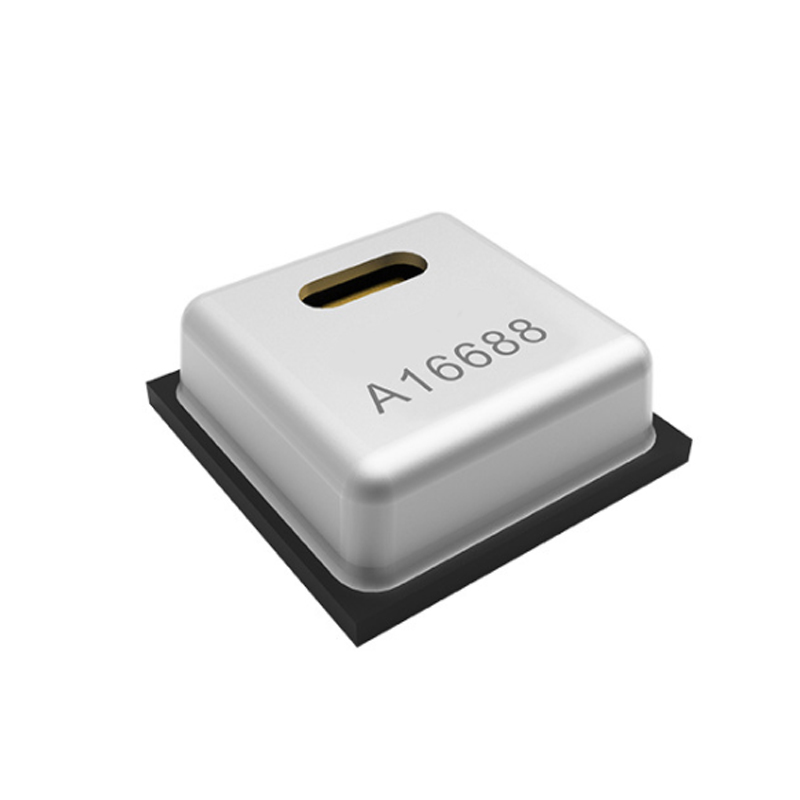

	FBTSHS-009	3*3MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	AHT20 integrated temperature and humidity sensor chip		Send Order
	FBTSHS-010	7*5MM	/	HDS10 condensation sensor High humidity sensor module		Send Order
	FBTSHS-011	40*20MM	Temperature: ±1°C Humidity: ± 3% RH	M1011A Analog T/H sensor		Send Order

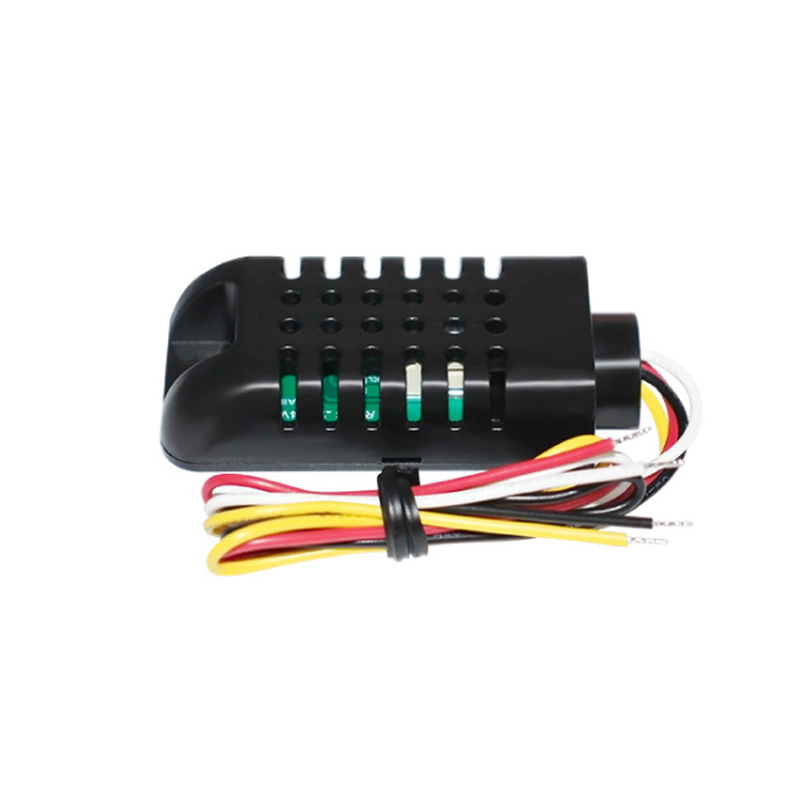

	FBTSHS-012	147.7*136.6MM	Temperature: ±0.3°C (25°C) Humidity: ± 2% RH (25°C)	AM2306 Digital T/H sensor		Send Order

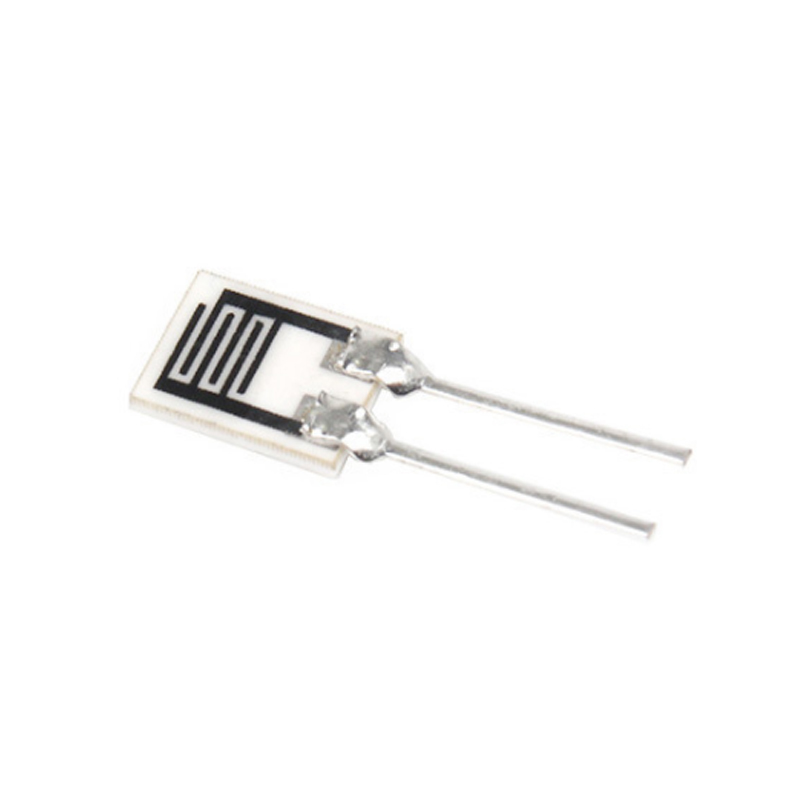

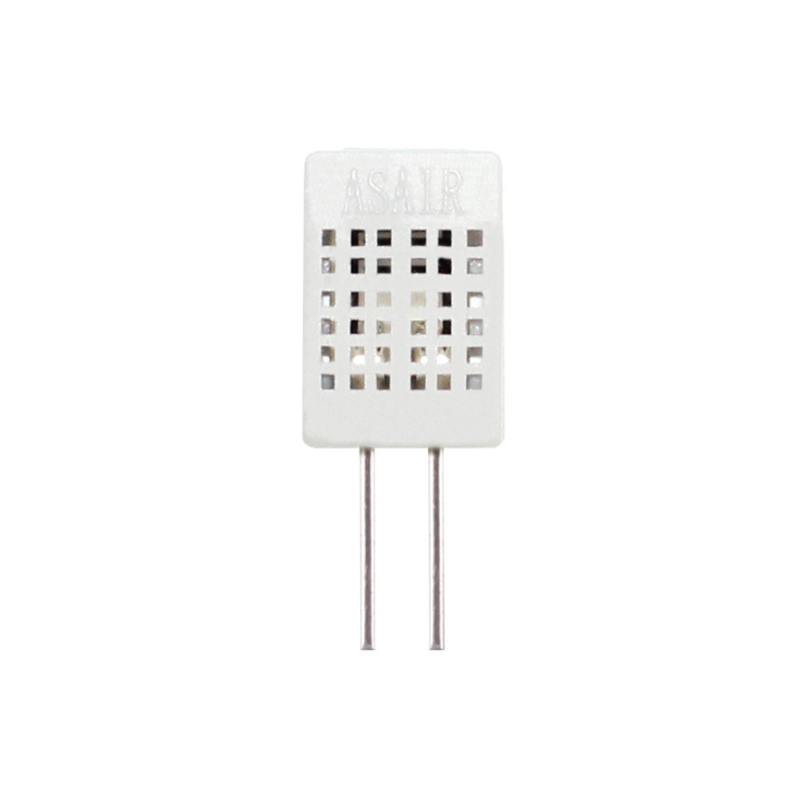

	FBTSHS-013	10.8*7.3MM	Humidity: ≤± 5% RH	HR202L Humidity sensitive resistor Digital T/H sensor module with a cover		Send Order

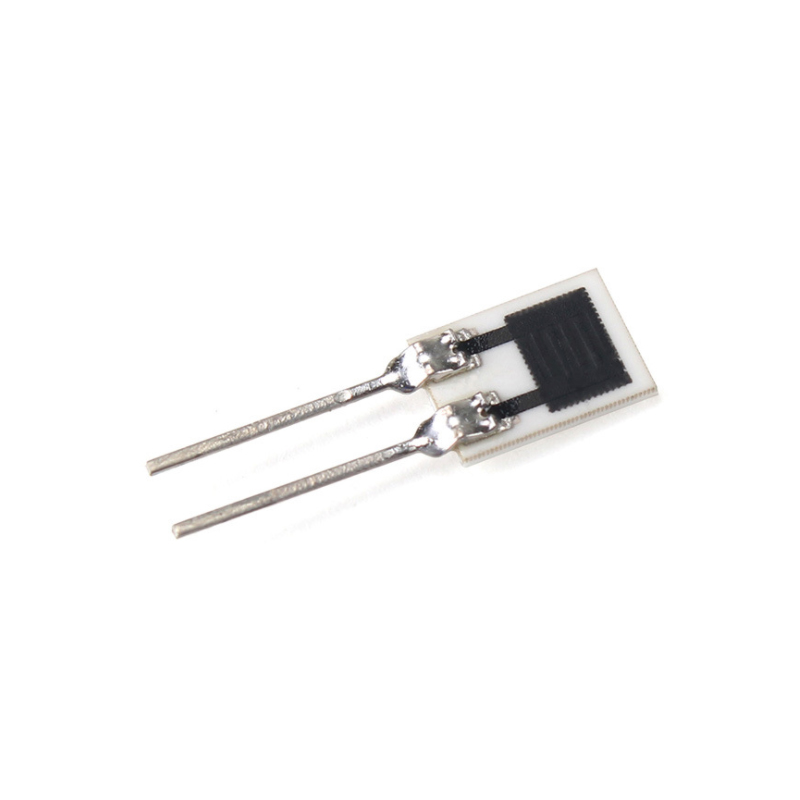

	FBTSHS-014	7*5MM	Humidity: ≤± 5% RH	HR202L Digital humidity sensor resistance sensor		Send Order
	FBTSHS-015	115.5*97.3MM	Temperature: ±0.5°C (25°C) Humidity: ± 3% RH (25°C)	AW5145W network temperature and humidity transmitter		Send Order

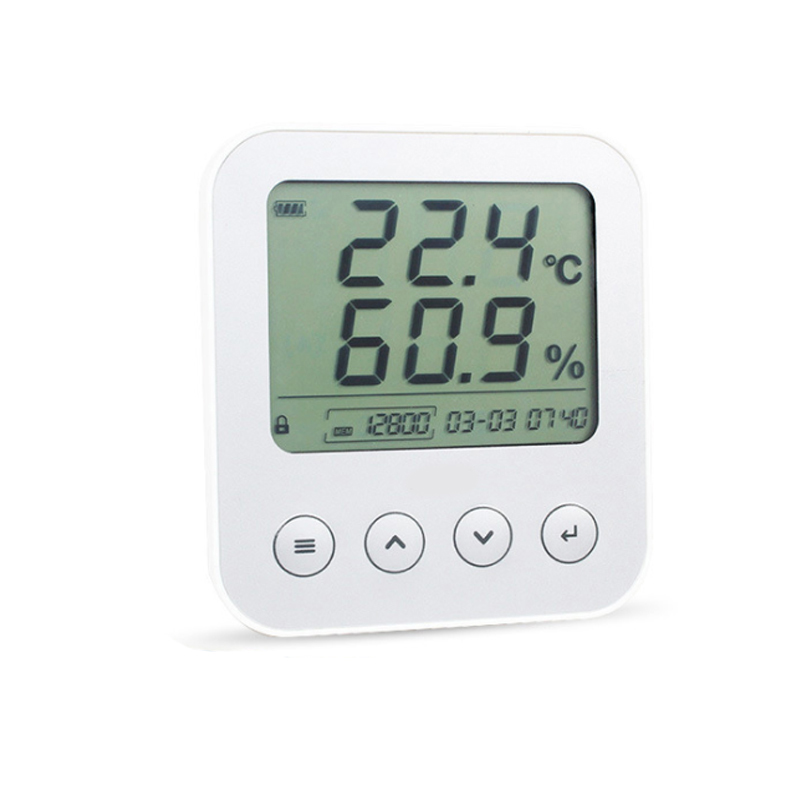

	FBTSHS-016	100*90MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	AW3485M Network temperature and humidity transmitter		Send Order
	FBTSHS-017	100*90MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	AW3485A Network T/H transmitter		Send Order
	FBTSHS-018	65*45MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	AW5485 Network T/H sensor		Send Order
	FBTSHS-019	100*90MM	Temperature: ±0.3°C (25°C) Humidity: ± 2% RH	digital temperature and humidity sensor		Send Order
	FBTSHS-020	85*33MM	Temperature: ±0.3°C (25°C) Humidity: ± 2% RH	AF3020A temperature and humidity		Send Order

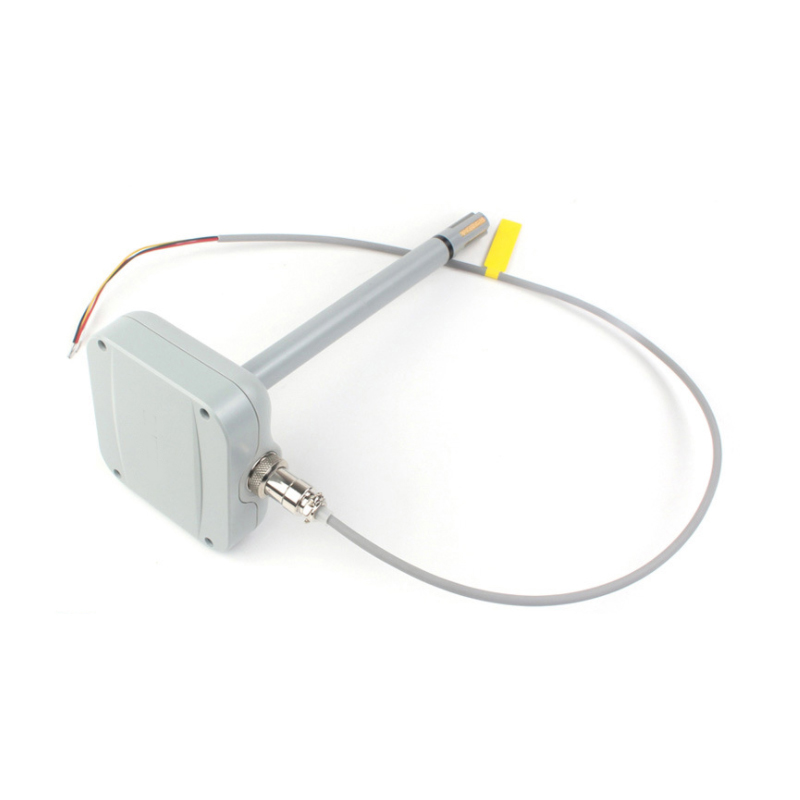

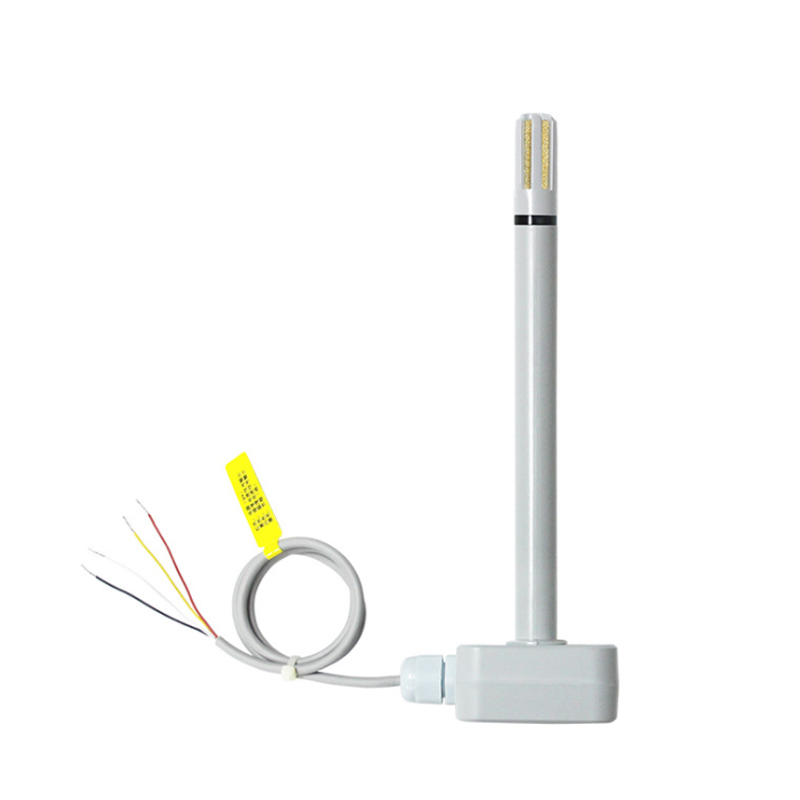

	FBTSHS-021	85*33MM	Temperature: ±0.3°C (25°C) Humidity: ± 2% RH	AF3010A pipe temperature and humidity transmitter		Send Order
	FBTSHS-022	85*34MM	Temperature: ±0.3°C (25°C) Humidity: ± 2% RH (25°C)	AF3020 Pipe current type temperature and humidity sensor		Send Order
	FBTSHS-023	70*60MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	AF1020 pipe current type temperature and humidity transmitter sensor		Send Order
	FBTSHS-024	100*90MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	AW3010A Network T/H transmitter		Send Order
	FBTSHS-025	70*60MM	Temperature: ±0.5°C Humidity: ± 3% RH (25°C)	Temperature sensor & Humidity sensor		Send Order
	FBTSHS-026	85*33MM	Temperature: ±0.3°C	Network temperature and humidity transmitter		Send Order
	FBTSHS-029	88*88MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	FBELE Temperature sensor & Humidity sensor		Send Order

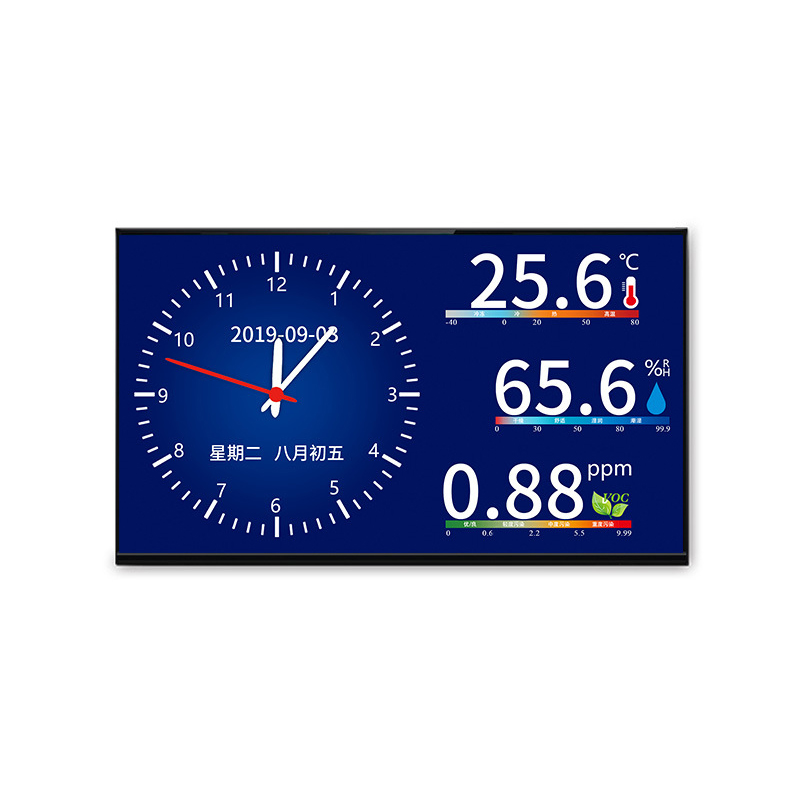

	FBTSHS-030	730*440MM	Temperature: ±0.5°C Humidity: ± 3% RH	Intelligent environmental monitoring instrument		Send Order
	FBTSHS-031	142*107MM	Temperature: ±0.5°C Humidity: ± 3% (30-90%RH 25°C)	AS108R multifunctional hygrograph data display recorder		Send Order

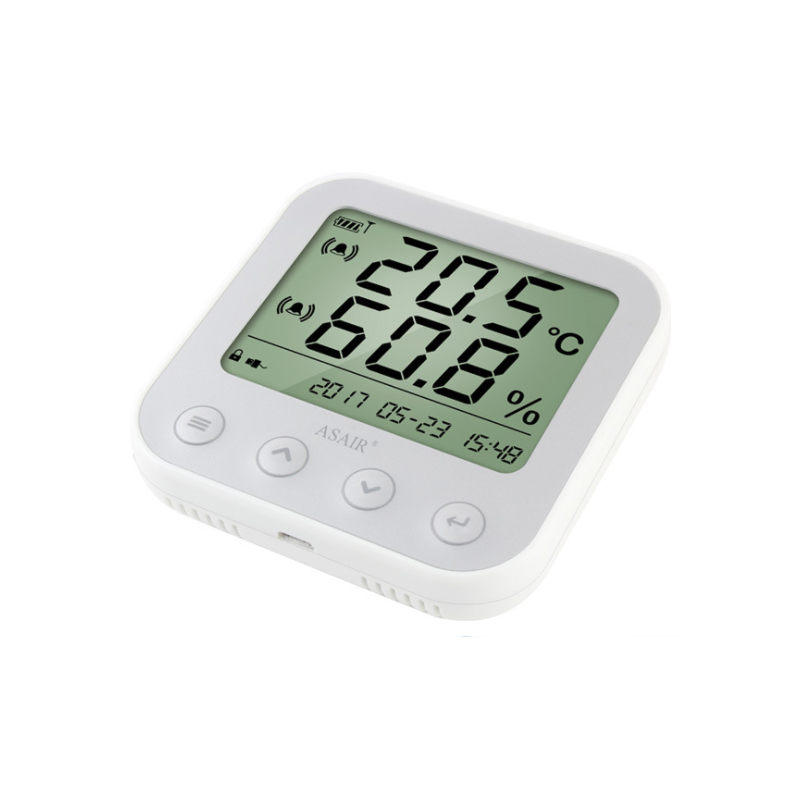

	FBTSHS-032	148*122MM	Temperature: ±0.3°C Humidity: ± 2% RH (25°C)	AS109R multifunctional network temperature and humidity display recorder		Send Order
	FBTSHS-033	/	Temperature: ±0.3°C	PT1000 temperature sensor		Send Order
	FBTSHS-034	/	±1%	temperature sensor		Send Order
	FBTSHS-035	/	±1%	Temperature detection sensor temperature probe with curved tube		Send Order

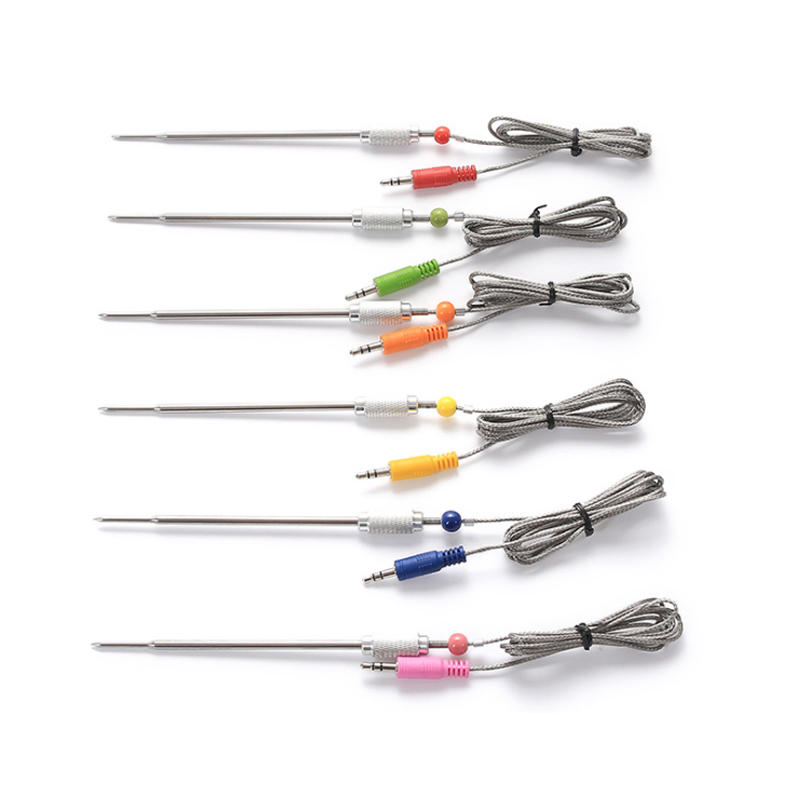

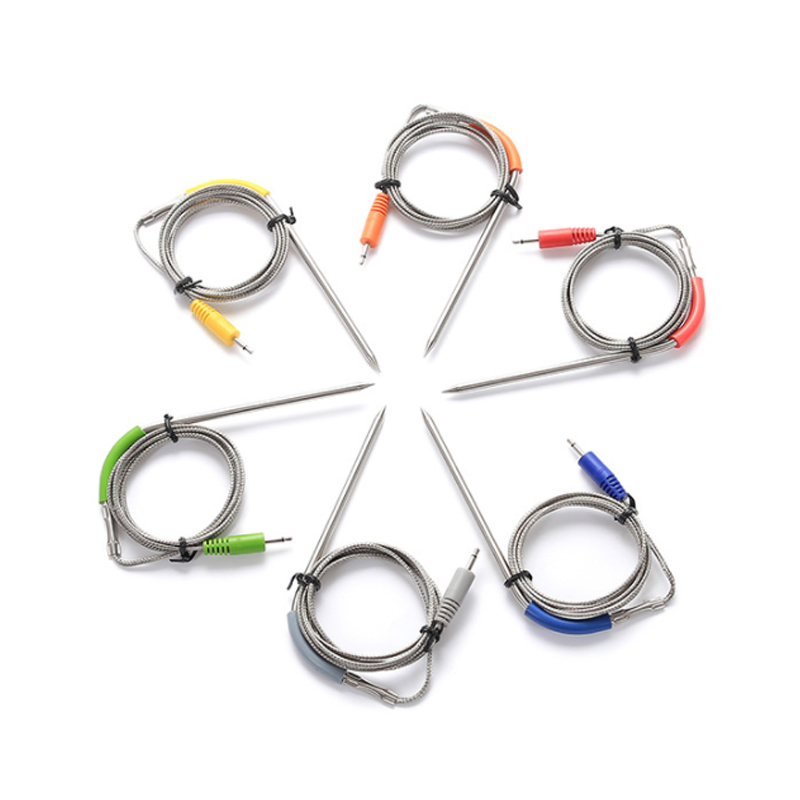

	FBTSHS-036	/	±1%	Stainless steel barbecue temperature sensor		Send Order
	FBTSHS-037	/	±1%	SS304 stainless steel bullet NTC thermistor water dispenser temperature sensor		Send Order

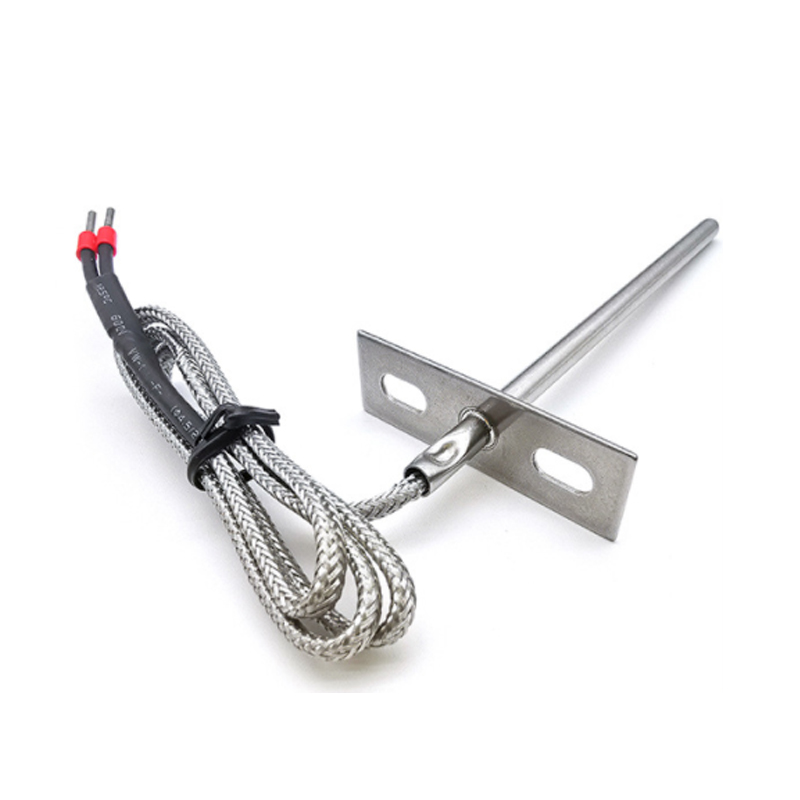

	FBTSHS-038	/	/	Built-in stainless steel temperature sensor probe wood chip particle furnace platinum resistance temperature sensor		Send Order

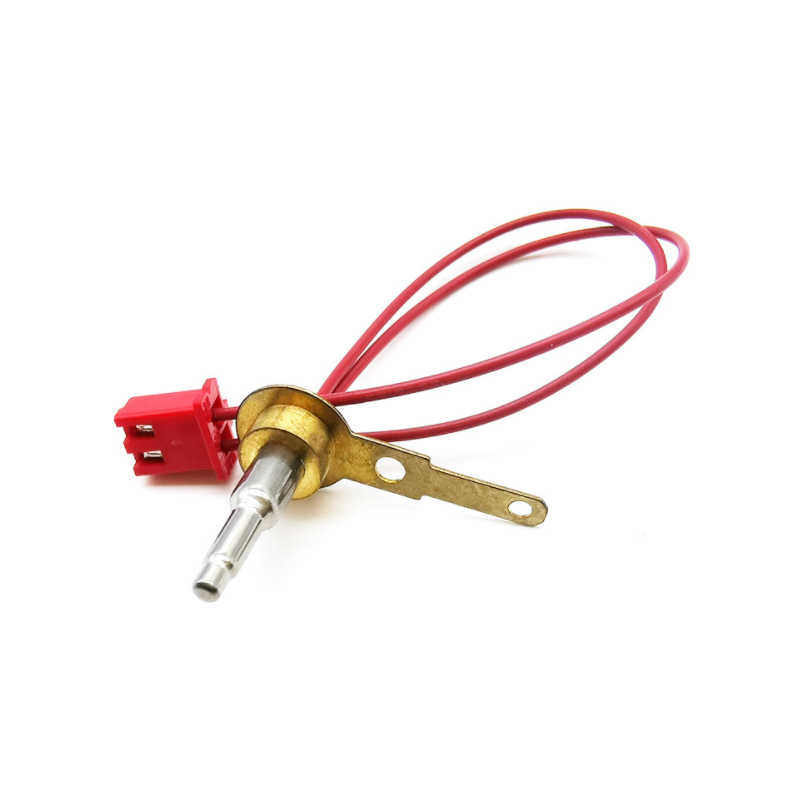

	FBTSHS-039	/	/	Stainless steel temperature sensor for household appliances		Send Order
	FBTSHS-040	/	Temperature: ±0.5°C	DS18B20+ digital temperature sensor		Send Order
	FBTSHS-041	/	±1%	Kettle water heater NTC thermistor temperature sensor		Send Order
	FBTSHS-042	/	/	thermocouple temperature sensor		Send Order

•


  FBelec sells best ultrasonic transducer

  FBelec is very competitive, ultrasonic testing, and other industries. The products have passed CE certification and GTS testing certification. The customers of products such as DAVID ultrasonic piezoelectric ceramic chips and transducers are all over China, Turkiye, Pakistan, South Korea and other countries and regions, and have won high praise and recognition from customers

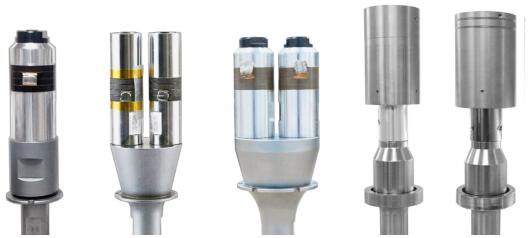

  Ultrasonic Transducers
