DC Power Supply

Picture	Manufacturer No.	Input voltage	Output Current	Description	Datasheet	Order

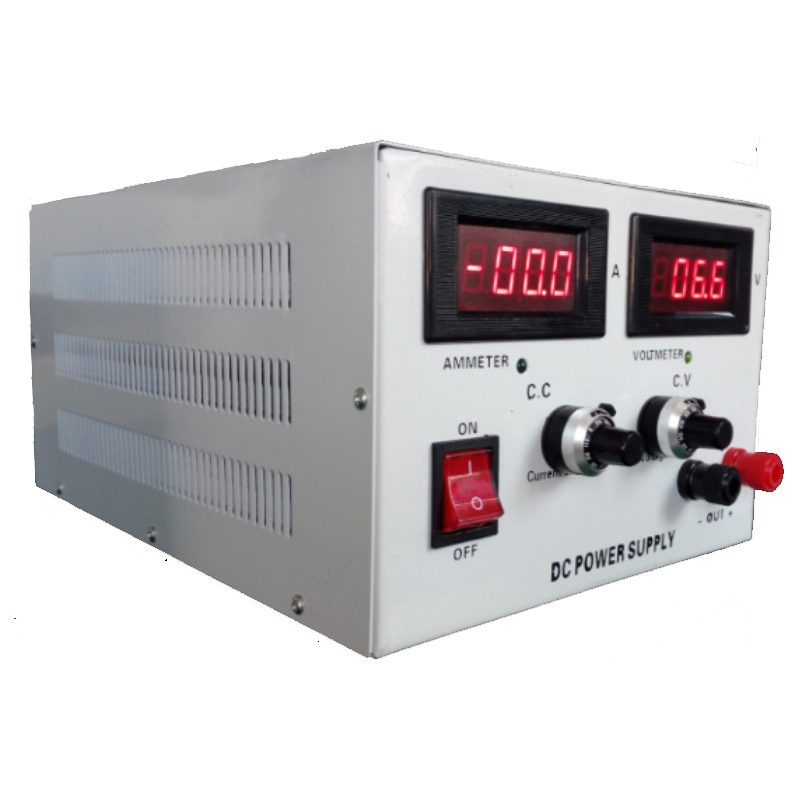

	FBDPS-001	110/200（V）	0-10A	Manufacturer adjustable DC regulated power supply constant voltage constant current power supply 60v30v5a10a adjustable power supply		Send Order
	FBDPS-002	110/220（V）	0-30A	Switching aging test DC power supply various specifications NC DC voltage and current stabilizing power supply		Send Order

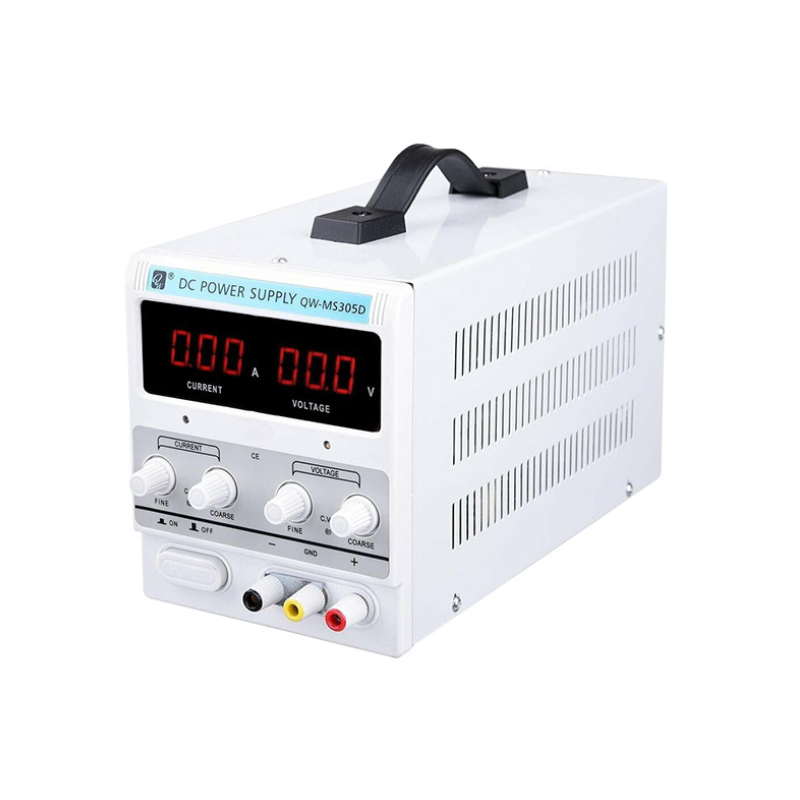

	FBDPS-003	110/220（V）	0-5A	CE / FCC adjustable maintenance Power DC regulator qw-305ds Mini switching power supply 30v5a		Send Order

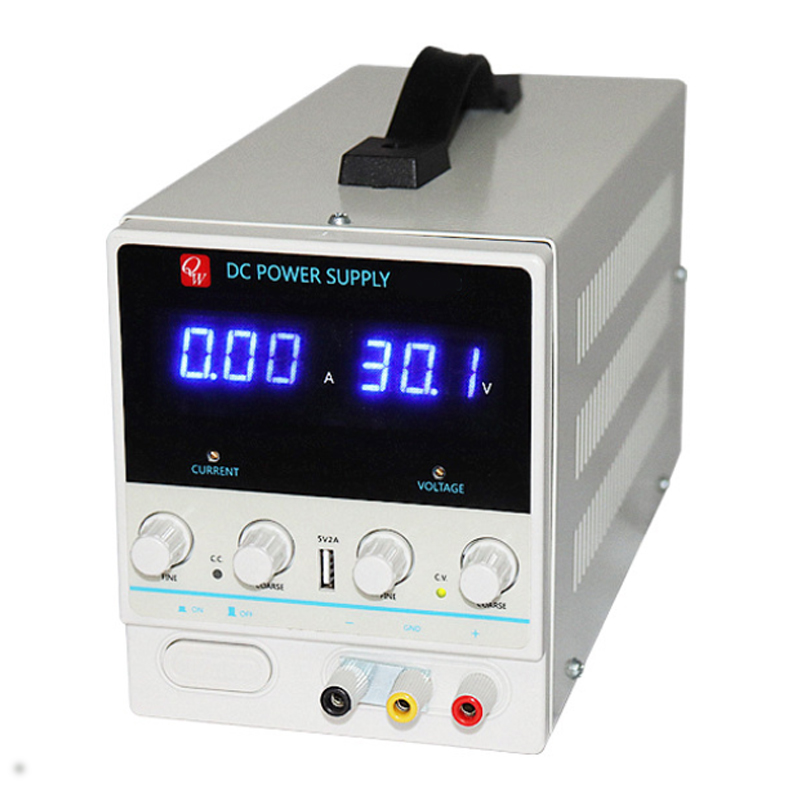

	FBDPS-004	110/220（V）	0-5A	100V, 60V, 30V four digit display DC regulated power supply with 5V USB interface		Send Order
	FBDPS-005	220（V）	100A	6kW program controlled DC regulated power supply laboratory DC power supply		Send Order

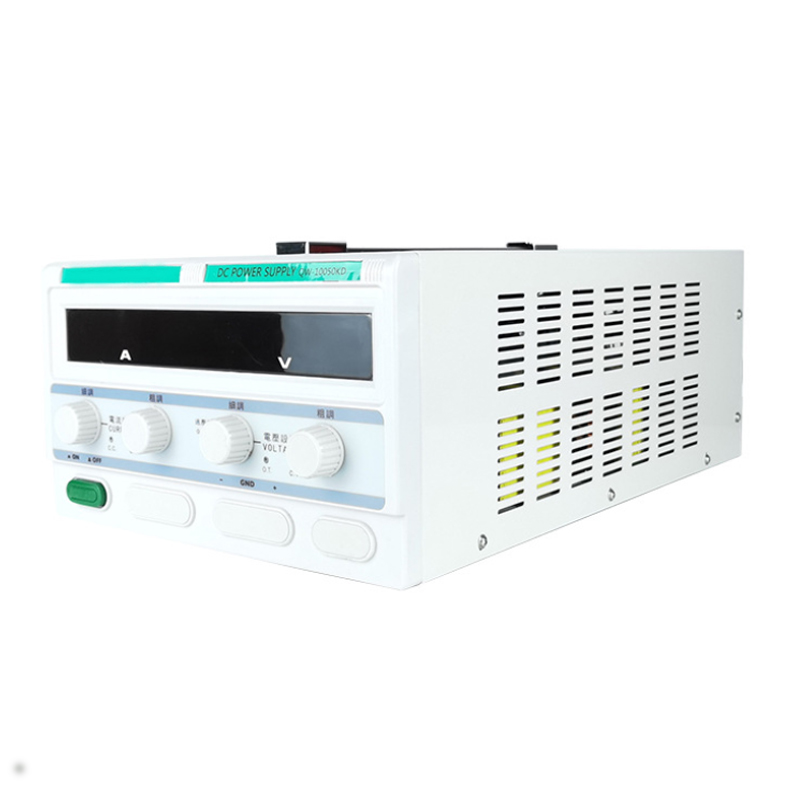

	FBDPS-006	110/220（V）	0-60A	0-100V 50A high power supply 80v50v100a DC voltage regulator electrolytic plating		Send Order

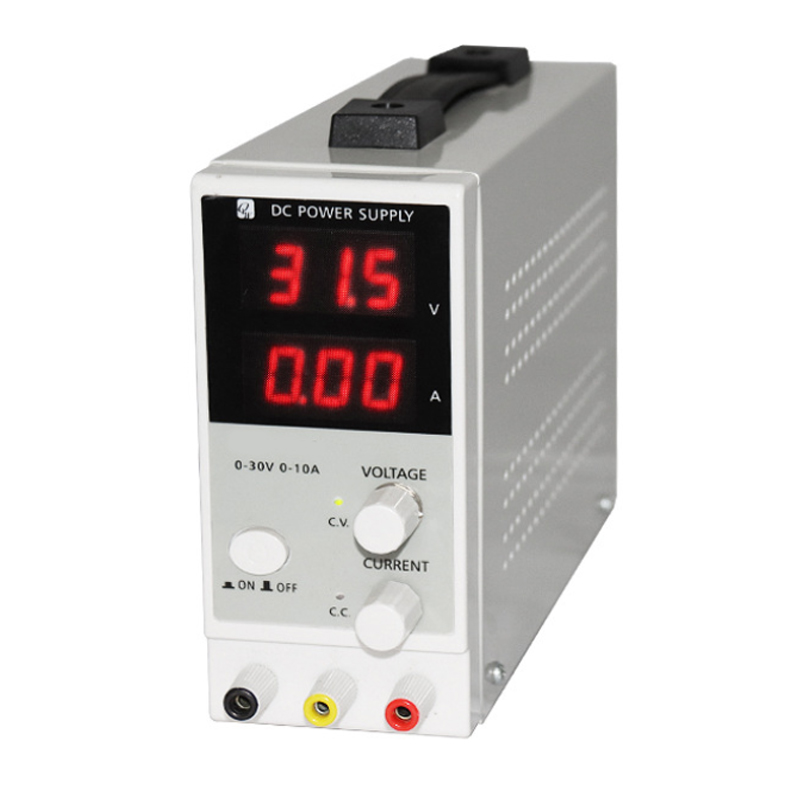

	FBDPS-007	110/220（V）	0-10A	CE / FCC certified adjustable DC power supply qw-3010ds Mini switching power supply 30v10a is delivered by the manufacturer		Send Order

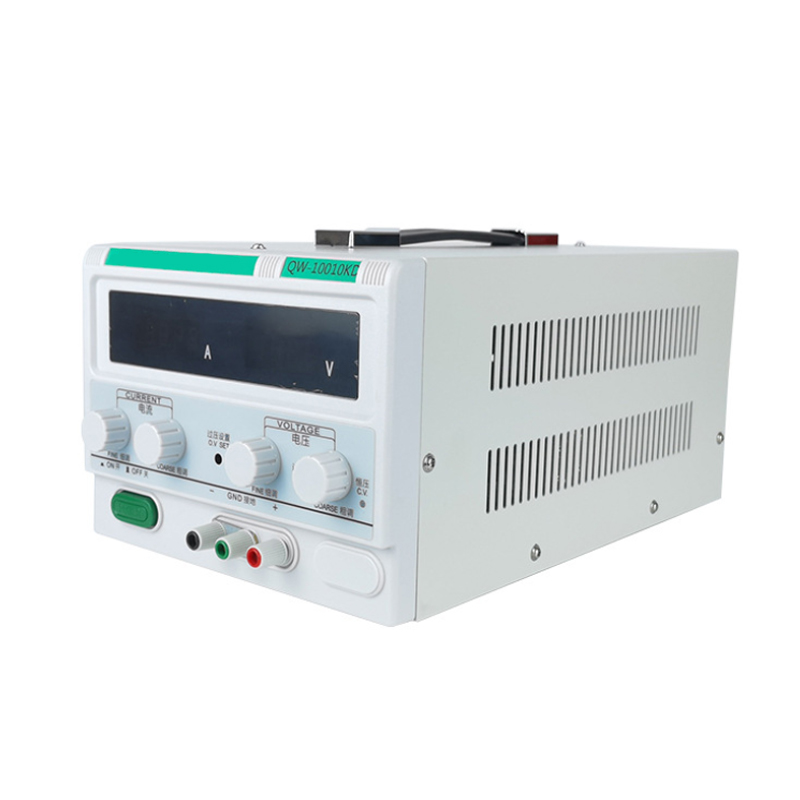

	FBDPS-008	110/220（V）	0-10A	CE certified qw-10010d 0-100V 0-10a DC regulated power supply		Send Order

• FBelec DC Power Supply products are widely used in industries such as IC semiconductors, automotive electronics, national defense and military industry, low-voltage electrical appliances, medical electronics, and capacitors. After more than ten years of technological accumulation, we continuously provide users with intelligent, convenient, and leading testing solutions.

•

  Automotive Electronics & New Energy

  The control system of a car is based on electronic devices, and as the most important part of the intelligent car ecosystem, the performance of automotive electronic devices directly determines the safety and reliability of the entire vehicle. FBelec Power has over a decade of technological accumulation, providing intelligent, convenient, and leading automotive electronic testing solutions for automotive electronics, automotive generators, high-voltage battery systems, high current relays, inverters, electrical air conditioning compressors, power transmission hydraulic pumps, DC motors/DC-DC high and low voltage converters, DC brushless motors, automotive safety wires, car lights, wireless power supply, magnetic drive, and other fields.

  The FBelec automotive electronic intelligent ecological testing system has China's first HY-BP16750 series high-speed power supply with a maximum frequency of 500kHz for automotive electronic testing. The HY-BP series high-speed power supply for automotive electronic testing is a bipolar DC stabilized power supply that continuously passes through zero points without polarity switching at the output end, and can change both positive and negative poles in both directions. Through the four quadrant action, it is possible to provide both source and sink power, driving both inductive and capacitive loads. At the same time, it also has a built-in function signal generator, which can freely generate any waveform and set timing control. It also achieves low ripple, low noise, and high-speed response (CV mode: 500kHz), with a voltage response time of only ≤ 10 μ S. Applicable standards: Power supply voltage variation tests (pulse 2b, pulse 4, etc.) required by ISO 16750-2 and ISO 7637-2, GB28046.2, and can meet the high-speed response speed requirements of various automotive manufacturer standards: LV 124, LV148, SMTC3 800 001, VW 80000, GS 95024-2, and increasingly complex waveform variation tests.




  The correct steps for selecting the model of AC/DC Power Supply

  1. The first step is to determine the input source type
  There are two types of power module inputs: AC or DC. Generally, AC/DC power module is selected for AC input, and DC/DC power module is selected for DC input. The high-energy cubic AC-DC power module can also operate normally under DC input voltage conditions.

  2. The second step is to select based on the input voltage range
  After determining the input source, the input voltage can refer to the manufacturer's selection framework. The conventional AC inputs are 110V, 220V, and 380V. Nowadays, most AC/DC power modules meet the input range of 85-265VAC or 100-370VDC. 380V also meets the input range of 220V. However, the performance may be much worse when used at 220V, and the conventional DC input ranges from 5V to 72V.

  3. Step 3: Select the packaging type of the product
  The packaging forms of the product include single inline SIP packaging, small horizontal bare board packaging, dual inline ultra small DIP packaging, and rail packaging. Bare board is composed of PCB and various components, completely exposed, not very safe, but with low cost. It is generally recommended to use DIP packaging. Although it is slightly more expensive, it is a sealed packaging with safe isolation, good heat dissipation performance, shock resistance, waterproofing, and stable performance. It needs to be selected according to the actual situation.

  4. Step 4: Select the power of the product based on the size of the load
  When selecting the power of the power module, it is generally recommended to leave a margin, and the power used should be between 20% and 80% of the actual power. Excessive margin may cause howling during low-frequency operation. If the margin is too small, it may cause a reduction in module lifespan, reliability, and even the inability to start.

  5. Step 5: Choose the appropriate output voltage based on the type of load
  The output voltage of the product is generally 3.3V, 5V, 6V, 9V, 12V, 15V, 20V, 24V, 28V, 36V, 48V, ± 12V, ± 15V, etc. Some unconventional voltage requirements can be achieved through series combination. If the routine requirements are not met, you can also request customization of the output voltage you want from the manufacturer. It is not complicated to change it on the original basis, and it can be basically achieved.

  6. Step 6: Select the isolation properties of the power module
  There are two types of power modules: isolated and non isolated, and non isolated can pose a risk of electric shock. Isolation refers to the complete isolation of the input and output of the power module into two independent (non grounded) power sources. In industrial bus systems, complete isolation is carried out when facing harsh environments (lightning strikes, arc interference), which plays a role in eliminating grounding loops. In hybrid circuits, achieve noise isolation between sensitive analog circuits and digital circuits, and achieve voltage conversion in multi voltage power supply systems. The conventional AC/DC power module is 3000VAC, while the DC/DC power module has 1000VDC~3000VDC.

  7. Step 7: Select the working temperature range
  Working temperature is an important factor affecting the lifespan of power modules, including commercial, industrial, and military grades, with significant price differences between different grades. Considering cost factors, it is also possible to choose a higher power one and reduce the rating for use. You can refer to the reduction curve in the specifications.

• FBelec specializes in manufacturing DC power supplies
  High-power switching power supplies, high-voltage power supplies, charging power supplies, adjustable power supplies, adjustable DC regulated power supplies, adjustable high-power switching power supplies, etc., and can also customize various special specifications of power supplies according to customer requirements.



  Products are widely used in: automotive electronics, capacitors, aerospace, defense industry, smart grid and semiconductor industries. After more than ten years of technical precipitation, it has continuously provided users with intelligent, convenient and leading test solutions.

  According to your needs

•





• Frequently Asked Questions (FAQ)







  Can a DC power supply be used for both prototyping and production?

  Yes, many DC power supplies are versatile enough to serve both prototyping and production needs. Programmable units are particularly beneficial in production environments where different test scenarios may be required.




  How does a DC power supply work?

  A DC power supply works by providing a regulated direct current to power a component, module, or device. Most DC power supplies have two modes of operation. In Constant Voltage (CV) mode, the power supply controls the output voltage based on the user settings. In Constant Current (CC) mode, the power supply regulates the current.






  Usage of DC power supply

  1. Connect the power supply first, and then connect the voltage regulator to the power supply.

  2. Turn on the power supply, turn on the main switch when there is no load, and then turn on the DC output switch to ensure the normal operation of the power supply. If the operation is normal, the power indicator will display the current output current and working voltage.

  3. Set the output voltage, adjust the voltage setting button, set the voltage to the desired voltage, and complete the voltage setting. This way, for a current limiting power supply, there are two adjustment systems to adjust the current and voltage separately.

  4. Set the current, press the limit button on the power panel, and the ammeter will display the current value. Adjust the current button to meet the requirements.

  5. Set overvoltage protection to avoid outputting excessive voltage in the event of incorrect operation.

  6. The setting of communication interface and remote control operation should be turned off relative to local control, such as setting communication interface according to requirements.




  What is a DC power supply?

  Also known as a DC power supply system or DC power supply, it is an electronic device used to provide stable DC voltage and current to circuits. Its core components include a positive electrode and a negative electrode, and there is a certain potential difference between these two electrodes. When the two electrodes of a DC power supply are connected to the circuit, a constant potential difference can be maintained, thereby generating current at both ends of the circuit.







  What is a programmable DC power supply?

  Programmable DC power supply is a new type of power supply that integrates control circuits, power conversion circuits, and switching voltage stabilization circuits. It has the characteristics of small size, light weight, high efficiency, and strong functionality. The internal components of a programmable DC power supply can be combined arbitrarily to achieve control over the output voltage.




  What are the AC-DC Power supply applications available

  AC-DC is simple with a transformer and rectifier tube, while the complex one is a switching power supply. The former is relatively rare to see due to various shortcomings. They are widely used in current life, with the most common being various chargers. In household appliances, appliances that require low-voltage power supply will use AC-DC conversion circuits, such as televisions, fully automatic washing machines, air conditioners, refrigerators, LED lights, and computers. Some of these appliances have an internal working voltage of low-voltage direct current, while others have a control circuit of low-voltage direct current.




  What is the purpose of using a DC power supply?

  A programmable AC power Supplies is used by engineers to test a component, circuit or electronic device, such as IoT devices, medical products, mobile phones, and remote industrial sensors. The DC power supply allows engineers to set and supply specific voltages to power the device to confirm it’s working as intended.







  AC/DC power module: an efficient and reliable power conversion solution

  The AC/DC power module is an efficient and reliable power conversion solution widely used in various fields, including industrial control, communication equipment, medical equipment, etc. It can convert alternating current into stable direct current, providing stable power supply for various electronic devices.




  The AC/DC power module has multiple advantages. Firstly, it has the characteristic of efficient conversion. The traditional linear power conversion efficiency is low, while the AC/DC power module adopts switch mode power supply technology, which can greatly improve energy utilization and reduce energy waste.




  Secondly, the Battery systems has high reliability. It adopts advanced protection circuit design, which can detect and protect abnormal situations such as overcurrent, overvoltage, and short circuit in a timely manner, effectively preventing equipment damage and safety accidents.




  In addition, the AC/DC power module also has a smaller volume and weight. Compared to traditional linear power supplies, the AC/DC power module adopts advanced power devices and packaging technology, greatly reducing the volume and weight of the entire module, making it easy to install and maintain.




  Generator sets have a wide range of applications in the field of industrial control. For example, in automated production lines, various devices require a stable power supply to ensure normal operation. The AC/DC power module can provide stable DC power to meet the power supply needs of equipment and improve production efficiency.Current converters

  In the field of communication equipment, Energy storage systems also play an important role. Whether it is a base station, fiber optic communication equipment, or mobile communication equipment, stable power supply is required. The AC/DC power module can provide efficient and reliable power conversion, providing stable power supply for communication equipment and ensuring smooth communication.




  In addition, in the field of medical equipment, AC/DC power modules are also of great significance. Medical equipment has very strict requirements for power supply, which must ensure stability, reliability, and safety. The AC/DC power module can meet these requirements and can detect and protect abnormal situations in a timely manner, ensuring the normal operation of medical equipment and ensuring the safety of patients.




  In summary, AC/DC power modules are an efficient and reliable power conversion solution widely used in industrial control, communication equipment, medical equipment, and other fields. It has the advantages of efficient conversion, high reliability, small size, and light weight. With the continuous development of technology, the technology of AC/DC power modules is also constantly improving, providing more stable and reliable power supply for various fields.
